Characteristic:

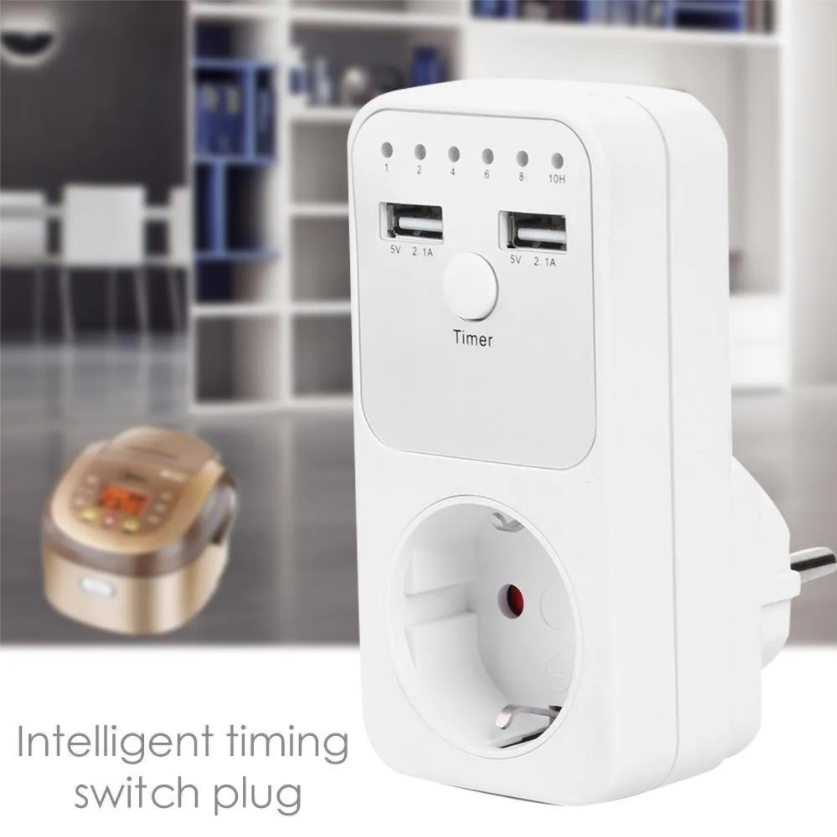

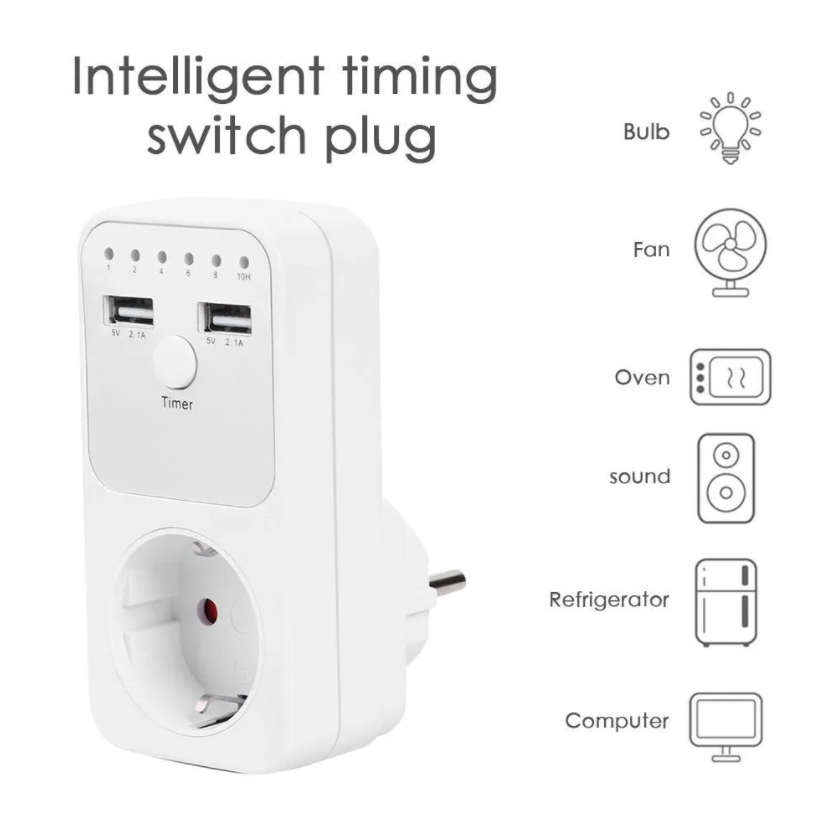

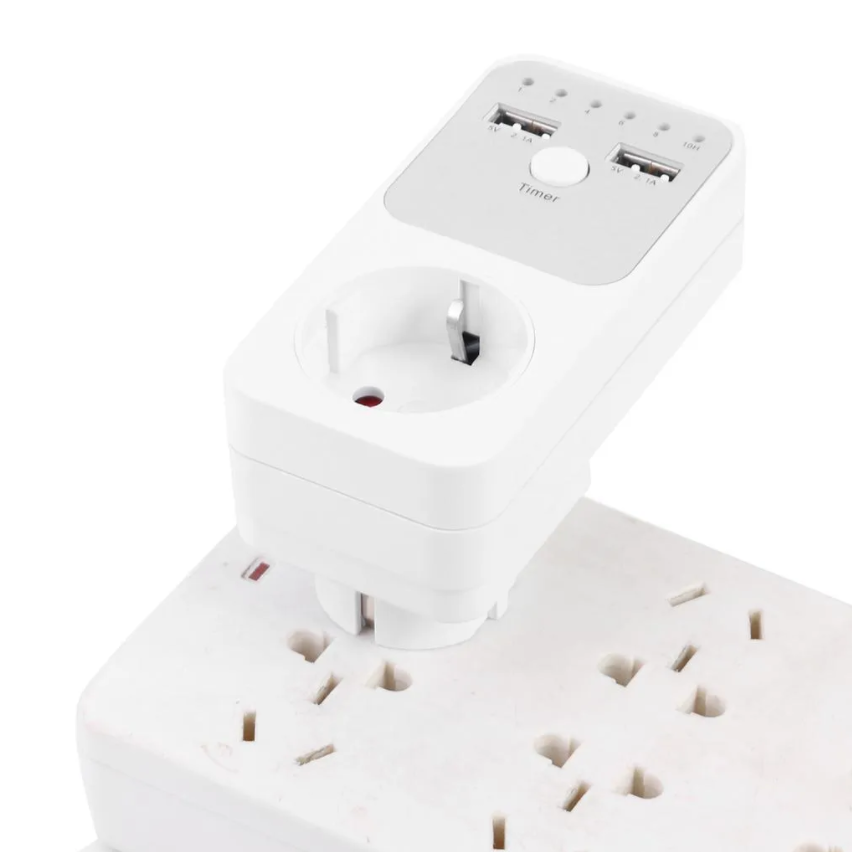

1. The socket is an ordinary converter with two outputs: 5v2a power supply and USB power supply.
2. It is very convenient to use electrical equipment and charge the equipment at the same time, such as iPhone, iPad, MP3, MP4 and other digital products.
3. A full range of international AC outputs, with no-load power consumption less than 0.3w, have short-circuit, overload and overvoltage protection functions, which can facilitate your life and save more energy.
Specifications:
No.: tmusb01

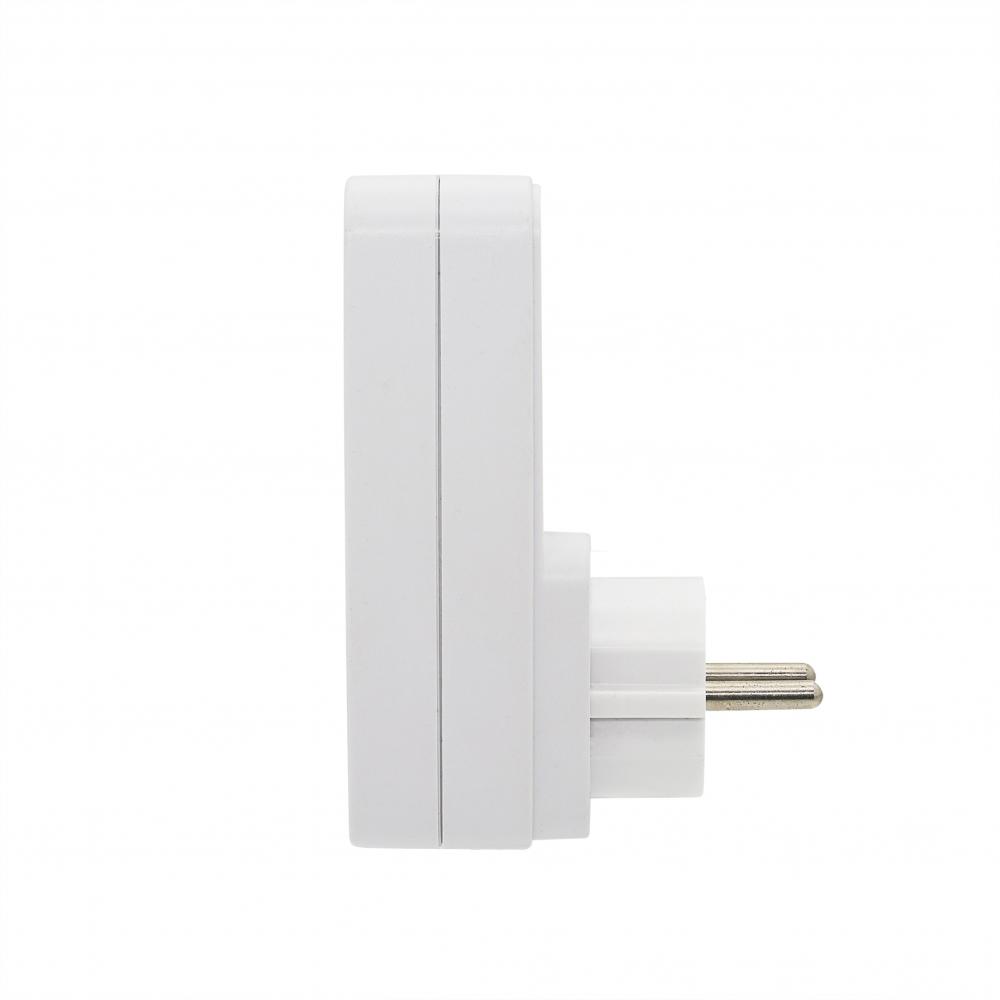

Product size: 108.5x54x69 mm / 4.27x2 12x2. 71 inches
Voltage: 230 V / 50 Hz
Maximum load power: 3680w
USB port output power: 5V, 2.1a
Working voltage: 160 ~ 260V AC
Voltage frequency: 47-63 Hz
Working current: < 16A
Time range: 1 hour to 10 hour countdown
IP level: IP20
Operating temperature: 0 ° C to + 40 ° C
Time accuracy: + - 3 minutes
Note:
A deviation of 1-3mm may occur due to manual measurement.
Due to different displays and different lighting, the image may not display the actual color of the product. Thanks for your understanding.

Function description

The socket is ordinary converter，with two output 5V2A power USB power supply at the same time，can be very convenient in use electrical appliances and recharge the equipment at the same time，such as digital products like Iphone Ipad，MP3,MP4 etc.The charge apply to full range of international AC output，no-load power consumption less than 0.3W，with short circuit，overload，over-voltage protection，can be convenient for your life and save more energy

Timer Control Time Adgustment

1.Press the power switch 1 time,the 1HOUR LED will light on.The Timer into ON mode,USB and control socket output ON .

2.Continuously press the power switch the LED light on,the Countdown mode and LED light on will cycle change from 1HR,2HR,4HR,6HR,8HR,10HR.

3.Choose you need countdown time mode,the mode LED will lighto on,start countdown until countdown time finish,the control output and USB change to OFF

4.Then the countdown is start,The Time indicate LED will from high to low auto change until Countdown finish off.

Failure analysis：

1.check whether the power supply connection is good

2.check whether the USB cable is loosen

Warning Note:

1.Use indoor and dry location ONLY

2.The load max does not exceed 16A 3680W

3.This product does not convert voltage please do not miss use DO NOT exceed the maximum loading of 3680 Watts 16A

4.Always have earth connection for safety reason

5.If in doubt please consult with a qualified electrician
