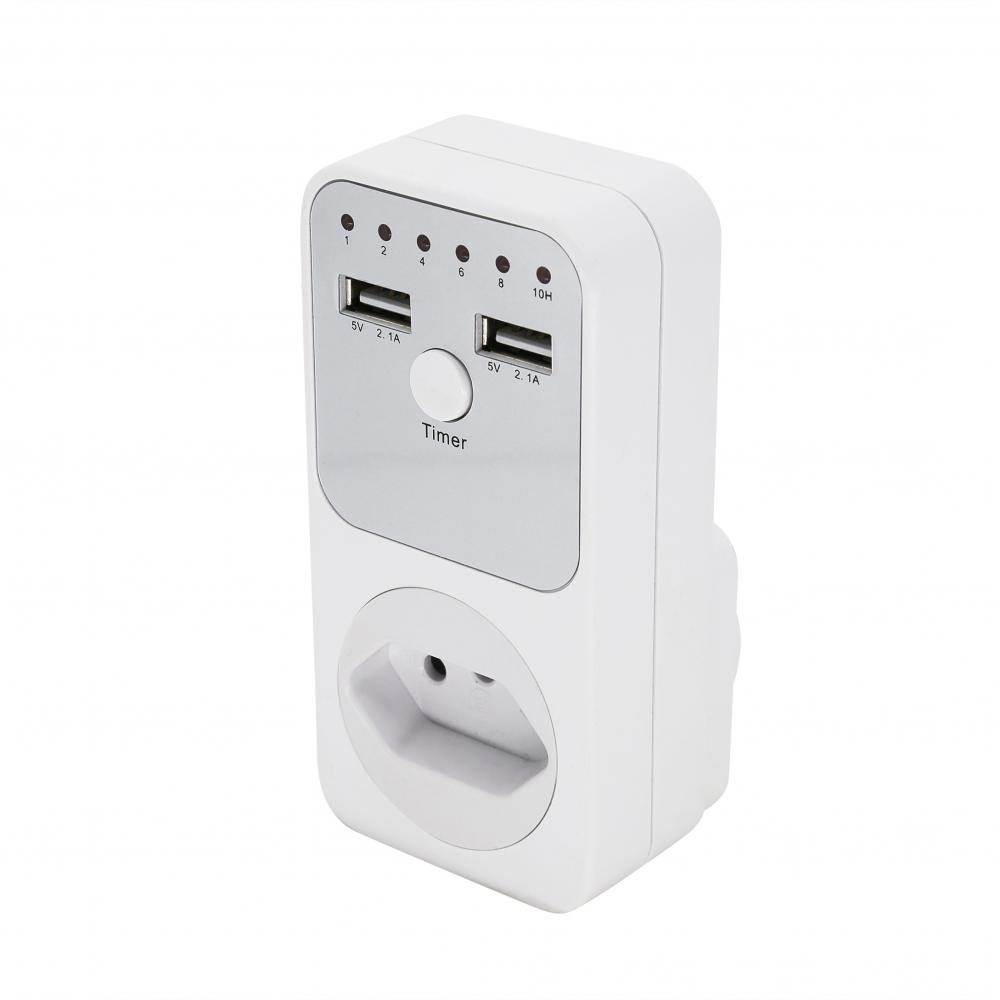

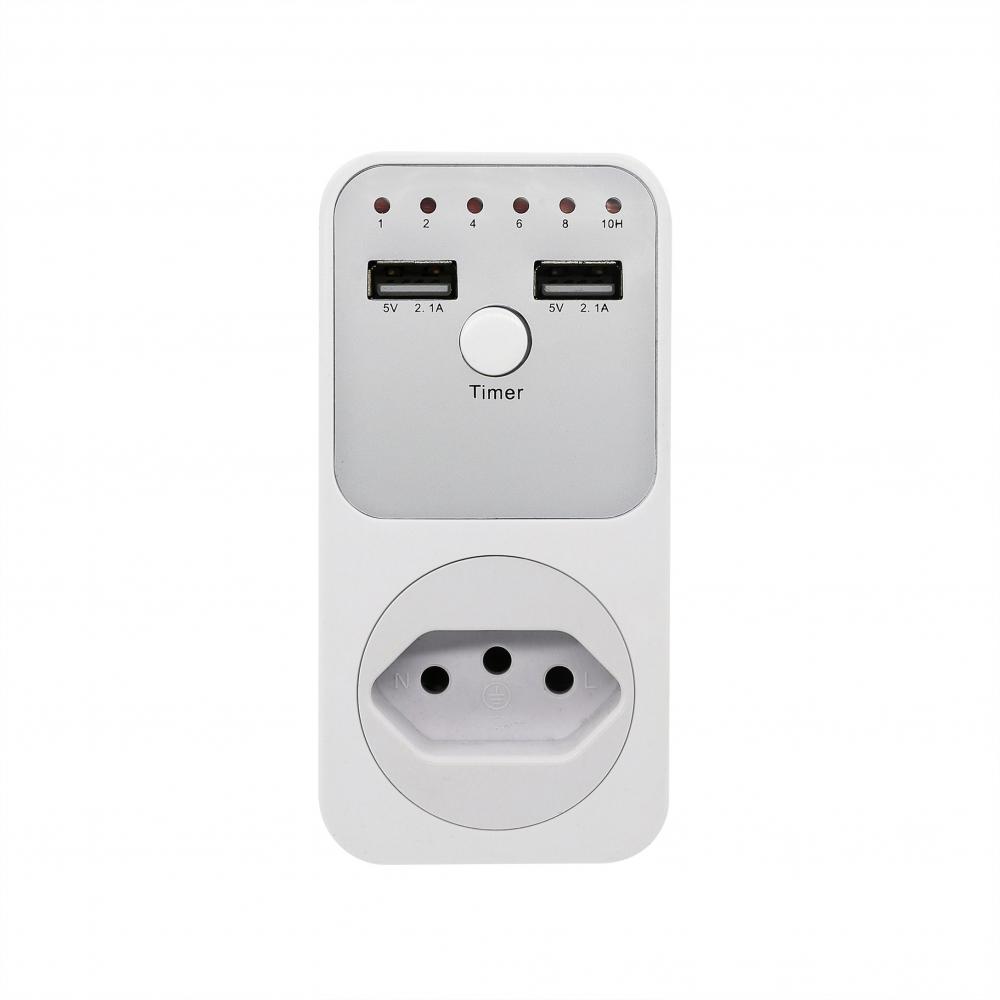

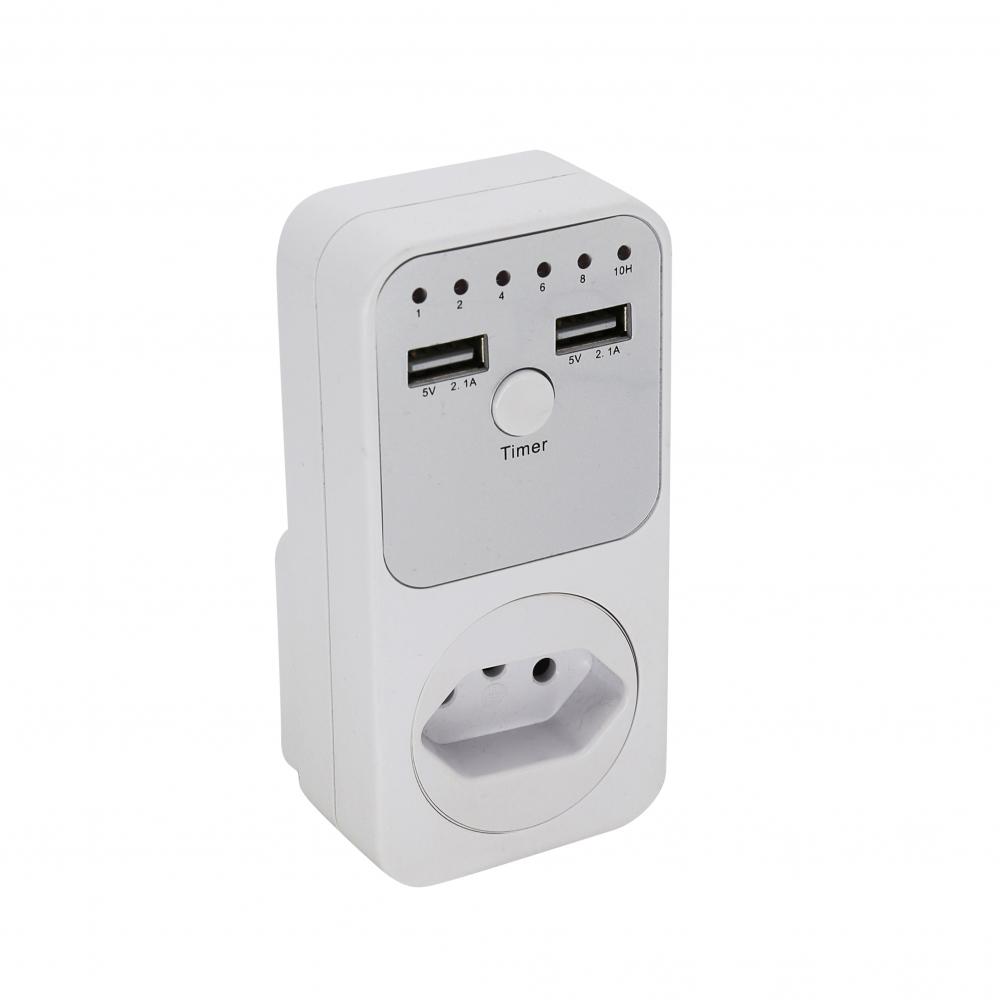

Function description

The socket is ordinary converter，with two output 5V2A power USB power supply at the same time，can be very convenient in use electrical appliances and recharge the equipment at the same time，such as digital products like Iphone Ipad，MP3,MP4 etc.The charge apply to full range of international AC output，no-load power consumption less than 0.3W，with short circuit，overload，over-voltage protection，can be convenient for your life and save more energy

Timer Control Time Adgustment

1.Press the power switch 1 time,the 1HOUR LED will light on.The Timer into ON mode,USB and control socket output ON .

2.Continuously press the power switch the LED light on,the Countdown mode and LED light on will cycle change from 1HR,2HR,4HR,6HR,8HR,10HR.

3.Choose you need countdown time mode,the mode LED will lighto on,start countdown until countdown time finish,the control output and USB change to OFF

4.Then the countdown is start,The Time indicate LED will from high to low auto change until Countdown finish off.

Failure analysis：

1.check whether the power supply connection is good

2.check whether the USB cable is loosen

Warning Note:

1.Use indoor and dry location ONLY

2.The load max does not exceed 15A 3600W

3.This product does not convert voltage please do not miss use DO NOT exceed the maximum loading of 3600 Watts 15A

4.Always have earth connection for safety reason

5.If in doubt please consult with a qualified electrician

Count down timer manual

1. No timer set up when plug to the wall socket, all Led off

2. Seting: 6 different count down timer can be set up
3. Press Set" button once time, lhour count down timer already set upwith corresponding LED on; press "set but ton again, 2 hours set up; then4hours, 6hours 8 hours and 10hours can be set up by press "set" buttonevery time. The timer will comes to lhour again after 10hours position

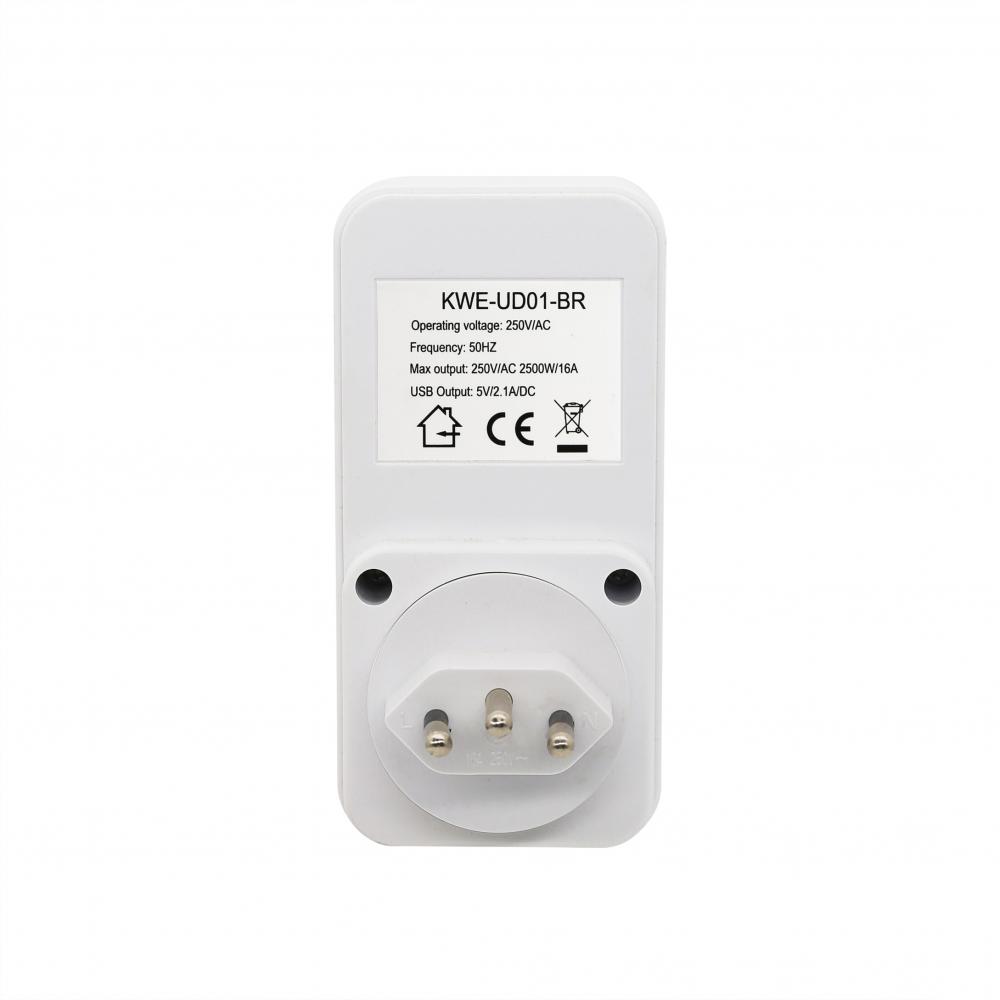

4.  Special Technical Data
Installation:
Plug-in Typ:  USB interface EU US UK  AU BR FR
Voltage:240V/50Hz
Max Power current:AC/10-16A/1800w-3680W
Operating Temperatures:-10  +40 C
5. Package Contents
1 x Countdown timer socket (Plug type accoring your order)
1 x Instruction manual
