Customized SS304 or S316L Multi-function Herbal Extraction Tank - JHENTEN JTRDC-8000

Video

1 / 6

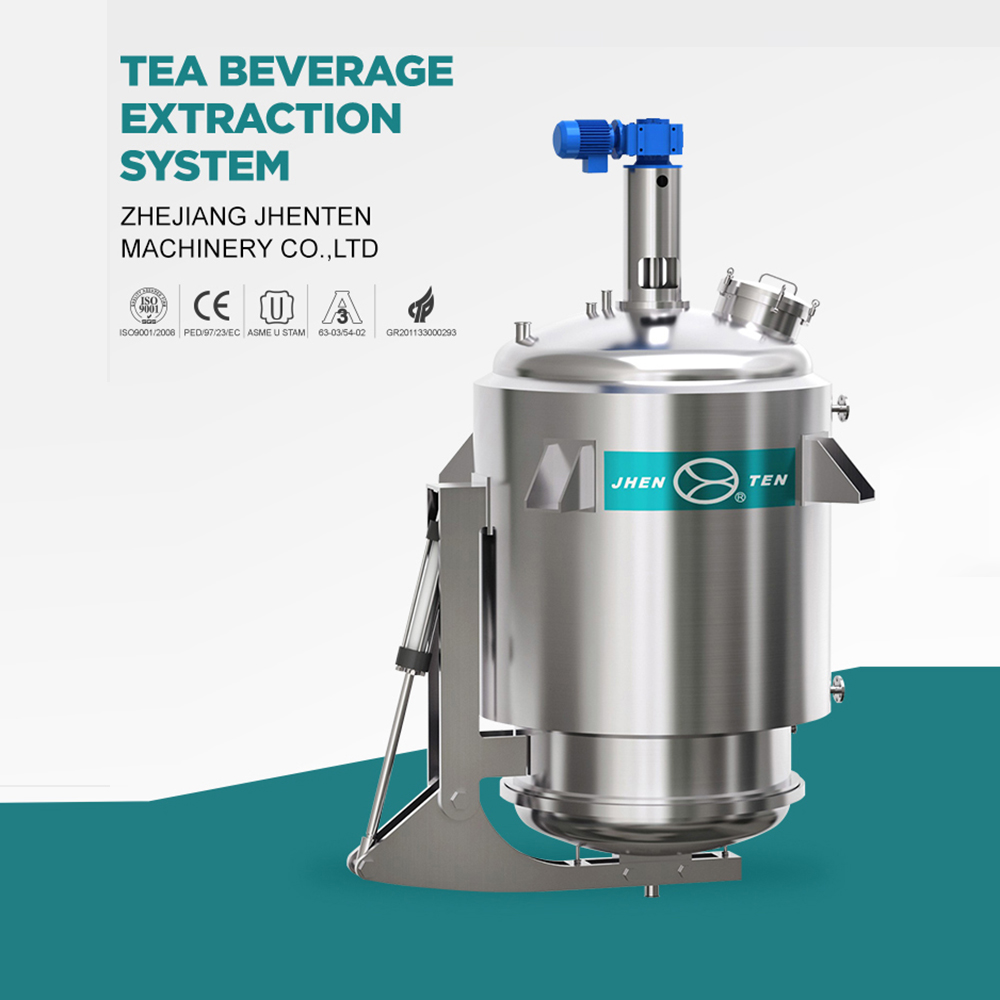

Customized SS304 or S316L Multi-function Herbal Extraction Tank - JHENTEN JTRDC-8000

$50000.00

≥1 set

Options:

JTRDC-8000

Get Latest Price

You might also like

Customized SS304 or S316L Multi-function Herbal Extraction Tank - JHENTEN JTRDC-8000

1 set (MOQ)

JHENTEN JTRDC-8000 Customized 8000L Multi-function Extraction Tank System for Essential Oil

1 set (MOQ)

Customized Multi-function Tea Extraction Tank JHENTEN JTRDC-8000

1 set (MOQ)

Customized SS304 or S316L Multi-function Extraction Tank for Tea - JHENTEN JTRDC-5000

1 set (MOQ)

Customized Mobile Storage Tank for Essential Oils - JHENTEN JTRDC-5000 Multi-function Vertical Extraction System

1 set (MOQ)

Ultrasonic Herb Extract Tank Machine for Manufacturing Industries with PLC Core Components

1 set (MOQ)

Ultrasonic Herb Extract Tank Machine for Manufacturing Industries with PLC Core Components

1 set (MOQ)

Customized Multi-function Herbal Extraction Tank JHENTEN JTRDC-5000

1 set (MOQ)

Customized Mobile Storage Tank for Essential Oil Extraction - JHENTEN JTRDC-8000

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Jhenten
Condition	New
Video Outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing type	Hot Product 2019
Warranty Of Core Components	1 Year
Core components	Pressure Vessel
Dimension(LWH)	custom
Capacity	custom, 100- 30000L
Volume (m3)	adjustable
Inner Material	adjustable
Outer Material	adjustable
Design Pressure(MPa)	adjustable
Max Working Pressure(MPa)	1 Mpa
Design Standard	NB/T 47003.1-2009
Warranty	1 Year
Key Selling Points	Easy To Operate
Applicable Industries	Manufacturing Plant, Food & Beverage Factory
Showroom Location	None
Material	SS304 or SS316L
Surface Finish	Matt polish or Mirror polish or 2B
Operate pressure	ATM or 0-10Bar
Operate temperature	0-200Degree
Construction	Vertical Type
Component	Manhole ,Inlet/outlet

Product description

Why Choose Us

Products Description

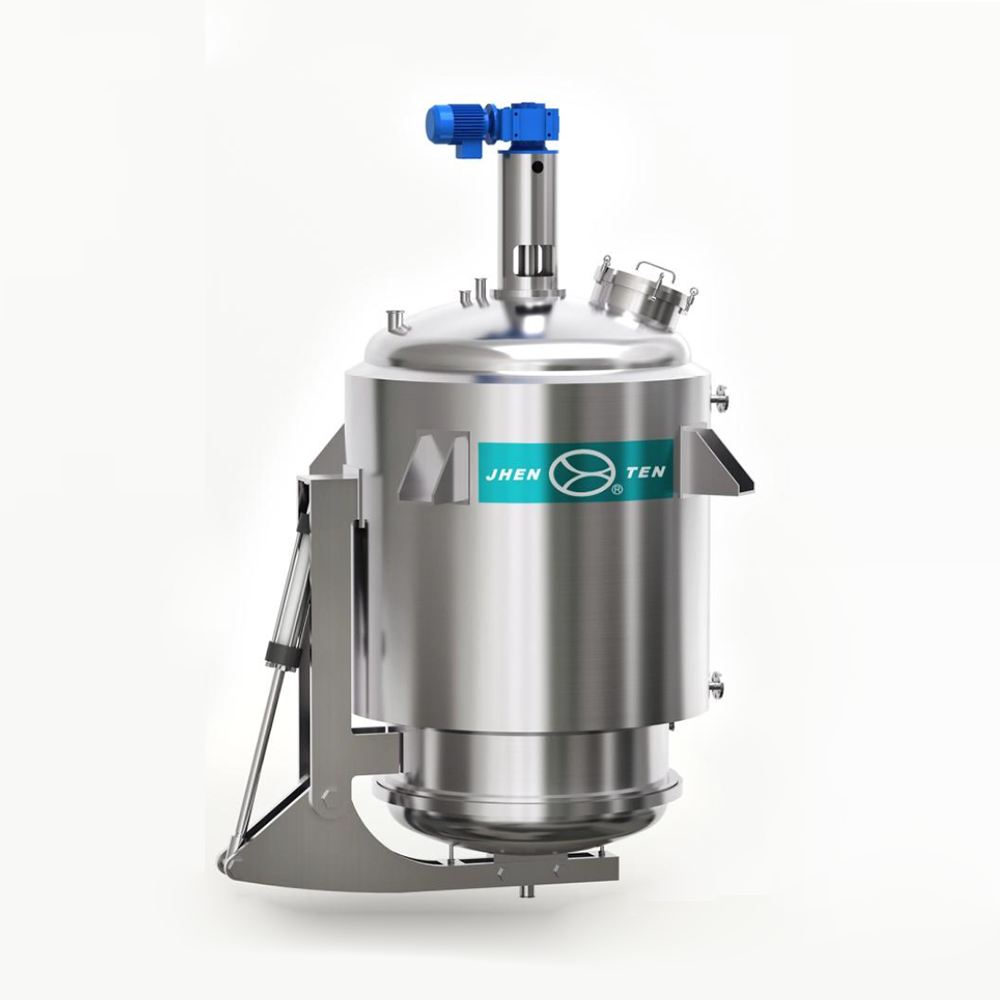

Multi-function Extraction Tank

Multi-function Extraction Tank is designed, manufactured andinspected in accordance with the pressure vessel
standard(GB150-2011)and the steel welded atmospheric pressure vesselstandard(NB/T 47003.1-2009),strictly meeting GMP certificaterequirements.

Tank Optional Configuration

Mobile Storage Tank Optional Configuration: sterile air filter,thermometer (digital display type or dial), pressure gauge,
sightglasses, sanitary manhole, in-outlet, ClP universal rotatingcleaning ball, level gauge, etc., or configured according
tocustomers requirements.

Feature

1.There are varieties of volume from 2000L~8000L, also it can bedesigned and customized according to the customers"requirements.

2.Pneumatic control self-ocking type discharge door ensures noleakage and it is fast and safe under the sudden electricity offand gas off.

3.Connector uses tri-clamp, inner tank use SS304 or $S316L, theinner surface mirror polishing Ras0.28 μm ~0.6 μ m. Outersurface can be polished, wiredrawn, sandblasted according toCustomer'srequirement.

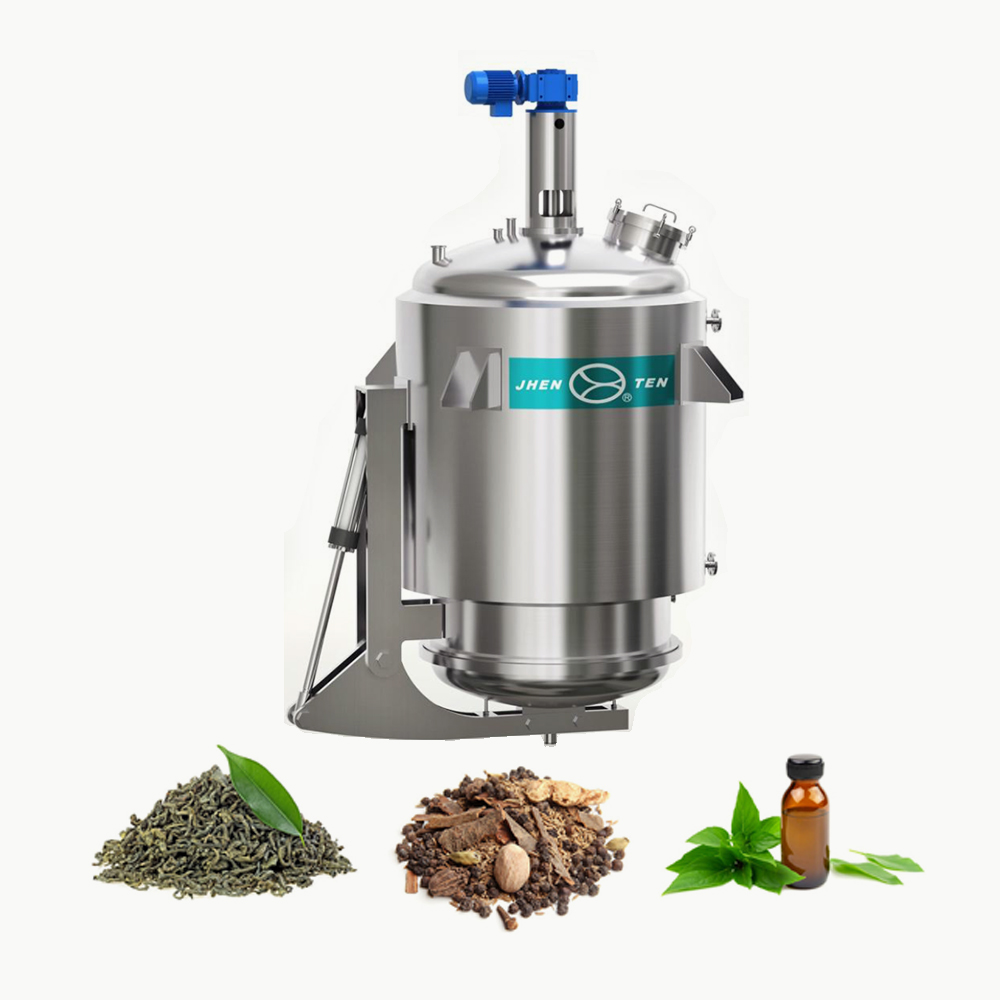

Application

Suitable for food, atmospheric, decoction, wet leaching, heatreflux,forced circulation penetration, aromatic oilextraction and
organic solvent recovery,especiallly for Dynamic extraction orcountercurrent extractio, short time and highcontent of
material.Suitable for dynamic extraction of tea, herbs andother plant leaves with water as solvent medium.
