Diesel Engine Conductor Stringing Puller

Video

1 / 7

Diesel Engine Conductor Stringing Puller

$45000.00 ~ $76000.00 / Piece/Pieces

Get Latest Price

You might also like

280kN Heavy Duty Conductor Pulling Machine

$45000.00

1 Piece/Pieces (MOQ)

Diesel Engine Conductor Stringing Puller

$45000.00

1 Piece/Pieces (MOQ)

Automatic Hydraulic Stringing Trolley Puller

$45000.00

1 Set/Sets (MOQ)

Gasoline Engine Powered Cable Puller Winch

$3800.00

1 Set/Sets (MOQ)

Overhead Power Line 42T Hydraulic Cable Puller Machine

$78000.00

1 Set/Sets (MOQ)

Overhead Power Line Hydraulic Cable Conductor Puller

$80000.00

1 Set/Sets (MOQ)

Stringing Equipment Overhead Line 9Ton Cable Puller

$115000.00

1 Set/Sets (MOQ)

Transmission Power Line Hydraulic Puller For Pulling

$110000.00

1 Set/Sets (MOQ)

4T Hydraulic Cable Conductor Winch Puller

$115000.00

1 Set/Sets (MOQ)

18T Hydraulic Cable Pulling Puller

$115000.00

1 Set/Sets (MOQ)

Basic Info

Model No.	TY150
Brand Name	MARSHINE
Model	TY150
Max intermittent pull (KN)	150
Max continuous pull (KN)	120
Speed at max pull(km/h)	2.5
Max speed (km/h)	5
Pull at max speed (KN)	60
Diesel kw(hp)	129(173)
Cooling system	Water
Electrical system (V)	24
Bull-wheel diameter (mm)	600
Groove number	10
Max rope diameter (mm)	24
Max diameter of rope reel (mm)	1600
Total weight (kg)	5500
Customization	Acceptable
Warranty	1Year
Certifications	ISO9001
Brand	MARSHINE
Lead Time	15-20
MOQ	1pcs

Product description

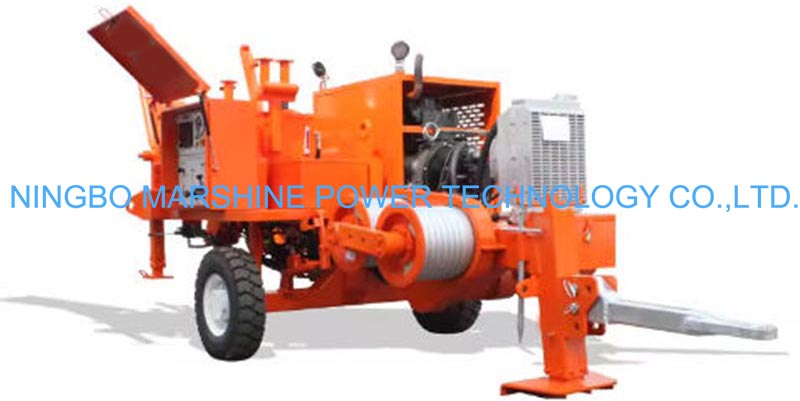

Diesel Engine Conductor Stringing Puller

The MARSHINE is a professional manufacturer of high voltage transmission line construction equipment and focused on supplying trustworthy hydraulic pullers, tensioners and complete stringing solutions for engineering projects all over the world. The MARSHINE Diesel Engine Conductor Stringing Puller is a heavy-duty tensioner machine for stringing heavy conductors and cable pulling. It adopts heavy structure design, accurate hydraulic control and high power system to meet the high demands of long distance over head line construction.?

The drum type cable puller can output an intermittent traction force of 150KN, and it can work for heavy conductor pulling operation without any problem.?

It can provide the traction force up to 120KN in stable performance during long-term construction.?

The maximum continuous pull speed can be as high as 5km/h, which can realize an effective hierarchy of construction efficiency.?

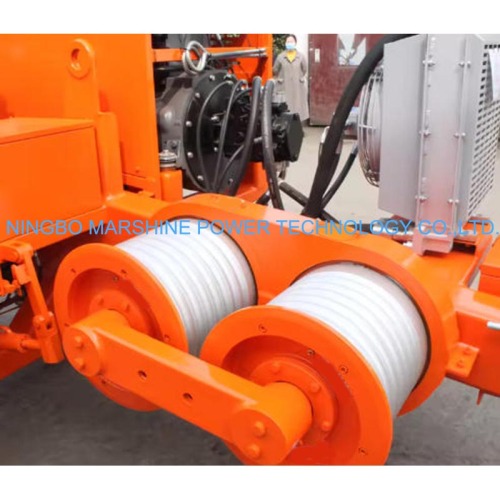

A 600mm diameter multi-groove traction wheel is used to guarantee that the wire rope runs smoothly.?

The MARSHINE Diesel Engine Cable Puller can handle wire ropes up to a diameter of 26mm applicable for long distance heavy load pulling.?

This self propelled cable puller is suitable for overhead transmission line construction, it can pull large sectional conductor for long distance work.?

It is a critical equipment in the new power grids, which can provide a steady 150KN tension for trunk line erection.?

This MARSHINE Diesel Engine Cable Puller is help to emergency?power construction restoration, which can pull temporary conductors quickly, and reduce power off time.?

For big construction teams, this machine is perfect and works with tensioners to make a full overhead line system.?

Product Parameter

Model	TY150
Max intermittent pull (KN)	150
Max continuous pull (KN)	120
Speed at max pull (km/h)	2.5
Max speed (km/h)	5
Pull at max speed (KN)	60
Diesel kw(hp)	129(173)
Cooling system	Water
Electrical system (V)	24
Bull-wheel diameter (mm)	600
Groove number	10
Max rope diameter (mm)	24
Max diameter of rope reel (mm)	1600
Total weight (kg)	5500
