Gasoline Engine Powered Cable Puller Winch

Video

1 / 7

Gasoline Engine Powered Cable Puller Winch

$3800.00 ~ $7800.00 / Set/Sets

Get Latest Price

You might also like

Diesel Engine Conductor Stringing Puller

$45000.00

1 Piece/Pieces (MOQ)

Automatic Hydraulic Stringing Trolley Puller

$45000.00

1 Set/Sets (MOQ)

Gasoline Engine Powered Cable Puller Winch

$3800.00

1 Set/Sets (MOQ)

Overhead Power Line 42T Hydraulic Cable Puller Machine

$78000.00

1 Set/Sets (MOQ)

Overhead Power Line Hydraulic Cable Conductor Puller

$80000.00

1 Set/Sets (MOQ)

Stringing Equipment Overhead Line 9Ton Cable Puller

$115000.00

1 Set/Sets (MOQ)

Transmission Power Line Hydraulic Puller For Pulling

$110000.00

1 Set/Sets (MOQ)

4T Hydraulic Cable Conductor Winch Puller

$115000.00

1 Set/Sets (MOQ)

18T Hydraulic Cable Pulling Puller

$115000.00

1 Set/Sets (MOQ)

Hydraulic Puller for pulling conductors on transmission line

110000 Set/Sets (MOQ)

Basic Info

Model No.	JJCS-50T
Brand Name	MARSHINE
Video factory inspection	Provided
Mechanical test report	Provided
place of origin	China
warranty period	1 Year
Core components	Engine
Model	JJCS-50T
Engine Model	S195G Diesel Engine
Engine Power (kW)	9
Engine Speed (RPM)	2000
Pull Force (kN) - Slow	50 / 31.40 / 9.6
Pull Force (kN) - Moderate	45 / 71.17 / 22.3
Speed (m/min) - Fast	33 / 11.3 / 10 / 35.6
Speed (m/min) - Reverse	- / 7.35
Drum bottom of groove diameter (mm)	Φ300
Outline size (mm)	244013001140
Weight (kg)	700
Customization	Acceptable
Warranty	1Year
Certifications	ISO9001
Brand	MARSHINE
Lead Time	15-20
MOQ	1pcs

Product description

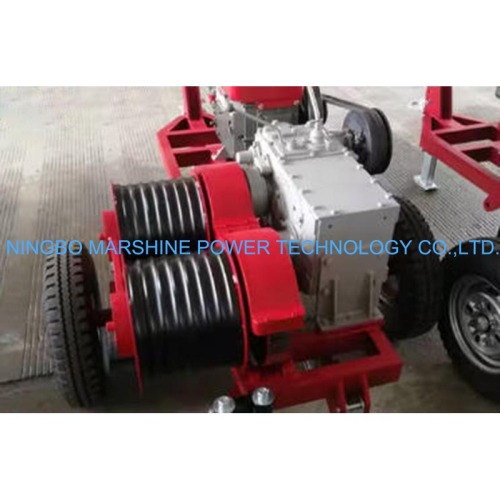

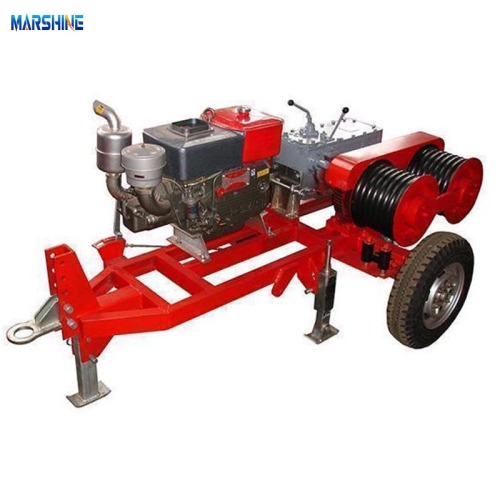

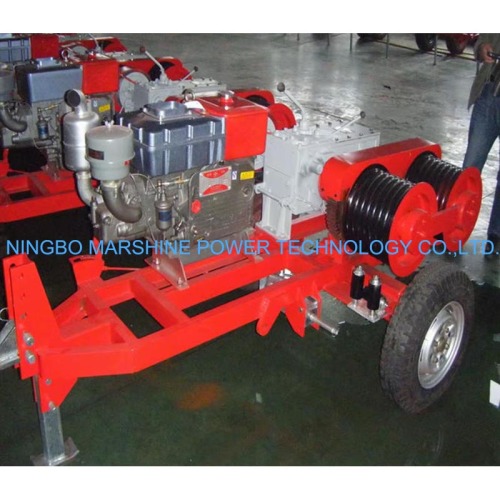

Gasoline Engine Powered Cable Puller Winch

The MARSHINE is committed to delivering strong and high quality products that assist power and transmission dealers in laying cable safely and efficiently. The MARSHINE Gasoline Engine Powered Cable Puller Winch is a powerful diesel driven machine for big size cable laying and conductor tensioning, so that to ensure stable and reliable?tension. It is designed for the needs of line emergency repair crews to roll out replacement conductors quickly and minimize downtime following a power outage.?

Driven by an S195G diesel engine, the MARSHINE Gasoline Engine Powered Cable Puller Winch makes 9kW power at 2000rpm, which can make the working machine performance good for heavy duty applications.?

Its tension range is 50kN, 31kN, 40kN and 9.6kN, which make it suitable for different tasks based on load.?

Three speed modes are available for accuracy information on the control?of unwinding and rewinding of the cable.?

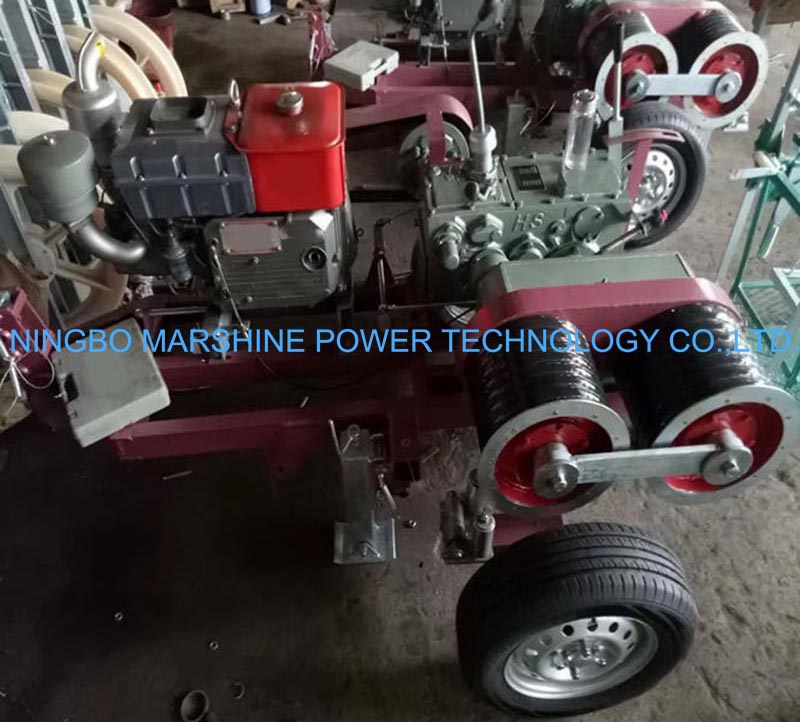

Due to the diesel engine winch has two drums, the cable can be unwound and rewound simultaneously, so that can enhance work efficiency.?

This dual drum winch is used for overhead high-voltage trans-mission line construction with conductor unwinding to produce 50 kN of tension for long distance.?

As a critical instrument for transmission line replacement, the MARSHINE Motorized Winch employs a medium speed to tension replacement conductors.?

It is especially suited for rural electrification to allow the stringing of heavy cables into the boonies at a controlled reverse speed.?

It also enables renewable energy grid access by tensioning transmission cables from wind farms to the grid.?

Product Parameter

Item No.	09151	09152	09162
Model	JJCS-50J	JJQS-50J	JJCS-50T

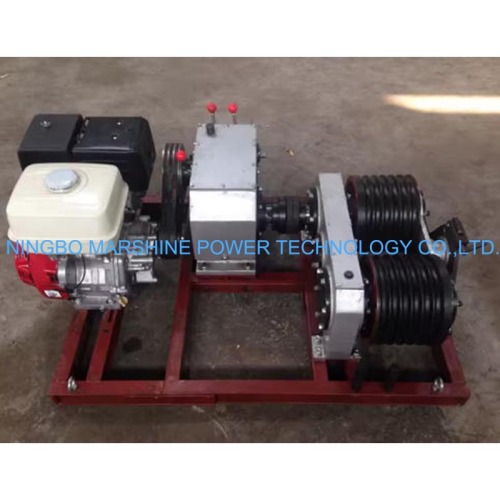

Engine Model	KF186A Diesel Engine	Honda 390 Gasoline Engine	S195G Diesel Engine
Engine Power (kW)	6.3	6.6	9
Engine Speed (RPM)	2600	3600	2000
Pull Force (kN) - Slow	50 / 6.0 / 30 / 10	50 / 6.0 / 30 / 10	50 / 31.40 / 9.6
Pull Force (kN) - Moderate	/	/	45 / 71.17 / 22.3
Speed (m/min) - Fast	13 / 23 / 10 / 30	13 / 23 / 10 / 30	33 / 11.3 / 10 / 35.6
Speed (m/min) - Reverse	- / 5 / - / 17	- / 5 / - / 17	- / 7.35
Drum bottom of groove diameter (mm)	Φ230	Φ230	Φ300
Outline size (mm)	1280770600	1280770600	244013001140
Weight (kg)	280	270	700
