Diesel Pile Hammer Drilling Guide
Options:
- DD 128
- none
Basic Info
| Efficiency | 100 |
|---|---|
| Piling Speed(m/min) | 10 |
| Place of Origin | Jiangsu, China |
| Brand Name | JULI |
| Dimension(L*W*H) | 1m*0.9m*4.5m |
Product description

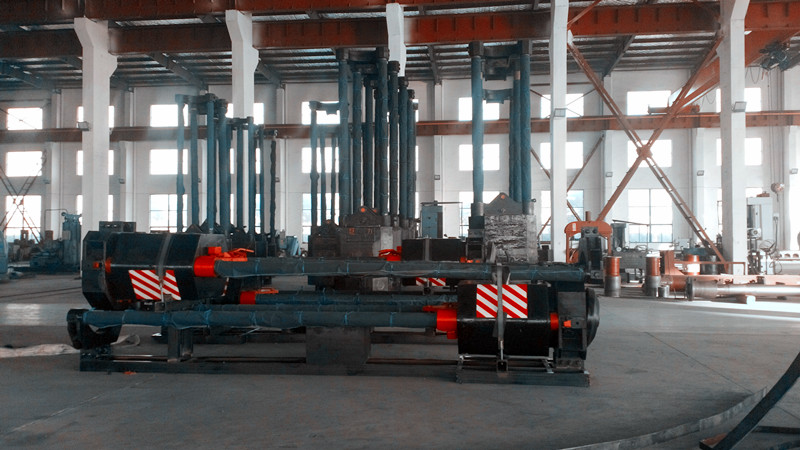

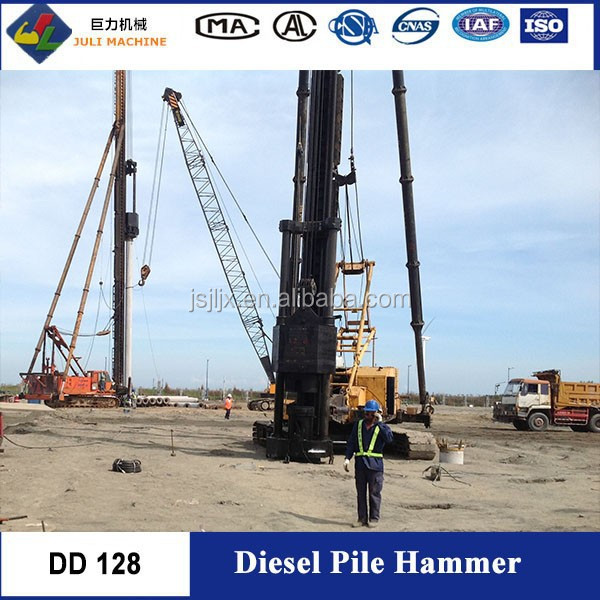

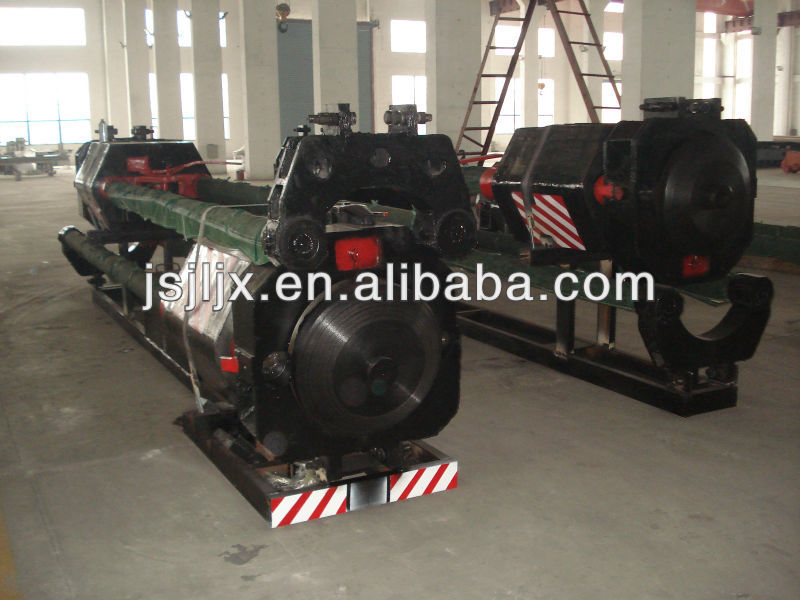

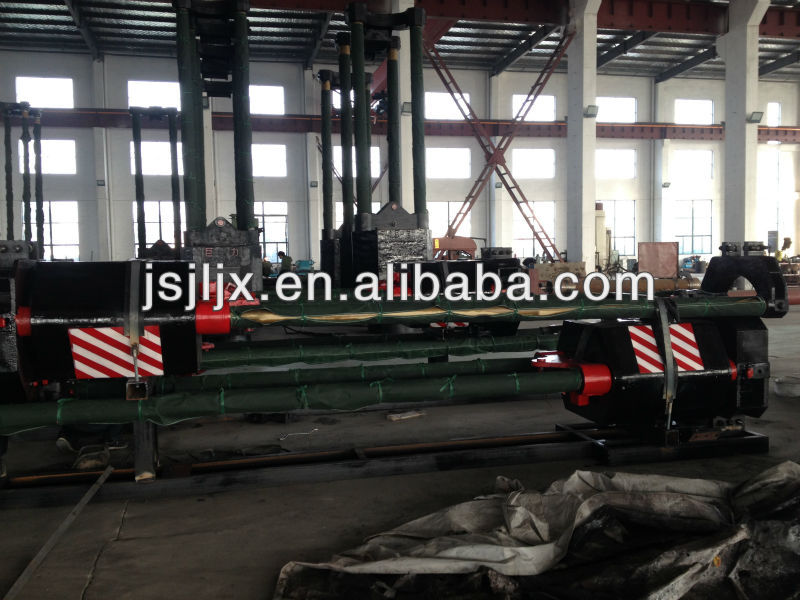

? DD 128 Diesel pile hammer
?
?Features
1.?Working?based?on?two?stroke?internal?combustion?diesel?engine?principle
2.?Soft?soil?starting,?cold?starting?very?well
3.Simple?structure,?convenient?for?maintain
4.?Combine?with?our?company?walking?pile?frame,?and?reach?a?good?performance
5. Our diesel pile hammer be widely?used?for?metal?stake,?concrete?stake,?infuse?stake?and?tamp?stake
6.?Application:?Port,?wharf,?airport.?Superhighway,?railroad.?High?foundation?building
?
SPECIFICATION ?
?
Hammer TYPE | DD103 | DD113 | DD128 | DD160 | DD180 | DD200 |
Cylinder?weight(kg) | 10300 | 11300 | 12800 | 16000 | 18000 | 20000 |
Max.cylinder?stroke(m) | 2.5/3.0 | 2.5/3.0 | 2.5/3.0 | 2.5/3.0 | 2.5/3.0 | 2.5/3.0 |
Frequency (times/min) | 35-50 | 35-50 | 35-50 | 35-50 | 35-50 | 35-50 |
Max.self?weight?energy (KJ) | 309 | 330 | 398 | 455 | 549 | 603 |
Oil?consumption (L/h) | 24 | 24 | 28 | 40 | 48 | 51 |
Force?of?explosion?on?pile(KN) | 2935 | 3200 | 3400 | 4000 | 4510 | 4768 |
Suitable?for?driving?pile’s?max?weight(kg) | 30000 | 34000 | 38000 | 48000 | 55000 | 60000 |
compression?ratio | 22 | 22 | 22 | 28 | 30 | 30 |
The?total?weight(kg) | 17500 | 19000 | 22000 | 28700 | 35000 | 39000 |
Form?of?guide?track | Circular?tube | Circular?tube | Circular?tube | Circular?tube | Circular?tube | Circular?tube |
Center?distance?of?guide?track(mm) | 600 | 600 | 600 | 600 | 600 | 600 |
Piston?diameter(mm) | 650 | 690 | 700 | 760 | 810 | 810 |
Piston?path(mm) ? | 850 | 885 | 920 | 930 | 1030 | 1030 |
?
?

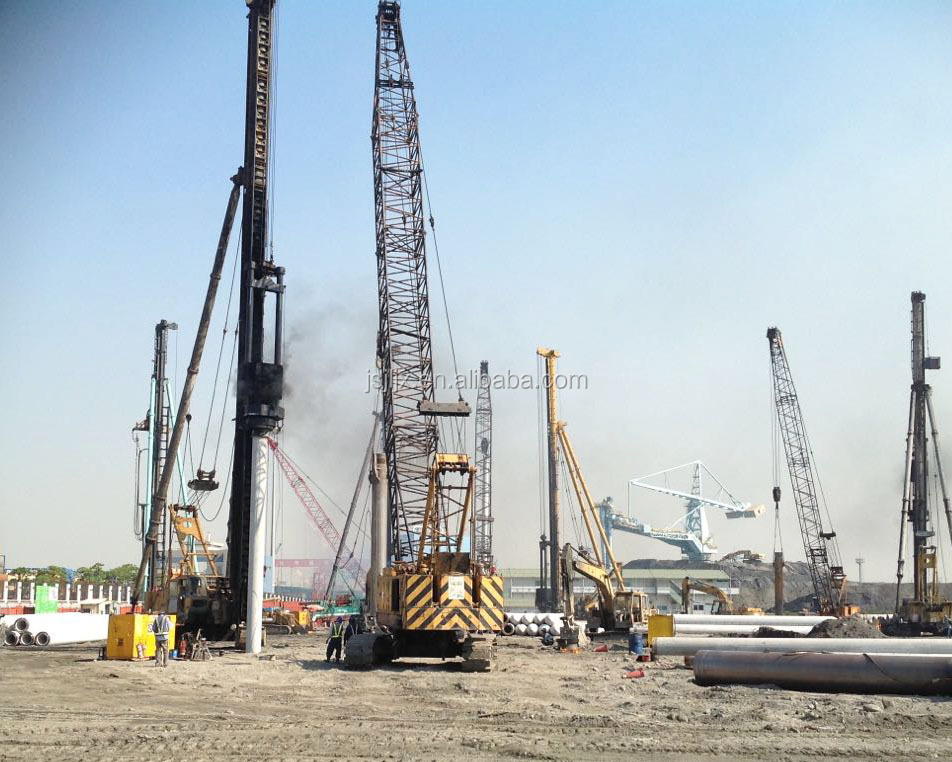

DD 128 at Taiwan

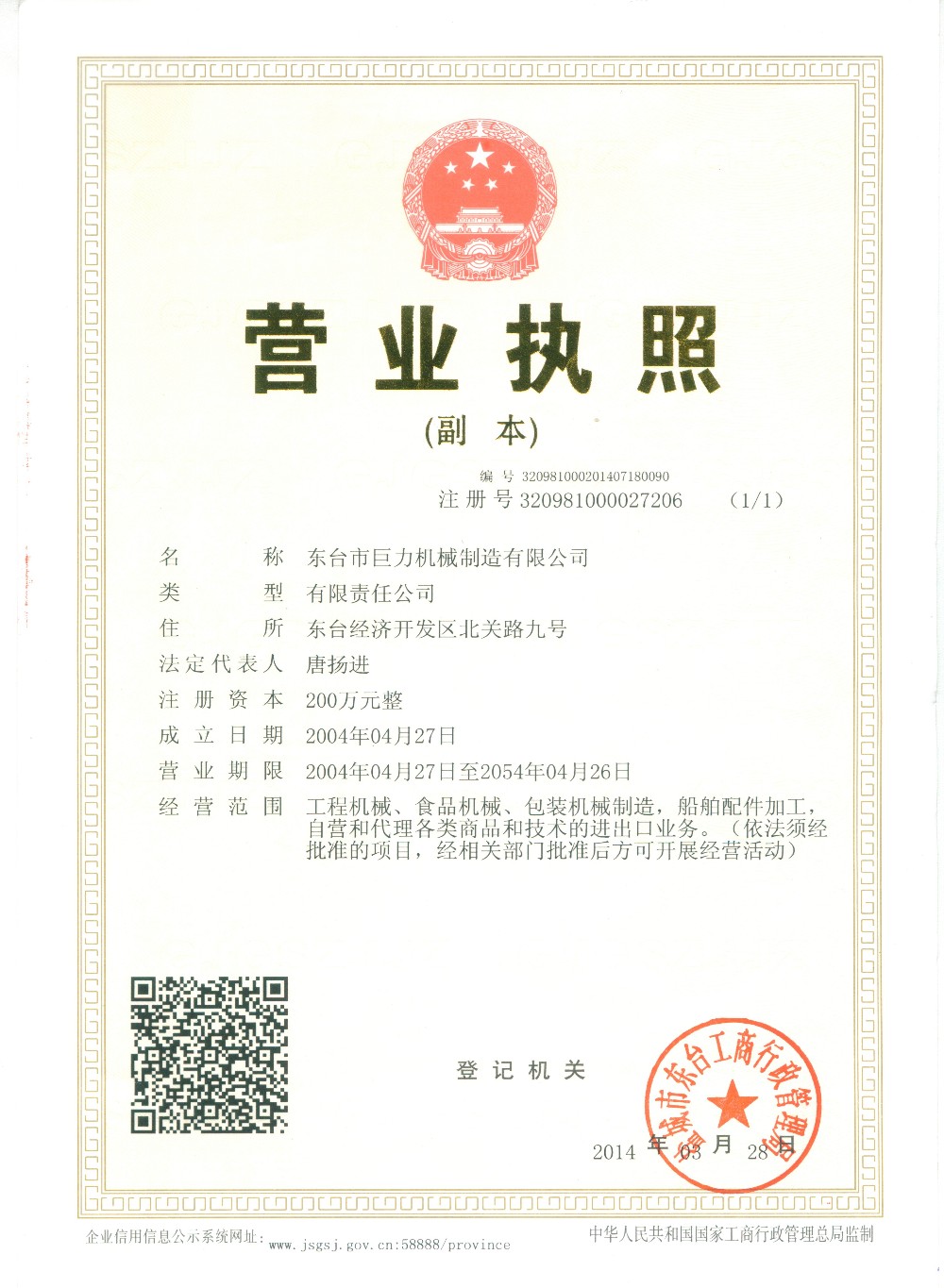

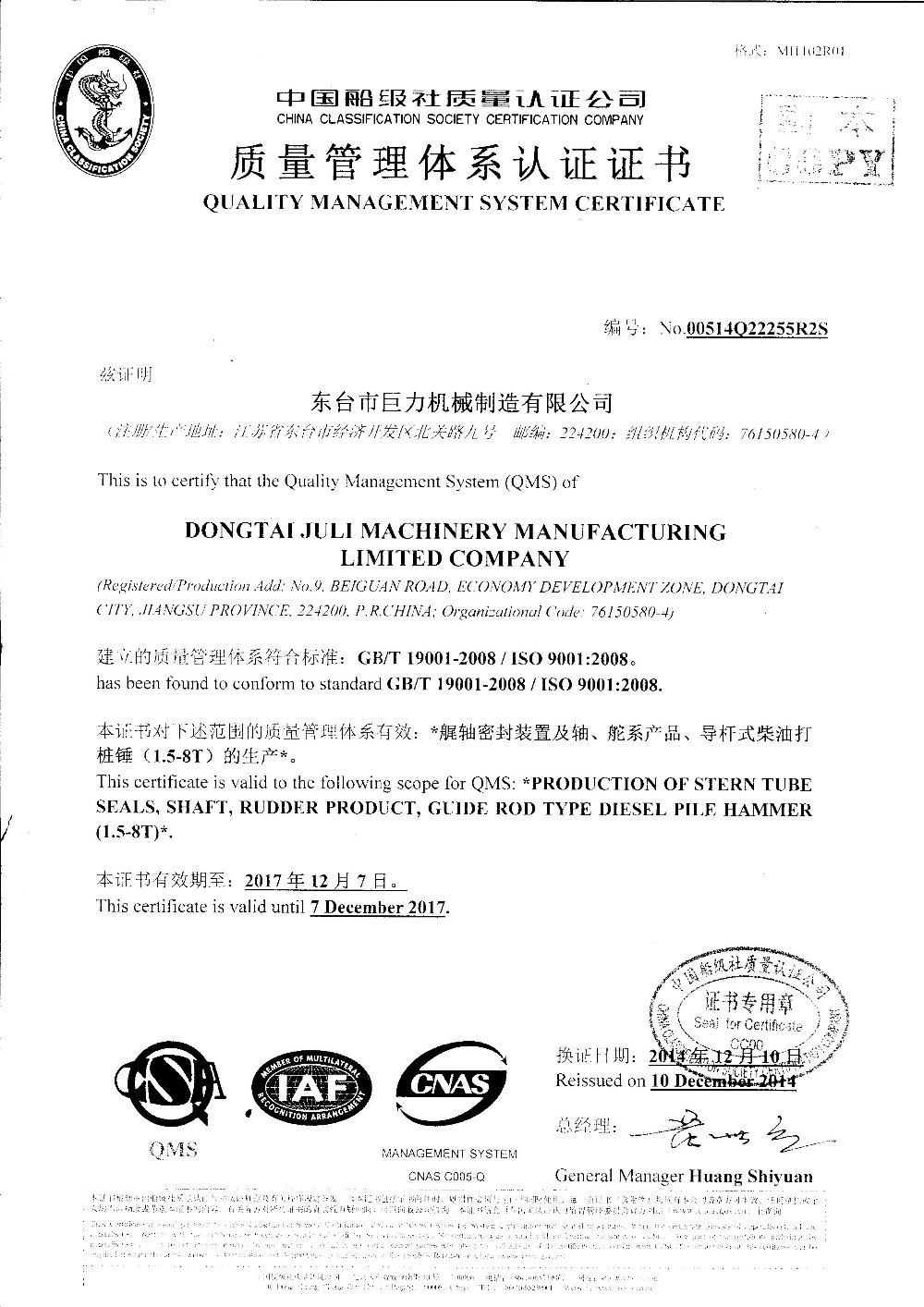

?We are one of the most famouse manufacturer of construction mchinery in China over 11 years, certificate with ISO9001:2008, products and services include?
-Hydraulic static pile driver?
-Horizontal directional drilling machine?
-Diesel pile hammer?
-Various pile driver?
We aim at provide the great service,speedy delivery,high quality and best price for clients all over the world.
?
