Features:

?

? A wide range of measurement and control, 1-1,000mbar

? Two control modes of single-point control and programmed control available for choice as needed

? Can store up to 5 programs, each containing up to 5 segments of programming control

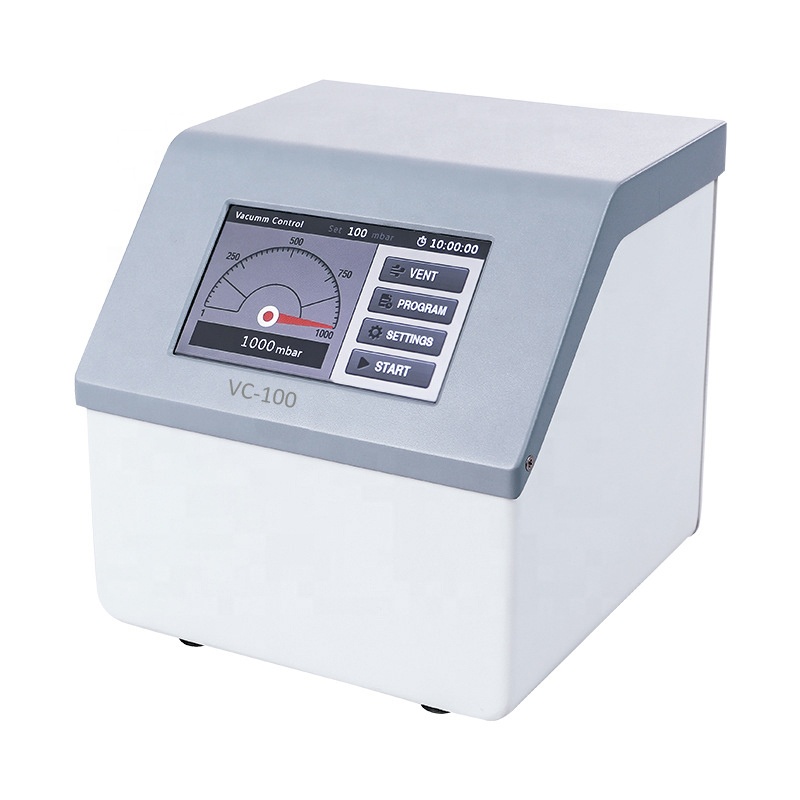

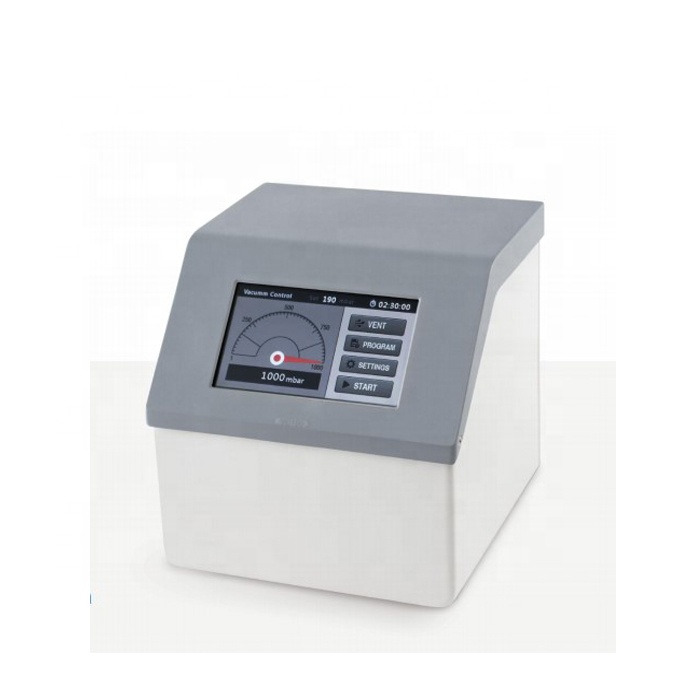

? A large-size TFT touch screen display control allows easy operation

? All parts in contact with vapor or liquid are made of PTFE, ceramics or other high-performance materials and can effectively resist corrosion caused by organic solvents, water, acid ?????and alkali

? A built-in vent valve can feed inert gas into system equipment

? One-stroke decompression allows easy installation and dismantling of vacuum system

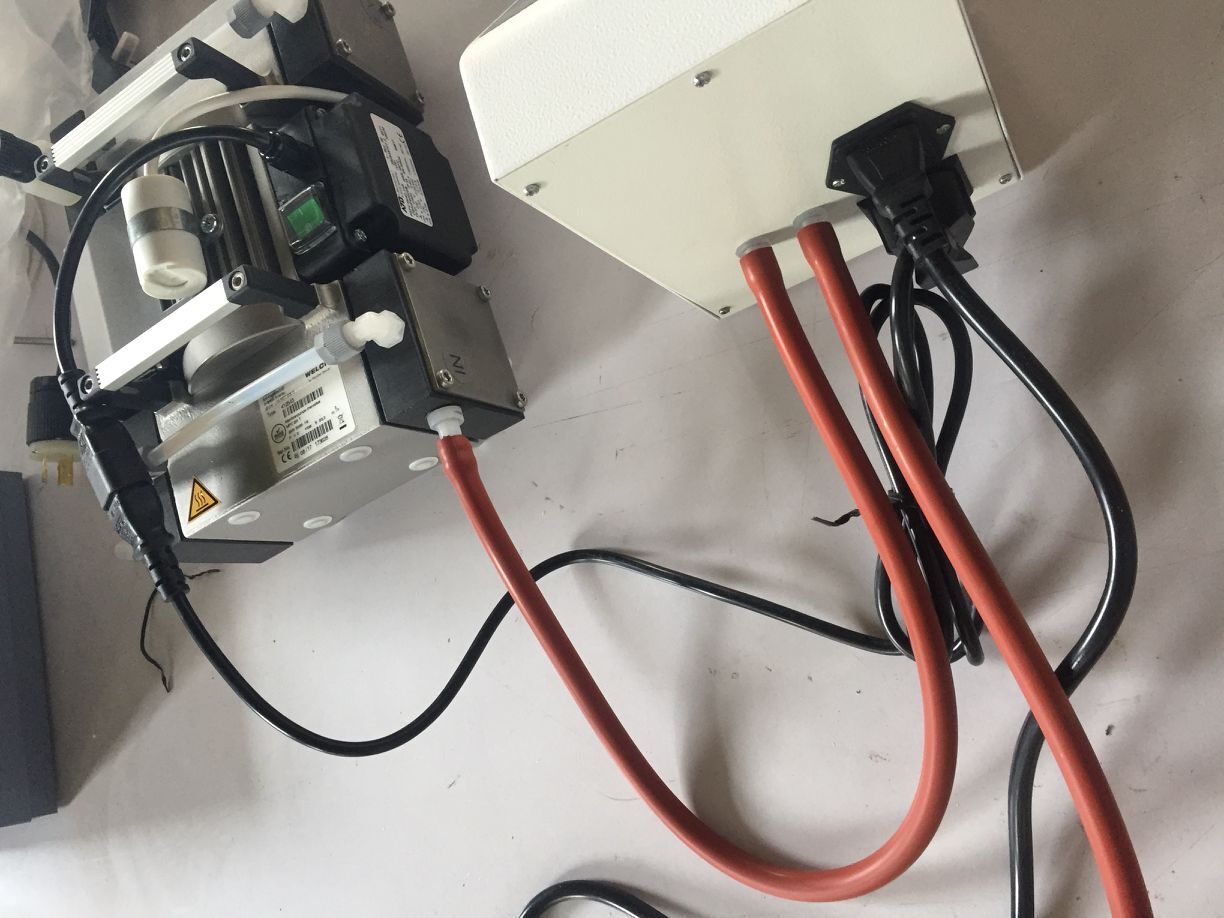

? Can be connected with pump power control for temporary shutdown of pump power supply after reaching stable degree of vacuum for energy conservation and environmental protection.

? Can also be operated in the normally open statue of pump

??Reliable and functional design to fulfill essential needs of precise vacuum regulation

?

Technical Data:

Model	VC100
Vacuum setting range	1-1000mbar

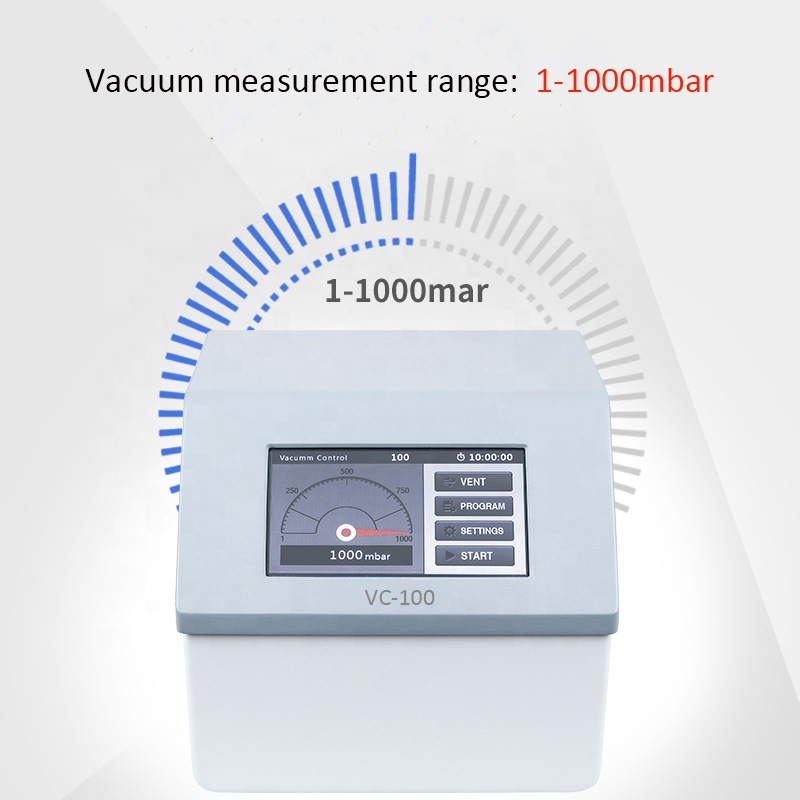

Vacuum measurement range	1-1000mbar
Control operation mode	Single-point control mode Programmed control mode
Control program	Can store up to 5 programs, each containing 5 -step control ?(capable to set the degree of vacuum and time)
Sensor overload pressure	1,500mbar
Connector diameter	8mm
Materials in contact with vapor	PTFE, PP, silicone and ceramics
Power	600W
Suitable Vacuum Pump : Maximum 550W	Diaphragm Vacuum Pumps 1L/s, 2L/s Two Stage Rotary Vane Vacuum Pump: 1L/s, 2L/s(4.3 CFM), 4L/s., etc.

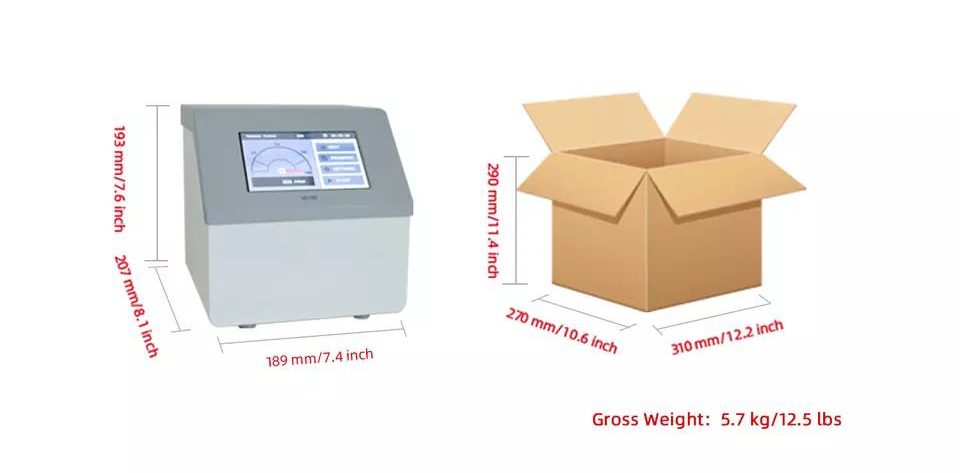

Overall dimensions	189*207*193 mm/7.4*8.1*7.6 inch
Package size	270*290*310 mm/10.6*11.4*12.2 inch
Net weight	4kg/8.82lbs
Gross weight	6kg/13.2lbs
Power supply	110—240V,50Hz/60Hz
Operating environment	10℃~40℃, ≤80%RH

?

?

?

?

?

?
