DIN431 Pipe Nuts With Thread
Basic Info
| Brand Name | ZG |
|---|---|
| Standard | DIN |
Product description

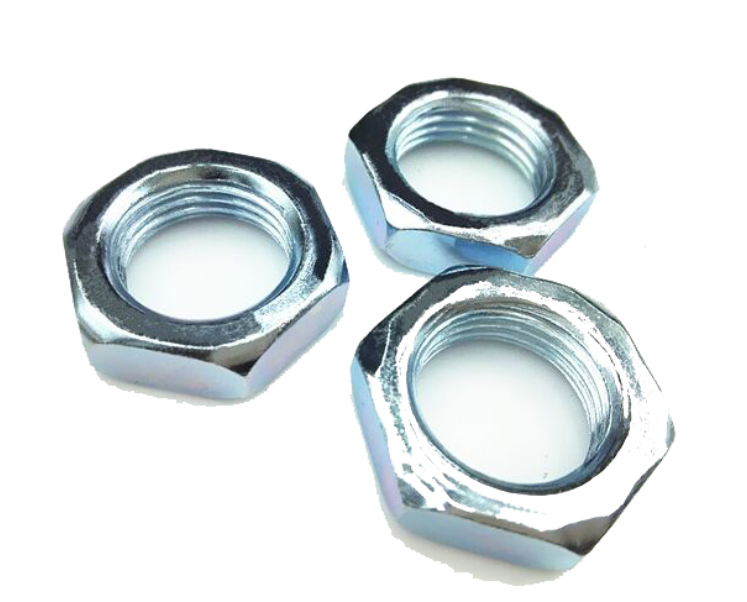

DIN 439 Stainless Steel Hex Jam Nut
| Diameter | F | H | ||
| Min. | Max. | Min. | Max. | |
| M2.5 | 4.82 | 5 | 1.35 | 1.6 |
| M3 | 5.32 | 5.5 | 1.55 | 1.8 |
| M3.5 | 5.82 | 6 | 1.75 | 2 |
| M4 | 6.78 | 7 | 1.95 | 2.2 |
| M5 | 7.78 | 8 | 2.45 | 2.7 |
| M6 | 9.78 | 10 | 2.9 | 3.2 |
| M8 | 12.73 | 13 | 3.7 | 4 |
| M10 | 16.73 | 17 | 4.7 | 5 |
| M12 | 18.67 | 19 | 5.7 | 6 |
| M14 | 21.67 | 22 | 6.42 | 7 |
| M16 | 23.67 | 24 | 7.42 | 8 |
| M18 | 26.16 | 27 | 8.42 | 9 |
| M20 | 29.16 | 30 | 9.1 | 10 |
| M22 | 31 | 32 | 9.9 | 11 |
| M24 | 35 | 36 | 10.9 | 12 |
| M27 | 40 | 41 | 12.4 | 13.5 |
| M30 | 45 | 46 | 13.9 | 15 |
| M36 | 53.8 | 55 | 16.9 | 18 |
| M39 | 58.8 | 60 | 18.2 | 19.5 |
| M42 | 63.1 | 65 | 19.7 | 21 |
| M45 | 68.1 | 70 | 21.2 | 22.5 |
| M48 | 73.1 | 75 | 22.7 | 24 |
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.
The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.
Kunshan Zhonggu Precision Hardware Co., Ltd founded in 2006, is a set design, development, production, sale as a whole, professional production and operation of various types of industrial fasteners. View More
