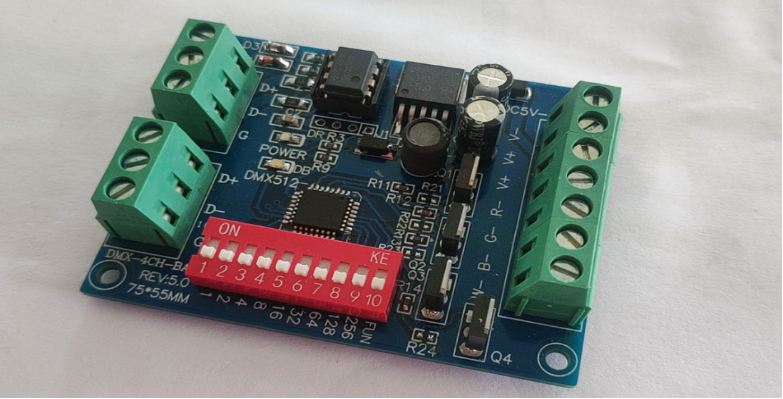

DMX 512 Console Decoder - 4 Channel Controller
Options:
- DC5-24V
- WS-DMX-4CH-BAN-V3
$14.50
5 piece (MOQ)
Basic Info
| Warranty(Year) | 1-Year |
|---|---|
| Lighting Solutions Service | Lighting And Circuitry Design |
| Product Weight（kg） | 0.06 |
| Place Of Origin | Guangdong, China |
| Brand Name | BTF-LIGHTING |

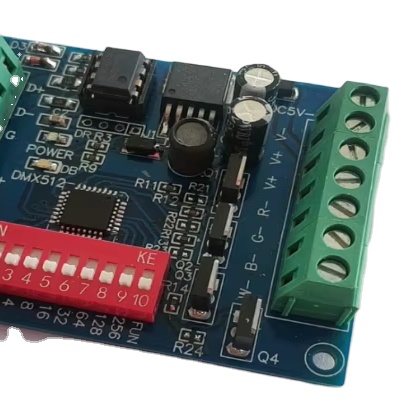

Product description
Hot selling product DMX 512 console decoder DMX 4CH Controller?
?
?
?
Supply voltage:DC 5V-24V
Product size :L68*W55*H15mm
Output: CMOS drain-open output
Connecting Mode :Common anode
Max output currengt:4A each color
Weight:0.1kg
?
setted in all .DMX original address code equal aggregate value?from 1 to 9,dial the coding switch upwards(ON is setted 1 ),the?value of bit can be gotten, on the contrary, the value of bit is 0.
For example: if you want to set 37 as the address code , you can?only dial down the first ,the third and the sixth code switch value?from 1 to 9 is 32+4+1 , that is ,the original address code of?DMX512 is 37.
2. DMX signal can be received when coding switch FUN(10)=OFF.
3.when coding switch that FU N(1 0) is ON . its function is as follows:
| Switch1-9 is off | Black |
| Switch1=ON | Red |
| Switch2=ON | Green |
| Switch3=ON | Blue |
| Switch4=ON | Yellow |
| Switch5=ON | Purple |
| Switch6=ON | Cyan |
| Switch7=ON | White |
| Switch8=ON | Seven-color jumpy changing(8 steps speed ) |
| Switch9=ON | Seven-color gradual changing(8 steps speed ) |
?4.If coding switch is 8 or 9, from 1 to 7 is the choice for speed ,there are 8 steps in all, the description is as follows:?
| Switch1-7 is off | 0 steps |
| Switch1=ON | 1 steps |
| Switch2=ON | 2 steps |
| Switch3=ON | 3 steps |
| Switch4=ON | 4 steps |
| Switch5=ON | 5 steps |
| Switch6=ON | 6 steps |
| Switch7=ON | 7 steps(the greatest speed) |
5-There are several switches is ON at the same time , the great?value is standard.

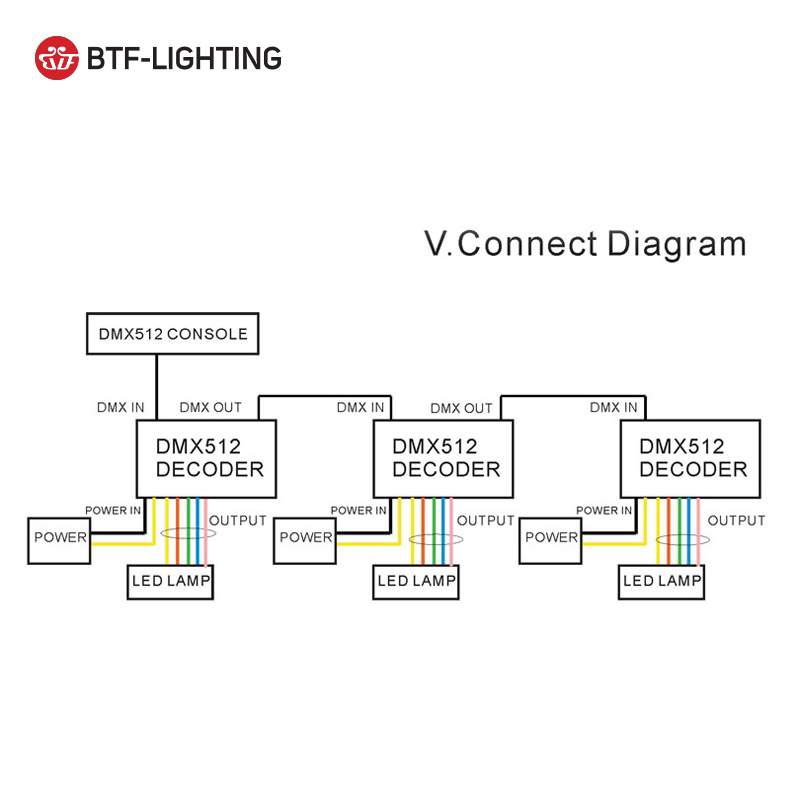

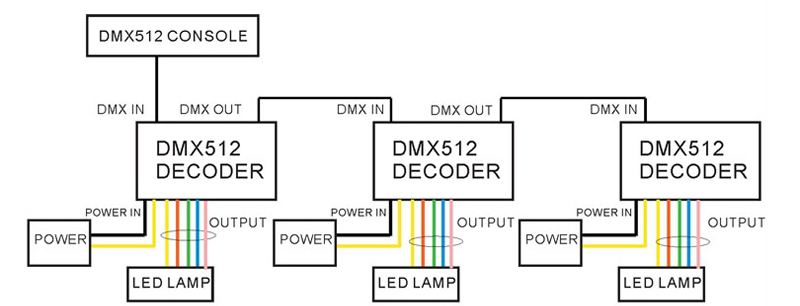

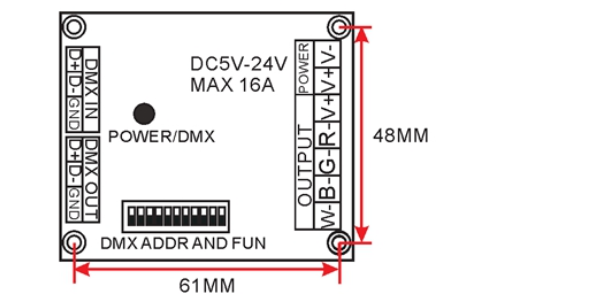

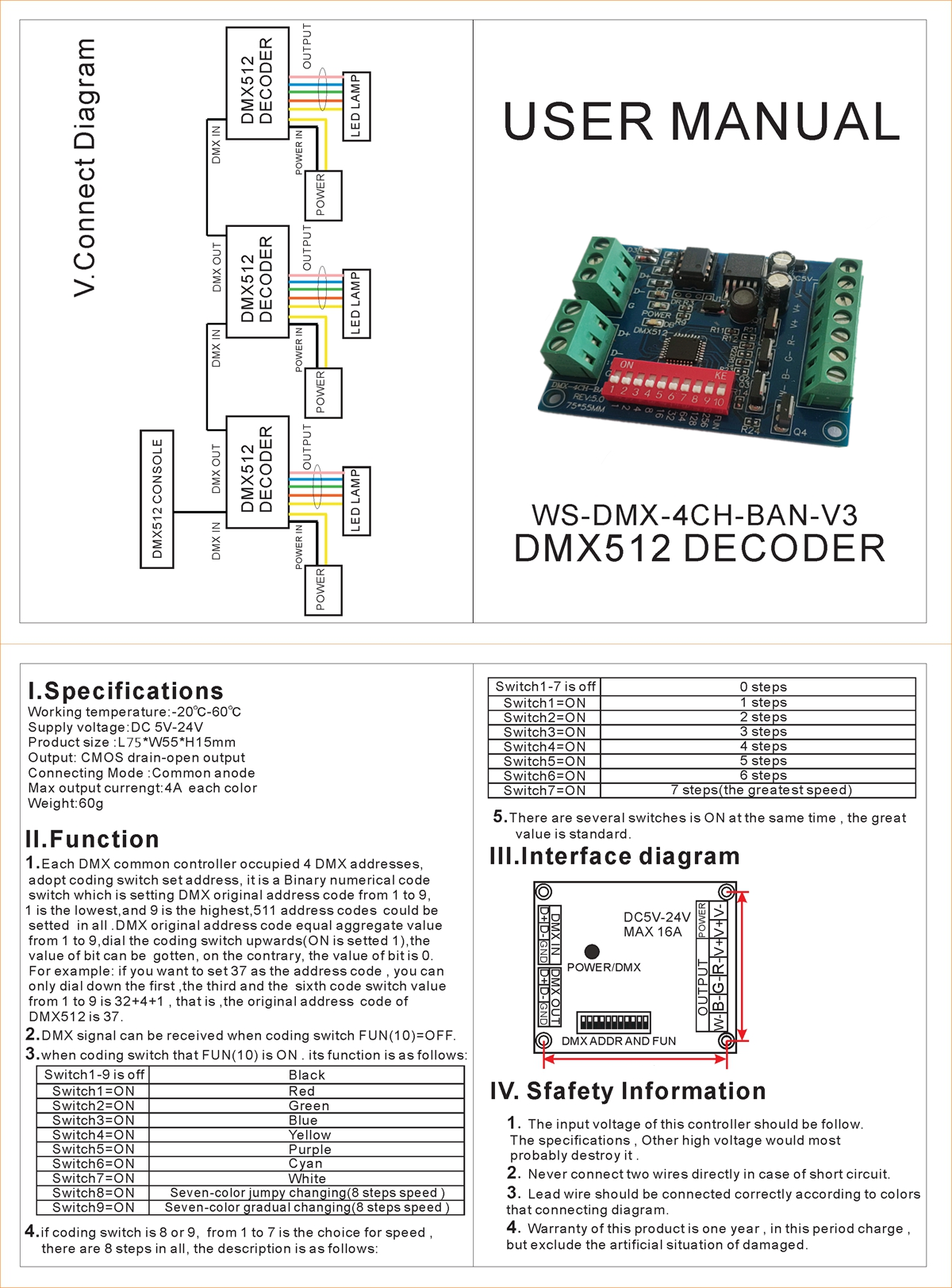

III.Interface diagram
? ??
?
IV. Sfafety Information
1 . The input voltage of this controller should be follow.
The specifications , Other high voltage would most probably destroy it.
2. Never connect two wires directly in case of short circuit.
3. Lead wire should be connected correctly according to colors that connecting diagram.
4. Warranty of this product is one year, in this period charge ,but exclude the artificial situation of damaged.
?
?
?
?
?
