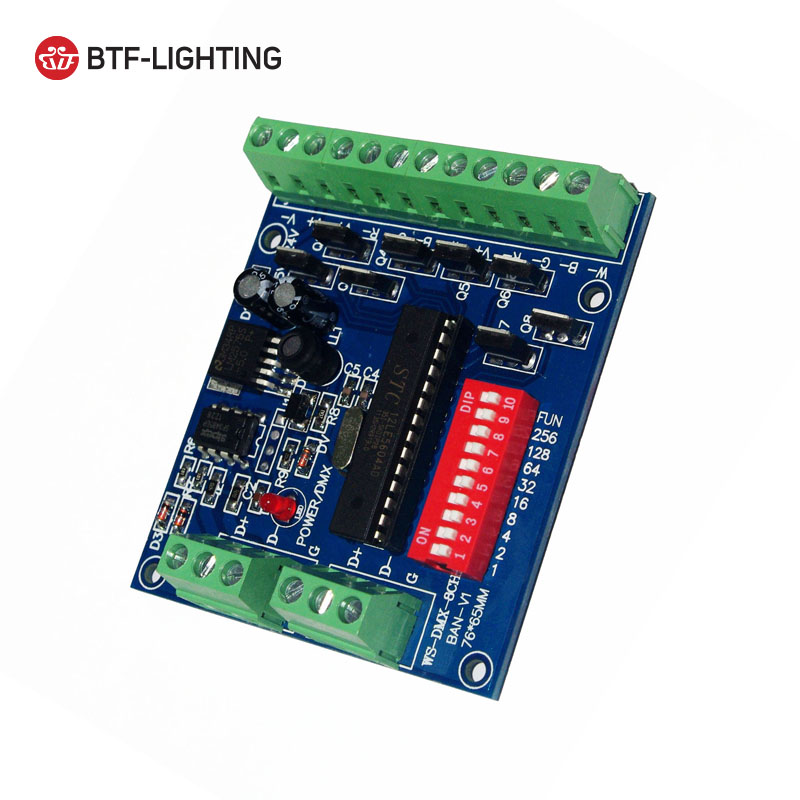

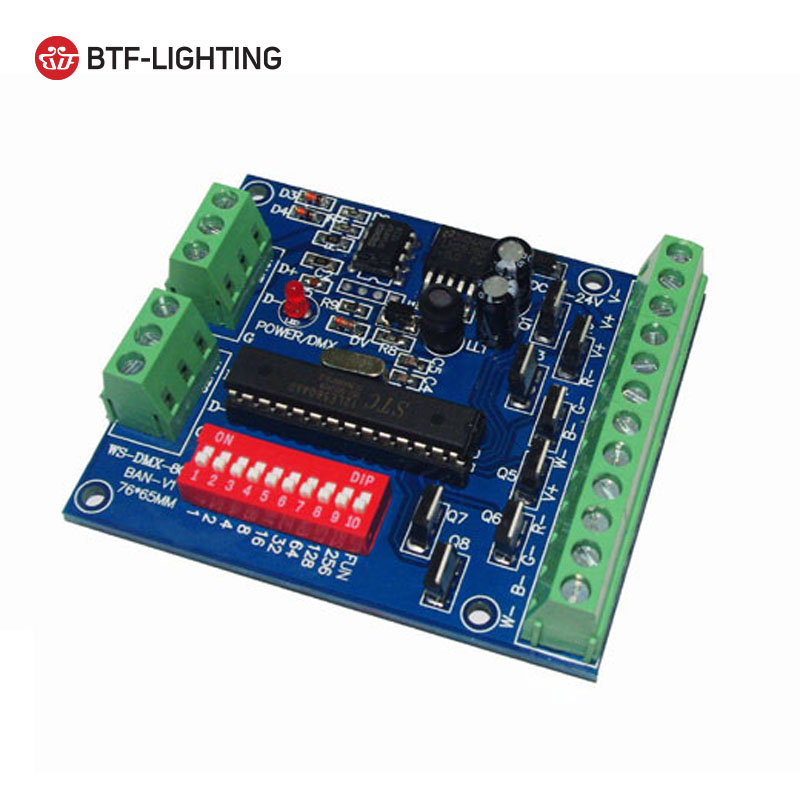

DMX 512 LED Light Decoder - 8 Channel Common Anode CMOS Drain-Open Output Controller
Voltage:
- 5-24V
Options:
- WS-DMX-8CH-BAN-V1
$14.50
5 piece (MOQ)
Basic Info
| Warranty(Year) | 1-Year |
|---|---|
| Lighting Solutions Service | Project Installation |
| Place Of Origin | Guangdong, China |
| Brand Name | BTF-LIGHTING |
| Type | Remote Control |
Product description

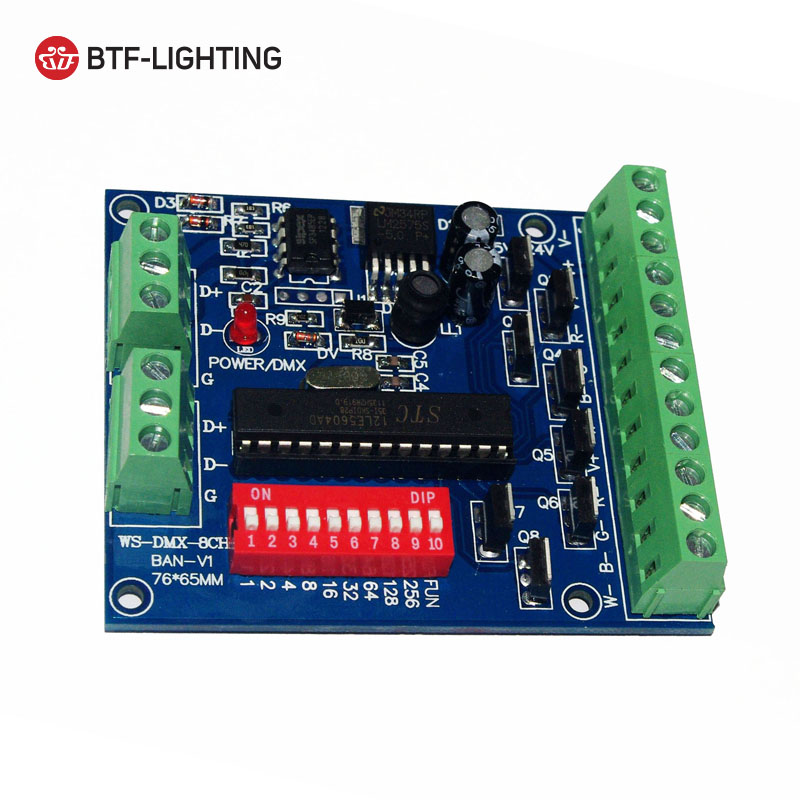

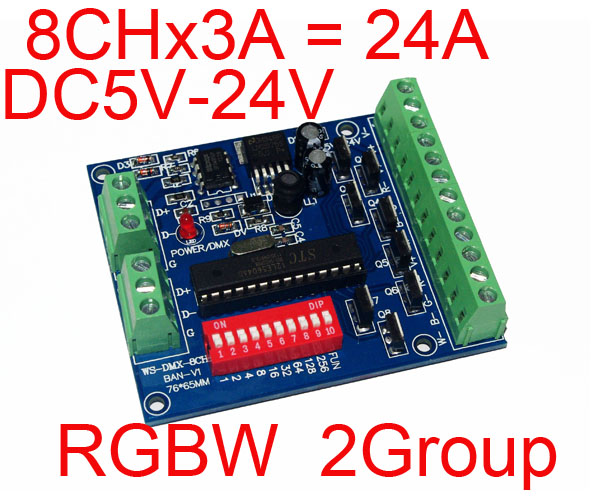

Common anode CMOS drain-open output dmx 512 decoder dmx 8 channels controller
?
?

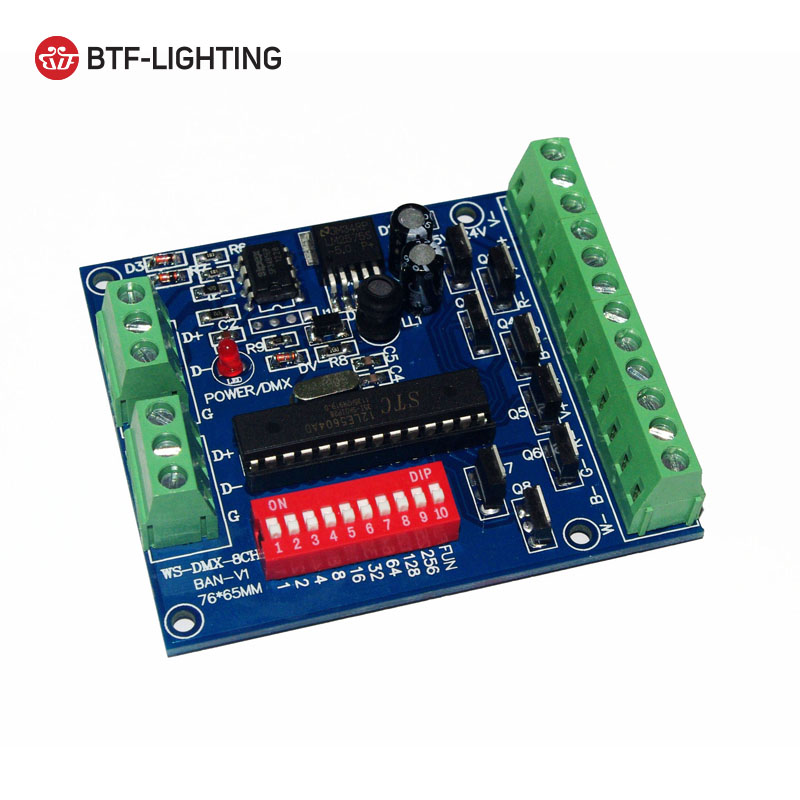

setted in all .DMX original address code equal aggregate value?from 1 to 9,dial the coding switch upwards(ON is setted 1 ),the?value of bit can be gotten, on the contrary, the value of bit is 0.
For example: if you want to set 37 as the address code , you can?only dial down the first ,the third and the sixth code switch value?from 1 to 9 is 32+4+1 , that is ,the original address code of?DMX512 is 37.
2. DMX signal can be received when coding switch FUN(10)=OFF.
3.when coding switch that FU N(1 0) is ON . its function is as follows:
| Switch1-9 is off | Black |
| Switch1=ON | Red |
| Switch2=ON | Green |
| Switch3=ON | Blue |
| Switch4=ON | Yellow |
| Switch5=ON | Purple |
| Switch6=ON | Cyan |
| Switch7=ON | White |
| Switch8=ON | Seven-color jumpy changing(8 steps speed ) |
| Switch9=ON | Seven-color gradual changing(8 steps speed ) |
?4.If coding switch is 8 or 9, from 1 to 7 is the choice for speed ,there are 8 steps in all, the description is as follows:?
| Switch1-7 is off | 0 steps |
| Switch1=ON | 1 steps |
| Switch2=ON | 2 steps |
| Switch3=ON | 3 steps |
| Switch4=ON | 4 steps |
| Switch5=ON | 5 steps |
| Switch6=ON | 6 steps |
| Switch7=ON | 7 steps(the greatest speed) |
5-There are several switches is ON at the same time , the great?value is standard.

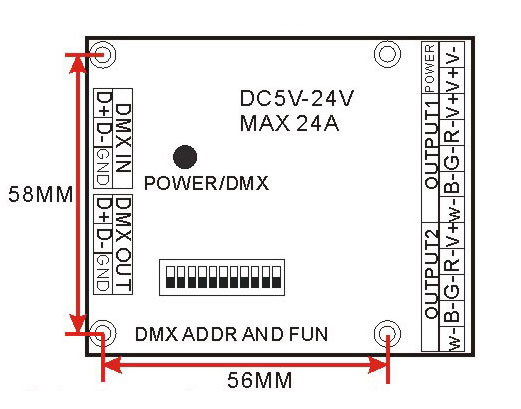

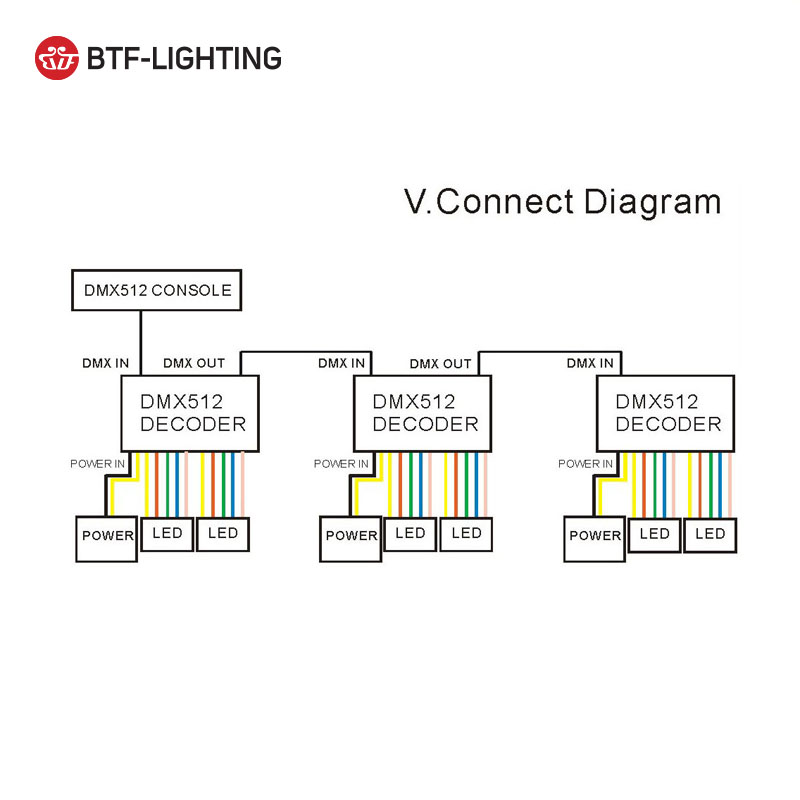

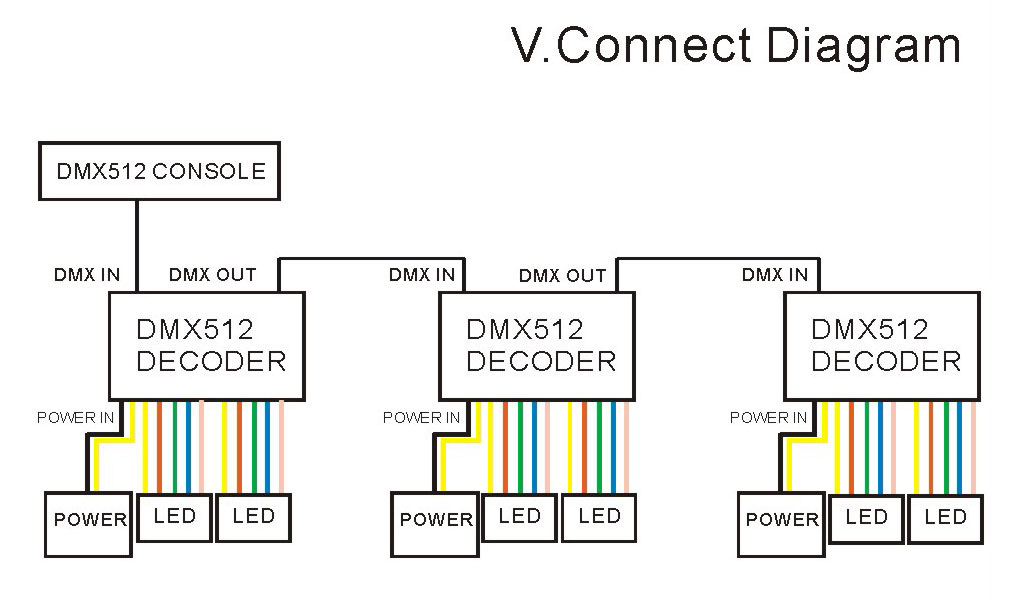

III.Interface diagram
? ??
IV. Sfafety Information
1 . The input voltage of this controller should be follow.
The specifications , Other high voltage would most probably destroy it.
2. Never connect two wires directly in case of short circuit.
3. Lead wire should be connected correctly according to colors that connecting diagram.
4. Warranty of this product is one year, in this period charge ,but exclude the artificial situation of damaged.
?
1.?Your inquiry related to our products or prices will be replied in 24 hours .
2.?Professional led manufacturer both on led component and application product.
3.?Professional support on technology and flash design;
4.?Well-trained and experienced staffs to answer all your enquires in fluent English .
5.?All the products must have 10 hours' aging before delivering,to ensure the quality.
6.?Unique appearance design and ideal recommended services are offered .
7.?OEM&ODM are welcome , any your customized lightings we can help you to design and put into the product.
8.?On time delivery and prompt response to your enquiry .
9.?Satisfied pre-sales and after-sales service,welcome all requires and we will reply promptly .
