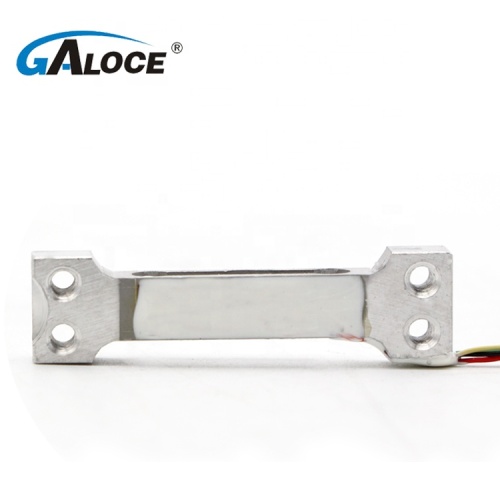

Dosing machine micro load cell sensor

$1.50 ~ $5.50 / Piece/Pieces

Get Latest Price

You might also like

50kg micro load cell for cat litter box

$1.50

10 Piece/Pieces (MOQ)

3 wire milligram load cell bridge

$1.50

10 Piece/Pieces (MOQ)

Low cost kitchen scale load cell 5kg

$1.20

20 Piece/Pieces (MOQ)

half bridge thin micro load cell 50kg

$1.50

10 Piece/Pieces (MOQ)

Half bridge flat load cell 34*34*2mm

$1.50

10 Piece/Pieces (MOQ)

Beehive scale micro load cell 10kg 30kg

$1.50

10 Piece/Pieces (MOQ)

smart cooker used micro load cells 5kg

$1.20

10 Set/Sets (MOQ)

GML670A 10kg half-bridge Load cell

$3.50

30 Piece/Pieces (MOQ)

Beekeeping Electronic scale Load cell 50kg

$0.90

10 Piece/Pieces (MOQ)

Beehive Scale Bike Micro Load Cell

$0.90

10 Piece/Pieces (MOQ)

Basic Info

Model No.	GML632
Brand Name	GALOCE
place of origin	China
Output	Analog Sensor
Place Of Origin	Shaanxi, China
Usage	Pressure Sensor
Theory	Resistance Sensor
Brand Name	Galoce
Description	Load Cell
Output	Analog Output
Application	Electronic Balances, Kitchen Scales Etc.
Model Number	Gml632
Cable (mm)	0.6x110
Rated Output (mv/v)	0.7±0.15
Comprehensive error (%F.S)	0.05
Capacity	100-750g
Dimention(mm)	47x12x6
KEYWORDS	Jewellery Scale Load Cell 500g 750g
Product Name	Gml632 Dosing Machine Micro Load Cell Sensor 100g 200g 300g

Company Overview Company Photos Production Certification

Product description

GALOCE GML632 model is micro load cell. the capacity is 100-750g. The small load cell can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems. Contact us if you are interested in micro flat load cell or big capacity single point load cell.

Specifications:

Rated load	100-750g
Comprehensive error	0.05%F.S
Rated output	0.7±0.15mV/V
Linearity error	±0.05%F.S
Hysteresis error	±0.05%F.S
Repeatability error	±0.05%F.S
Creep	±0.05%F.S/5min
Zero balance	±0.1mV/V
Input resistance	1130±10Ω or 1090±10Ω
Output resistance	1000±10Ω
Operating temp.range	-10~+40℃
Temperature effect on zero	0.1%F.S/10℃
Temperature effect on output	0.05~0.1%/10℃
Insulation resistance	≥2000MΩ
Excitation voltage	5~10VDC
Ultimate overload	150%F.S

Dimension:

GML632 load cell

Packing

Standard export package: each unit has individual box and all boxes are packed in standard packages.

Shipping

Products are shipped from china. We will sent out within 2 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.

GML632 dosing machine micro load cell sensor 100g 200g 300g 500g 750g
