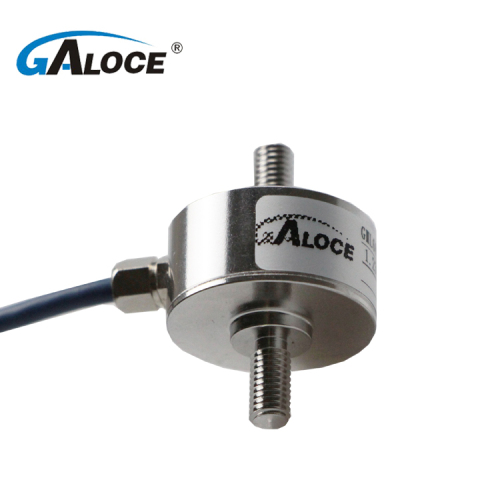

In-line Threaded Mini Force Sensor
$82.00
≥1 Piece/Pieces
Basic Info
| Model No. | GML668B |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| Output | Analog Sensor |
| Place Of Origin | Shaanxi, China |
| Brand Name | Galoce |
| Theory | Strain Gauge Deformation |
Product description

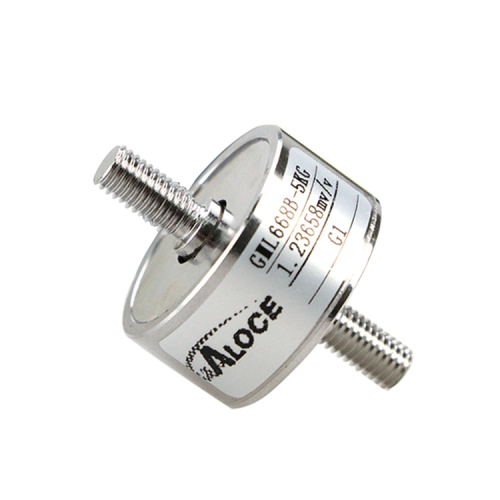

GALOCE GML668B miniature load cell is in-line force load cell, it can measure the compression and tension force sensor. stainless steel 17-4PH material, the rated capacity is from 50-2000KN. miniature force sensor are mainly used for automonile parts assembly, automated assembly,3C product testing, new energy product assembly, medical testing,robotics,mold assembly and other industrial automation fields with small space. contact us if you are interested in micro load cell or Micro force sensor.
What features of GML668B miniature load cell ?
1. Stainless Steel;
2. Low profile, compact and strong structure;
3. Tension & compression force measurement;
4. Mainly used in automobile parts assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial automation fields.
Dimension of GML668B miniature load cell ?
What specifications of GML668B miniature load cell ?
|
Specifications |
|
|
Rated Capacity |
50, 100, 200, 300, 500, 1000, 2000N |
|
Comprehensive error |
≤±0.1% |
|
Rated output |
2.0±10%mV/V |
|
Zero balance |
±0.05F.S |
|
Non-linearity |
0.1% |
|
Creep |
±0.05%F.S/30min |
|
Input resistance |
800~1100Ω |
|
Output resistance |
800~1100Ω |
|
Insulation resistance |
≥5000MΩ/100VDC |
|
Temp. effect on span |
±0.05%F.S/10℃ |
|
Temp. effect on zero |
±0.05%F.S/10℃ |
|
Compensated temp range |
-10~+60℃ |
|
Operating temp Range |
-20~+80℃ |
|
Excitation voltage |
10~15V |
|
Safe overload |
150%F.S |
|
Ultimate overload |
200%F.S |
|
Defend grade |
IP66 |
- 5yrs
- Manufacturer
- Trade Company
- OEM service

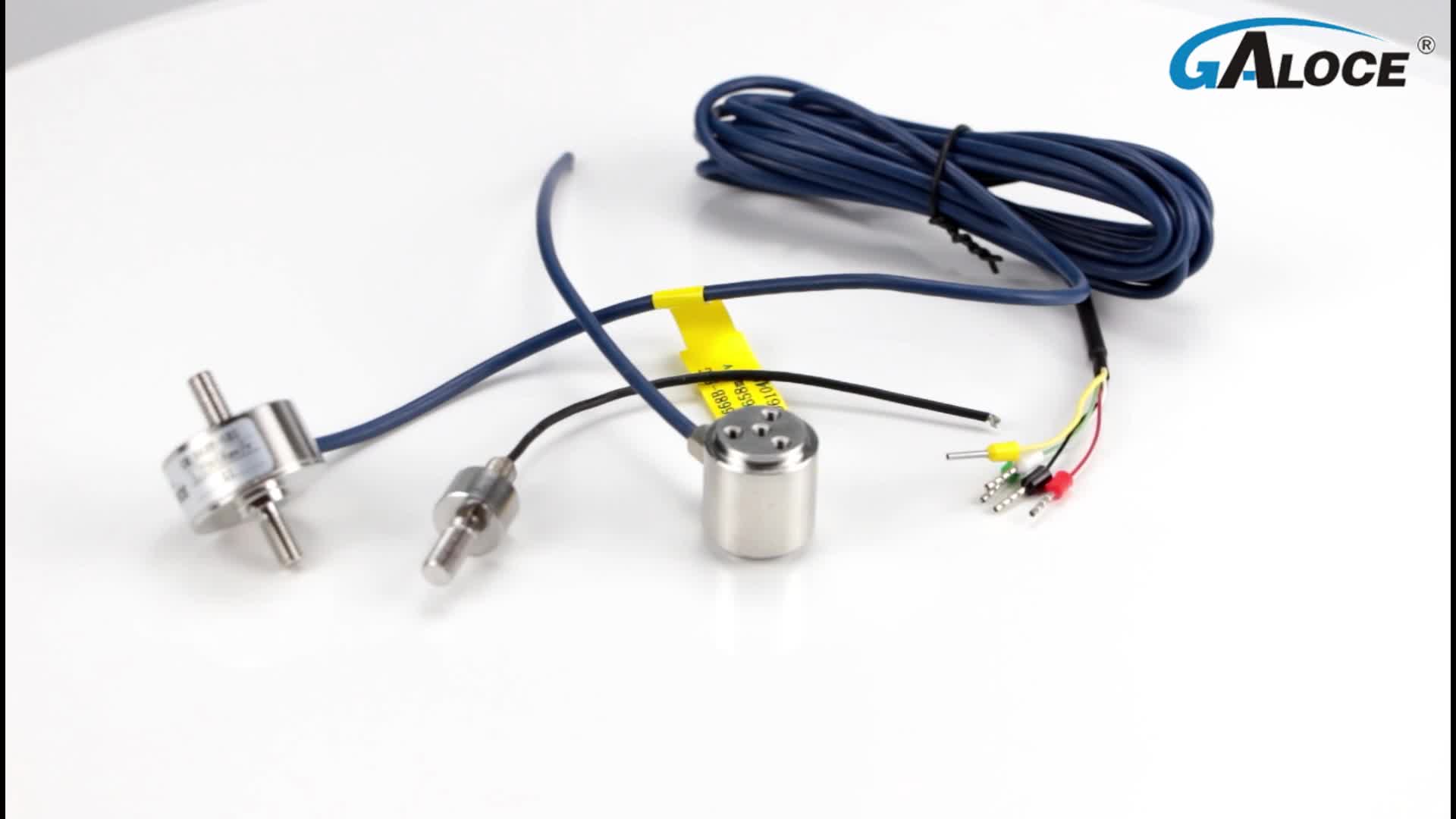

Video
