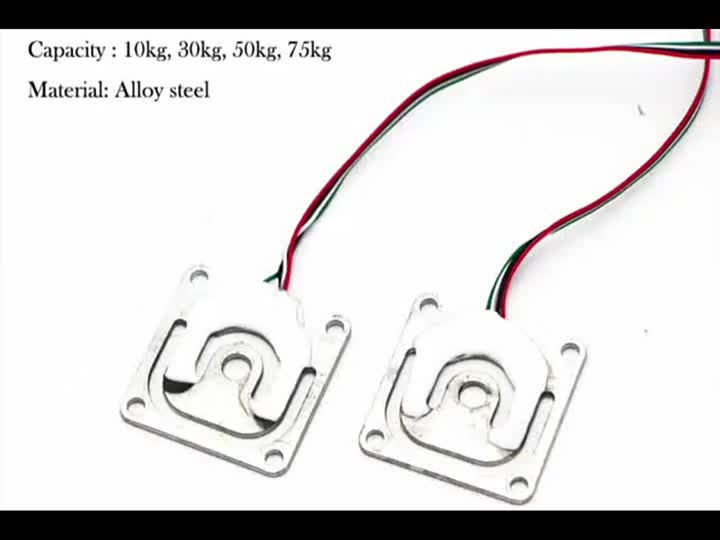

Flat Thin Micro Load Cell Sensor
Basic Info
| Model No. | GML670 |
|---|---|
| Brand Name | GALOCE |
| place of origin | China |
| principle | Current Sensor |
| Output | Analog Sensor, Digital Sensor |
| Amplifier type | Standard, Multi Function |
| technology | Half Bridge |
Product description
Within GALOCE family are many types of micro load cell that are ideally suited to applications where space is a limiting spaces and equipment.Micro load cells are available in many different types, and are suitable for multiple applications. such as the flat micro load cell, button load cell, can measure the tension and compression.

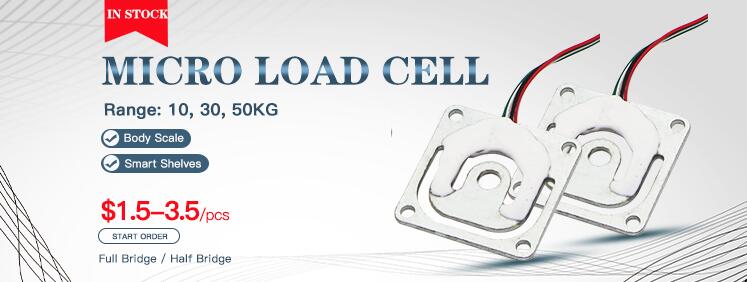

GML670 Micro load cell has 10kg, 30kg, 50kg range, suitable for body scale, smart shelves, or other smart applications. It is a full-bridge and half bridge, flat, and thin structure. For those who want to create a back-end data acquisition equipment, we recommend HX711 or A/D conversion module. the GML670 have many new application in 2022, such as the smart pet scale. contact us now.
? Full bridge / half bridge structure ? Range: 10, 30, 50,100kg
The Features
1. Material: manganese steel, surface anodic oxidation treatment;
2. High precision, half bridge and full bridge available;
3. Application: portable scale and other miniature electronic weighing equipment
4. Bulk order will get more competitive price, please inquiry us to get a quote!
Product Details
Dimension
Range:10kg t:1.5mm,T:3.5±0.2mm
Range:30kg t:2.0mm,T:4.0±0.2mm
Range:50kg t:2.5mm,T:4.5±0.2mm
|
Rated capacity |
10, 30, 50kg |
Input resistance |
1000±10Ω |
|
Rated output- full bridge |
2.0±0.15mV/V(30-50kg) |
Output resistance |
1000±10Ω |
|
1.0±0.15mV/V(10kg) |
Temp. effect on span |
0.05%F.S/10℃ |
|
|
Rated output- full bridge |
1.0±0.15mV/V(30-50kg) |
Temp. effect on zero |
0.1%F.S/10℃ |
|
0.5±0.15mV/V(10kg) |
Excitation voltage |
3-10VDC |
|
|
Comprehensive error |
0.05%F.S |
Compensated temp.range |
-10~+40℃ |
|
Non-linearity |
0.05%F.S |
Safe overload |
120%F.S |
|
Repeatability |
0.05%F.S |
Ultimate overload |
150%F.S |
|
Hysteresis error |
0.05%F.S |
Defend grade |
IP65 |
|
Creep |
0.05%F.S/3min |
Cable |
Three or Four color PVC wires |
|
Zero output |
±0.3mV/V |
Cable length |
φ0.8*200-400mm |
|
Insulation resistance |
≥2000MΩ |
|
Other Product
GALOCE have 10+ years of experience in the load cell area, we have a range of weight and load cell to suit the needs of our client. If our standard micro load cell capacity or size is not suitable for your application type, our OEM and ODM team of professional engineers can customized with you to design a fully weight solution, from sizes, cable, connectors, will provide the suitable micro load cell and weight sensor for your weight project or weight equipment.
Contact GALOCE team to find out more about our micro load cell, weight sensor and force sensor, In stock 24 hours fast shipping.
