ABOUT US

Our company has found for over 1 7 years since 1 9 9 6.

We are the professional manufacture to produce different kinds of roll forming machine

roof and wall panel roll forming machine

c/z purlin roll forming machine

sandwich panel production line

floor deck roll forming machine

light steel keel roll forming machine

container board roll forming machine

bending machine,cutting machine and automatic un-coiler

Trapezoidal steel roof panel roll forming machine for sale

1. specification of the roll forming machine

1.Weight capacity of decoiler	5T
2.Appearance Size(L*W*H)	6500*1500*1500
3.Raw material /feeding sheet material	colored steel & galvanized steel
4.Roller material	45# high grade steel
5.Shaft material	45# high grade steel
6.Kind of drive	chain drive
7.Cutting system	automatic hydyaulic cutting
8.Cutting blade material	Cr 12 high grade steel
9.Frame material	300 H-high grade steel
10. Control system	totally automatic PLC control system
11.Main power	3 kw
12.Roller stations	13 rows per layer
13.Speed of production	8-12m/min
14.Thickness of colored steel	0.2-0.8mm
15.Feeding width	1000mm
16.Effectiv width	840/860mm
15.Frame material	300 H-steel

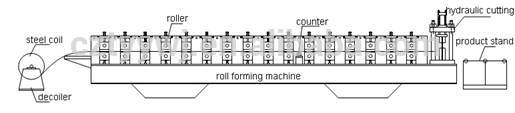

2.process of the roll forming machine

4.Pictures

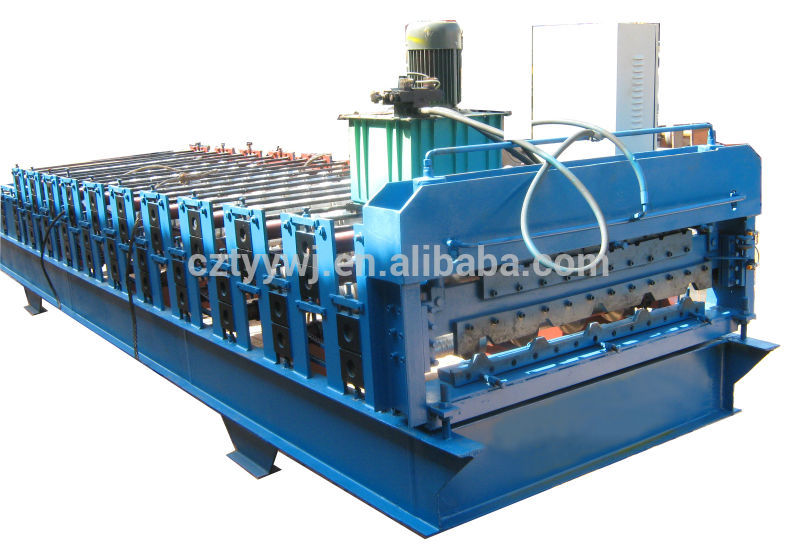

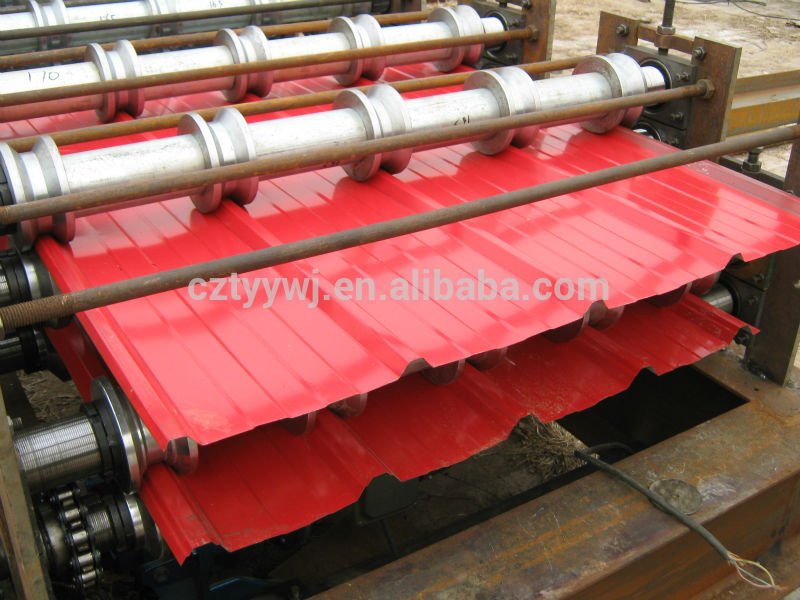

Machine and Tile

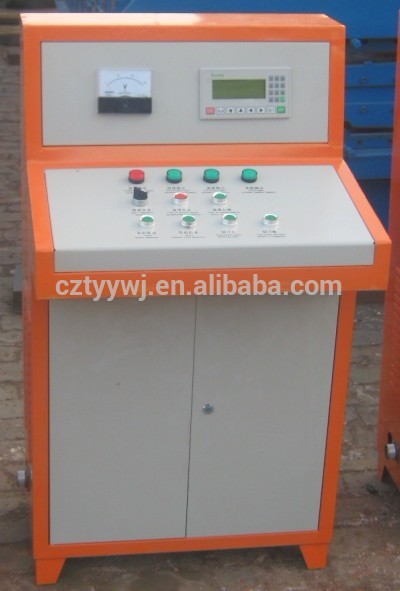

Automatic control box

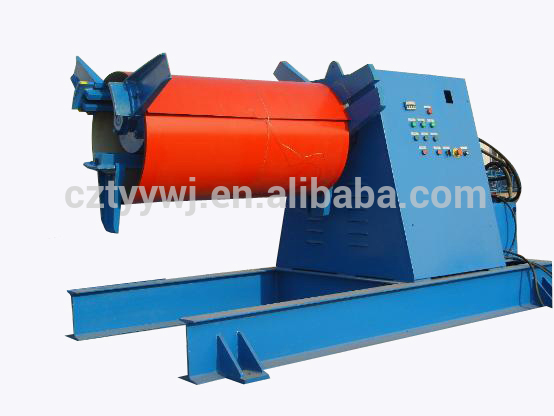

Automatic decoiler

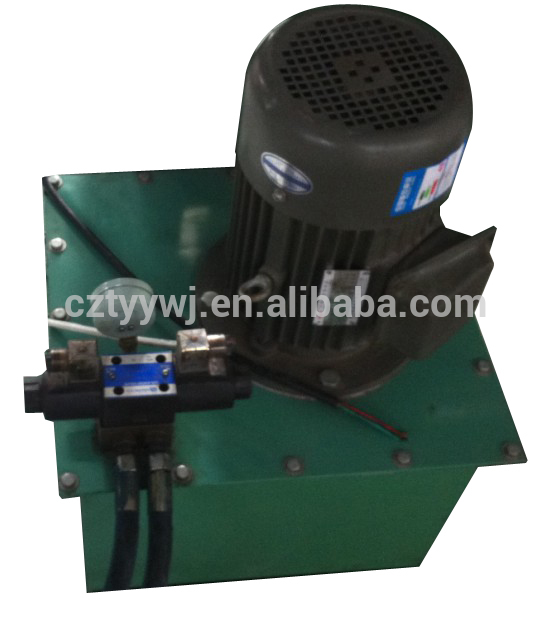

Pump

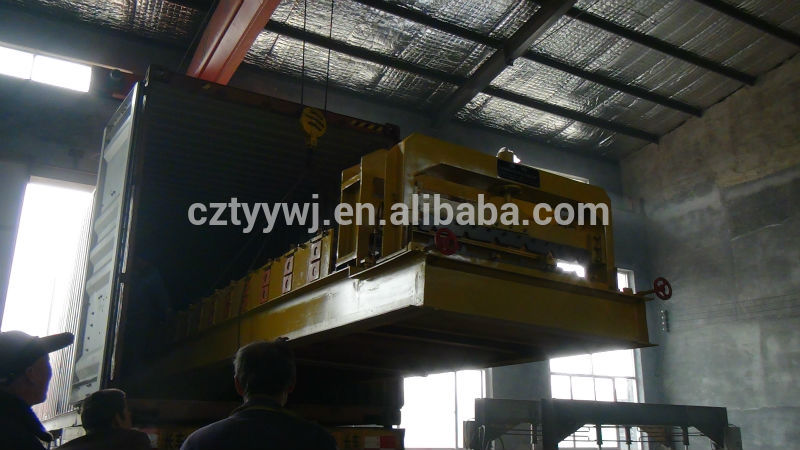

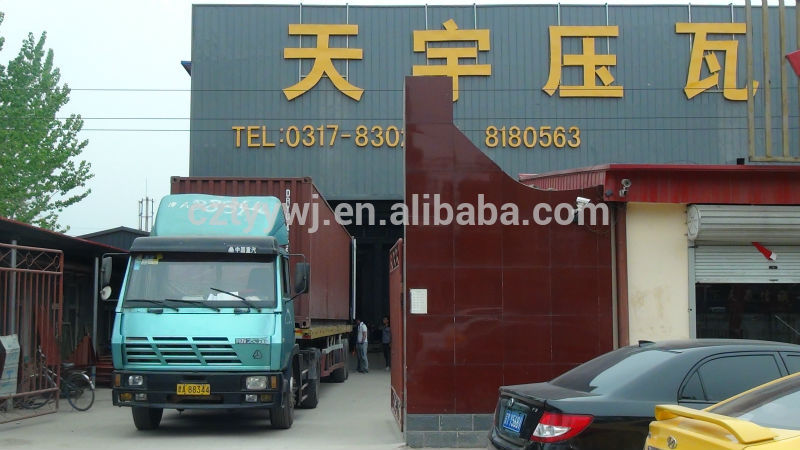

4.Packing and delivery

5.Payment terms

T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

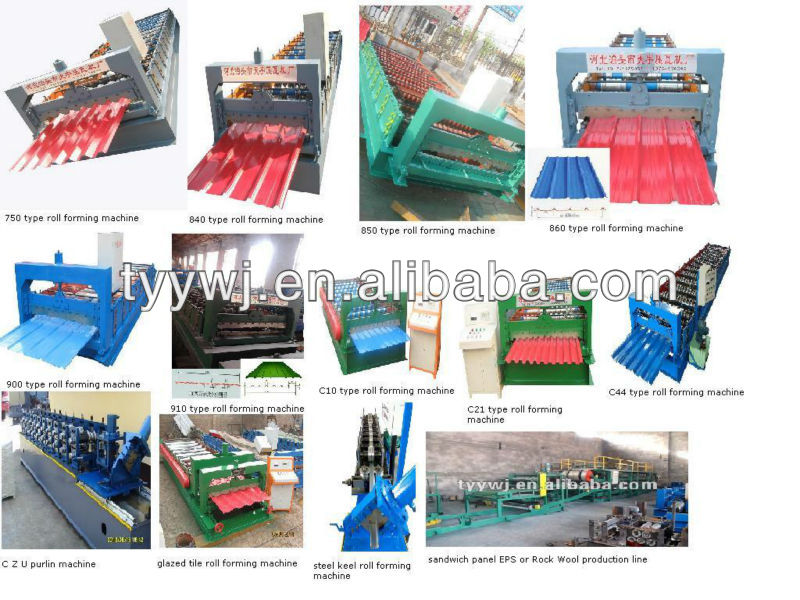

6.Other productions
