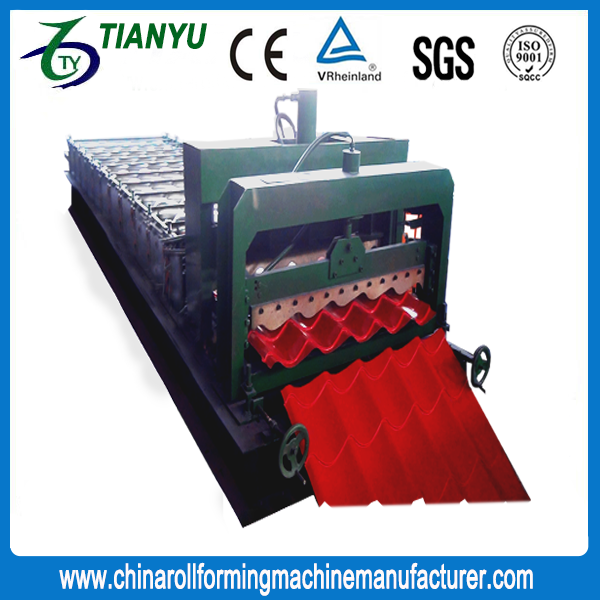

High-end Shaped Steel Sheet IBR Wall and Roofing Roll Forming Machine for Sale

1. specification of the roll forming machine

1.Weight capacity of decoiler 5T

2.Appearance Size(L*W*H) 6500*1500*1200

3.Raw material /feeding sheet material colored steel & galvanized steel

4.Roller material 45# high grade steel

5.Shaft material 45# high grade steel

6.Kind of drive chain drive

7.Cutting system automatic hydyaulic cutting

8.Cutting blade material Cr 12 high grade steel

9.Frame material 300 H-high grade steel

10. Control system totally automatic PLC control system

11.Main power 3 kw

12.Roller stations 13 rows

13.Speed of production 1-2.5m/min

14.Thickness of colored steel 0.2-0.8mm

15.Feeding width 1250mm

16.Effectiv width 1080mm

15.Frame material 300 H-steel

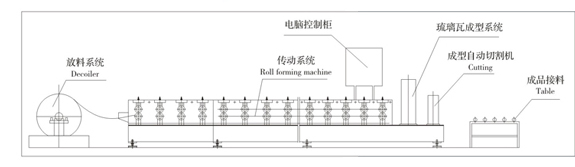

2.process of the roll forming machine

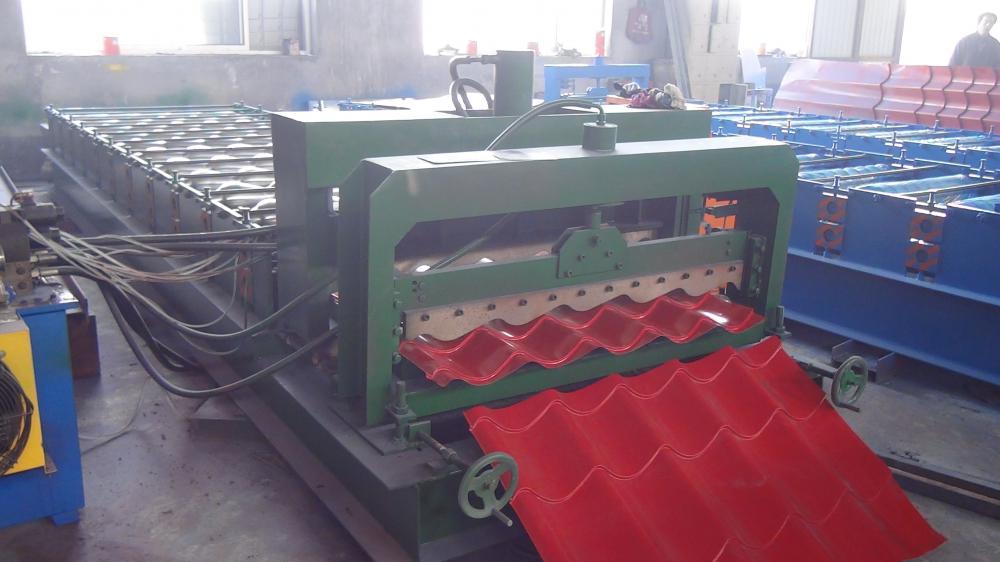

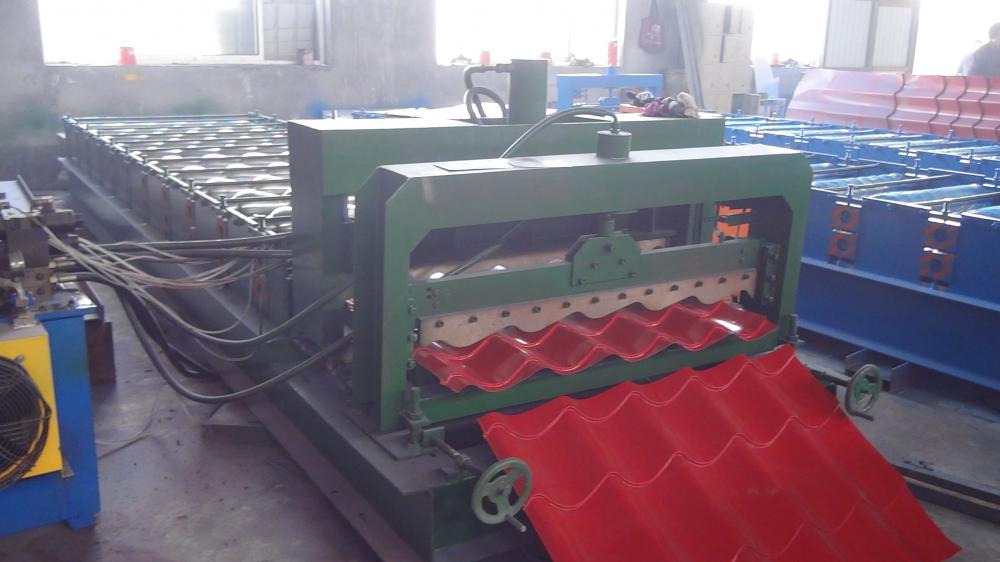

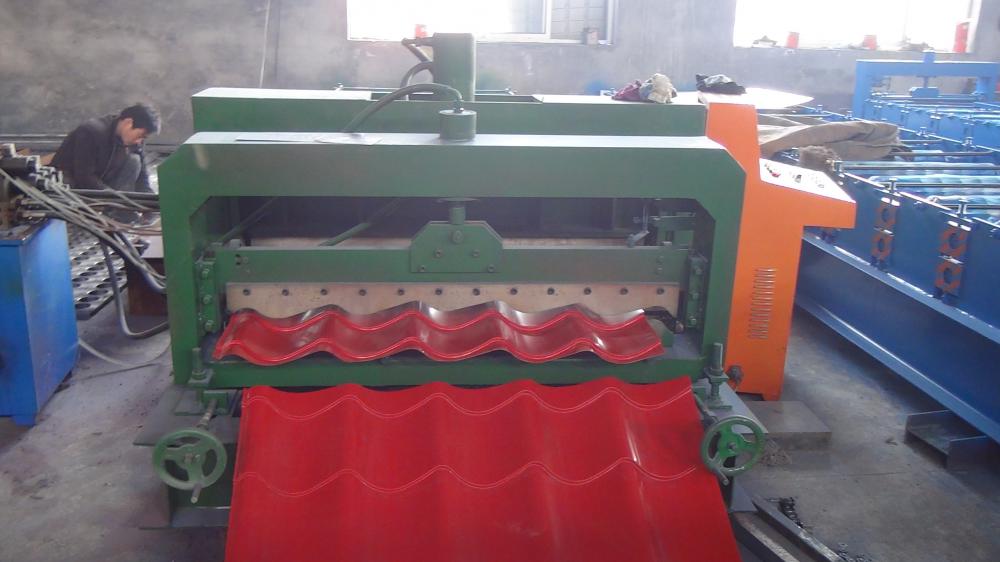

3.Pictures Machine and Tile

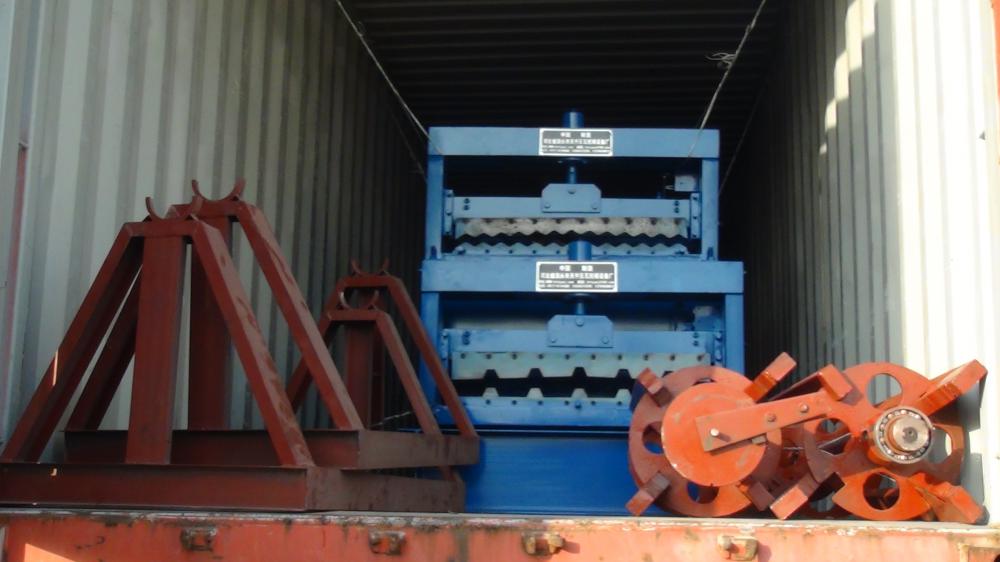

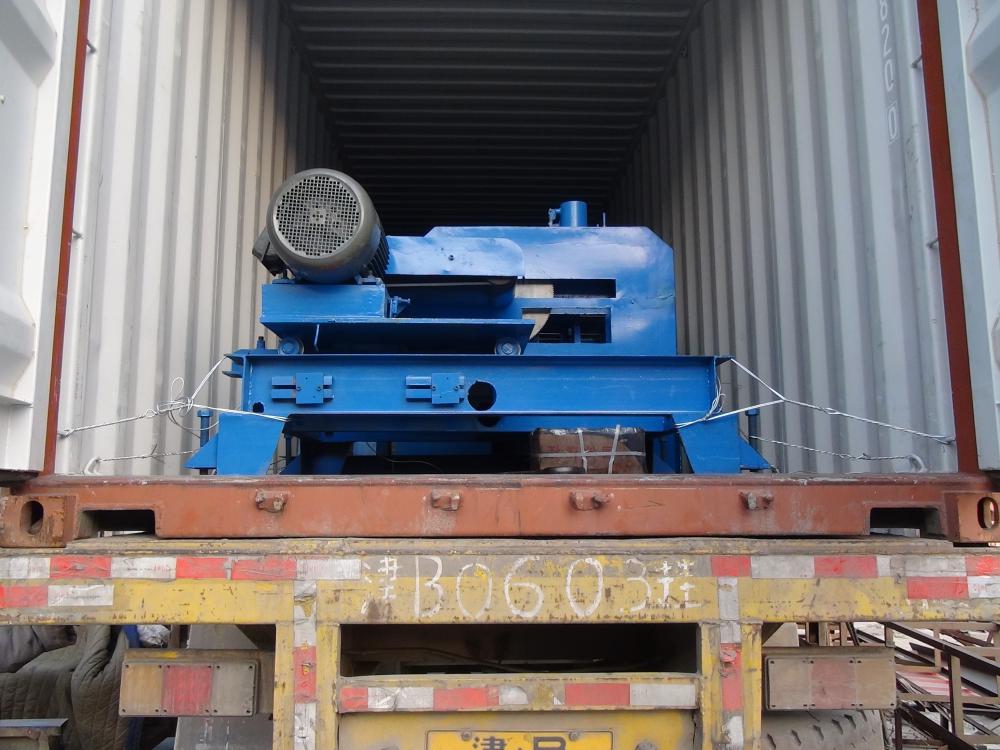

4.Packing and delivery

5.Payment terms

T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

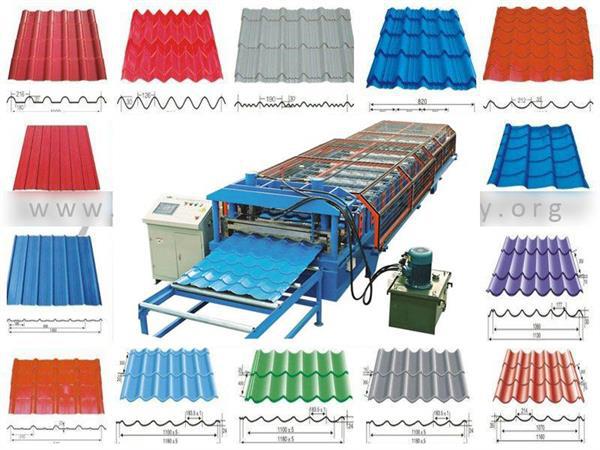

6.Other productions

our service

We provide the technical support for whole life of floor deck roll forming machine.

Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free.

When need the technician to go abroad, we will arrange the technician.

But the buyer should take all the cost, including Visa, Roundtrip ticket,

suitable accommodation and pay the service fee to the technician with $150/days

If you have any question,plz free contact me at any time
