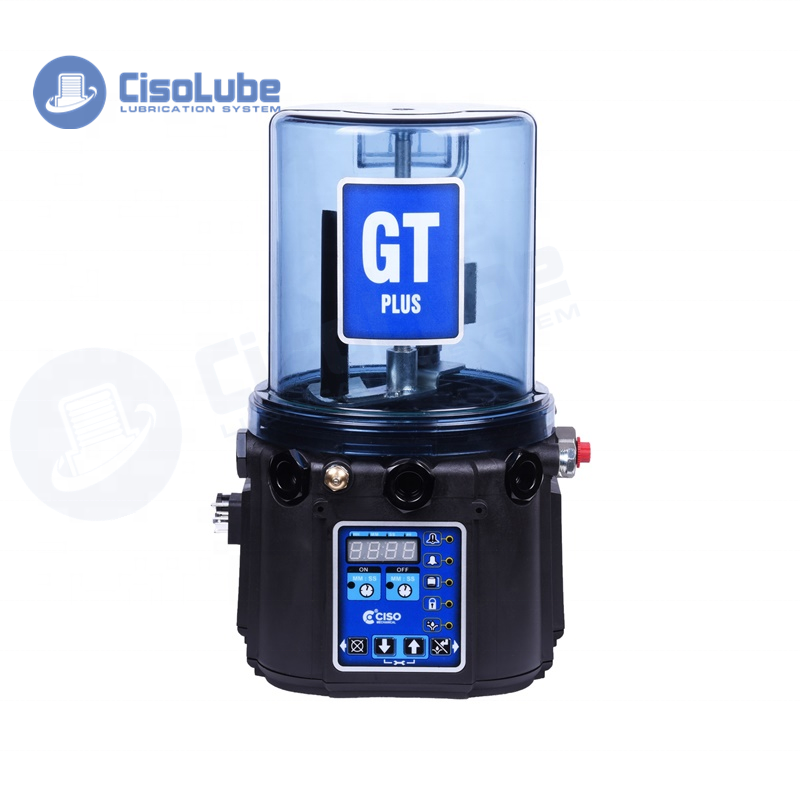

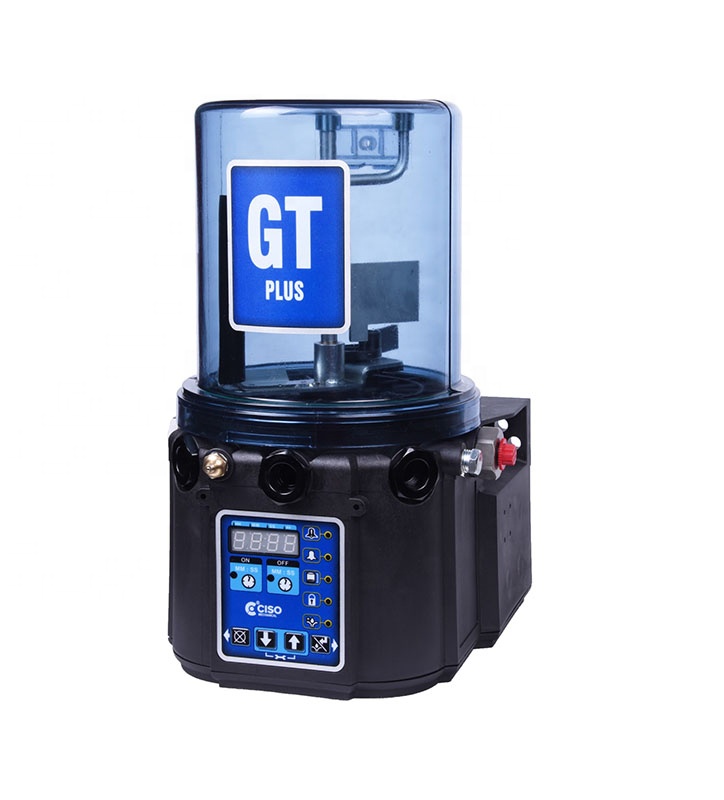

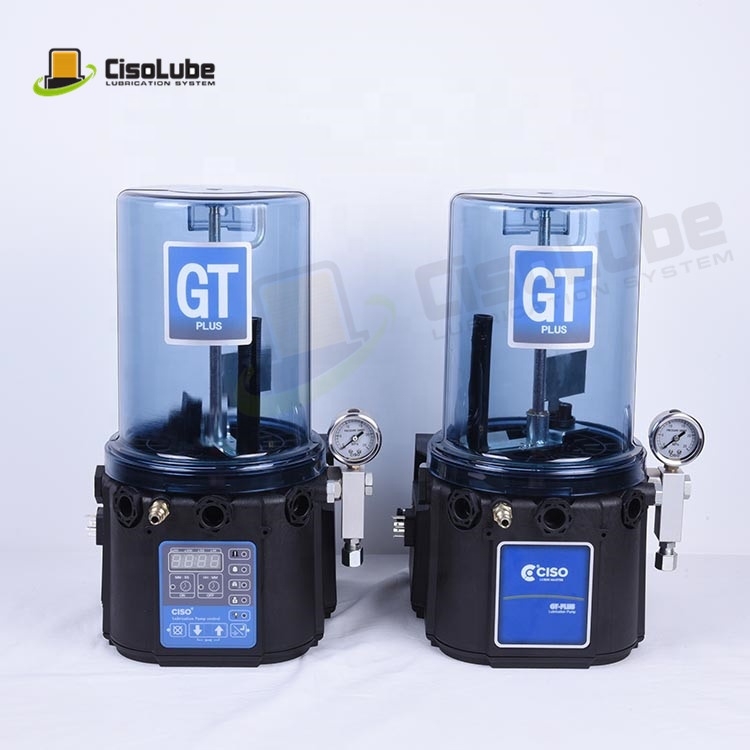

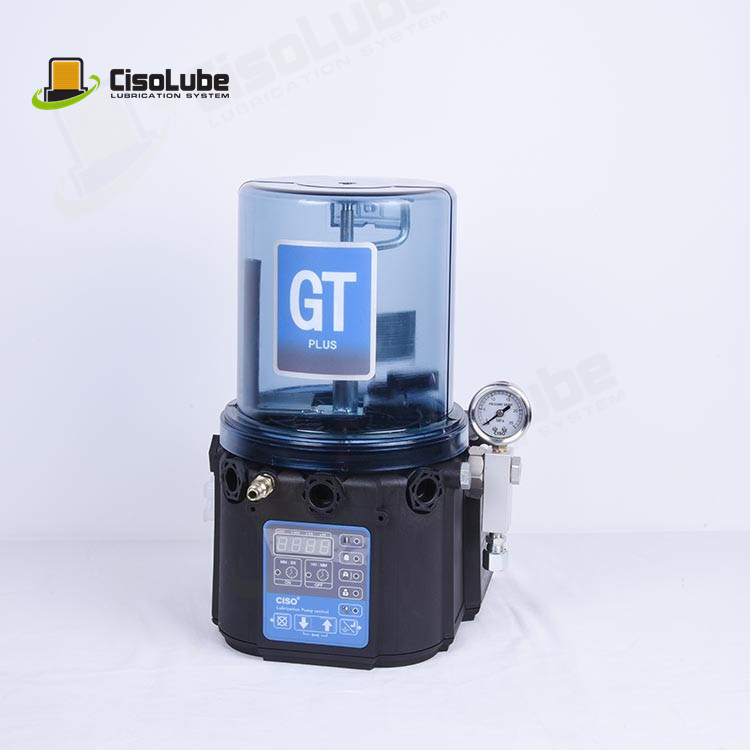

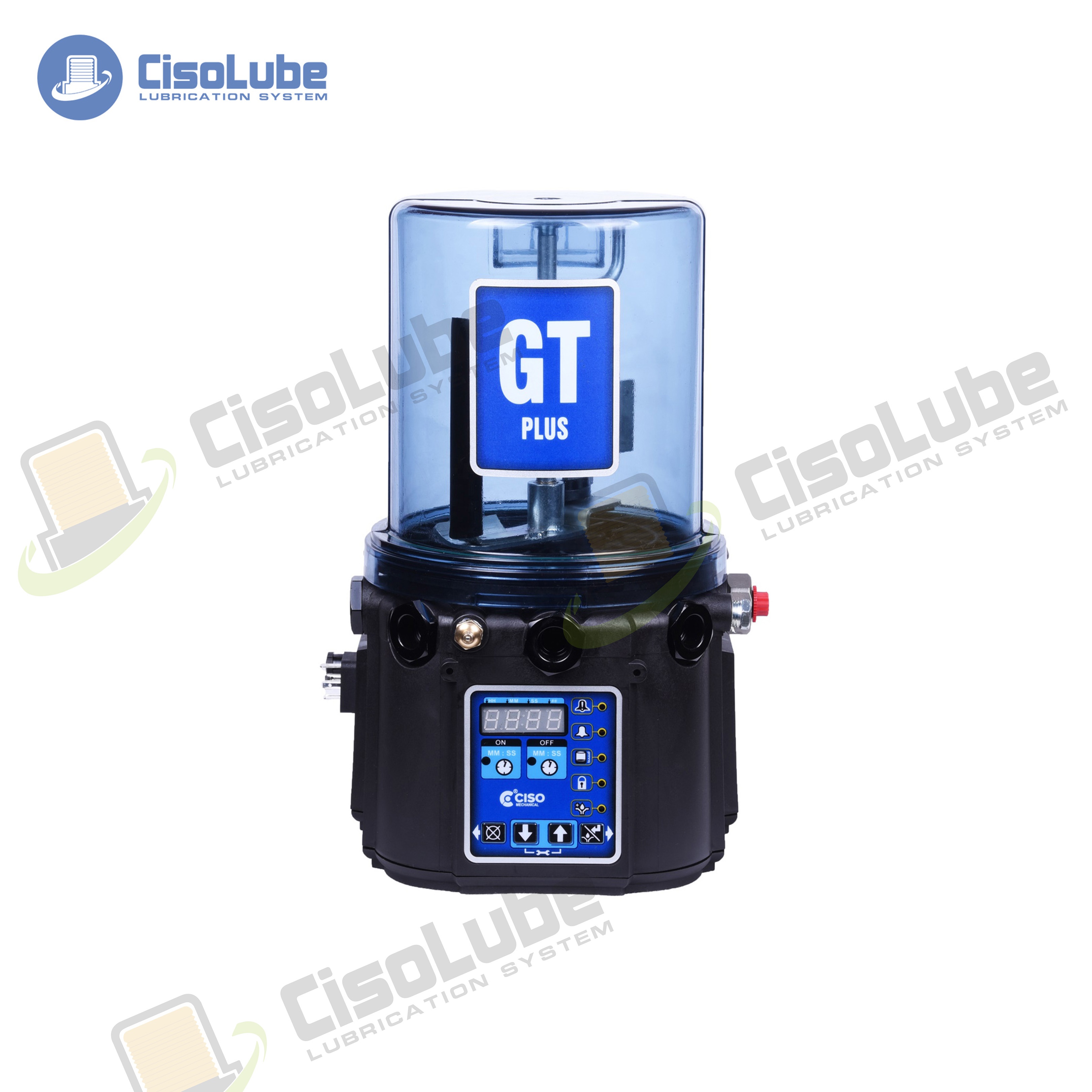

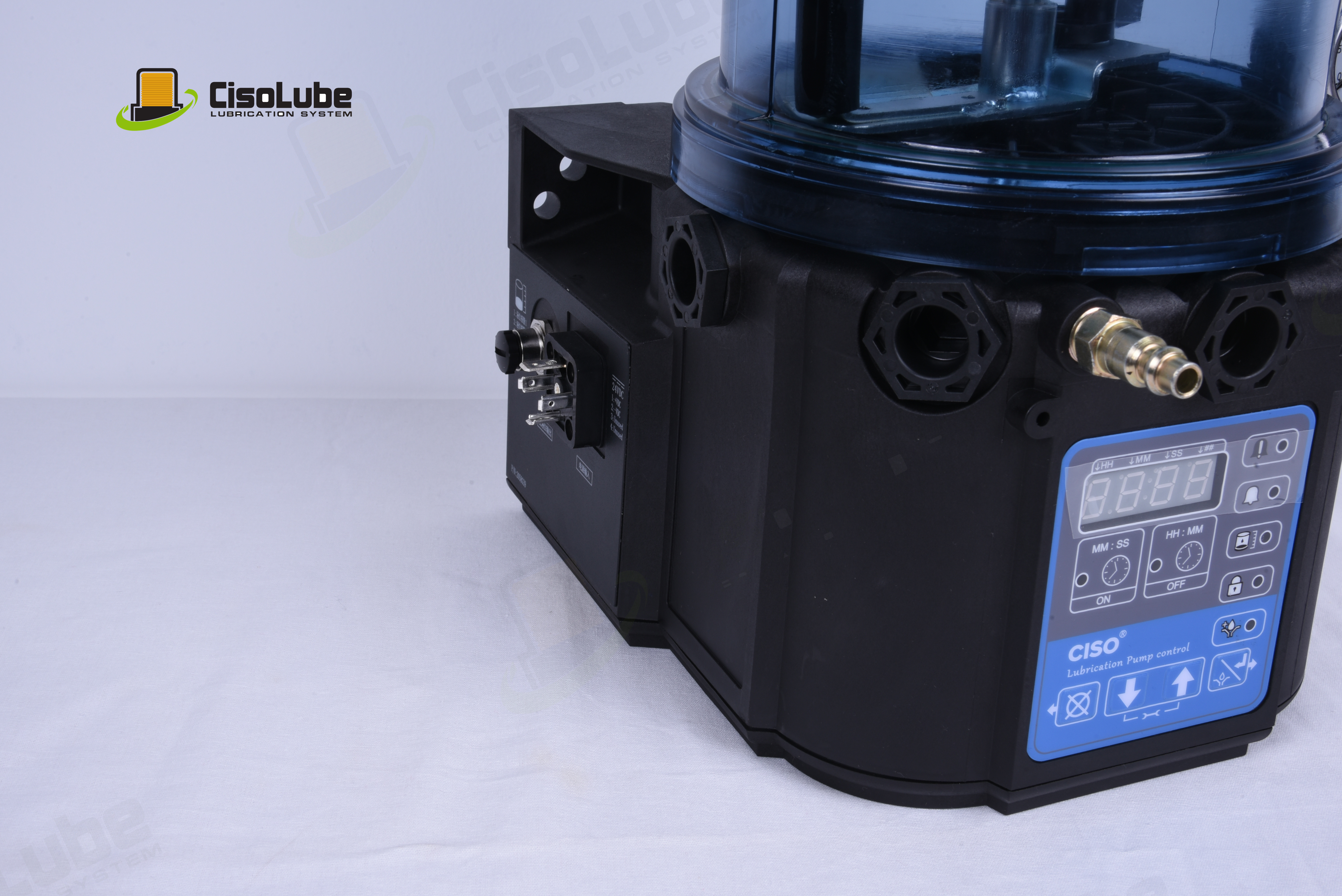

Introduction of electric grease centralized lubrication pump 2L with control for constrcution machinery

Pressured oil delivered by pump moves plunger in distributor to run reciprocating motion, which can force to deliver the oil to each lubrication point quantitatively and orderly.

Performance and characteristics of electric grease centralized lubrication pump 2L with control for constrcution machinery

1. DESIGN AND ADVANCED SOLUTIONS,GT-PLUS is a piston pump predisposed to operate with a maximum of five pumping units,Its design is particularly suitable for progressive systems or single-line systems.

2. Five independent line lubrication at the same time.Output can be combined and increase displacement

3. With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.With low liquid level alarm,flashing buzzer.

4. Be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.



Parametres of electric grease centralized lubrication pump 2L with control for constrcution machinery



TECHNICAL CHARACTERISTICS
Outlet thread	G1/4
Rated flow	2ml/min
Operating preasure	35MPa Max
Reservoir Capacity	2L
Lubricants	OIL-NLGI 2
Operating temperatures	-40-90℃
IP Grade	IP65
