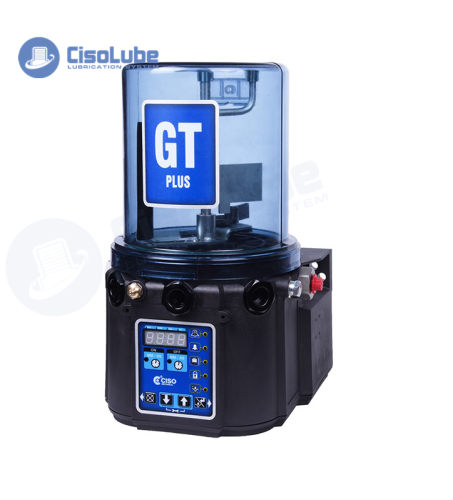

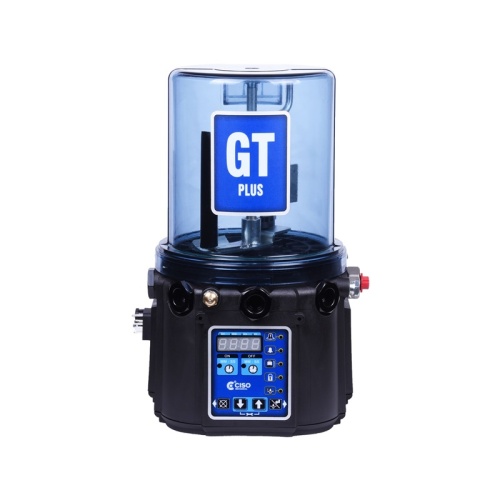

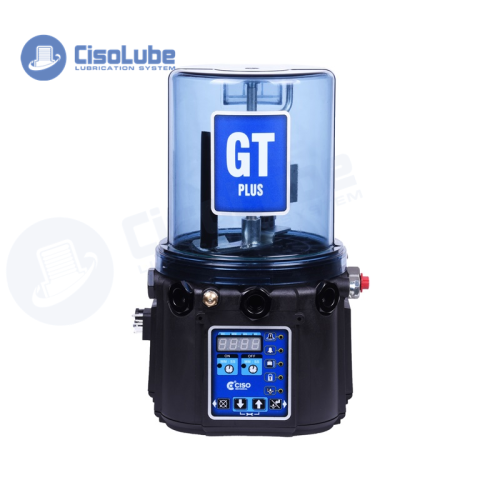

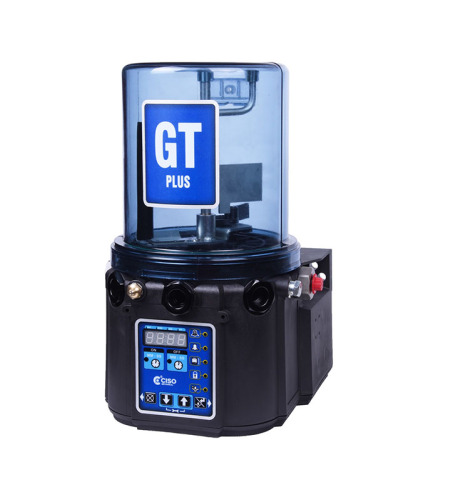

hot sales CISO GT-PLUS  grease lubrication pump centralized lubrication system manufacturers

Pressured oil delivered by pump moves plunger in distributor to run reciprocating motion, which can force to deliver the oil to each lubrication point quantitatively and orderly.

hot sales CISO GT-PLUS  grease lubrication pump centralized lubrication system manufacturers

1. DESIGN AND ADVANCED SOLUTIONS,GT-PLUS is a piston pump predisposed to operate with a maximum of five pumping units,Its design is particularly suitable for progressive systems or single-line systems.

2. Five independent line lubrication at the same time.Output can be combined and increase displacement

3. With special materials, to achieve excellent anti-shock ability Special design of pump make it easy to observe the oil level and prevent UV radiation, prevent oil deterioration.With low liquid level alarm,flashing buzzer.

4. With integrated control system, which can be set up local running time.Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distribution units into a perfect operating system.



hot sales CISO GT-PLUS  grease lubrication pump centralized lubrication system manufacturers



TECHNICAL CHARACTERISTICS
Outlet thread	G1/4
Rated flow	2ml/min
Operating preasure	35MPa Max
Reservoir Capacity	2L
Lubricants	OIL-NLGI 2
Operating temperatures	-40-90℃
IP Grade	IP65

System production case:

Ordering information：

1、Order the GT-PLUS pump for the upper grease cover.Please add  -C after the standard part number. For example:20D220-C

2、Every factory GT pump is equipped with a pump element at the T1 position.  Customers can purchase pump element  and install them in positions T2 through T5!

Dimensions：

Ordering information：

STIR VERSION
Type	Lubricants	Voltages	Reservoirs	Part number
Automatic	Grease	12VDC	8	20D821
		24VDC	8	20D841
		220VAC	8	20D861

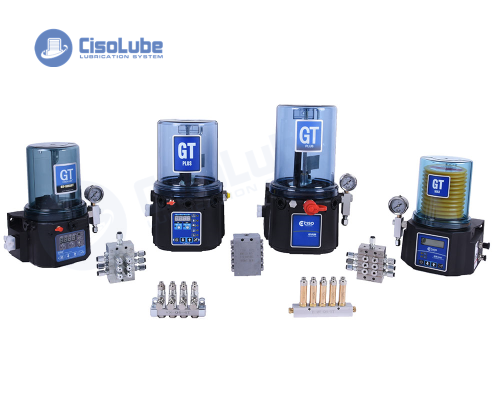

Application case:

ODM.
