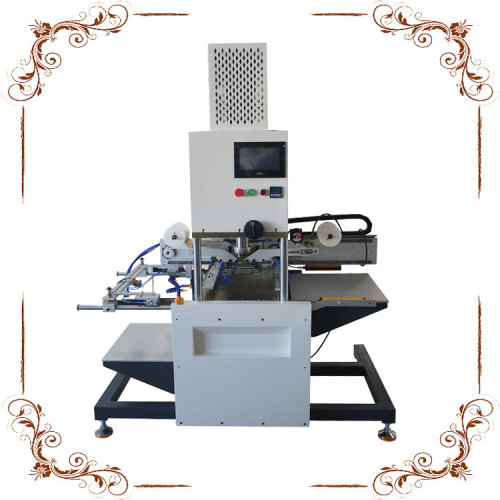

Gift box plain automatic hot foil stamping machine

Video

1 / 7

Gift box plain automatic hot foil stamping machine

$10875.00

≥1 Set/Sets

Total power:

3500W

Get Latest Price

You might also like

servo hot stamping machine for container seals

1 Set/Sets (MOQ)

Automatic Numbering hot stamping machine with shuttle

1 Set/Sets (MOQ)

Gift box plain automatic hot foil stamping machine

1 Set/Sets (MOQ)

Automatic Servo Hot Foil Stamping Machine for Packaging

1 Set/Sets (MOQ)

Automatic Hot Foil Printing Machine for wedding invitations

1 Set/Sets (MOQ)

High-Speed Automatic Hot Stamping Machine for Cards

1 Set/Sets (MOQ)

Automatic Rotary Hot Stamping Machine

1 Set/Sets (MOQ)

Automatic Package box hot foil stamping machine

1 Set/Sets (MOQ)

Handcrafted Wedding Card automatic Hot Stamping Machine

1 Set/Sets (MOQ)

Advanced Foil Stamping Equipment for Branding

1 Set/Sets (MOQ)

Basic Info

Model No.	H-TC3232ARS
Brand Name	KC
species	Heat Press Machine
Applicable industry	Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Indonesia, Mexico, Thailand, Australia, Argentina, Uae, Sri Lanka, South Africa
Showroom location (in which countries are there sample rooms overseas)	Thailand, Argentina, Uae, Sri Lanka, South Africa, Kyrgyzstan, Australia
status	New
Type of printing plate	Letterpress
place of origin	China
use	Paper Printer, Label Printer, Card Printer, Bill Printer
degree of automation	Semi-Automatic
Printing color number and surface number	Single Color
warranty period	1 Year
Core selling point	Automatic
Marketing type	Hot Product 2019
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Motor, Pump, Plc
Color & Page	Single-Colour Printing Press
Species	Continuous
Stamping Plate Size	320*320mm
Max feeding paper height	400mm
Air	5-7bar
Max Paper Size	600*600mm
Power Supply	1P220V

Product description

Introduction

? ? ? ? For products with a relatively fixed shape, it is almost an inevitable trend to use a fully automatic hot stamping machine. For example, paper, film, leather, etc. can be cut into fixed-size products. This fully automatic hot stamping machine uses a stacker to feed materials. The materials that need to be stamped will be neatly stacked on the stacker, and will be fed one by one by the feeding manipulator. The product is sent to the hot stamping position. The hot stamping device is generally composed of a servo-controlled plane hot stamping machine, which can be adjusted accurately from left to right, front to back, and up and down. After the bronzing is completed, the unloading manipulator will suck and transfer the product to the unloading workbench. The whole process is mechanized to avoid human intervention. Not only is the speed fast, but the safety is also greatly improved.
? ? ?At present, such automatic hot stamping machines are widely used in hot stamping processing of gift boxes, jewelry boxes, paper packaging, shoe materials and other products.

156

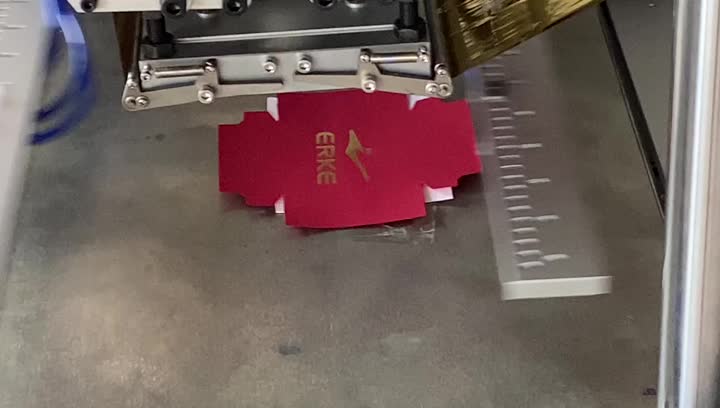

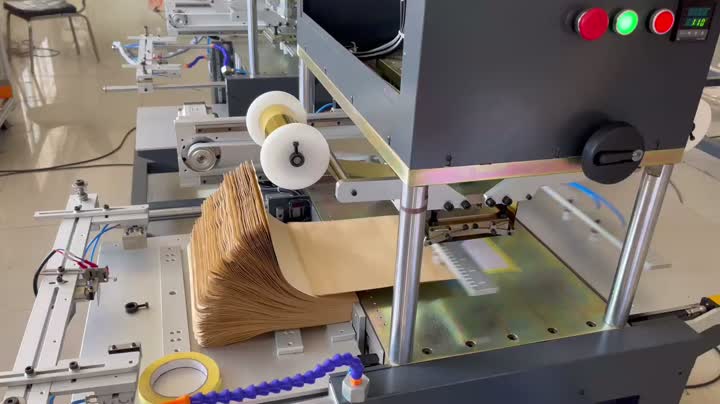

Full automatic A4 paper hot stamping machine //Usage and printed samples? ? ? ?

Technical data?

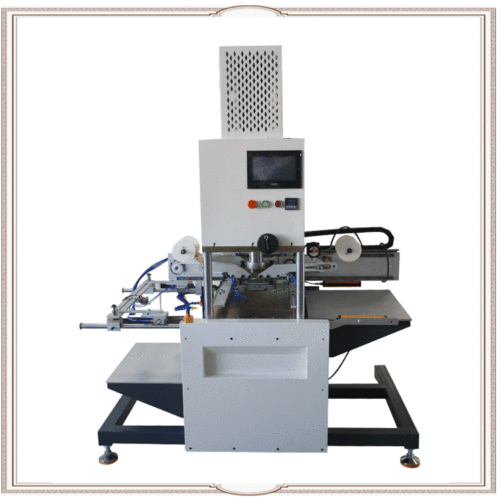

Full automatic paper hot stamping Machine //Structure
Feeding	Paper feeding robot
Press	Servo vertical press
Temperature control	IR Heater, automatically controlling
Foil collecting	Automatically collecting
Downloading	Automatically Robot
?Full automatic? paper hot stamping machine //Parameter
?	Stamping temperature Rnange:20～300℃; stamping size : 320320mm Table size:800800mm Max stamping Speed:1500-2000pcs/h Outer dimension: 1800×1400×1800mm; Net weight(kg) : 1050; Motor wattage: 750W; Power supply: 1P220V; Heater wattage: 3500W IR. Max pressure :3?tons Stamping accurate: 0.1-0.25mm
Works supply	1?P 220v Power supply；
Package list	Package size: 1850×1450×1880mm; Gross weight:1080kg CBM: 6.329
H.S.Code	8443198000
Certificate	CE

Details

PLC	XIN JIE
Touch Panel	XIN JIE
Servo Motor	XIN JIE
Solenoid Valve	Airtac/SMC
Air Cylinder	Xing Chen
Stepping Motor	LEI SAI
Sensor	Omron
Silencer	SMC
Relay	Omron
Circuit Interrupter	Chint
Switching power supply	Mingwei

Structure

Automatic hot stamping of paper, PVC, PU and other materials used in the printing and packaging industry. It includes automatic paper feeding, automatic length walking hot stamping paper, automatic paper collection, automatic rewinding of hot stamping paper and other functions.
Automatic paper feeding and automatic paper collection are controlled by servo motors, the paper is accurate, and the error can be controlled within 0.1mm. Both the paper feed table and the paper collection table can be automatically adjusted according to the height of the paper, ensuring the precise positioning of the paper collection and paper feeding.
The automatic bronzing spindle is controlled by a 1500W servo motor with brakes + planetary reducer, which can easily achieve a pressure adjustment range of 0-1.5 tons.
The bronzing temperature control system uses high-precision temperature control switches, thermocouples, and 400W heating plates, and the temperature difference range can be controlled within 2-3 °C, which is extremely effective for temperature-sensitive aluminum hot stamping film.
The automatic paper walking of aluminum galvanized aluminum and bronzing paper is controlled by stepper motor + high-precision pulley, and the fixed length of hot stamping paper is within 0.2mm.
The whole machine is programmable logic controller + touch screen man-machine interface + high-precision servo motor + cylinder control operation, reasonable design, high precision, small appearance and space-saving, especially suitable for jewelry box packaging, wallet watch box packaging, small leather shell, red packet bag, display box PVC and other products surface gilding.

How to choose paper hot foil stamping machine?

? ? ?Paper hot stamping is the most important industrial field of hot stamping. Most flat hot stamping machines can perform perfect hot stamping on paper. The following issues should be noted when choosing a paper hot stamping machine

1) Paper size

The size of paper varies. The hot stamping machine should be selected based on the maximum size of the paper provided by the customer.

2) Hot stamping effect

If you require a relief effect on the paper, you should choose a flat hot stamping machine with high pressure, such as a hydraulic hot stamping machine. If it is just hot stamping text, a general pneumatic hot stamping machine can be used.

3) Hot stamping speed

The hot stamping machine should be selected in combination with the orders that you can contact. If the order volume is small, you can choose a semi-automatic hot stamping machine. If the order volume is large, you can consider a fully automatic flat hot stamping machine.

4) Cold hot stamping technology

First, screen print the hot stamping paste on the paper, and then use the transfer method to transfer the hot stamping foil to the surface of the paper. This is a more popular hot stamping process. Compared with direct hot stamping, roller hot stamping machines are easier to achieve pressure balance.
