Good quality roof tiles machine brazil
Basic Info
| Model No. | TY-tile |
|---|---|
| Brand Name | Tianyu |
Product description
Quick Details
| Condition: |
New
|
Type: |
Tile Forming Machine,Roll forming machine
|
Tile Type: |

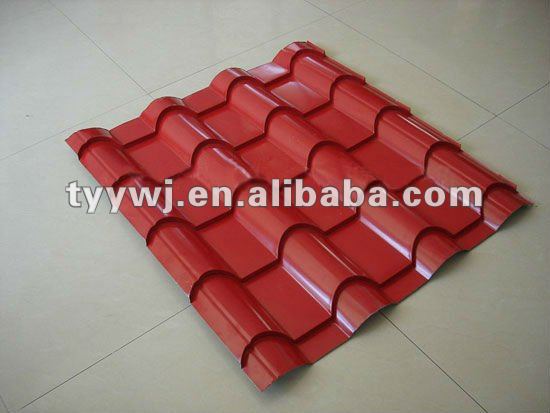

Colored Glaze Steel
|
| Use: |
Roof
|
Production Capacity: |
1-2.5m/min
|
Place of Origin: |
Hebei China (Mainland)
|
| Brand Name: |
Tianyu
|
Model Number: |
40-256-768 glazed tile
|
Power(W): |
4kw
|
| Voltage: |
380V,50HZ,3 phase,380V 50Hz, 3 phase
|
Dimension(L*W*H): |
8*1.3*1.2m
|
Weight: |
3.5T or so
|

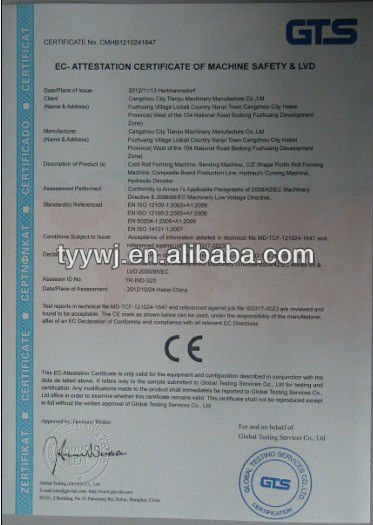

| Certification: |
CE
|
Warranty: |
12 months warranty
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Machine sizes: |
8000mm*1300mm*1200mm
|
Service: |
One year of free
|
Width of material: |
1000--1250mm
|
| Diameter of the roller: |
75mm
|
Productivity: |
1-2.5m/min
|
Roller station: |
16 rollers
|
| Thickness of the plate: |
0.2mm--0.7mm
|
Packaging & Delivery
| Packaging Detail: | 1. Tighten to container with steel wire rope and welded machine with container by angel iron 2. Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic) 3. PLC contral system and motor pump are packed with water proof paper coverage |
| Delivery Detail: | 30 days after geting 30% advance payment |
Specifications
1.Certification:CE
2.Use:roof panel
3.Middle plate:14mm
4.Large Frame Material:300H steel
5.Long life:15 years

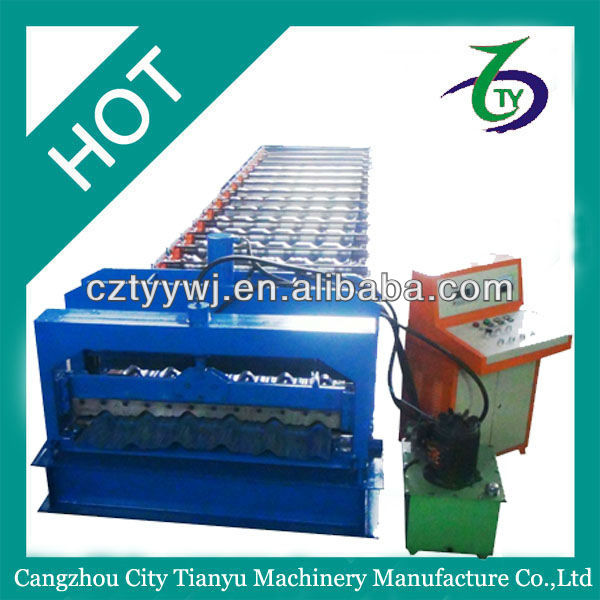

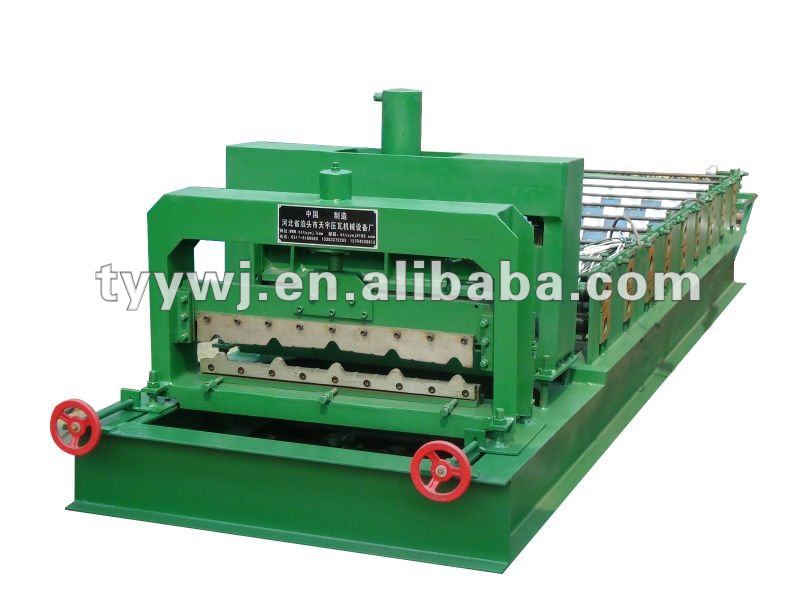

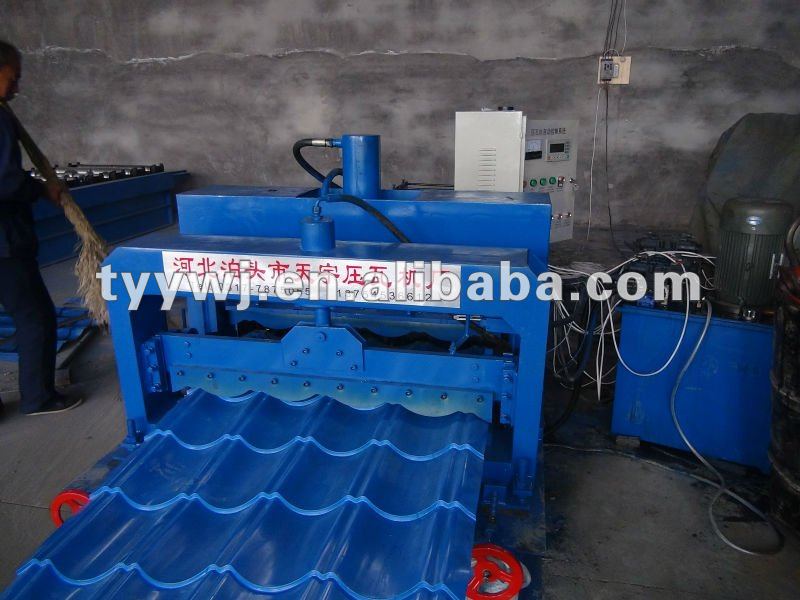

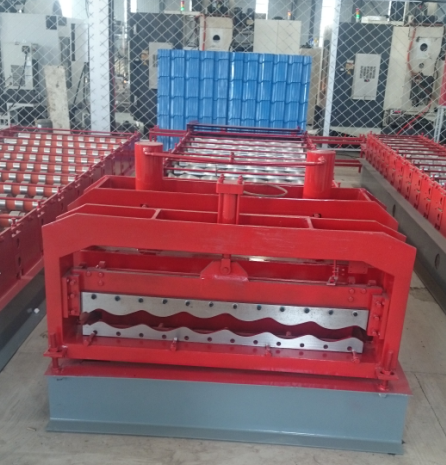

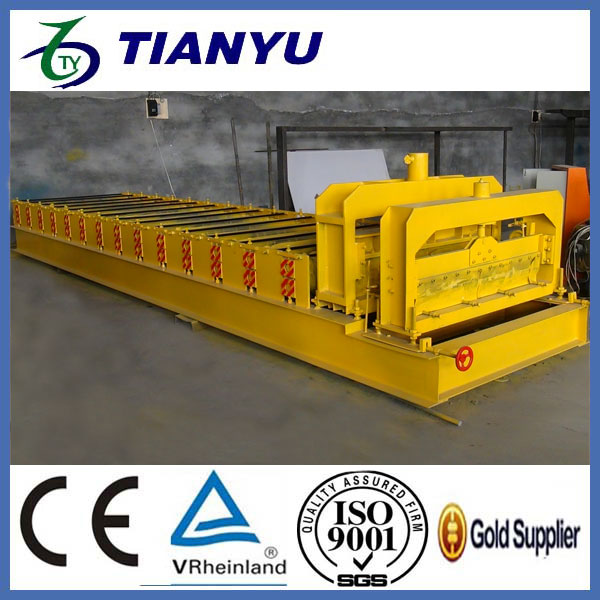

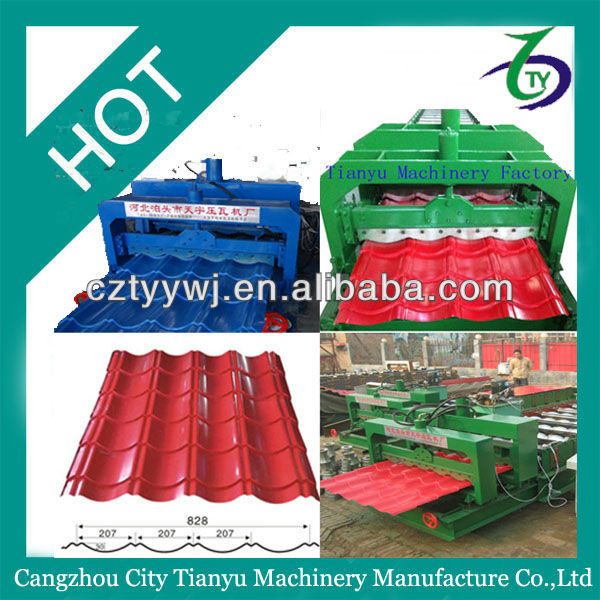

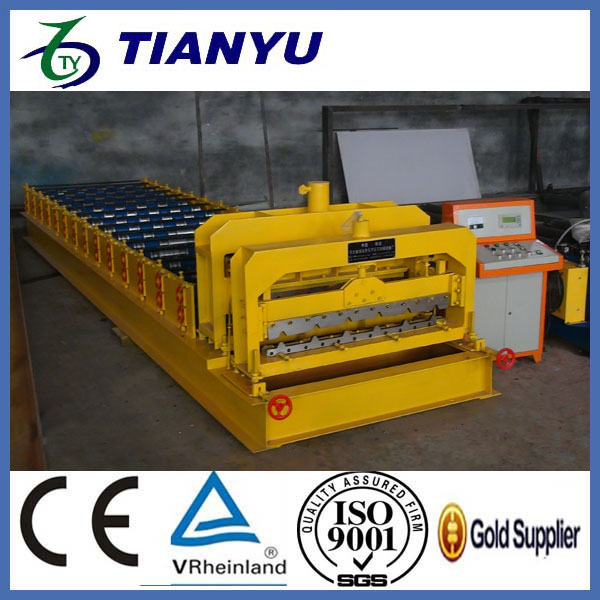

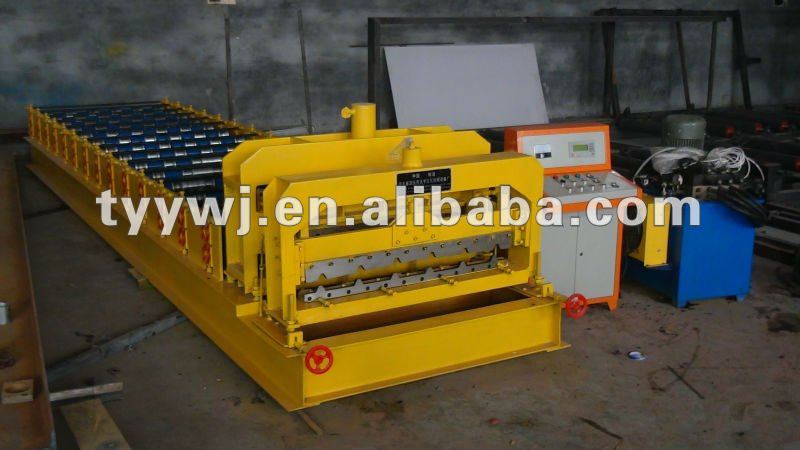

TY40-256-768 automatic glazed tile roof sheet making machine
1.Specification
| Dimensions | 8000*1300*1300mm |
| Kind of drive | Driving with 1.3 inch chain |

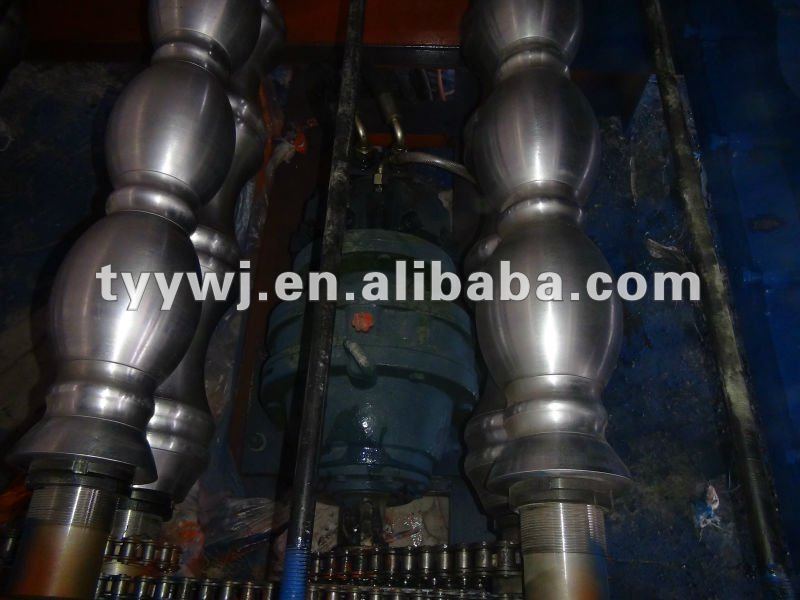

| Rolling wheel | Forging 45# steel |
| Diameter of roller | 75mm with 45# conditioning |
| Rolling speed | 1-2.5m/min |
| Rolling thickness | 0.2-0.7mm |
| Feeding width | 1000mm |
| Roller station | 16 rows |
| Main power | 4kw with reducer |
| Large frame | 300H steel |
| Middle plate | 14 mm |
| Machine weight | 3.5T or so |
2.Automatic system(The PLC can be designed according to customers' requirement)
| Pump station | 3kw |
| PLC | Taiwan"Delta" |
| Transducer | Taiwan"Delta" |
| Encoder |
Wuxi's"REP"or "XINYA" |
| Switch |
"CHINT" or "DELIXI" |
3.Component

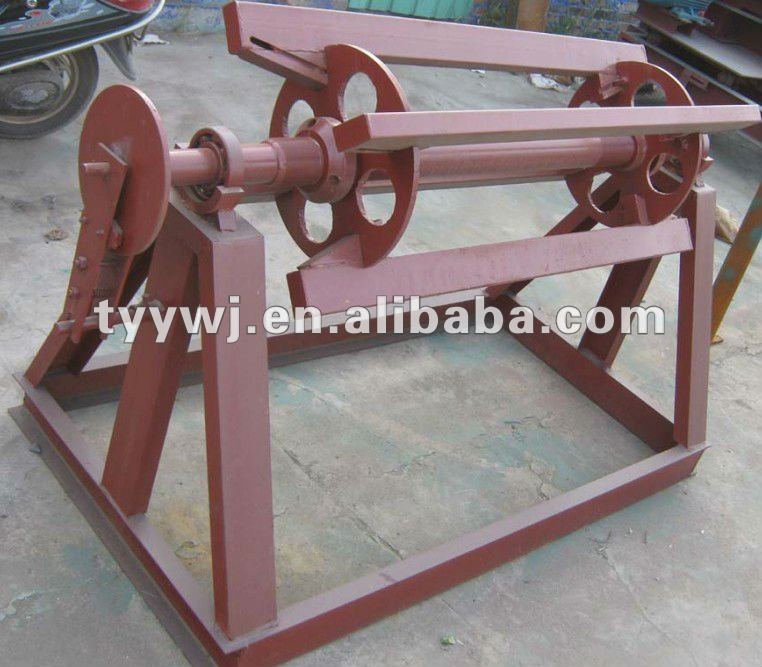

| Uncoiler |
|
| Main machine body |
|
| Station |
|
| PLC control |
|
| Platform |
|
4.The production process
| Decoiler→Flating→Feeding & punching→Forming→Cut to length→Colletion(finish goods) |
5.Service
|
We provide the technical support for whole life. Meanwhile, if any parts go broken and not artificial damage, we will send you new ones for free. When need the technician to go abroad, we will arrange the technician. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $80~150/days |
6.Payment
|
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery ) |
7.About us
|

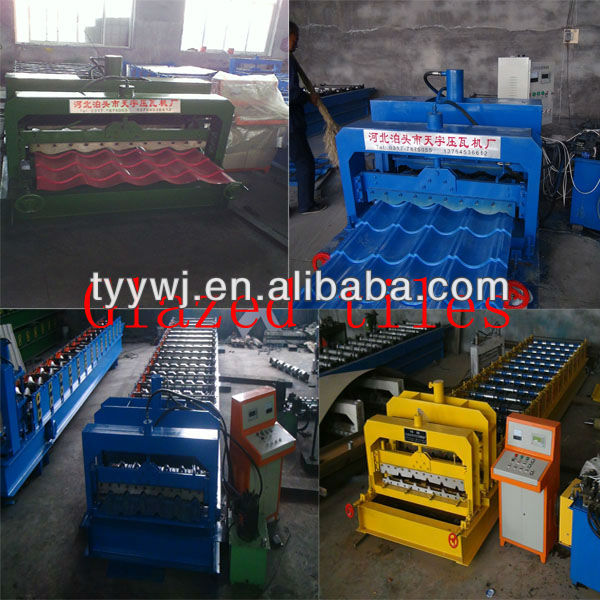

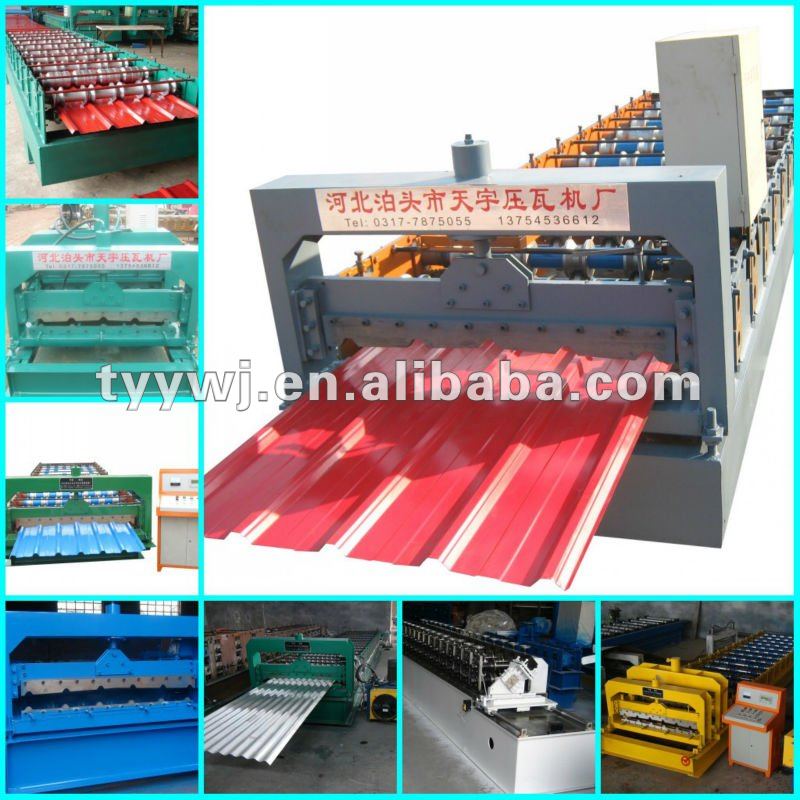

Our company have the series of coloured steel forming machine, including moding machine, concealed roof sheeet machine, flat sheet bending machine and so on |
- 12yrs
- Manufacturer
- OEM service
Good quality roof tiles machine brazil
