Basic Info
| Model No. | GMS-JT50 |
|---|---|
| Brand Name | GEMS |
| status | New |
| Applicable industry | Hotels, Manufacturing Plant, Retail, Food &Amp; Beverage Shops, Food Shop, Garment Shops, Building Material Shops, Food &Amp; Beverage Factory, Printing Shops, Other, Advertising Company, Construction Works, Farms, Machinery Repair Shops, Restaurant, Energy &Amp; Mining, Home Use |
| Out-of-warranty service | Online Support, Video Technical Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

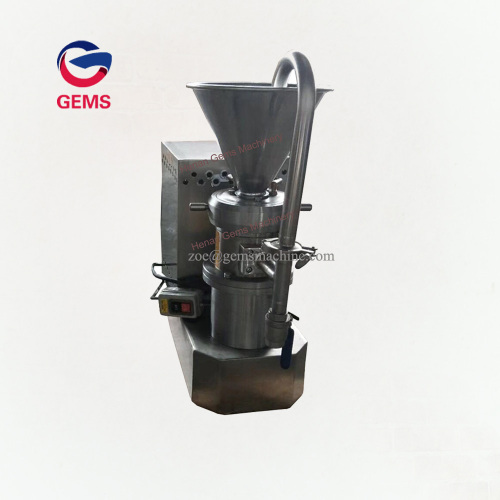

Introduction for Groundnut Sauce Jam Making Machine Africa:
1. This groundnut sauce making machine is avaliable for food, industry, chemical etc. It can grind peanut butter, cocoa butter, almond butter, soybean, almond milk, mayonnaise, carrot, apple etc. The final texture can be up to 200mesh, which is very smooth.
2. It is made of full stainless steel, the main parts of stator rotot are high quality, service life is much longer.
3. The cooling device is equipped, it can keep the machine in low temperature.
4. We can customize the machine based on your needs and budget.
Working Principle:
The jam making machine for sale is fixed by different geometry, the relative rotation of the rotor under high speed rotation, when the material under the weight, air pressure and centrifugal force through adjustable stator clearance, subject to strong shear , Friction, impact force, high-frequency vibration and other complex forces, are effectively broken, dispersed emulsification and mixing, resulting in the ideal product.
If you want to use this colloid mill into production line, we can provide the horizontal type colloid mill.
Technical Parameters of Groundnut Jam Machine:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
Main Advantages of Our Machines:
Grinding Effect of Different Raw Materials:
Wooden Package & Exporting Cases:
We exported to USA, Portugal, Australia, Ecuador, Chile, South Africa, Panama, Netherlands, Greece, Zambia etc more than 30 countires. We promise export standard free fumigation wooden box.
Clients Feedback:
We also have this peanut butter processing line, and other cocoa processing machine, such as cocoa peeling machine, cocoa nibs paste grinding machine etc. Please contact me for details:
