Basic Info
| Model No. | GMS-JT50 |
|---|---|
| Brand Name | GEMS |
| status | New |
| Applicable industry | Hotels, Manufacturing Plant, Retail, Food &Amp; Beverage Shops, Food Shop, Garment Shops, Building Material Shops, Food &Amp; Beverage Factory, Printing Shops, Other, Farms, Machinery Repair Shops, Restaurant, Home Use, Energy &Amp; Mining, Construction Works, Advertising Company |
| Out-of-warranty service | Online Support, Video Technical Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

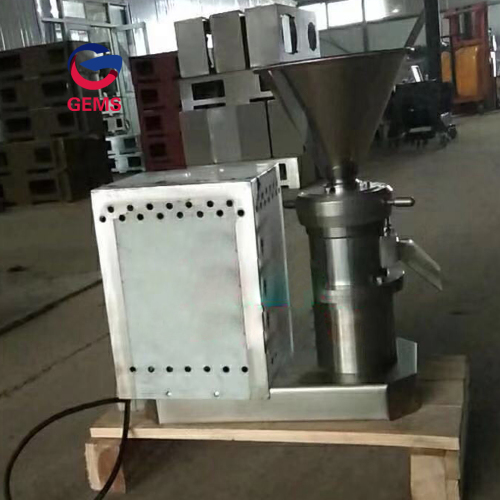

Work Principle for Small Colloid Mill Ketchup Making Machine for Sale:
The small colloid mill machine is fixed by different geometry, the relative rotation of the rotor under high speed rotation, when the material under the weight, air pressure and centrifugal force through adjustable stator clearance, subject to strong shear , Friction, impact force, high-frequency vibration and other complex forces, are effectively broken, dispersed emulsification and mixing, resulting in the ideal product.
If you want to use this colloid mill into production line, we can provide the horizontal type colloid mill.
Technical Parameters of Colloid Mill Machine:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
1) This machine adopts 304 stainless steel materials. It is corrosion resistant, non-toxic.
2) The main working parts are stator and rotor. They adopt specially machining and heating technology. So the machine has high machining accuracy and long life.
3) The stator and rotor can be made of different of material according to your application. They have different structures and gear. The user can choose according to their need. It is widely used.
4) The main body and the adjusting ring are equipped with limit device and locking device to ensure the stability of machining gap.
5) Users can choose ordinary motor or explosion-proof motor according to their need.
6) The colloid mill machine has all kinds of out packing to choose.
7) The main spindle and motor are designed separately. The user can choose the according rotate speed according to the requirements.
Beside this milling machine, we also provide fruit vegetable blanching machine, fruit vegetable dehydrator machine, fruit vegetable crusher, hydraulic press machine to get tomato juice.
Wooden Package & Exporting Cases:
We exported to USA, Portugal, Australia, Ecuador, Chile, South Africa, Panama, Netherlands, Greece, Zambia etc more than 30 countires. We promise export standard free fumigation wooden box.
