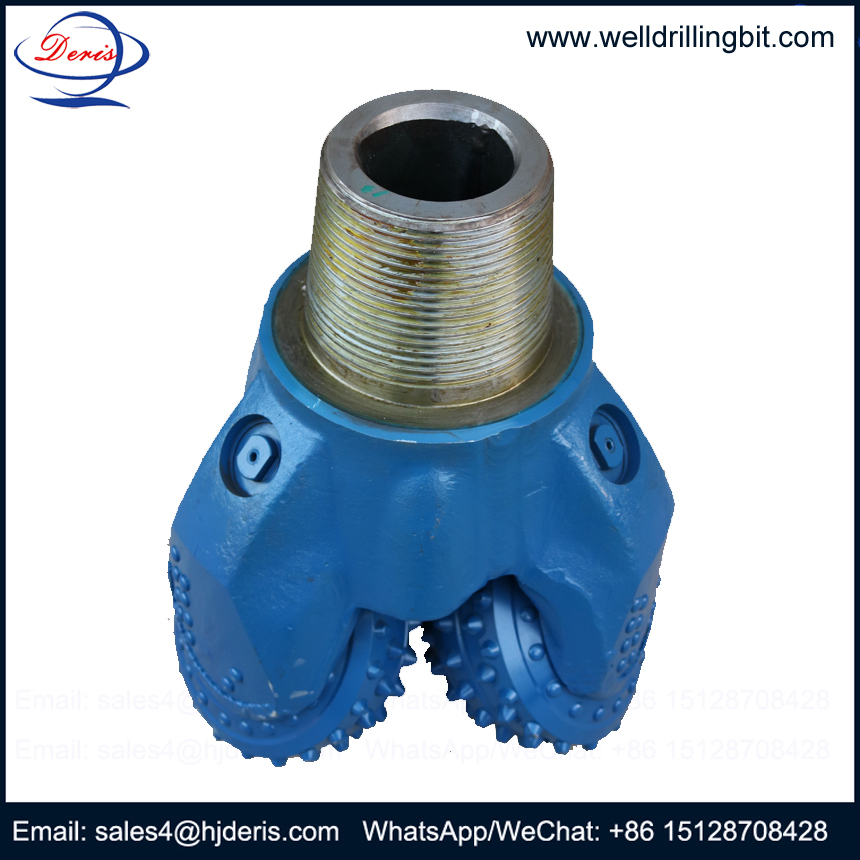

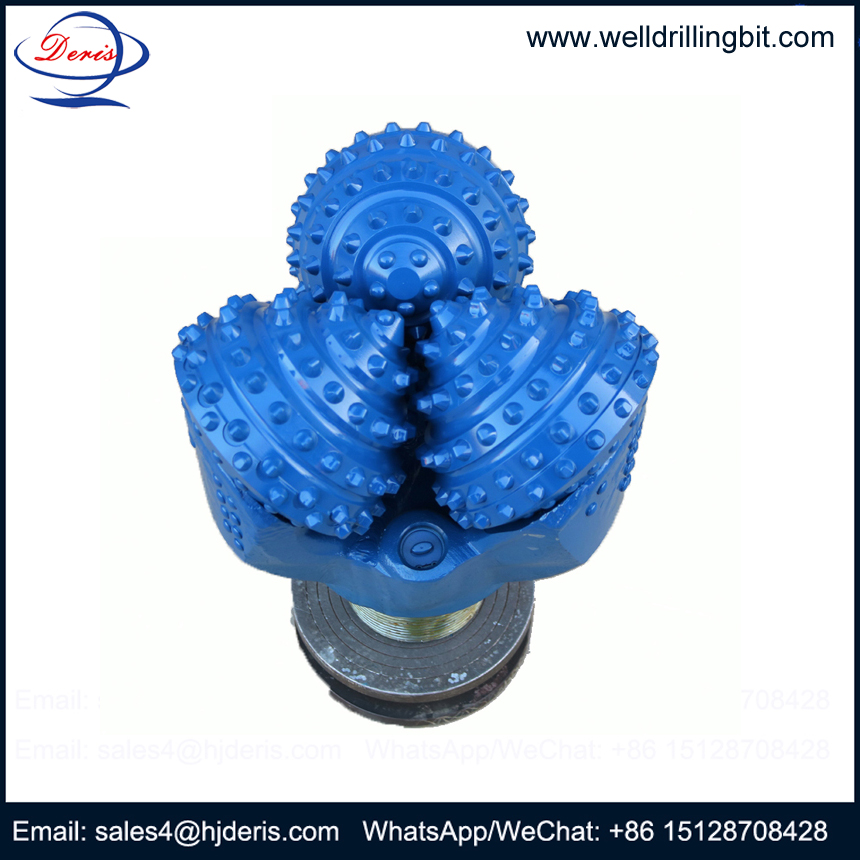

Hard Rock 617 TCI Roller Tricone Drill Bits
Basic Info
| Model No. | IADC 617 |
|---|---|
| Brand Name | DERIS |
| Bearing Type | Sealed Journal Bearing |
| Advantage | Durable And Cost-effective |
| Addition Feature | Gauge And Shirttail Protection |
| Connection | 2 3/8"~7 5/8" Reg Pin |
| Standard | API , SY/T5164 |
Product description
Steel teeth or carbide inserts come in a variety of shapes, sizes, and grades of tungsten carbides to address specific drilling conditions. TCI bits offer increased durability over steel tooth bits but also carry a higher cost.Open bearing bits feature bearings without a seal that are open to outside debris. Open bearing bits are generally cheaper than sealed bearing bits, and recommended for shallower holes. Sealed bearing tricone bits are available for use in applications where, historically, bearing life has limited bit performance. Sealed roller bearing bits extend the bearing life, allowing for increased utilization of the cutting structure.
Specification of Tricone Drill Bits
|
Basical Specification
|
|
|
Size of tricone bit
|
12 1/4" inch 311.4mm
|
|
Thread Connection
|
6 5/8" API reg pin
|
|
IADC CODE
|
HA 617G
|
|
Bearing type
|
rubber o-ring journal bearing
|
|
Operating Parameters
|
|
|
WOB (Weight On Bit)
|
0.35~1.05 KN/mm (bit Dia.)
|
|
Rotary speed
|
80-40 r/min
|
|
Make up torque
|
16.3~21.7 KN.M
|
|
Formation
|
Medium formation with high compressive strength ,and high drillability ,such as mudstone,gypsum,salt,soft
|
tci tricone bit design
Hard Alloy Welding Pervent bit wear and tear work and protect the bearing
Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation
High stength tunsten carbide teeth ,high temperature hear treatment forged alloy steel
Lubricating system protection of the bearing and seal system of the bit
Sealed Journal bearing
You can find the bit Diameter,thread Pin IADC code Serial number on the bottom
types of tci tricone rock bit
|
IADC |
WOB(KN/mm Bit Dia.) |
RPM(r/min) |
Applicable Formations |
|
435 515 |
0.20~0.70 |
200~80 |
Soft with very low compressive strength such as shale ,clay, sandstone ,soft limestone ,etc |
|
535 |
0.35~0.80 |
200~80 |
Medium soft with low compressive strength and harder abrasive stringers ,such as hard shale ,hared gypsolyte, soft limestone, sandstone and dolomite with stringer ,etc |
|
417 437 |
0.35~0.90 |
140~70 |
Very soft with low compressive strength and high drillability, such as shale, clay, sandstone and conglomerate ,etc. |
|
517 527 |
0.35~1.05 |
120~50 |
Soft with low compressive strength, such as shale, clay, sandstone, soft limestone, salt bed and hard gypsolyte, etc |
|
537 547 |
0.35~1.05 |
110~40 |
Medium soft with low compressive strength and harder abrasive stringers, such as hard shale, hard gypsolyte, soft limestone, sandstone and dolomite with stringers ,etc |
|
617 627 |
0.35~1.05 |
80~40 |
Medium hard with high compressive strength and thick &hard stringers, such as hard shale, limestone, sandstone and dolomite, etc |
|
637 737 |
0.70~1.20 |
70~40 |
Medium hard with high compressive strength and high abrasiveness ,such as limestone ,dolomite, sandstone and chert ,etc |
|
Note: The upper limits of WOB and RPM in above table should not be used simultaneously |
|||
|
API ROLLER CONE BIT TOLERANCES |
||
|
Out side diameter of bit |
O.D.Tolerances |
|
|
inch |
inch |
mm |
|
3 3/8~13 3/4 |
0~0.0313(1/32) |
0~0.79 |
|
14~17 1/2 |
0~0.0625(1/16) |
0~1.57 |
|
17 5/8~26 |
0~0.0938(3/32) |
0~2.38 |
tricone bit
oilfield drill bits adapter
Application of tci tricone bit
Our Company
Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park,close to Tianjin Port, Beijing Airport, The company covers an area of 30 acres and a factory building of 15,000 square meters.
Specializing in the production and sales of drilling tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars,etc.A professional design,production,inspection and foreign trade sales team has been established.
Products are export to the United States,Canada,Russia,Kazakhstan,Iran,Qatar,Sweden,Germany, Australia,Singapore,Mexico,Colombia more than 30 countries.
Our company is planning to adding 3 production lines,CNC machine tools,drilling machines,milling machines,quality testing equipment etc to ensure quality and timely delivery.Looking forward to working with you
Our certificate
Each product is manufactured and inspected in strict accordance with the industry's highest technical quality standards and API specifications.The quality assurance system established in accordance with the requirements of ISO 9001 ensures the best quality of the products and the effective operation of the company.
Package and shipping
Package Type:wooden case ,also be packaged according to customers requirement
Transportation:by sea,by air or land transportation.Less than 50kg shipping by courier better
Delivery:If we have stock,the delivery time will need about 2~3 working days.In general,common size tricone bits and pdc bit,we have stock
If we have no stock,such as the tci reamer and pdc hole opener,it will be 7-10 working days in total
How about our Customers feedback?
The drilling deepth more than 460meters 1 pc Metal seal bearing tci tricone bit
TCI Tricone bit Drilling 3500 meters well no problem
Drilling to 1600 meter the PDC drill bit continue work good enough
If you are interested in our products please send Email to Jenny
I am Jenny,already have 7 years working experience for this section.I am very pleasure to help them solve some difficult problems for the HDD drilling reamer and tricone bit,and find the more suitable drilling products.We believe double win is what we want.If you have any questions,welcome to talk with me.
Our service
1 We are manufacture can supply good quality goods and competitive price
2 We not only have ourselves design but also can accept customization
3 We have fast and on time delivery time
4 Every bits have it's quality assurance
5 Contact our anytime if you have any question with bits
How to complete the whole deal
1. Firstly decide the design,material and color
2. Decide the size in accordance with client's requirement and our recommendation
3. We will give the best offer
4. Client's accept the offer and we send proforma invoice
5. Client transfers 30%-50% deposit and production begins
6. After production,we will send ready products photo
7. After client's confirmation,we will arrange shipment,and send copy shipping documents like B/L,commercial invoice and packing list
8. Client transfer balance payment and we will send original documents by express or Telex Release
