Heavy-Duty Hammer Impact Crusher for Industrial Use

Video

1 / 5

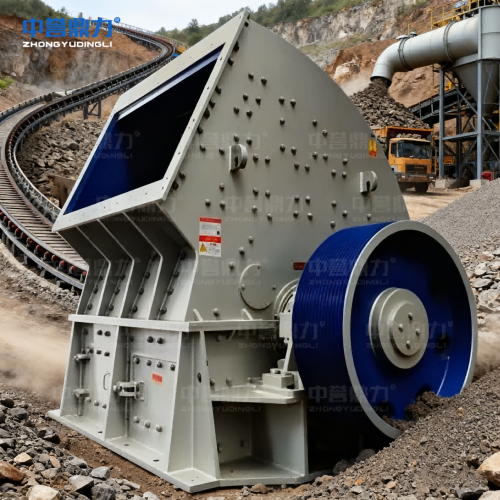

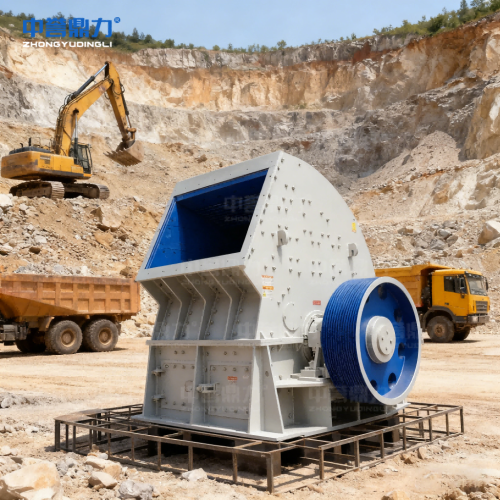

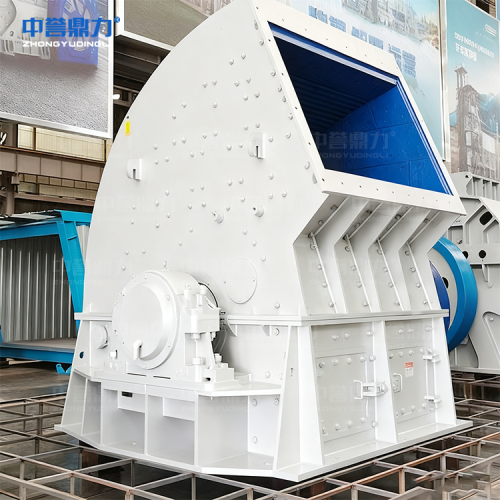

Heavy-Duty Hammer Impact Crusher for Industrial Use

Power (Watts):

132-1250KW

Model:

DLPCZ1308
DLPCZ1512
DLPCZ1615
DLPCZ1815
DLPCZ1820
DLPCZ2020
DLPCZ2122
DLPCZ2125
DLPCZ3032

Get Latest Price

You might also like

Durable Hammer Impact Crusher for High-Volume Processing

1 Set/Sets (MOQ)

High Efficiency One Step Crushing Shaping Hammer Crusher

1 Set/Sets (MOQ)

Hammer Mill Crusher for Limestone Crushing Plant

1 Set/Sets (MOQ)

500 TPH Hammer Crusher for Mining and Quarry

1 Set/Sets (MOQ)

Patent Rotor Heavy Duty Hammer Mill

1 Set/Sets (MOQ)

High-Performance Hammer Impact Crusher Solution

1 Set/Sets (MOQ)

Industrial Hammer Crusher for Mining and Quarry

1 Set/Sets (MOQ)

Primary Hammer Crusher for Stone and Ore Crushing

1 Set/Sets (MOQ)

High Capacity PC Hammer Mill Crusher

1 Set/Sets (MOQ)

High Efficiency Hammer Impact Crusher for Industrial Use

1 Set/Sets (MOQ)

Basic Info

Model No.	DLPCZ
Brand Name	ZhongyuDingli
Applicable industry	Construction Works, Energy &Amp; Mining
Where to provide local services (in which countries are there overseas service outlets)	Russia, Indonesia
status	New
Types of	Hammer Crusher
Motor type	Ac Motor
place of origin	China
warranty period	1.5 Years
Marketing type	Other
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1.5 Years
Core components	Motor, Engine
Core selling point	High Productivity

Product description

Heavy-Duty Hammer Impact Crusher for Industrial Use

Drawing on over 30 years of experience in stone crushing and processing, Zhongyu Dingli has developed the Heavy Hammer Crusher, or HH Crusher for short. With nearly 10,000 units sold both domestically and internationally, its clients include many large-scale enterprises such as China United Cement Group, Henan Mengdian Group, Southern Cement, Southwest Cement and more.

Recommended Materials: Limestone, bluestone, and other medium-to-low hardness materials

Suitable Material Conditions: Materials with compressive strength not exceeding 150 MPa and calcium content higher than 40%

Processing Capacity: 100–6000 T/H

Feed Particle Size: ≤ 1600 mm

Our high-efficiency Hammer Impact Crusher is a versatile core device for medium-to-fine crushing and aggregate shaping in mining and construction material processing lines, renowned for producing well-graded, cubical finished products ideal for high-standard infrastructure projects. It pairs seamlessly with upstream Mining feeder to ensure steady, uniform material feeding—preventing equipment clogging and maximizing crushing efficiency—and works in tandem with Jaw crusher (primary crushing), Cone Crusher and other crushing equipment to form a flexible multi-stage processing system that adapts to diverse ore and rock types. We also supply premium Mining Spare Parts for this Hammer Impact Crusher, minimizing maintenance downtime and extending the long-term stable operation life of your entire production setup.

All-in-One Crushing & Shaping Machine — One Machine Replaces Two

The Shaping Hammer Crusher features a large feed particle size and a small discharge particle size. Through the design of adjustable movable liners and material gravity flow chutes, it achieves impact crushing, counterattack shaping, and gravity discharge. It converts the traditional two-stage crushing process into a single-stage operation, realizing low-cost equipment investment and operation. It is an ideal choice for customers.

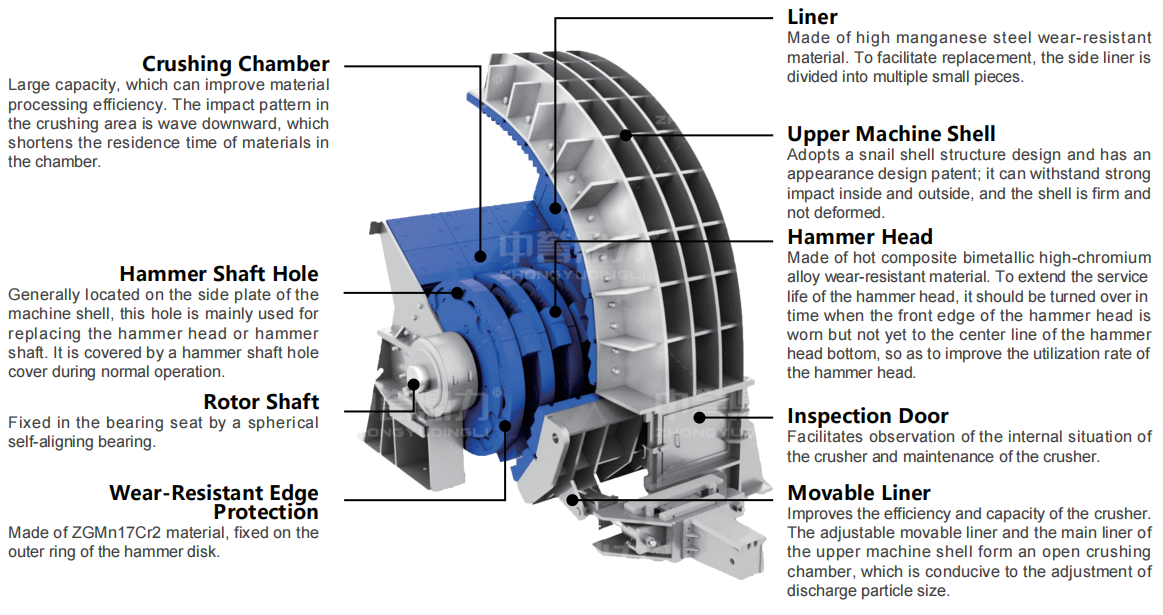

Patented Rotor: Extended Service Life

Utility Model Patent No.: ZL201721349545.9

1.Hammer Shaft Hole

A 42CrMoAl alloy sleeve is embedded into the hammer shaft hole via interference fit using a 200-ton hydraulic press, which extends the service life by several times compared with traditional hammer shaft holes.

2.Hammer Shaft

The hammer shaft is manufactured through a process of rough turning, quenching and tempering, carburizing, and finish turning, to enhance its strength, toughness and hardness.

3.Main Shaft

Made of 42CrMo material, the main shaft undergoes rough turning, quenching and tempering, and finish turning. The mating surfaces are milled on a gantry boring and milling machine, resulting in a significantly longer service life than that of traditional main shafts.

4.Hammer Head

We adopt high-strength thermally bonded bimetallic high-chromium alloy hammer heads, which are provided to customers at cost price.

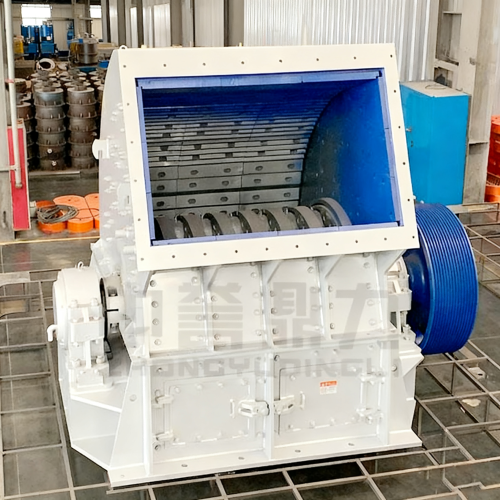

Three Impact Zones for Superior Particle Shape

The impact plate of the top impact zone features a downward wave pattern, with its impact trajectory positioned between the two rows of hammers on the rotor. The hammers crush the materials, while this impact zone shapes them. By guiding materials back between the two rows of hammers through the impact trajectory, it further enhances the crushing efficiency.

The second impact zone adopts a diamond-shaped impact design, with its movement trajectory located below the hammers. This design accelerates the downward flow of materials, shortens their residence time inside the machine chamber, and simultaneously performs impact shaping on the materials.

The third impact zone employs an inverted triangular impact structure that is gravity-flow enabled and spacing-adjustable.

Gravity Flow Chute Design: Minimal Powder Generation

Gaps are reserved on the adjustable impact plate of the third impact zone, allowing materials with a diameter smaller than the gap to flow out naturally. This design avoids re-crushing, boosts production capacity, and significantly reduces the powder generation rate. It serves as an ideal alternative to traditional impact crushers when processing appropriate materials.

Time-Tested Product

Building on the mechanical principles of traditional hammer crushers, impact crushers, box-type crushers, and all other machinery that crushes stone via hammers or blow bars, we have designed the Heavy Hammer Impact Crusher by integrating over 30 years of stone crushing experience.

Optimal Gradation

Thanks to multiple ingenuous designs including the three impact zones, finished product gravity flow, and adjustable impact liners, the finished aggregate achieves optimal gradation with low powder generation. It can meet the diversified requirements of customers.

Easy Maintenance

Equipped with 8 sets of hammer shaft holes (4 for standby use), the machine body is fitted with inspection doors for easy monitoring of operation status. A hydraulic shaft extractor is provided to facilitate the replacement of hammers and hammer shafts. All components are bolt-fastened for convenient disassembly, reducing maintenance time and costs.

Exquisite Manufacturing

All key components are protected with safeguards. They are processed using modern machinery and equipment such as gantry milling machines and hydraulic presses. We have established a dedicated Product Technology Department to continuously improve processing technologies and enhance product quality.

Technical Parameters of Heavy-duty HammerImpact Crusher
