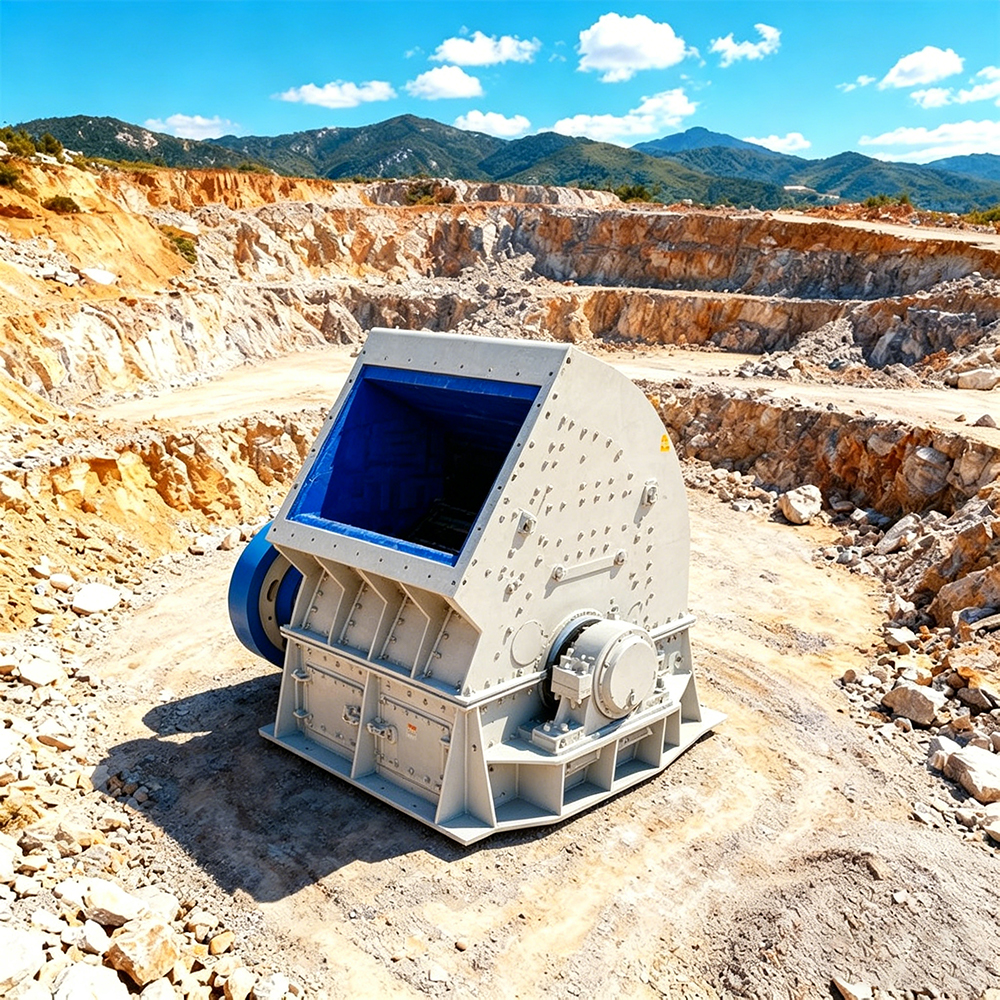

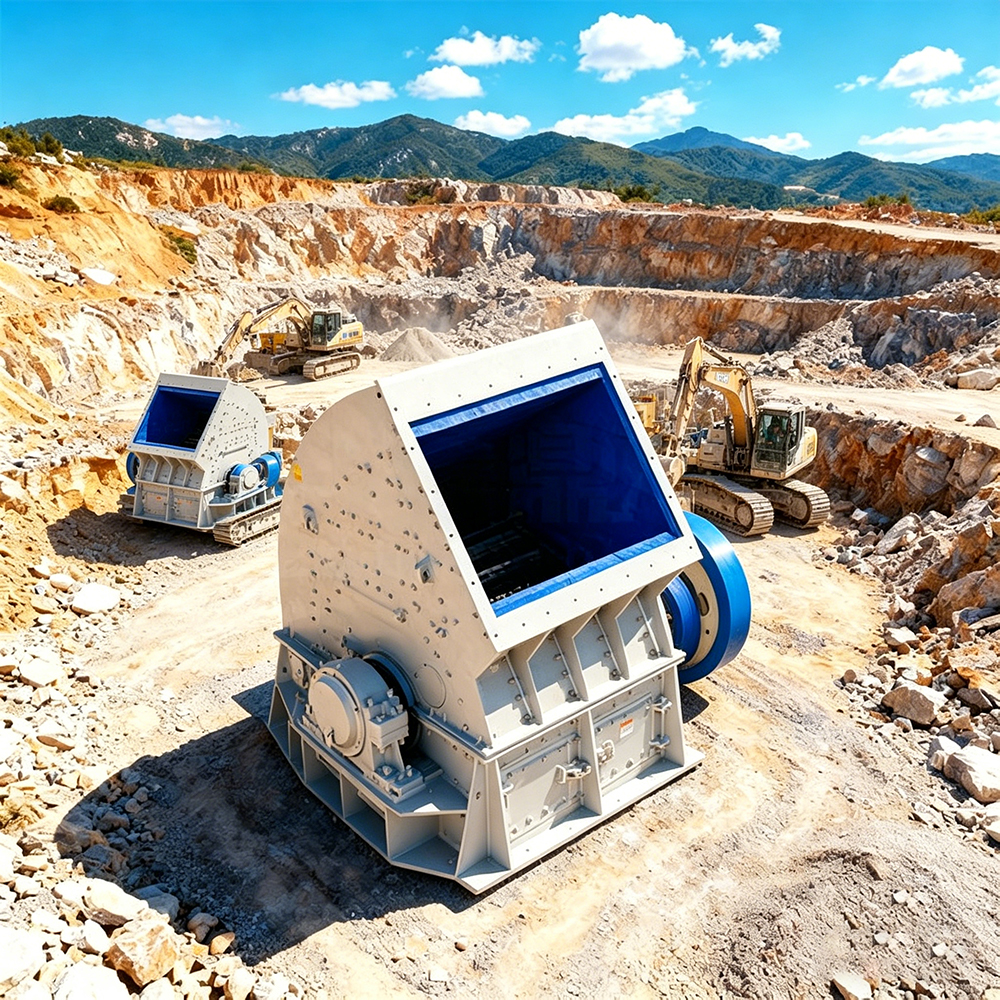

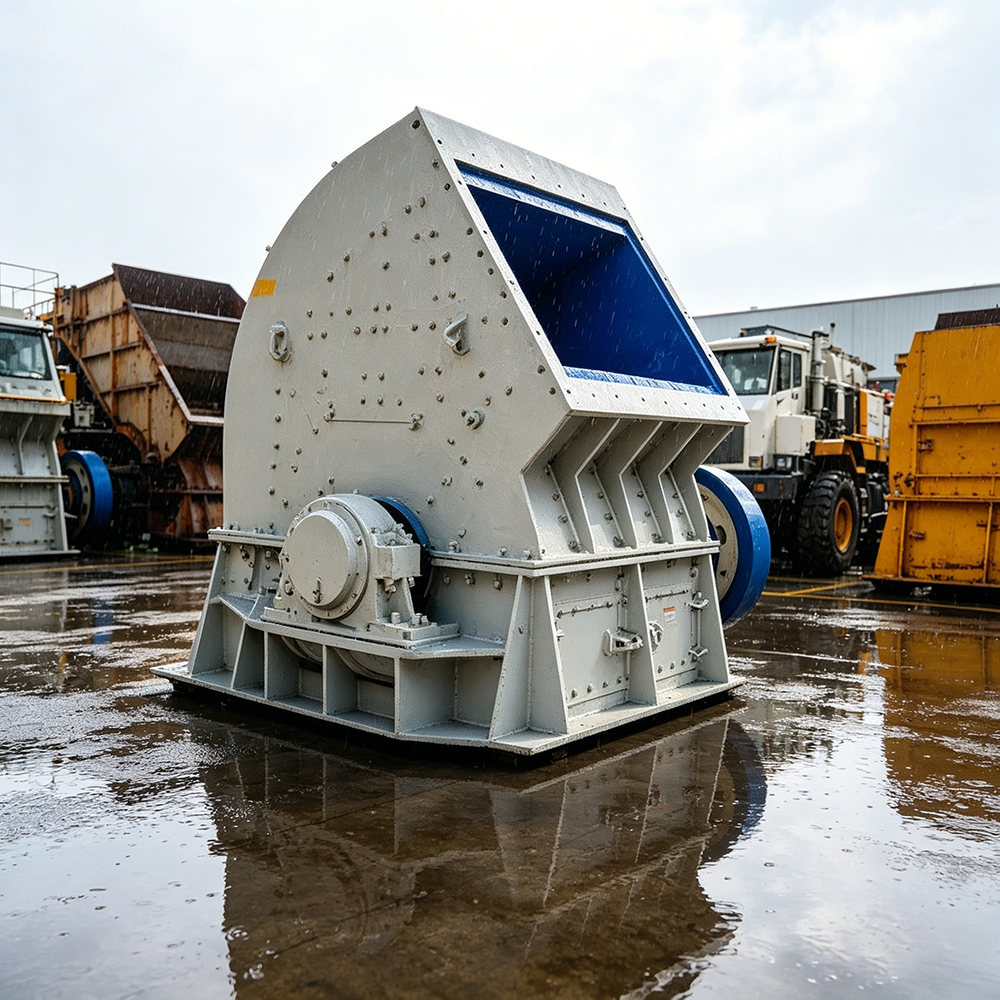

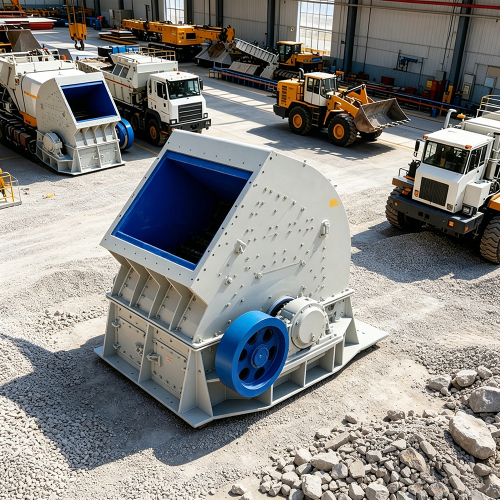

This heavy-duty hammer crusher features three dedicated working zones: crushing zone, shaping zone, and forming zone, enabling multi-stage "iron-stone, stone-stone, stone-iron" crushing with a unique multi-groove design:

??Core Parameters: Max feed size ≤1200mm, processing capacity 50-6000t/h, suitable for brittle materials with compressive strength ≤200MPa and humidity <10% (limestone, coal gangue, bluestone, gneiss).

??Superior Finished Product Quality: Open crushing cavity with adjustable discharge gap controls powder production rate below 10%, producing uniform finished aggregates (0-5mm, 5-10mm, 10-20mm) with excellent particle shape.

??Cost & Energy Saving: Achieves one-step forming from large blocks to finished aggregates, reducing energy consumption by 30% and increasing product premium by 15-20%, fully meeting high-standard requirements of railways, hydropower stations, and other key projects.

Super Durable Core Components & Low Failure Rate

Equipped with premium, long-lasting core components for 24/7 continuous operation in harsh mining environments:

??Premium Material: Hammerheads adopt thermal composite bimetallic high-chromium alloy, with hammer shafts made of wear-resistant alloy steel. The through-type design actively avoids large stones/metal objects, and materials can be discharged by inertia during sudden power outages.

??Extended Service Life: Hammerhead service life is 5 times longer than traditional ones, rotatable for four-sided use. Wear-resistant guard edges protect the rotor disc, and isolated transmission structure reduces failure rate to ≤0.3% per 1000 hours.

??Reduced Downtime & Cost: Cuts spare parts replacement cost by 40% and unplanned downtime by 70%, ensuring continuous operation of large-scale production lines (e.g., 1500t/h aggregate lines in Huaibei).
