High-Performance Hammer Impact Crusher Solution
Get Latest Price
You might also like
Basic Info
| Model No. | DLPCZ |
|---|---|
| Brand Name | Zhongyu Dingli |
| Applicable industry | Construction Works, Energy &Amp; Mining |
| Where to provide local services (in which countries are there overseas service outlets) | Russia, Indonesia |
| Showroom location (in which countries are there sample rooms overseas) | Indonesia, Russia |
| status | New |
| Types of | Hammer Crusher |
Show More
Product description

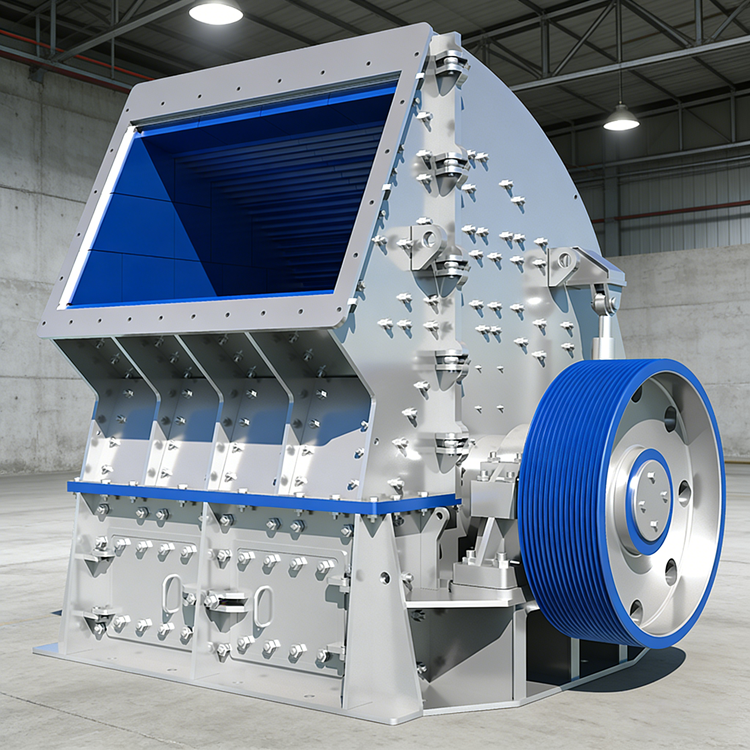

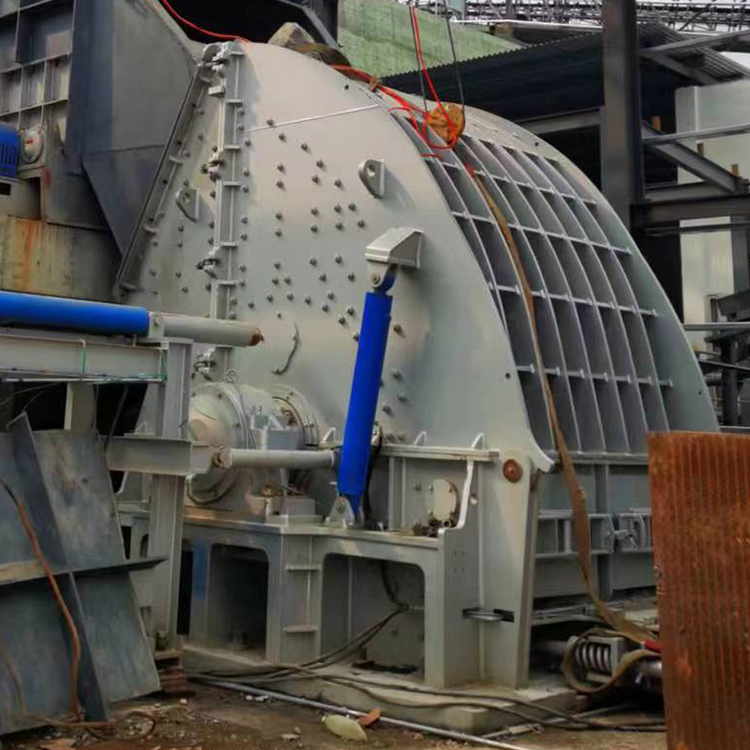

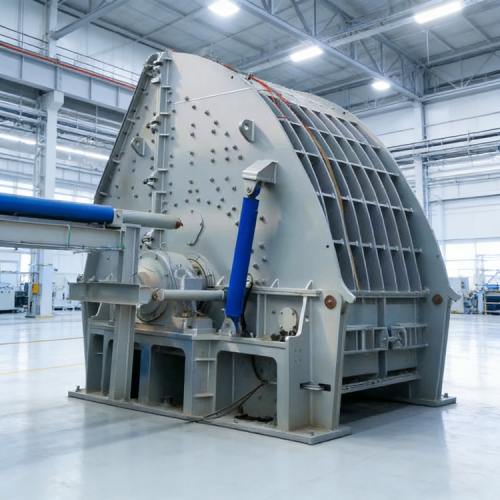

High-Performance Hammer Impact Crusher Solution
?
Product Overview?
?
ZYDL High-Performance Hammer Impact Crusher is a professional crushing solution specifically designed for medium-hard and brittle materials (Mohs hardness ≤8). It is widely applied in mining, quarrying, aggregate production, construction waste recycling and cement manufacturing. Adopting advanced impact crushing technology and imported special steel manufacturing process, the crusher features high crushing ratio, uniform product particle size and stable long-term operation. It can effectively convert raw materials such as limestone, coal, concrete blocks, gangue and dolomite into high-quality cubic aggregates, and can seamlessly integrate with ZYDL screening and conveying equipment to form a complete, efficient production line, greatly improving overall processing efficiency.?
?
?
?
Core Advantages?
?
High Crushing Efficiency: Equipped with high-speed rotating hammer heads (linear speed 35-50m/s), the crusher achieves a crushing ratio of up to 1:40, realizing one-step crushing of large raw materials (max feed size ≤300mm) into finished products of ≤10mm. This eliminates the need for multi-stage crushing, significantly saving equipment investment and operational costs.?
Durable & Wear-Resistant: The hammer heads are made of high-chromium alloy with tungsten-titanium inlay technology, which greatly enhances wear resistance and impact resistance. Matched with a reinforced Q345B steel frame and thickened impact plate, the service life of wearing parts is extended by more than 30% compared with ordinary crushers, reducing replacement frequency.?
Precise Particle Control: The stepless adjustable grate gap (range 5-50mm) allows flexible adjustment of output particle size according to production needs, ensuring uniform cubic-shaped finished products that fully meet the quality standards of concrete, asphalt and other construction materials.?
Easy Maintenance: Adopting hydraulic cover opening design, the crusher cover can be fully opened in 90 seconds, enabling quick inspection, hammer head replacement and internal cleaning, which greatly shortens maintenance downtime and improves equipment utilization rate.?
Energy-Saving & Eco-Friendly: Equipped with high-efficiency energy-saving motor, the power consumption is reduced by 20% compared with traditional impact crushers. The fully sealed machine body and optional dust suppression device effectively control dust emissions, meeting strict global environmental protection standards for industrial production.?
?
?
Specifications?
?
The standard model has a processing capacity of 50-800 t/h, with a maximum feed size of ≤300mm and a motor power of 37-315kW. The output size can be steplessly adjusted between 5-50mm to meet different production needs. For special working conditions (such as large-scale mines and high-capacity aggregate plants), we provide customized solutions, with the maximum processing capacity up to 2200 t/h, fully matching the production scale of customers.?
?
Applications?
?
It is widely used in multiple industrial fields: Mining industry (crushing of iron ore, coal, gangue, non-metallic ore); Aggregate production (crushing of limestone, granite, basalt to produce concrete and asphalt aggregates); Construction waste recycling (crushing of waste concrete, waste bricks into recycled aggregates for reuse); Cement production (crushing of raw materials such as limestone and clay); Chemical industry (crushing of brittle chemical raw materials).
?
Our sand and gravel aggregate production lines boast extensive and all-round coverage, and we offer a complete range of configurations from individual standalone equipment to full turnkey production lines, including Crushing Equipment, Sand Making Equipment, Screening Equipment, Feeding Equipment, Mining Conveyor and Mobile crusher. We provide customized crushing and processing solutions for a full spectrum of materials including bluestone, limestone, basalt, granite, pebble, coal gangue, calcite, quartz stone, dolomite, iron ore, barite, diabase, tuff and high calcium limestone, as well as targeted processing solutions for kaolin. We also deliver professional crushing solutions for industrial solid wastes such as slag and tailings, and comprehensive treatment solutions for construction & demolition waste. In addition to fixed production line solutions for various materials, we also supply flexible Mobile Crawler Unit Solutions to meet diverse on-site operation needs of sand and gravel aggregate production.
