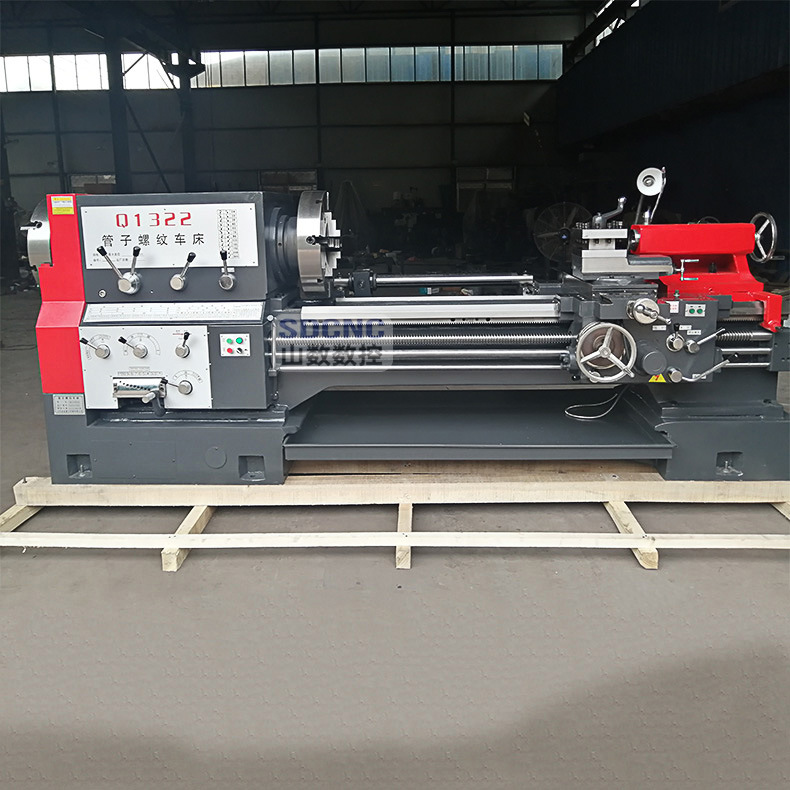

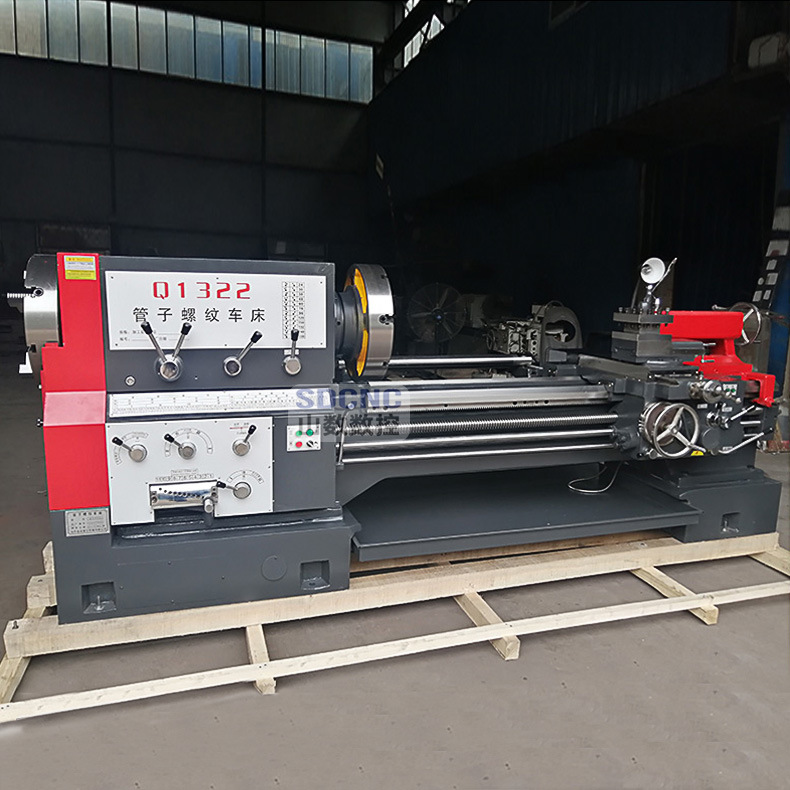

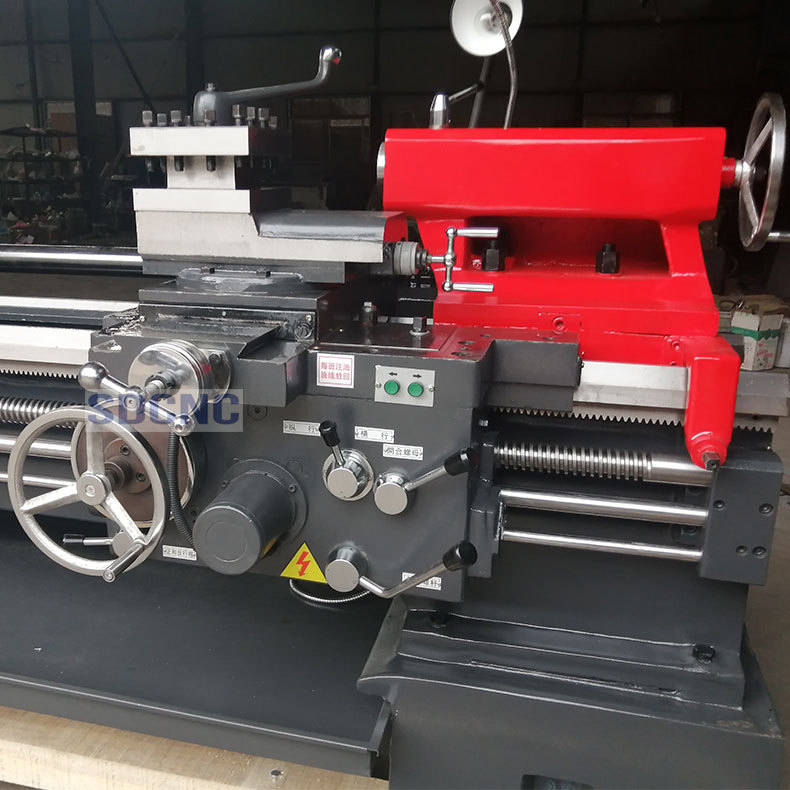

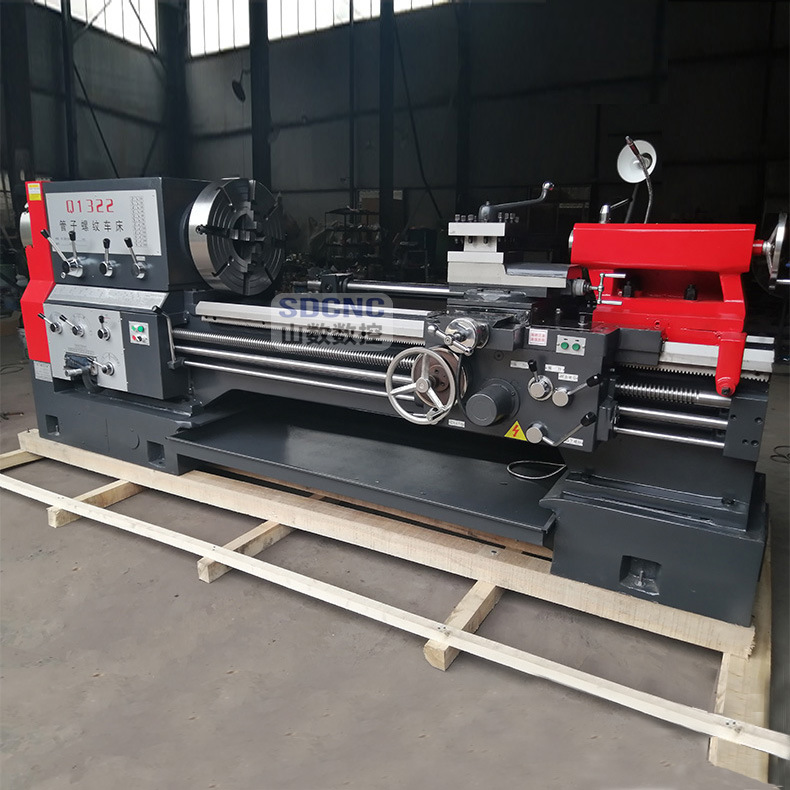

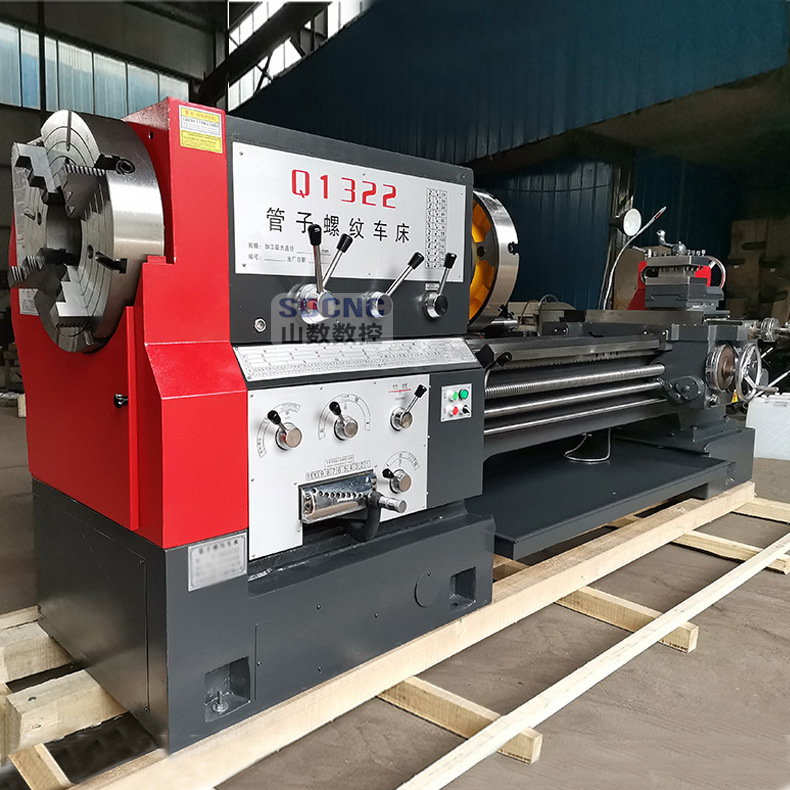

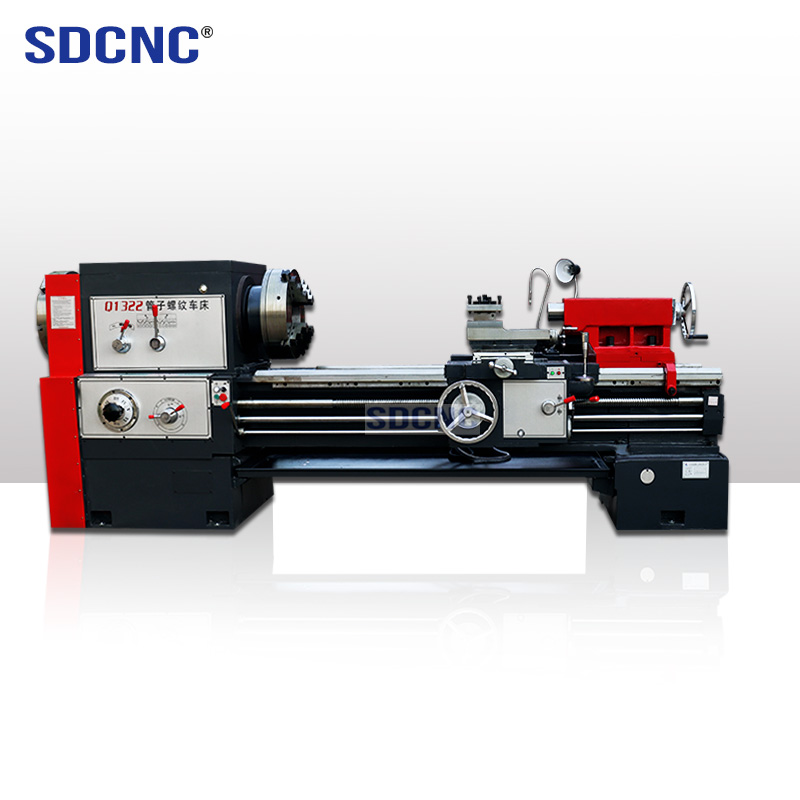

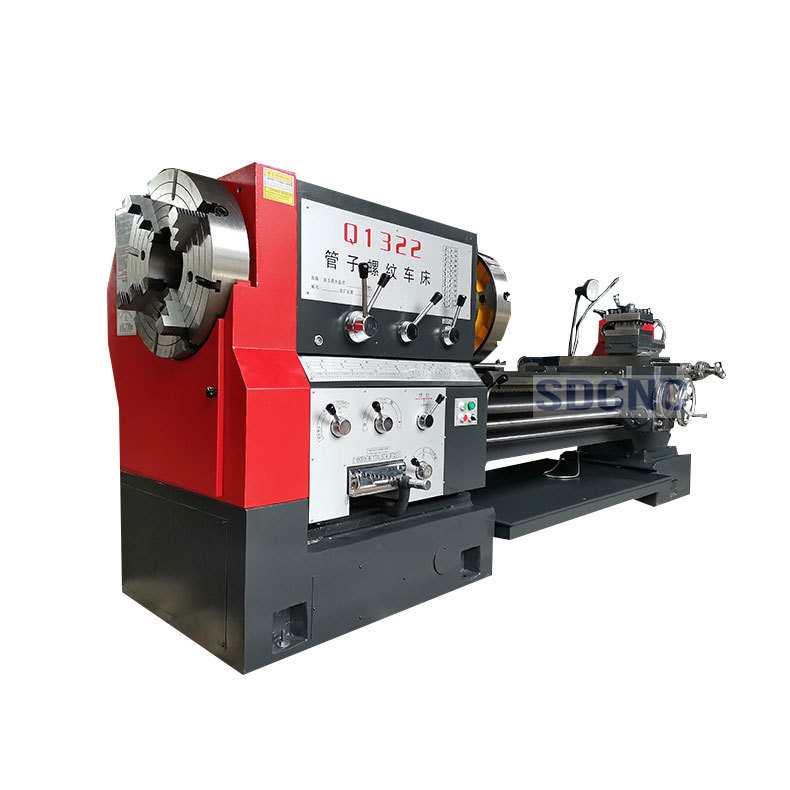

Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322
Heavy Duty Meta Pipe Threading Cutting Machine Q1322

Video

1 / 7

Heavy Duty Meta Pipe Threading Cutting Machine Q1322

  • $21500.00

    ≥1 set

  • $21000.00

    ≥2 set

Options:

  • 630
Get Latest Price

Basic Info

Model No.
Brand Name
Max. Length Of Workpiece (mm) 1500
Range Of Spindle Speed(r.p.m) 20 - 550 R.P.M
Machining Capacity Light Duty
Width Of Bed (mm) 550
Type Horizontal
Spindle Motor Power(kW) 11
Place Of Origin Shandong, China
Brand Name SDCNC
Model Number Q1322
Voltage customized option
Dimension(L*W*H) 3700*1650*1550
Weight (KG) 4500 KG
Warranty 1 Year
Key Selling Points Competitive Price
Marketing Type New Product 2024
Machinery Test Report Provided
Video Outgoing-inspection Provided
Warranty Of Core Components 1 Year
Product name Q1322 heavy duty luzhong pipe threading machine tool cnc lathe
Keyword 2 pipe threading lathe oil country lathe machine
Key Word3 Horizontal Lathe
Model Q1322
Color Customrized
Key word4 Heavy duty lathe
Condition New
Applicable Industries Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works
Showroom Location None
Core components Gear
Max. Turned Length (mm) 1500
Spindle Bore(mm) 230
Year 2024
Show More

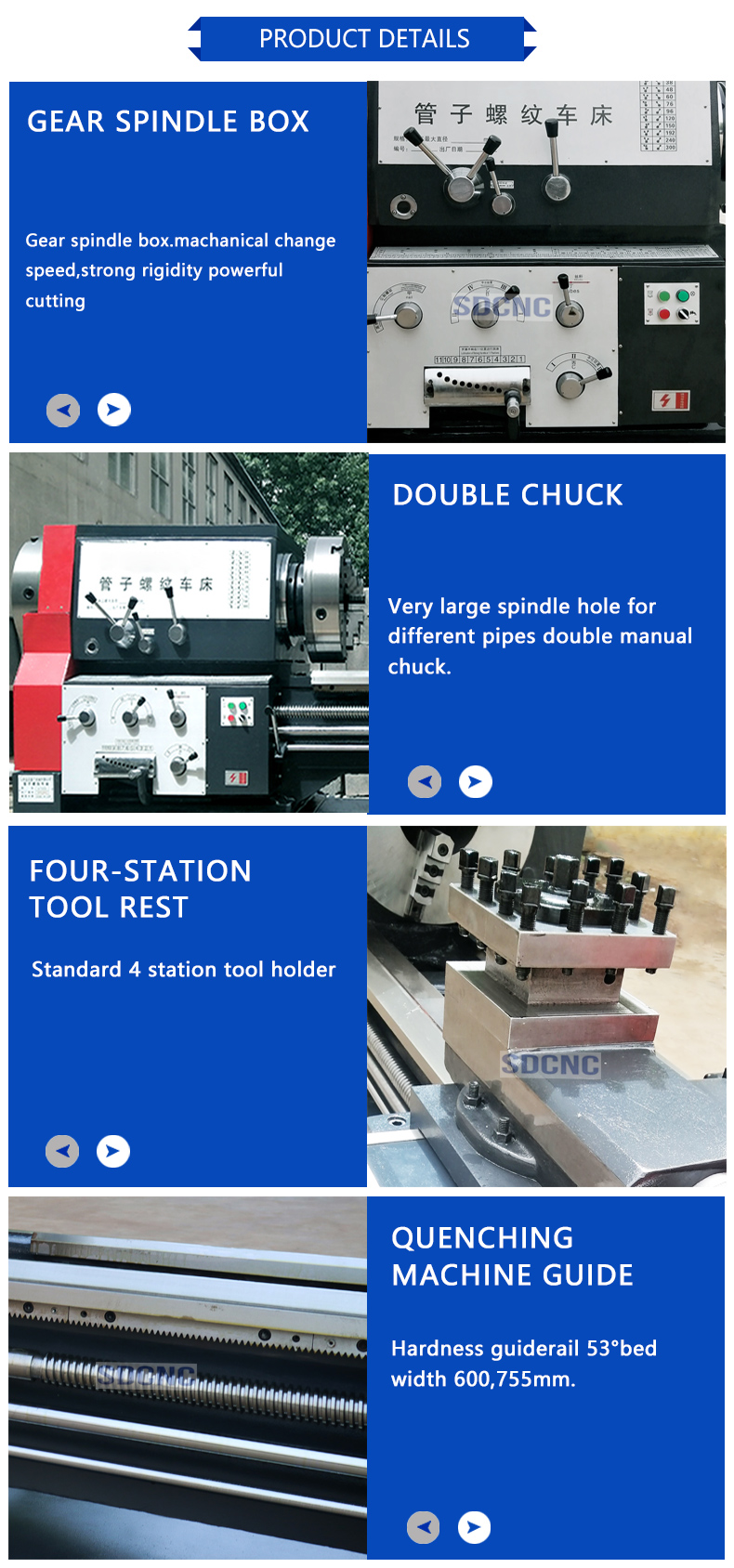

Product description

Products Description
Product Paramenters
SPECIFICATIONS
Units
Q1322
Swing over bed
mm
630/800
Swing over cross slide
mm
340/520
Distance between centers
mm
1500/3000
Pipe threading range
mm
50-220
Guideway width
mm
550
Max. load capacity
kg
3000
Spindle bore
mm
230
Spindle speed steps
-
VF. 4 steps
Spindle speed range
rpm
20-550
Chuck
mm
φ520 4-jaw manual
Turret/tool post
-
Manual 4 position
Tool shank size
mm
32 x 32
X axis travel
mm
320/420
Z axis travel
mm
1350/2850
X axis feed steps/range
mm/r
22/0.02-0.45
Z axis feed steps/range
mm/r
26/0.07-1.33
X axis rapid traverse
mm/min
2300
Z axis rapid traverse
mm/min
4000
Metric thread kinds /range
mm
1-15
Inch thread kinds /range
T.P.I
14-1
Tailstock quill diameter
mm
100
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
250
Main spindle motor
kw
11
Rapid traverse motor
kw
0.3
Coolant pump motor
kw
0.125
Weight for 1500
kg
4500
Weight for 3000
kg
5700
Dimension for 1500
mm
3700x1650x1550
Dimension for 3000
mm
5200x1650x1550
Recommend Products
COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
OUR CERTIFICATE
Deliver goods

Q: WHO ARE WE? A: WE ARE A PROFESSIONAL MACHINE TOOL MANUFACTURER. WE NOT ONLY SELL OUR MACHINES, BUT ALSO PROVIDE TECHNICAL SUPPORT. Q: HOW DO WE ENSURE QUALITY? A: EVERY NEW MACHINE HAS T0 G0 THROUGH STRICT TESTING AND CONF IRMATION FIRST. INSPECTION OF EACH PART INSPECTION AND ADJUSTMENT 0F EMPTY LINE AFTER ASSEMBLY Q: WHAT CAN YOU BUY FROM US? A: LATHES, CNC LATHES, CNC PIPE THREAD LATHES, CNC VERTICAL LATHE, CNC MACHINE T00LS, ORDINARY PIPE THREAD LATHES, MACHINING CENTERS, H0BBING MACHINES, DRILL ING MACHINES, MILLING MACHINES,GRINDING MACHINES,SAWING MACHINE, ETC.. . Q:WHY SHOULD YOU BUY FROM US INSTEAD 0F OTHER SUPPLIERS? MANY YEARS 0F MACHINE T00L PRODUCTION IN RESEARCH AND DEVELOPMENT EXPERIENCE,G00D EXPER IENCE,G00D PERFORMANCE, GOOD QUALITY,LET USERS BUY DON'T WORRY, USE IT AT EASE。
