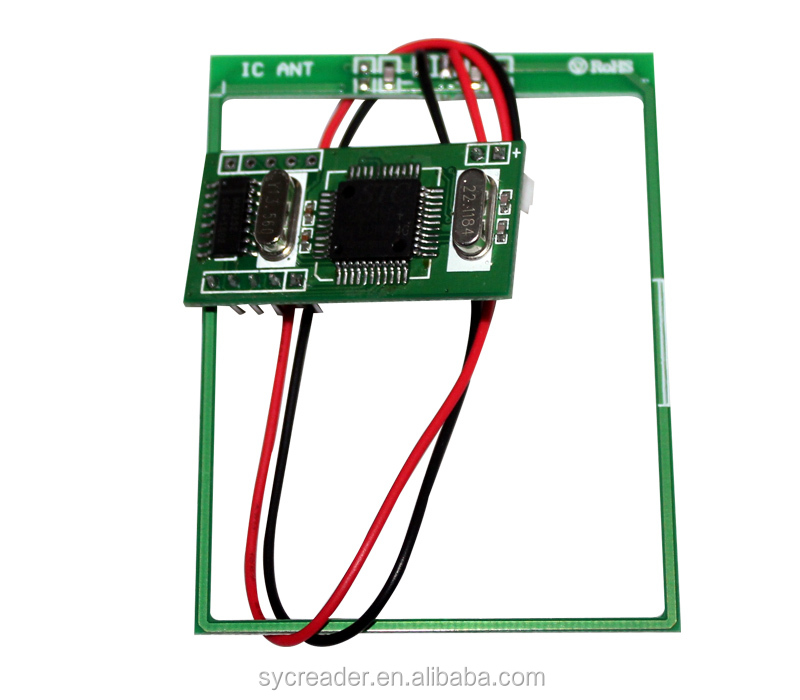

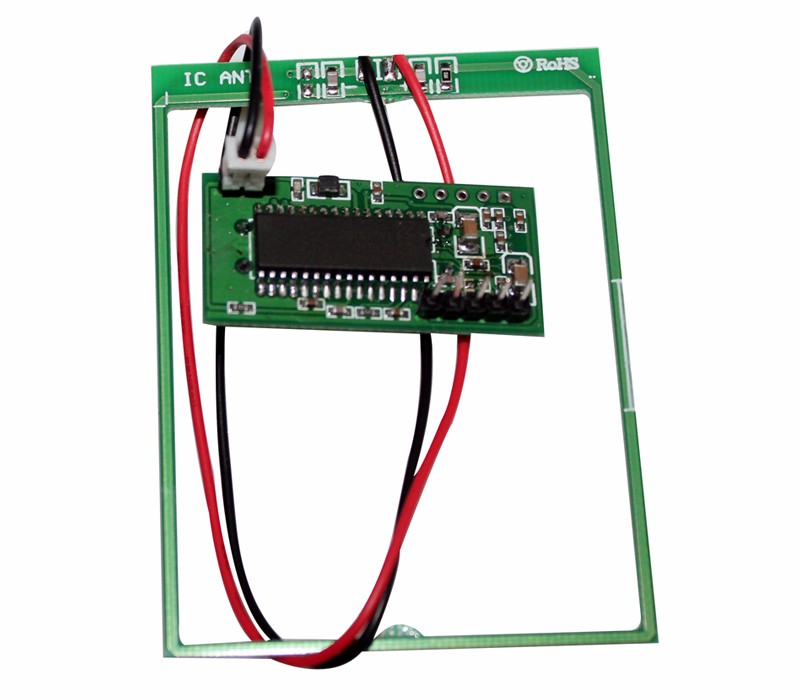

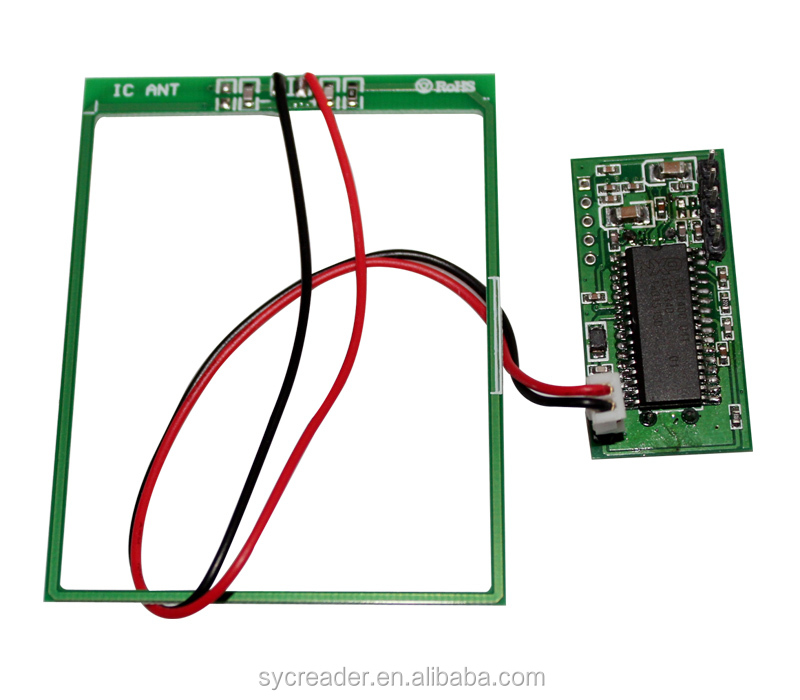

HF RFID 15693 Protocol 13.56MHz Reader Module Kit: Proximity Card Reader with RS232 Interface
Options:
- PORTABLE
- RFID
- OEM, ODM
- M2-232W
Basic Info
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | Sycreader |
| Frequency | 13.56Mhz, 13.56mhz |
| Protocol | ISO 14443A |
| Power supply | DC 5V(Allow user to customize 3.3V) |
Product description
?
HF RFID 15693 Protocol 13.56MHZ Reader Module Kit IC ?Proximity Card Reader module RS232
?

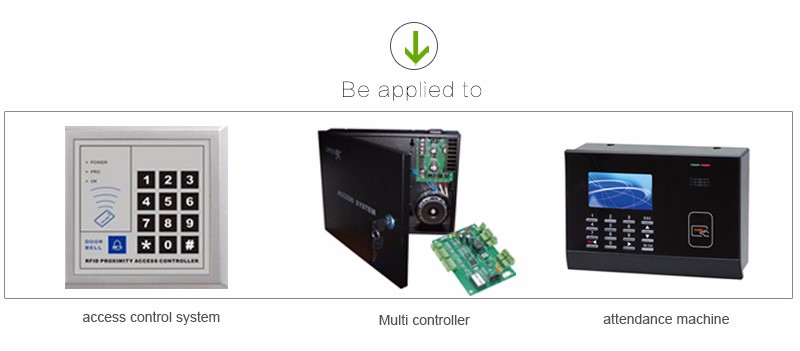

M2-232W?writer?module,widely used to access control system,attendance system,anti-theft system,warehousing system,metroetc.
?
?
Specification of HF RFID reader module:?
?
|
Item |
Parameter |
|
Frequency |
13.56mhz |
|
Protocol |
ISO/IEC?15693 |
|
Support Cards |
I Code II etc. |
|
Working Voltage |
DC +5V(Allow user to customize 3.3V) |
|
Working Current |
100mA |
|
Communication Format |
RS232 |
|
Baud Rate |
9600bps or 115200bps?etc. |
|
Communication Speed |
106Kbit/s |
|
Read range |
0mm-100mm?(related to the card or the environment) |
|
Storage?Temperature |
-20℃ ~ +80℃ |
|
Working?Temperature |
0℃ ~ +95℃ |
|
Size |
39mm*19mm*1mm |
|
Size(Antenna) |
75mm*55mm*1mm |
|
Weight |
10G |
|
Development |
C++,CSharpWinForm, Delphi,VB,VC6.0,Java |
Connecting instruction
|
Item |
Pin |
Function |
|
J1 |
Pin1 |
NC(Reset) |
|
J1? |
Pin2 |
Data 1(UART RXD) |
|
J1 |
Pin3 |
Data 0(UART TXD) |
|
J1? |
Pin4 |
GND |
|
J1? |
Pin5 |
VCC |
|
J2 |
Pin1 |
Ant 1 |
|
J2 |
Pin2 |
Ant 2 |
?
?
?
?
1.About 10 years experience of manufacturing RFID products,professional R&D team,to provide you more solutions.
?
2.Professional sales team,to provide you with professional troubleshooting,we will response to your question within 24 hours.
?
3.For shipping,besides Express(DHL,Fedex,UPS,TNT etc.),by Sea and By Air,deliver the goods to your forwarder can also be accepted.
?
4.For payment,we can accept T/T,Western Union and Alibaba Secure Payment etc.
Shenzhen Sycreader RFID Technology Co., Ltd?was?established in 2008,has focused on RFID Industry about 10 years.Our main products have??125KHz RFID Card Reader,134.2KHz RFID Reader,RFID Reader?13.56MHz,RFID?UHF Reader,Barcode Scanner,RFID Reader Module,RFID Keyfob/Tags/Stickers?and?Access Control System?etc.
?
?After 10 years of development,we have formed a complete set of production and marketing mode;the?professional R&D team and Sale team.The products which were produced?by SYCreader with High quality and competitive price,has won a good reputation.
?
Look forward to establish friendly and mutually beneficial partnership with you.
?
?
?
