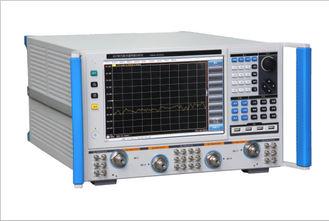

AV3672A/B/C/D Vector Network Analyzer

Product Overview:

AV3672 series Vector Network Analyzer include AV3672A(10MHz~13.5GHz),AV3672B(10MHz~26.5GHz),AV3672C(10MHz~40GHz)and AV3672D(10MHz~50GHz. They arew new generation of products produced by the 41^st Institute of CETC based on many years of scientific research and production experience in vector network analyzer. In terms of hardware, brand-new design concept and technical proposal have upgraded key performance indexes (KPI) of complete machine such as measuring speed, dynamic range and measurement stability; in terms of software, embedded computer system (ECS) with high-performance microprocessor chip and Windows-based operating system have greatly improved interconnectivity and easy use of complete machine.

AV3672 series Vector Network Analyzer provide multiple calibration types including frequency response, single port, response isolation, enhanced response and full two-port calibrations; offer many display formats such as logarithmic amplitude, linear amplitude, standing-wave ratio (SWR), phase, group delay, Smith chart and poplar coordinates, etc.; are designed with several kinds of standard interfaces: including USB, LAN, GPIB and VGA, available in multifunction parameter testing of mixer/converter, active intermodulation distortion and harmonic distortion, gain compression two-dimensional sweep and pulse network S-parameters, which allows it to accurately measure the amplitude-frequency characteristics, phase-frequency characteristics and group delay characteristics of microwave network.

They are widely used in the field of transmitting/receiving (T/R) module measurement, measurement of dielectric material properties, measurement of microwave pulse characteristics, photoelectric properties measurement, which is absolutely necessary for the scientific research and production process of phased array radar, communications, microwave and RF components and parts.

Ordering Information:

Main Unit	Description
AV3672A	Vector network analyzer(10MHz ~ 13.5GHz)
AV3672B	Vector network analyzer(10MHz ~ 26.5GHz)
AV3672C	Vector network analyzer(10MHz ~ 40GHz)
AV3672D	Vector network analyzer(10MHz ~ 50GHz)

Standard Configuration

No.	Description	Remarks
1	Power cord assembly	Standard three-core power cord
2	USB keyboard/mouse
3	User's manual
4	Certificate

AV3672C Options

Model	Description	Remarks
AV3672C-201	2-port programmable Step attenuator	Set two 60dB programmable step attenuators on the source path, two 35dB programmable step attenuators on the receiver path
AV3672C-400	4-port test	Two-source stimulus four-port VNA configuration
AV3672C-401	4-port programmable step attenuator	Set four 60dB programmable step attenuators on the source path, four 35dB programmable step attenuators on the receiver path(option 400 is needed)
AV3672C-008	Pulse test	For pulse S-parameter measurement
AV3672C-S10	Time domain test	For time-domain test to determine the discontinuous location in device, fixture or cable and make analysis
AV3672C-S80	Offset frequency test	For the test of frequency offset, millimeter-wave frequency extension main unit needs this option
AV3672C-S86	Gain compression two-dimension sweep test	For the gain compression two-dimension sweep test of amplifier
AV31123	2.4mm calibration kit	For the calibration of analyzer
FE0BN0BM025.0	2.4mm testing cable	For testing with the analyzer
FE0BN0BL025.0	2.4mm testing cable	For testing with the analyzer
AV20404	E-cal kit	For calibration of analyzer(45MHz-40GHz 2 ports)
