Multi Channel Test Vector Network Analyzer 10MHz - 13.5GHz
Basic Info
| Model No. | AIA-1 |
|---|---|
| Brand Name | NFCase |
Product description

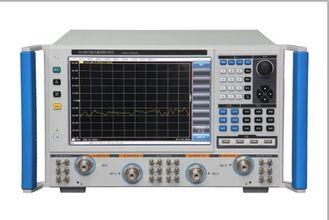

AV3672A Vector Network Analyzer(10MHz~13.5GHz/26.5GHz/40GHz/50GHz)
Product Overview:
AV3672 series Vector Network Analyzer include AV3672A(10MHz~13.5GHz),AV3672B(10MHz~26.5GHz),AV3672C(10MHz~40GHz)and AV3672D(10MHz~50GHz. They arew new generation of products produced by the 41st Institute of CETC based on many years of scientific research and production experience in vector network analyzer. In terms of hardware, brand-new design concept and technical proposal have upgraded key performance indexes (KPI) of complete machine such as measuring speed, dynamic range and measurement stability; in terms of software, embedded computer system (ECS) with high-performance microprocessor chip and Windows-based operating system have greatly improved interconnectivity and easy use of complete machine.
Main Features:
- Flexible and optional calibration types, compatible with multiple calibration kits
- Multi-window, multi-channel test, fast operation for complex test scheme
- Available in multiple display formats such as logarithmic amplitude, linear
Amplitude, standing-wave ratio (SWR), phase, Smith chart
- With USB, GPIB, LAN and VGA display interface
- Chinese/English user interface,12.1-inch high resolution touch screen
- One-button operation greatly simplified the measurement setting steps with improved efficiency
- Available in such functions as pulsed S parameter testing, time domain testing, mixer testing, gain compression two-dimensional sweep, millimeter-wave frequency extension, antenna and RCS measurement
Technical Specifications:
AV3672A/B Technical Specifications
|
Frequency Characteristic |
|||||
|
Frequency Range |
10MHz~13.5/26.5GHz |
||||
|
Frequency Resolution |
1Hz |
||||
|
Frequency Accuracy |
±1×10-7(23℃±3℃) |
||||
|
Port Harmonic Suppression |
|||||
|
Harmonic Suppression on port 1 and 3 |
-51dBc(0.01~4GHz) -60dBc(4~13.5GHz) -60dBc(13.5~26.5GHz) |
||||
|
Harmonic Suppression on port 2 and 4 |
-13dBc(0.01~4GHz) -21dBc(4~13.5GHz) -21dBc(13.5~26.5GHz) |
||||
|
Port Non-harmonic Suppression |
-40dBc(0.01~13.5GHz) -40dBc(13.5~16GHz) -30dBc(16~26.5GHz) |
||||
|
Port Power Characteristic |
|||||
|
Power Sweep Range |
30dB(10~500MHz) 32dB(0.5~4GHz) 38dB(4~10GHz) 37dB(10~13.5GHz) 35dB(13.5~20GHz) 23dB(20~26.5GHz) |
||||
|
Max. Output Power |
Frequency range |
Filtering mode of port1 and 3 |
High power mode of port 1 and 3 |
Port 2 and 4 |
|
|
10~50MHz |
+1dBm |
+9dBm |
+13dBm |
||
|
0.05~4GHz |
0dBm |
+6dBm |
+13dBm |
||
|
4~10GHz |
+13dBm |
+10dBm |
|||
|
10~13.5GHz |
+8dBm |
+8dBm |
|||
|
13.5~20GHz |
+6dBm |
+5dBm |
|||
|
20~26.5GHz |
+2dBm |
+0dBm |
|||
|
1dB Compression Level |
+10dBm(0.01~13.5GHz) +10dBm(13.5~16GHz) +2dBm(16~26.5GHz) |
||||
|
Power Linearity(23℃±3℃) |
±2.0dB |
||||
|
Pulse Characteristic |
|||||
|
Pulse Width Setting Range |
33ns~60s |
||||
|
Pulse Transition Time (10%-90%) |
30ns |
||||
|
Pulse on/off Ratio |
64dB(0.01~4GHz) 80dB(4~13.5GHz) 80dB(13.5~26.5GHz) |
||||
|
Network Parameter Characteristic |
|||||
|
System Dynamic Range |
90dB(10~50MHz) 95dB(0.05~0.5GHz) 120dB(0.5~4GHz) 127dB(4~10GHz) 120dB(10~13.5GHz) 120dB(13.5~20GHz) 115dB(20~24GHz) 110dB(24~26.5GHz) |
||||
|
Effective Directivity |
48dB(0.01~2GHz) 44dB(2~13.5GHz) 44dB(13.5~26.5GHz) |
||||
|
Effective Source Match |
40dB(0.01~2GHz) 30dB(2~13.5GHz) 30dB(13.5~26.5GHz) |
||||
|
Effective Load Match |
48dB(0.01~2GHz) 44dB(2~13.5GHz) 44dB(13.5~26.5GHz) |
||||
|
Reflection Tracking |
±0.04dB(0.01~2GHz) ±0.04dB(2~13.5GHz) ±0.05dB(13.5~26.5GHz) |
||||
|
Transmission Tracking |
±0.10dB(0.01~2GHz) ±0.11dB(2~13.5GHz) ±0.12dB(13.5~26.5GHz) |
||||
|
Others |
|||||
|
Amplitude Trace Noise dB rms(1kHz IF bandwidth) |
0.007(10~100MHz) 0.002(0.1~13.5GHz) 0.002(13.5~22.5GHz) 0.003(22.5~24GHz) 0.005(24~26.5GHz) |
||||
|
Phase Trace Noise deg rms(1kHz IF bandwidth) |
0.051(10~100MHz) 0.015(0.1~13.5GHz) 0.042(13.5~22.5GHz) 0.054(22.5~24GHz) 0.054(24~26.5GHz) |
||||
|
IF Bandwidth |
1Hz~5MHz |
||||
|
Amplitude Display Resolution |
0.001dB/div |
||||
|
Phase Display Resolution |
0.01°/div |
||||
|
Setting Requirement of Reference Level Amplitude |
-500~+500dB |
||||
|
Setting Requirement of Reference Level Phase |
-500~+500° |
||||
|
General Characteristic |
|||||
|
Port Connectors |
3.5mm(male),50 ohm system impedance |
||||
|
Number of Measuring Ports |
AV3672A/B standard configuration:2 ports;AV3672A/B-400 option:4 ports |
||||
|
Peripheral Interface |
USB,GPIB,VGA,LAN |
||||
|
Operating System |
Windows 7 |
||||
|
Display |
12.1-inch high resolution touch screen |
||||
|
Dimensions |
W´H´D=426mm×266mm×550mm(excluding bottom foot and handle) W´H´D=463mm×279.5mm×640mm(including bottom foot and handle) |
||||
|
Max. Power Consumption |
400W |
||||
|
Maz. Weight |
42kg |
||||
