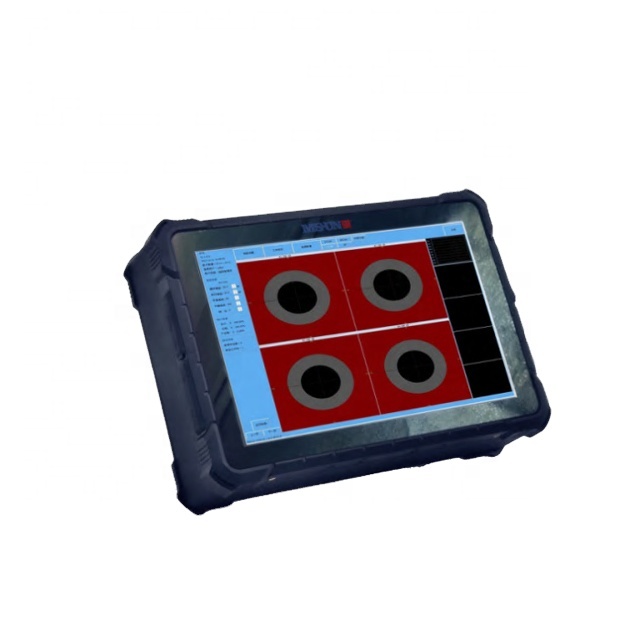

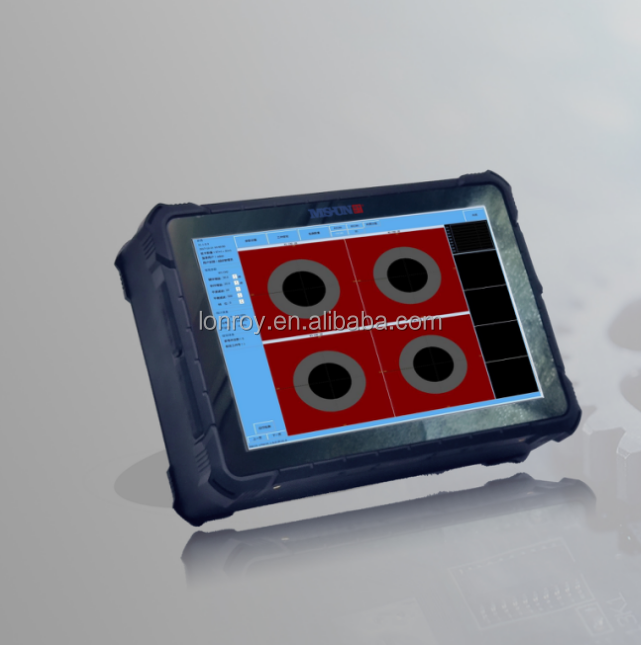

New touch screen portable multifunctional eddy current detector

* LR-CYC-1000 series multifunctional detector has the characteristics of digitalization, intelligence and high integration. The system integrates an independent 1-8 channel (optional) eddy current testing host.

* With powerful detection function, experiment function, good stability, high sex to noise ratio, and can expand a variety of practical applications.The system adopts advanced microcomputer electronic technology, DSP digital processing technology, FPGA technology development and design.Based on the system detection platform, detection signals and data can be shared in many aspects, and data collection, output, analysis, storage, reading and other functions can be fully intelligent processing.

Powerful software functions with parameter saving, data storage, report analysis, statistics and other functions.

Lift-off clearance of mixer can match requires all kinds of structure of the coil is low (the choice of probe can be completely according to the requirements of the user testing), can be flexible, rapid customization of all kinds of high performance, high cost performance testing probe (point and plane, the wear type, wear type, saddle type, rotating sweep is poor, such as sorting probe).

The instrument is easy to operate, reasonable, intuitive, flexible configuration of various detection functions.

Wider frequency can detect any solid metal workpiece.

Optional 8 frequency material sorting module, software can display a single channel 8 frequency sorting interface, optional grading statistics monitoring results software.

* Quick switching between Chinese and English with one button, and customized multi-language package.

* The system can be widely used in nuclear power, petrochemical, metallurgy, university teaching, automation enterprises, auto parts manufacturing, all kinds of laboratories and other industries.

High quality Multi-function Digital eddy current flaw detector tester/Eddy current weld inspection/Digital Eddy Current tester

Technical specifications

Detection channel: 1-8 (sustainable expansion according to needs)

10.1-inch capacitive full touch color screen.

* Frequency range: 5 Hz ~ 12MHz, continuously adjustable;Multiple independent frequency (optional), optional optional single frequency, 8 frequency optional (each channel up to 16 software frequency optional);

* Gain range: 0.0dB ~ 99.0dB continuously adjustable, step: 0.1dB;Fine tuning, rapid increase/decrease;

* gain ratio :(X/Y) 0.1 ~ 10.0;Continuously adjustable, fine tuning, fast increase/decrease;

* SNR ≥10dB (up to 30dB);

* Phase rotation: 0 ~ 360° continuous adjustable, step: 1;

* Adjustable probe drive (excitation) level: 1 ~ 16;

Filter coefficient: 0-10000;

Adjustable detection range, that is, the maximum measurement value: 10 ~ 10000, step 1;

Hardware amplification factor: 1dB ~ 39.9dB continuously adjustable, step: 1dB;

* Various incentive modes: DP/DI;Differential, absolute and all kinds of customized probe can be configured.

Probe abnormal alarm function (optional according to the model)

With fast digital balance function;

Solid line, hidden display mode is flexible and optional;

Blanking display coefficient: 1 ~ 400;

* Digital filter: low pass (0Hz ~ 2000Hz) high pass (0Hz ~ 2000Hz);The unique "digital filtering" is adopted to effectively suppress the field interference signals and ensure the accuracy and stability of detection.

Stability: 16 hours <2dB;

* With end, end and tail signal cutting function, effective control end end and tail blind area (peripheral support);

* Alarm duration adjustable: 10ms ~ 60000ms, step 1ms;

Miss rate: ≤0%, misjudgment rate (mistakenly judged as unqualified products)≤1%;

* Flexible internal and external clock selection (optional);

Real-time software/hardware alarm, a variety of alarm window mode (round, square, fan-shaped, customized), with alarm, forecast alarm function;

* Non-amplitude, asymmetric phase alarm area setting;

* Various display modes: impedance, time base, A\B sweep, 8 frequency sorting, analog 3D display (optional according to the model);

Can store a large number of various testing procedures and testing data;

Expansion function of eddy current signal playback, measurement of flaw amplitude, phase, digital value;

Rectangular coordinate system and polar coordinate system background selection;

Automatic formation of test report (including the number of test, test personnel, test parameters, qualified number and unqualified number) (peripheral support);

* One click to switch between Chinese and English operating language, no need to install an operating system, online help;

* Working environment: Power supply: AC 220V/110V;

* Operating temperature: 0℃ ~ +45℃, storage temperature: -20℃ ~ +50℃, relative humidity: ≤85%;

The same screen can display the section drawing of the pipeline under inspection, the line and line number of the pipeline under inspection, and eddy current testing signal (optional);

Grade marked pipeline section drawing, forming eddy current inspection overview map of pipeline in service (optional);

Grading statistics test results (table and histogram display), easy to cumulative analysis of test results (optional module);

Optional data analysis system (optional);

* Automatic calendar, time display;

* Working environment: Power supply: AC 220V/110V;Operating temperature: -10℃ ~ +45℃, relative humidity: ≤85%;

* The battery can work continuously for 6H (depending on the working environment).

* Size and weight: 280*190*70mm (L*W*H), weight: < 2.5kg.

Application field

Nuclear energy, electric power, petroleum, chemical, metallurgical and other in-service testing, college teaching, all kinds of laboratories, special equipment and other industries.

Configuration instructions

* Host: one multifunctional intelligent digital eddy current detector

Probe and accessories: can be customized according to user materials, specifications, shape matching

Standard test block (optional or customized)

* Automatic control module (optional)

* Manual: one copy

* Warranty card: one copy

* Product list: one copy

?

?
