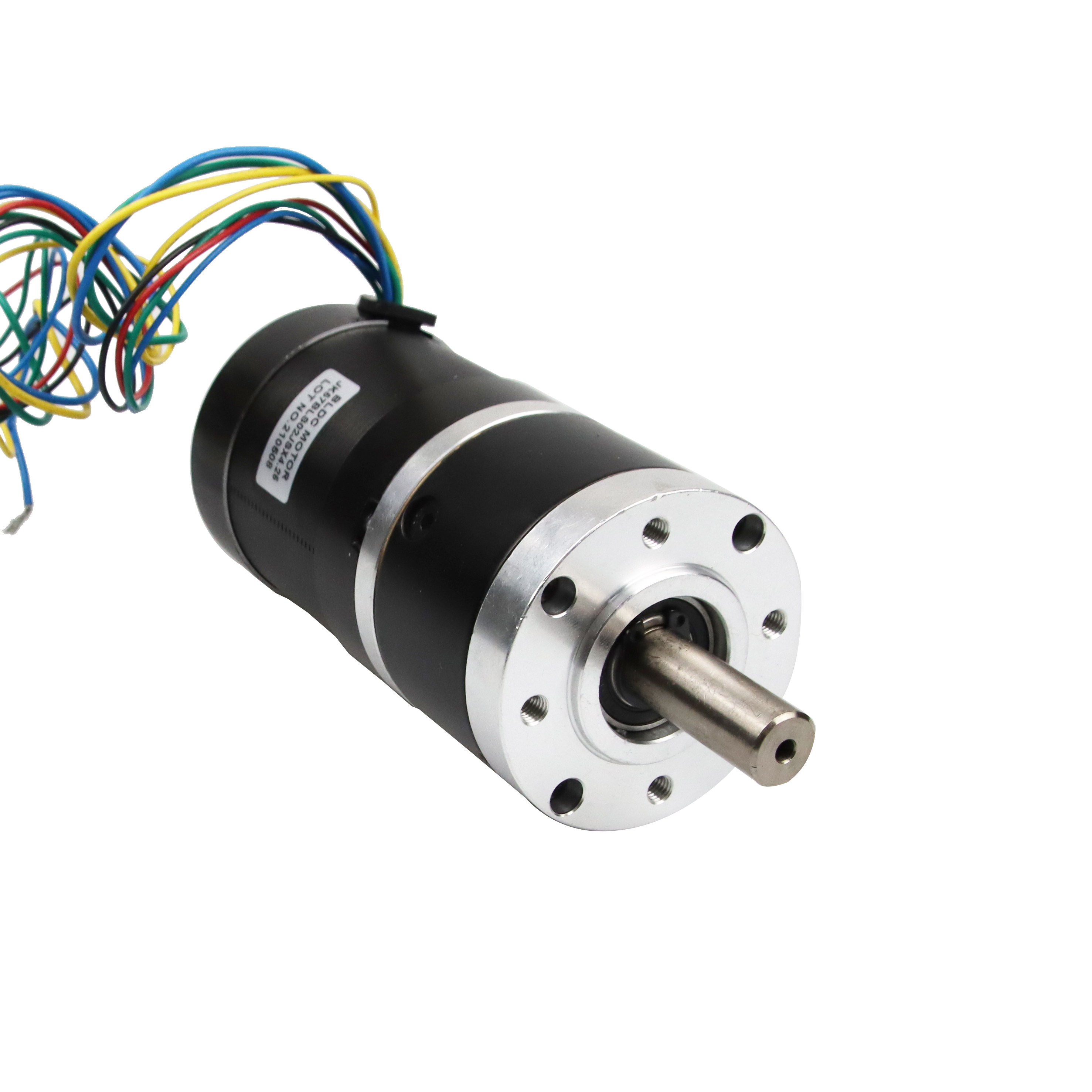

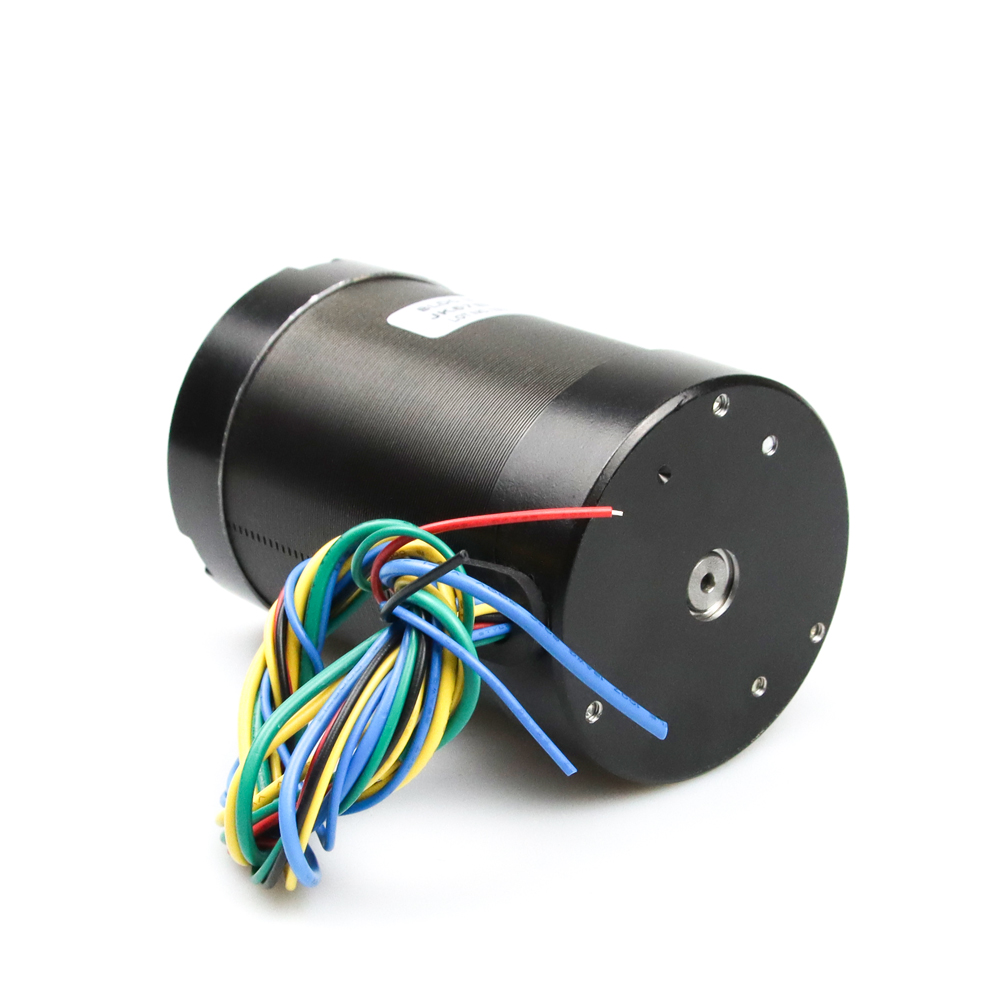

JKongMotor 184W 57BLS 4000RPM Brushless DC Electric Motor 36V 200W High Power 24V 36V 48V BLDC Motor
$32.38
≥10 piece
$29.89
≥100 piece
$27.76
≥300 piece
$24.00
≥1000 piece
Options:
- 36V
- 184W
- 4000rpm
Basic Info
| Warranty | 3months-1year |
|---|---|
| Place of Origin | Jiangsu, China |
| Brand Name | Jkongmotor |
| Model Number | JK57BLS04 |
| Use | BOAT, Car, Electric Bicycle, FAN, Home Appliance, CNC |
Product description
Rated Current: 6.8A
Rated Power: 184w
Item | Specification |
winding type | Star |
Hall effect angle | 120 degree electrical angle |
Shaft run out | 0.025mm |
Radial play | 0.02mm@450g |
End play | 0.08mm@450g |
Max. radial force | 75N @20mm form the flange |
Max.axial force | 15N |
Insulation class | Class B |
Dielectric strength | 500VDC for one minute |
Insulation resistance | 100MΩ Min., 500VDC |
Model No. | Unit | Model | ||||||||||
JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 | ||||||||
Number of phase | Phase | 3 | ||||||||||
Number of Poles | Poles | 4 | ||||||||||
Rated voltage | VDC | 36 | ||||||||||
Rated speed | Rpm | 4000 | ||||||||||
Rated torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 | ||||||
Rated current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 | ||||||
Rated power | W | 23 | 46 | 92 | 138 | 184 | ||||||
Peak torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 | ||||||
Peak current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 | ||||||
Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 | ||||||
Torque constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 | ||||||
Rotor inertia | g.cm2 | 30 | 75 | 119 | 173 | 230 | ||||||
Body length | mm | 37 | 47 | 67 | 87 | 107 | ||||||
Weight | kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 | ||||||
Sensor | Honeywell | |||||||||||
Insulation class | IP30 | |||||||||||
Degree of protection | -25~ +70℃ | |||||||||||
Storage temperature | -15~ +50℃ | |||||||||||
Operating temperature | 85% RH或以下（無結(jié)露）<= 85% RH | |||||||||||
Working environment | No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust. | |||||||||||
Altitude | 1000m or below | |||||||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||
Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length | ||||||
8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm | |||||||
4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm | |||||||
8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm | |||||||
4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm | |||||||
8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm | |||||||
8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm | |||||||
130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm | ||||||
Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
