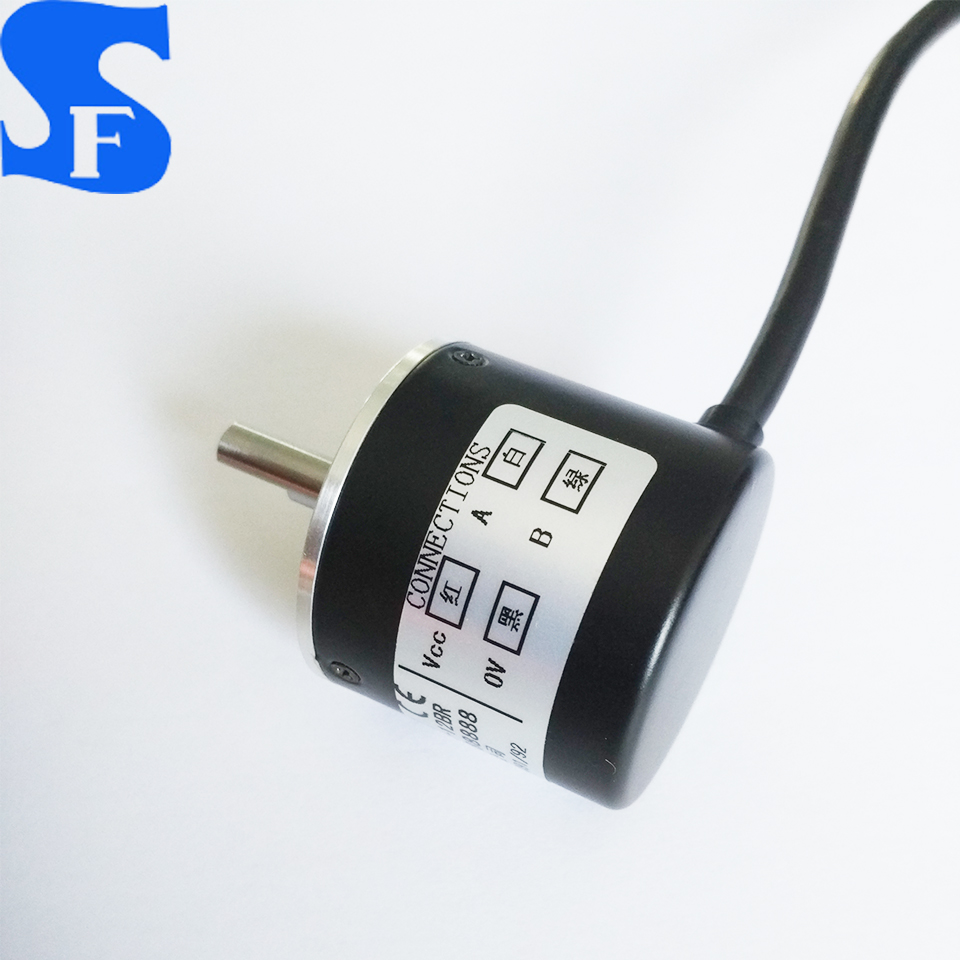

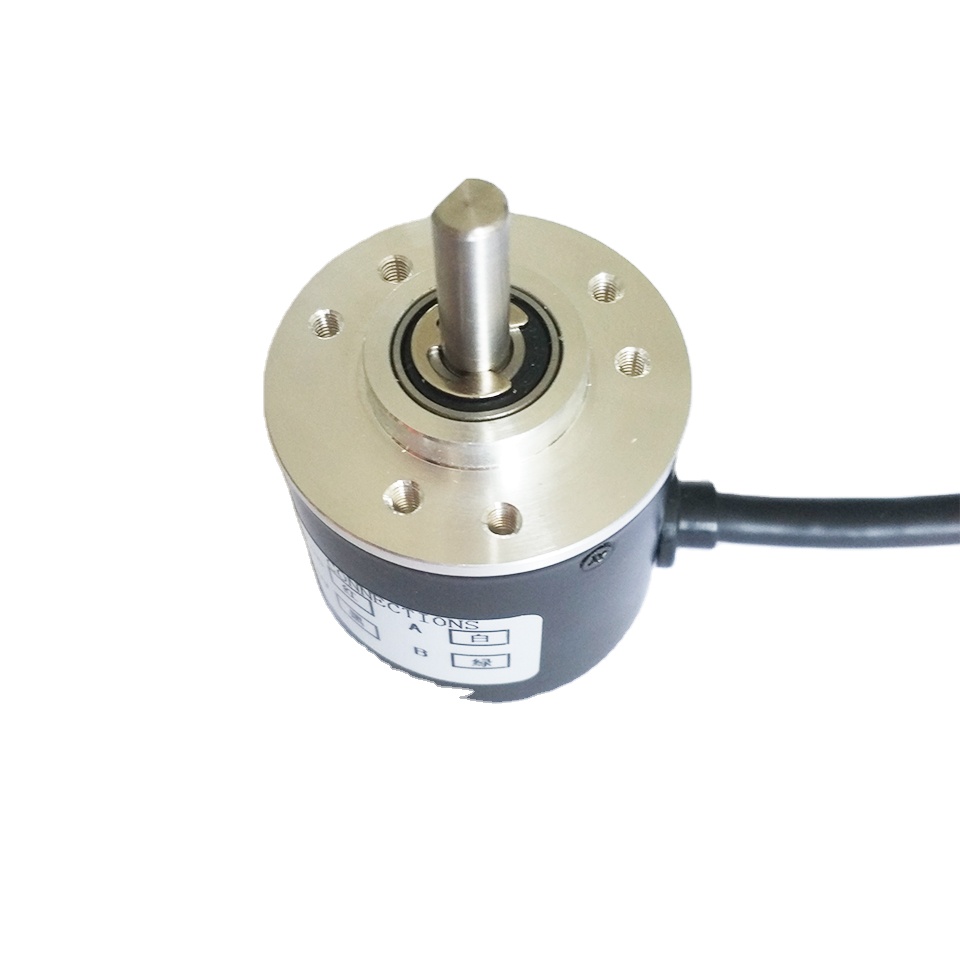

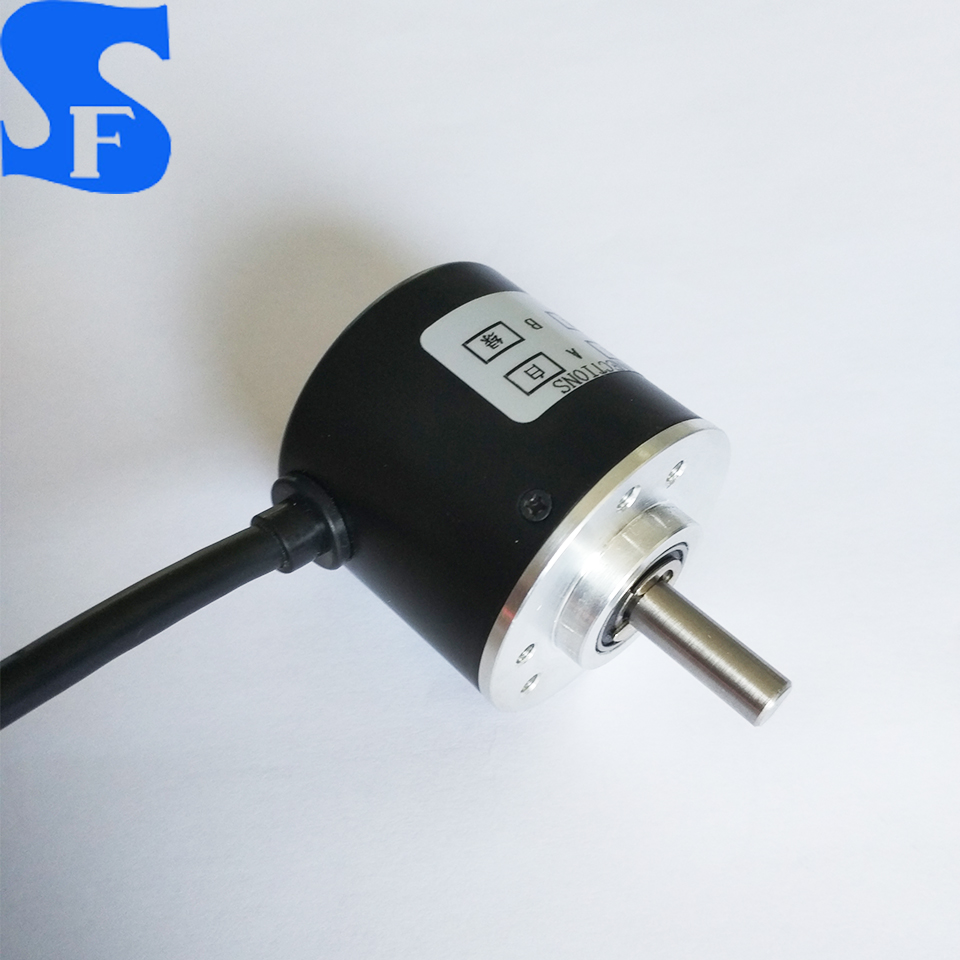

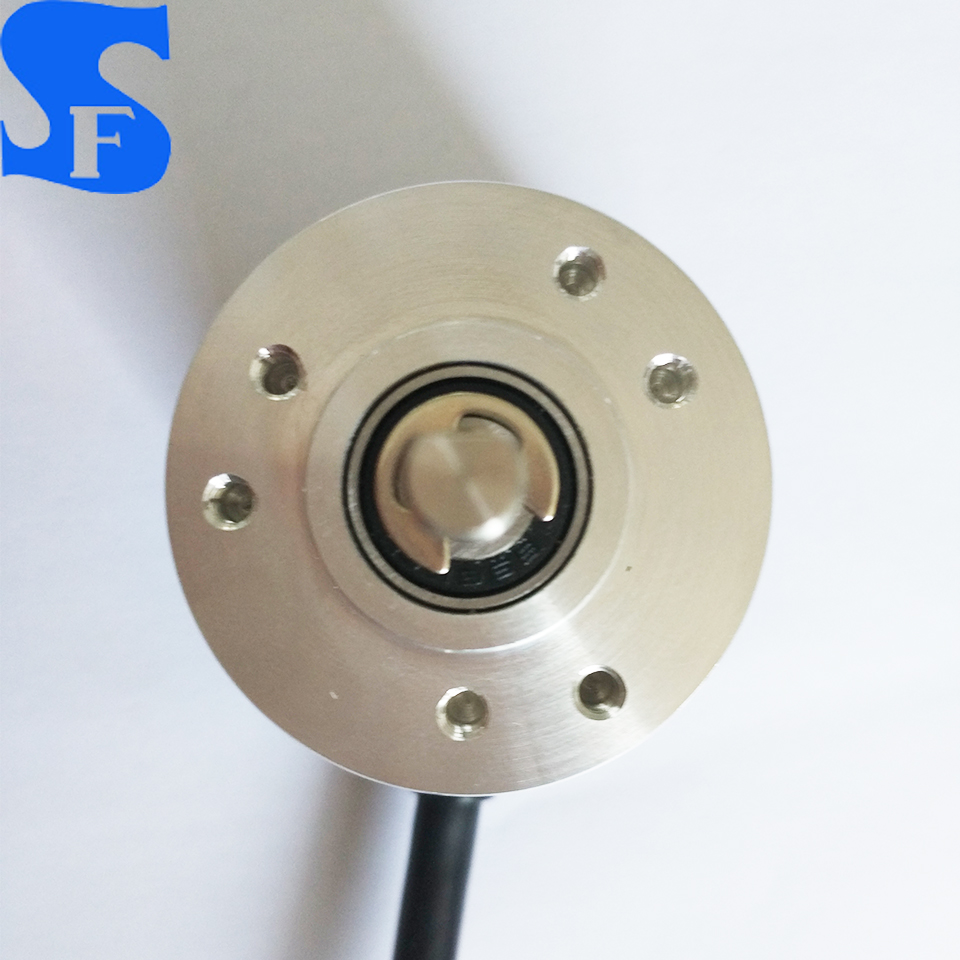

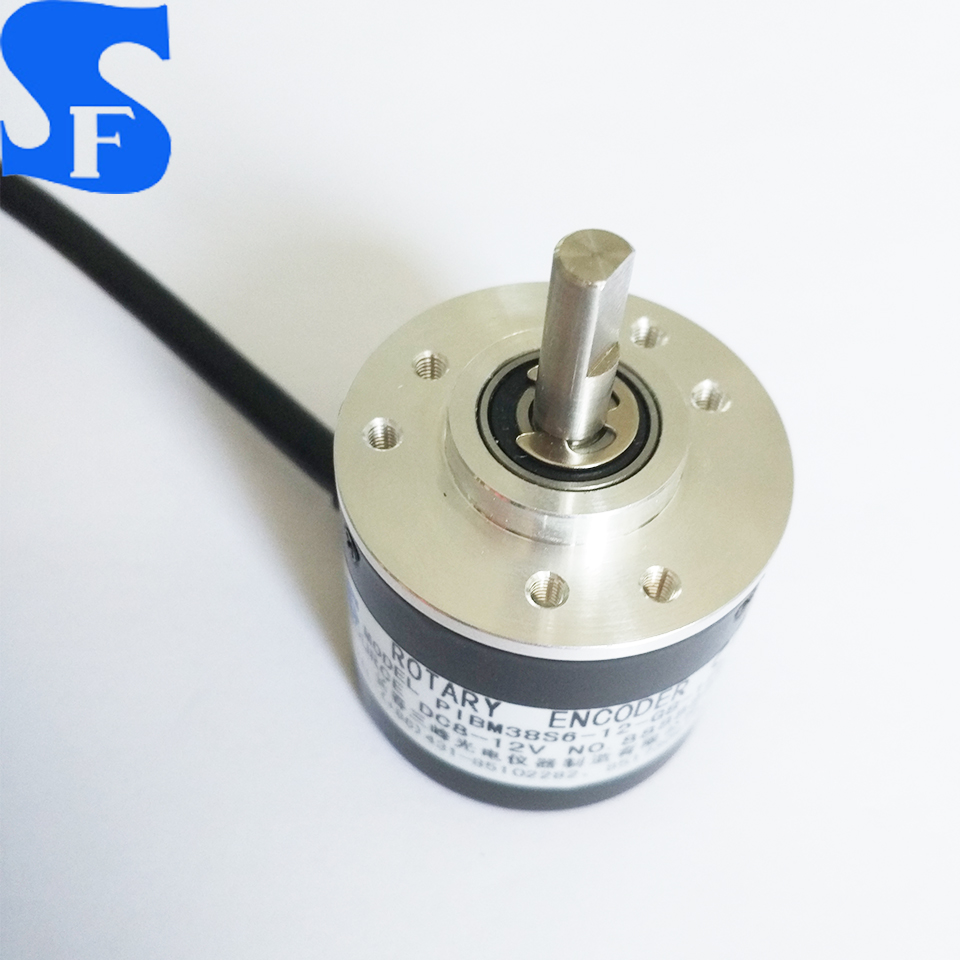

Low Cost Magnetic Absolute Encoder Load Sensor
$30.00
≥1 piece
$25.00
≥10 piece
$22.00
≥50 piece
$20.00
≥100 piece
Basic Info
| Series | absolute rotary encoder |
|---|---|
| Features | absolute rotary encoder |
| Mounting Type | absolute rotary encoder |
| Description | absolute rotary encoder, absolute rotary encoder |
| Model Number | PIBM |
Product description
low cost load sensor magnetic absolute encoder
?
click for more information
|
Resolution |
2n(n≤14 absolute,n≤12 incremental) |
|||
|
Supply Voltage |
DC 8~24V±0.25V |
|||
|
VH?Output Voltage |
5V |
|||
|
VL Output Voltage |
≤0.3V |
|||
|
Current Consumption |
≤50mA |
|||
|
Output Phase |
A.B |
|||
|
Frequency Response |
115200 |
|||
|
Rise / Fall Time |
≤1μS |
|||
|
Starting Torque |
2*10-3N*m(+25℃) |
|||
|
Shaft Loading |
Radial |
20N |
Axial |
10N |
|
Rotating Inertia |
4*10-7Kg.m2 |
|||
|
Max Rotating Speed |
3000r/min |
|||
|
Vibration Resistance |
50m/s2(10~200Hz)2 Hours in xyz Direction |
|||
|
Shock Resistance |
980m/s2 ?3 Times in xyz Direction |
|||
|
Protection |
IP54 |
|||
|
Operating Temperature |
-10℃~+75℃ |
|||
|
Storage Temperature |
-20℃~+80℃ |
|||
|
Operating Humidity |
30~85%RH |
|||
|
Weight(no cable) |
0.18Kg |
|||
|
Accessories |
SE/PE Coupling |
|||
|

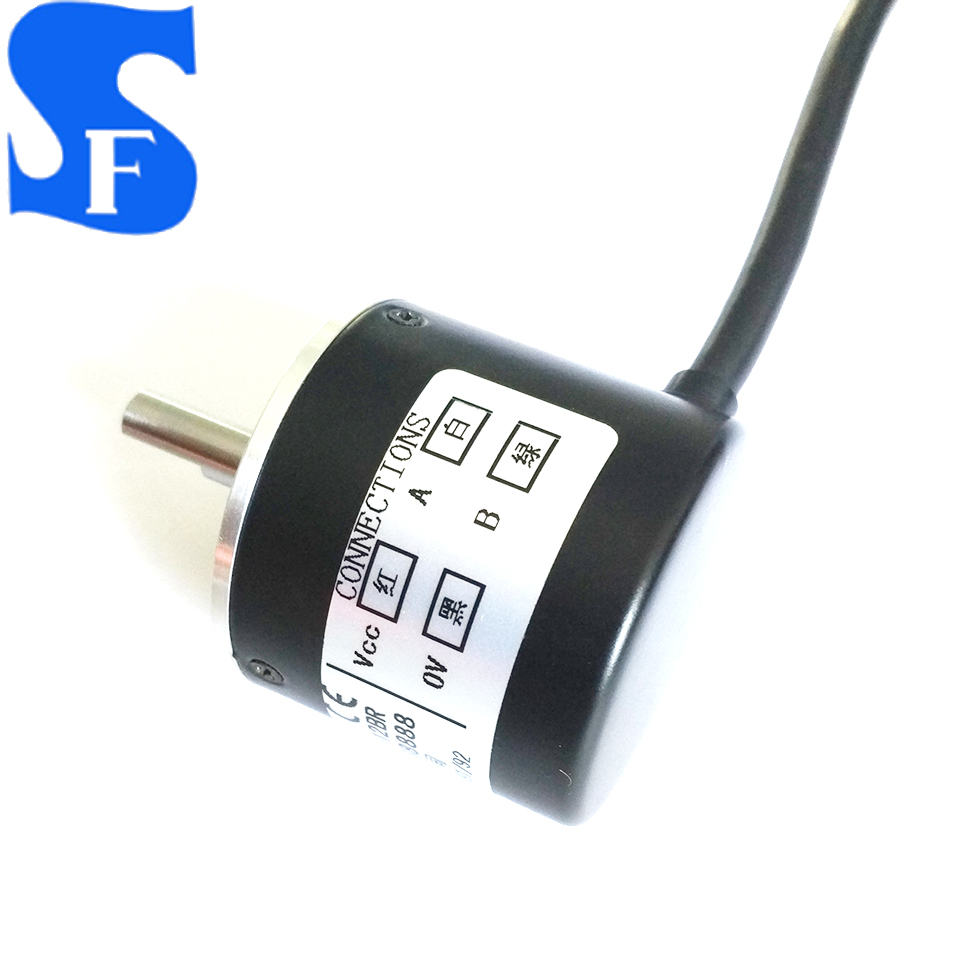

Cable Color |
Red |
Black |
White |
Green |
|
|
Output Form |
Rs422 |
Vcc |
0V |
A |
B |
If you have any question,feel free to contact me.
|
Are you a trading company or a manufacturer? |
|
We are a manufacturer of 20 years experience. |
|
Do you accept OEM brand? |
|
Accept large OEM brand customers, or a large number of customers. |
|
Does your product have a factory inspection? |
|
Every product we send is strictly factory inspection. |
|
How long will you ship the goods? |
|
Our delivery time ranges from 3 days to 3 weeks. |
|
Can you provide free samples? |
|
Regular products provide samples according to the original price. Customized products are provided at cost price. |
|
What kind of packing do you send? |
|
We use high-quality corrugated paper packing box, internal environmental protection buffer material. |
|
What is our loading port? |
|
Dalian port, or apply for other ports. |
|
How long is your quality guarantee period? |
|
The guarantee period for our products is one year. |
