Resolution

2ⁿ(n≤14 absolute,n≤12 incremental)

Supply Voltage

DC 8~24V±0.25V

V_H?Output Voltage

5V

V_L Output Voltage

≤0.3V

Current Consumption

≤50mA

Output Phase

A.B

Frequency Response

115200

Rise / Fall Time

≤1μS

Starting Torque

2*10^-3N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

4*10^-7Kg.m²

Max Rotating Speed

3000r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in xyz Direction

Shock Resistance

980m/s^{2 ?}3 Times in xyz Direction

Protection

IP54

Operating Temperature

-10℃~+75℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

0.18Kg

Accessories

SE/PE Coupling

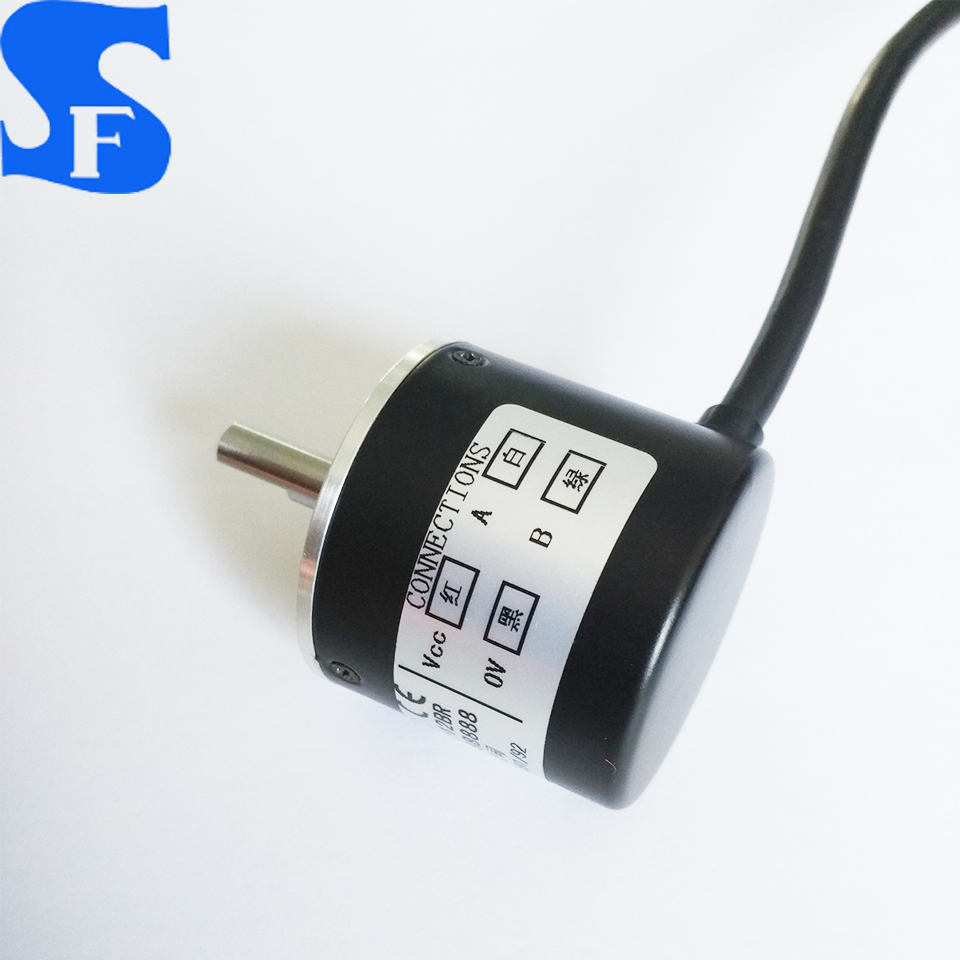

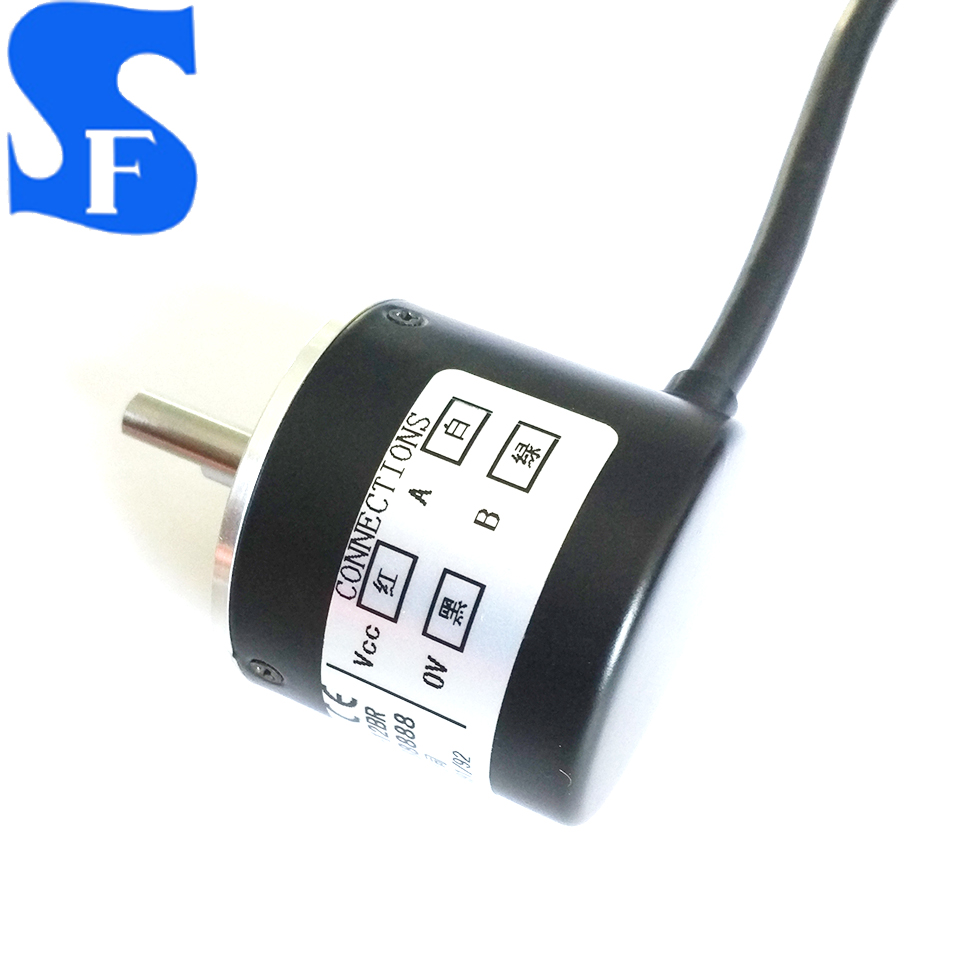

Cable Color

Red

Black

White

Green

Output Form

Rs422

Vcc

0V

A

B
