M12 A Coded and D Coded Circular Connector

Video

1 / 7

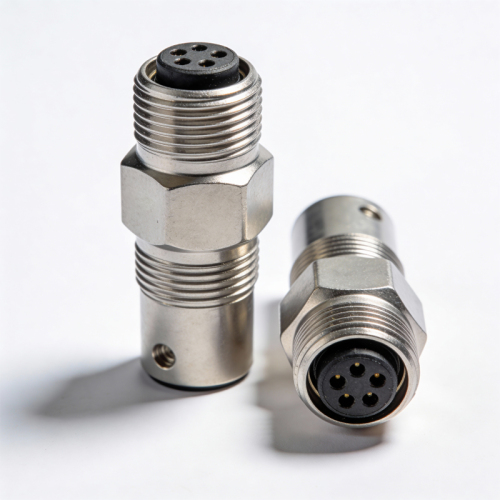

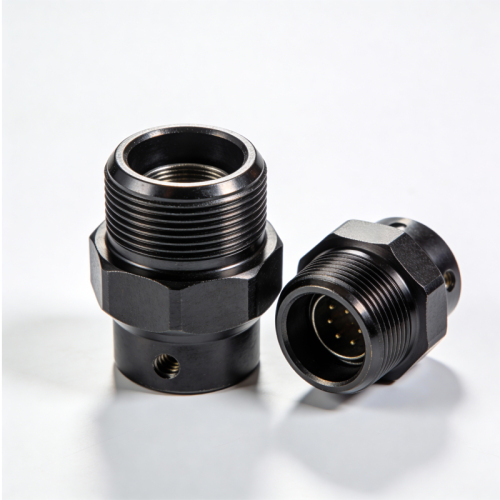

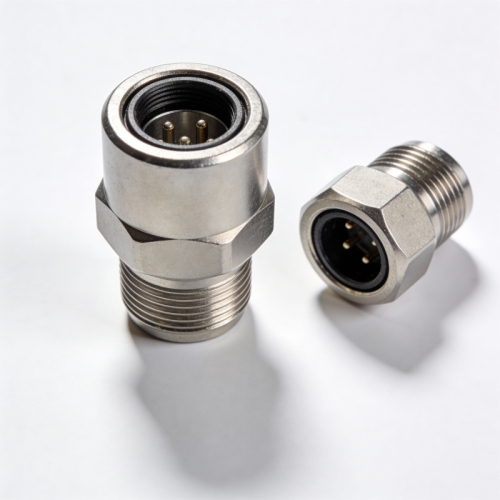

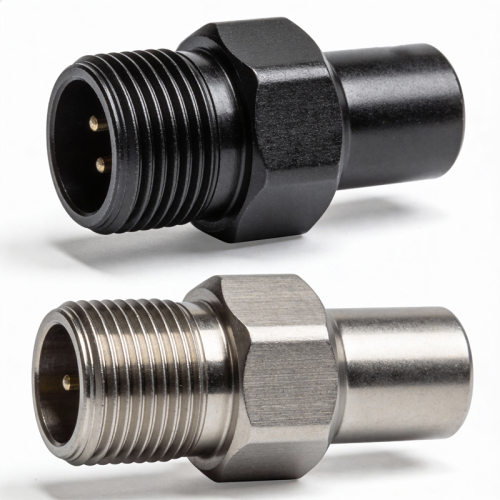

M12 A Coded and D Coded Circular Connector

Get Latest Price

You might also like

Basic Info

Model No.	M12 Circular Connector
Brand Name	Sejow
place of origin	China
species	Usb, Vga, Bnc, Dvi, Hdmi, Adapter, Din, Rj45
application	Automotive, Rf, Power, Microwave, Fpc, Pcb, Audio &Amp; Video, Uhf
gender	Female, Male
Contacts	1p, 7p, 2p, 9p, 5p, 3p, 8p, 4p, 6p
Application	Automotive, New Energy, Robot, Industiral, Industrial Ethernet, Profinet, Ethernet IP
Type	Waterproof Connector
Rated Current	4 A, 2 A
Rated Voltage	250 V
IP Level	IP67 / 68
Contact Material	Copper Gold Plating
Housing Material	Brass nickel-plated/Zinc alloy nickel-plated/PA-GF
Gender	Female / Male
Shape	Round
Number of pins	2,3,4,5,6,8,12,17pin
Current Rate	1.5A/2A/4A
Cording	A/B/C/D
Insulator material	PA+GF/TPU
Type of connection	Screw/ solder connection
Molding material	TPU/PVC
Sealing material	Epoxy resin/Rubber
Temperature Range	-25°C ~ +85°C

Product description

The M12 Aviation Connector: Waterproof, Rugged & Industrially Rated

Stop replacing failed plugs. Our M12 is a sealed waterproof connector with aviation-style threads. The go-to industrial connector for outdoor automation, marine, and heavy machinery.

If your application lives outdoors or near water, you cannot afford a connection that cuts out. You need the trifecta of durability: the sealing of a?waterproof connector, the ruggedness of an?industrial connector, and the locking security of an?aviation connector.

Aviation-Grip Locking:?The threaded collar screws down tight. Unlike a USB or RJ45, this?aviation connector?won't pop loose if some snags a cable.
Industrial Shell:?Built to resist corrosion, oil, and UV rays. This is an?industrial connector?designed to live on oil rigs, in quarries, or on food processing lines.
IP67 Waterproofing:?Submerse it. Spray it. The internal o-ring creates a compression seal that makes this a true?waterproof connector.

Technical Specifications

Gender: Male and Female Plug

Pins number: 6

Thread Dia: 13mm

Orientation: Straight

Material: Zinc alloy; Copper alloy; Bakelite

Rated Operating Voltage: 250V

Current Handling Capacity: 5A

Coupling: Threaded

Mating Cycles: 500 Times

IP Rating: IP67 / 68

Wire connection: Soldering

Wire Cable: 16-24 AWG

FAQ

A. About Our Products & Capabilities

1. What are your main machining capabilities?

We specialize in precision CNC milling and CNC turning services. We are equipped to handle 3-axis, 4-axis, and 5-axis machining, working with materials like aluminum, brass, stainless steel, and engineering plastics to produce high-tolerance components.

2. What is your standard tolerance?

Our standard machining tolerance is ±0.01 mm. We can achieve tighter tolerances for critical features upon request and based on a design review.

3. Can you machine custom parts from my drawings?

Absolutely. We are an OEM/ODM manufacturer. Simply provide your detailed 2D drawings or 3D CAD models (e.g., STEP, IGES files), and we will manufacture the parts to your exact specifications.

B. About Ordering & Payment

4. What is your MOQ (Minimum Order Quantity)?

We are flexible. We accept both low-volume prototype orders and high-volume production runs. The MOQ can be as low as 1 piece for prototyping, and we offer competitive pricing for mass production.

5. How can I get a quote?

Please send us your drawings, along with information on material, surface treatment, and required quantity. We typically provide a detailed quotation within 1-2 business days.

6. What payment terms do you accept?

We accept T/T (Bank Transfer). A deposit is required to initiate production, with the balance paid before shipment.

C. About Shipping & Logistics

7. How do you handle shipping?

We have extensive experience in international shipping. We can ship samples and small batches via express couriers like DHL/UPS. For large production orders, we arrange sea or air freight based on your needs, with FOB, CIF, or EXW terms available.

8. What is your lead time?

For prototype orders, lead time is typically 7-15 days. For mass production, it depends on the order quantity and complexity, generally ranging from 3-5 weeks. We will provide a precise schedule with your quote.

D. About Quality & After-Sales

9. How do you ensure quality control?

Quality is integral to our process. We perform a First Article Inspection (FAI), in-process checks, and a final random inspection before shipment. We can provide inspection reports and are compliant with ISO 9001 quality management standards.

10. What if I receive defective parts?

We stand behind our quality. If any parts are found to be defective due to our manufacturing process, please notify us within 12 months of delivery with supporting evidence (photos/videos). We will promptly arrange to re-manufacture or repair the defective units.
