Making Junction box/Socket box/Switch box Machines

Get Latest Price

You might also like

1 Set/Sets (MOQ)

Basic Info

Model No.	SUF make-box0625-02
Brand Name	SUF
Types of	Steel Frame &Amp; Purlin Machine
Applicable industry	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Other, Advertising Company
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Where to provide local services (in which countries are there overseas service outlets)	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom location (in which countries are there sample rooms overseas)	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, Uae, Colombia, Algeria, Bangladesh, South Africa, Kyrgyzstan, Tajikistan, Japan, Malaysia
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	1 Year
Core components	Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Old and new	New
place of origin	China
warranty period	2 Years
Core selling point	Easy To Operate

Product description

Product Description

Flush Mount Electrical Enclosure Roll Forming Machines for Producing Outdoor Indoor Boxes

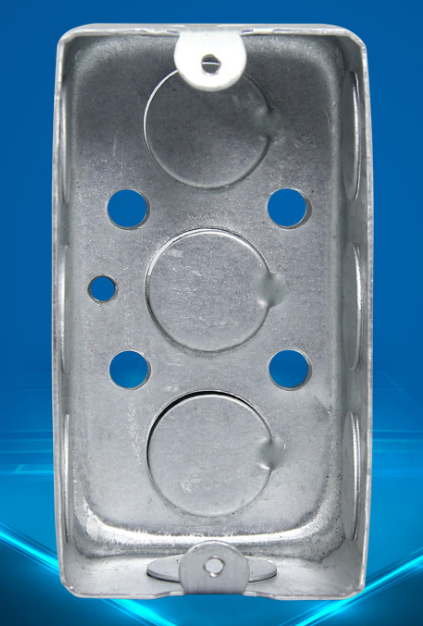

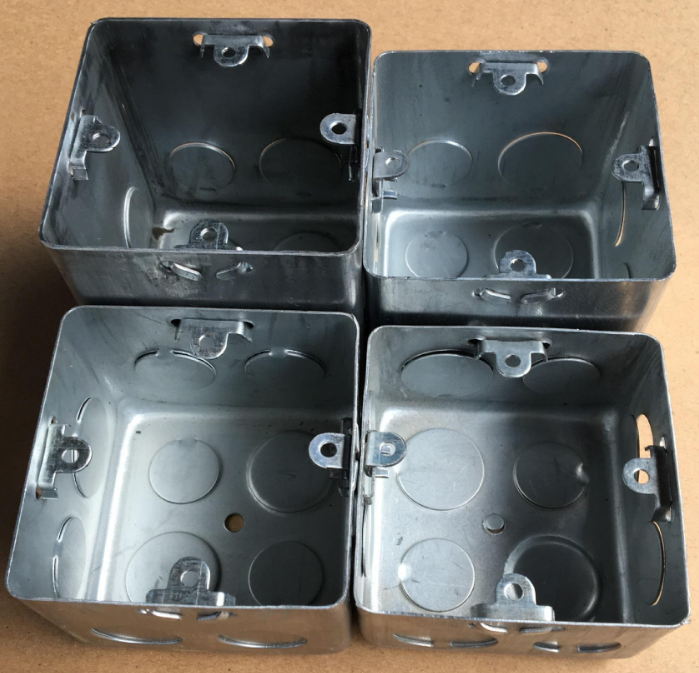

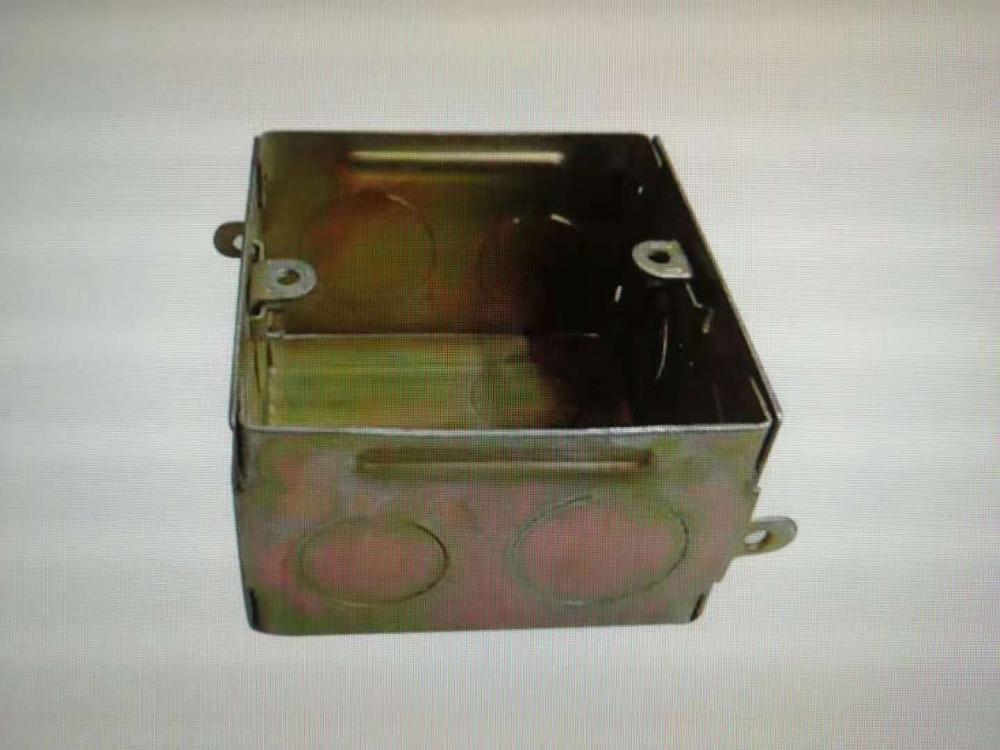

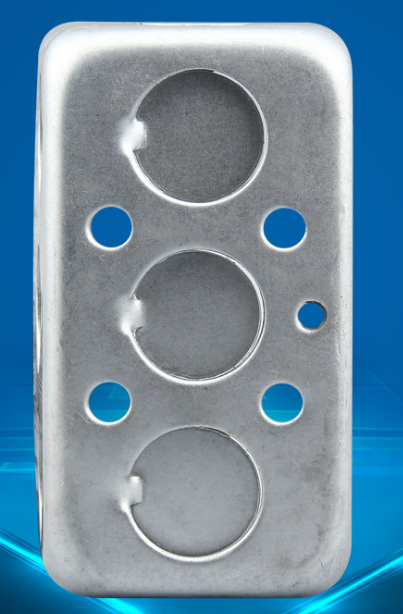

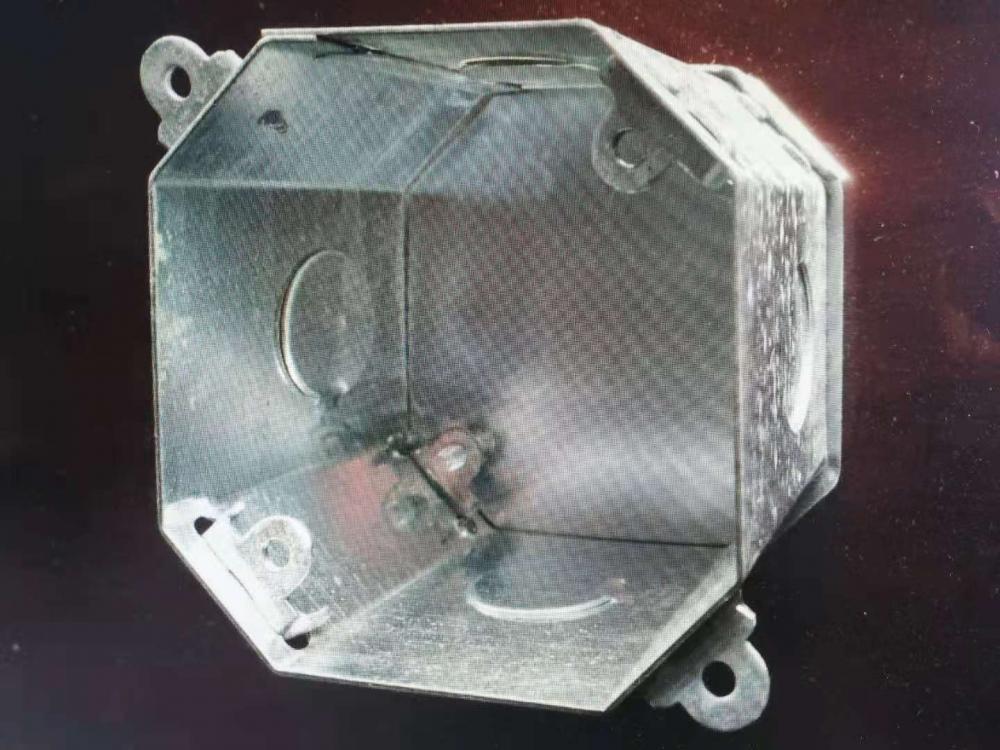

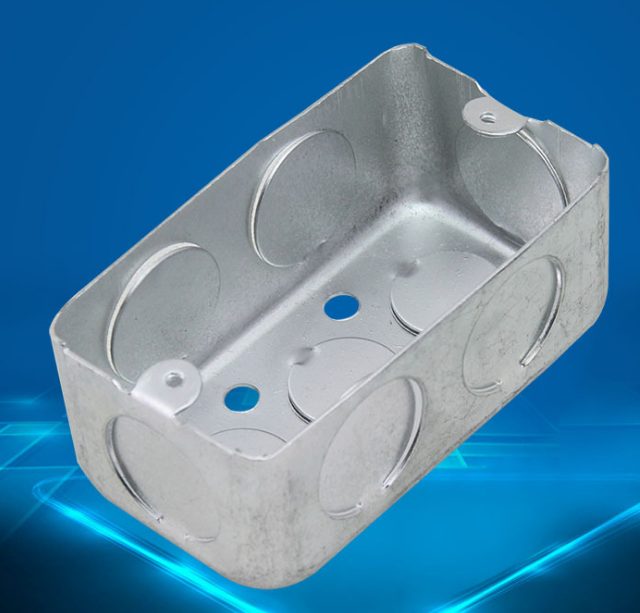

Square electrical box/Steel box/ /conduit box/junction box/socket box/switch box/terminal box/device box making machines:

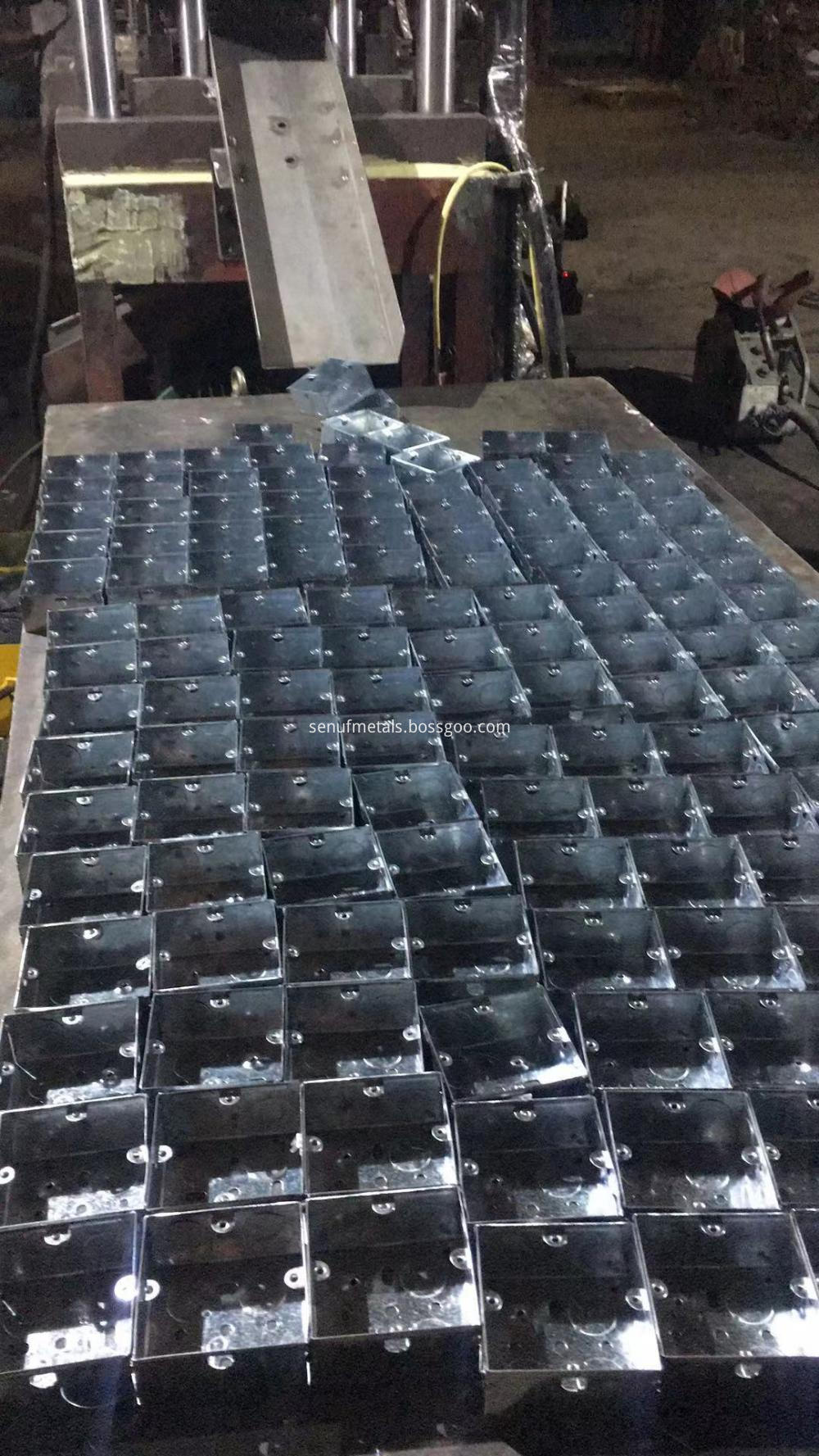

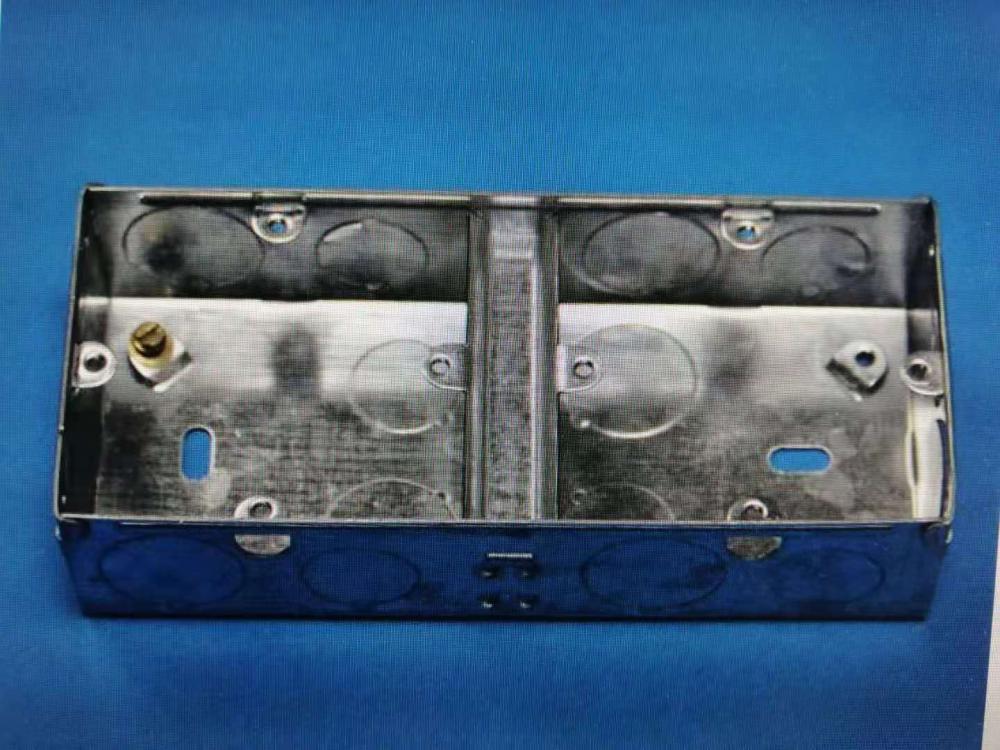

Junction Box Socket Box Switch Box Terminal Box Device Box 1

2.Features:

Metal enclosure production line process
Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack

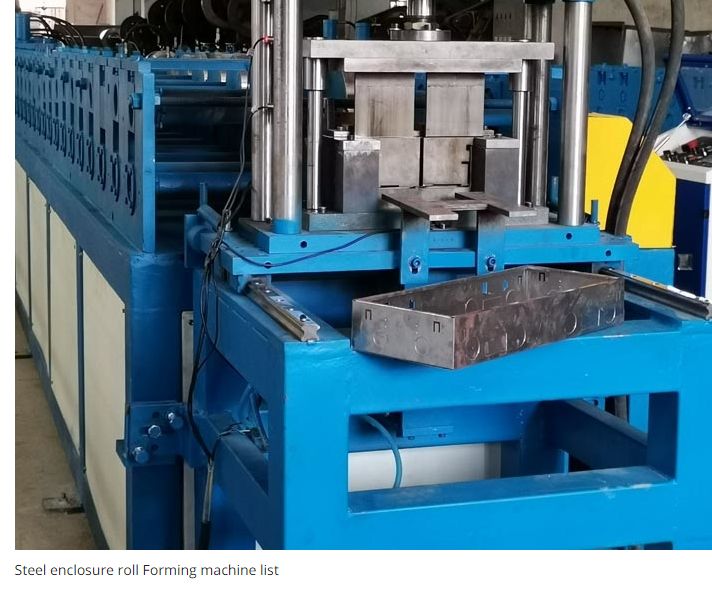

Steel enclosure roll Forming machine list
Uncoiler, Straightener
1,Type Manual Expansion
2,Parameter
1) Passive   discharge
2) Coil weight:<   2T
3) Coil inner D.:φ450mm-φ530mm
4) Max. Width.400mm
5) Thickness .0.4-1.6mm
6) Straightener roller :9 pcs
8) Power.1.5kw

Servo Feeder

3.1 Max. feeding width 400mm
3.2 Feeding thickess 0.4-1.6mm
3.3 Motor , 1.3KW(Yaskawa)
Wall mounted steel enclosure production line for electric cabinet distribution panel IP65 IP66 outdoor indoor steel bending machine
Guide device
5.1  Forming Roller:16 stations,and add Rub-roll, To make sure the surface profile no scratches.
5.2  Side Panel:T.18mm ,A3 steel   Heavy duty .
5.3  Rolling speeding: 6-12 m/min.
5.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:7.5KW.
5.6  Main Roller :Dia.75mm,45 #.
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Roller material using good quality GCr15 and quench process, hardness reach 62 ℃
