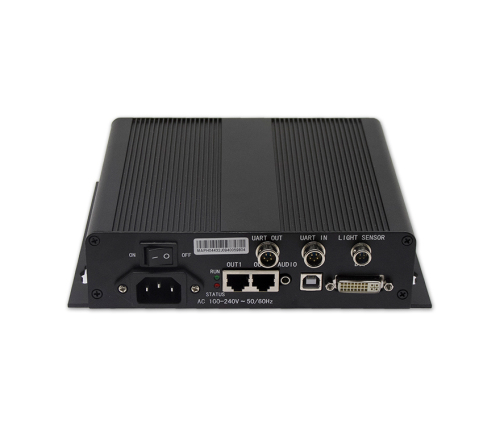

MCTRL300 LED Display Screen Controller is a standard model of Nova controllers for led display screens. It has the same characteristics as Led Display Sending Card Controller MSD300. And it could work independently without computer

MCTRL300

Product Type :Controller

Input Resolution :1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668(width and height can be specially defined by customers)

Capacity :1.3 million pixels

Supply Voltage :AC-100-240V-50/60HZ

Control Method :USB Interface

Video Interface :DVI

Audio Interface :3.5mm

Viedo Format :RGB

Output Interface :2 Ethernet ports

Bit Depth Of Video Resource :8bit

Light Sensor Interface :1

Certification :CE.RoHS.FCC.EAC.IC

1) 1 DVI video input;
2) 1 audio input;
3) 2 Ethernet port outputs;
4) USB interface which can be cascaded for uniform control;
5) Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668;
6) 1 light sensor interface;
7) Independent power supply;
8) Cascading ports (UART OUT/IN) have adopted aviation plug which is stable and reliable.
