Nova LED Display Controller MCTRL600

LED control card model: LCD panel type: The quality of an LCD display depends on its panel first, because the quality of the panel directly affects the viewing effect of the screen, and the LCD TV panel accounts for more than half of the cost of the whole machine. The main factor that affects the cost of LCD TVs, so to choose a good LCD monitor, you must first choose its panel.

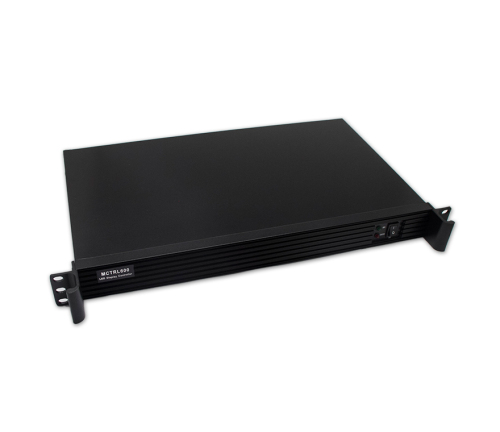

MCTRL600 LED Display Screen Controller is an advanced model of Nova controllers for Led display screens, which supports extra-large resolution. With HDMI/DVI video input and four Ethernet port outputs, a singleunit is able to load 2560×960. Multiple units can becascaded for uniform control for led display.

MCTRL600

Product Type :Led display screen Controller

Input Resolution :1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)

Capacity :2.3 million pixels

Supply Voltage :AC-100-240V-50/60HZ

Control Method :USB Interface

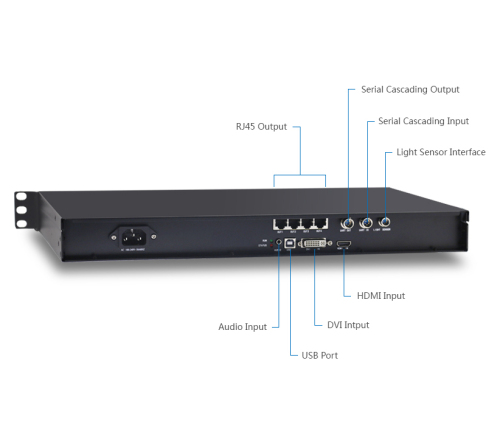

Video Interface :HDMI / DVI

Audio Interface :HDMI/3.5mm

Viedo Format :RGB,YCrCb4:2:2,YCrCb4:4:4

Output Interface :4 Ethernet ports

Bit Depth Of Video Resource :8/10/12bit

Light Sensor Interface :1

Certification :CE.RoHS.FCC.EAC.IC

Features

1) HDMI/DVI input;
2) HDMI/external audio input;
3) 12bit/10bit/8bit HD video source;
4) Resolution supported: 2048×1152,1920×1200,2560×960;
5) Resolution supported: 1440×900 (12bit/10bit);
6) 1 light sensor interface;
7) Cascading supported;
8) 18bit gray scale processing and presentation;
9) Video format: RGB, YCrCb4:2:2, YCrCb4:4:4;
10) Standard 1U housing and independent power supply.
