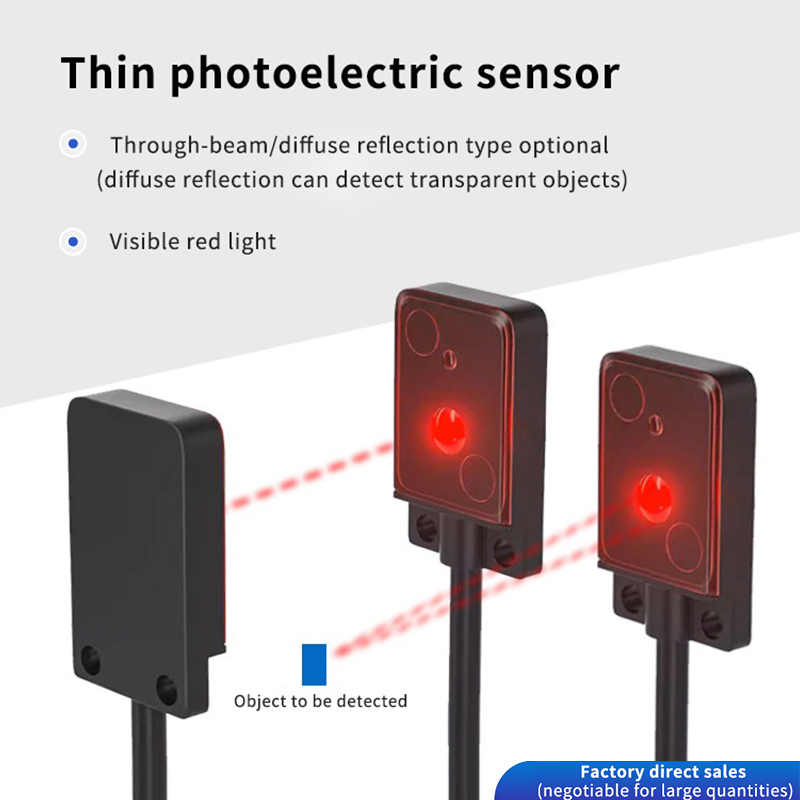

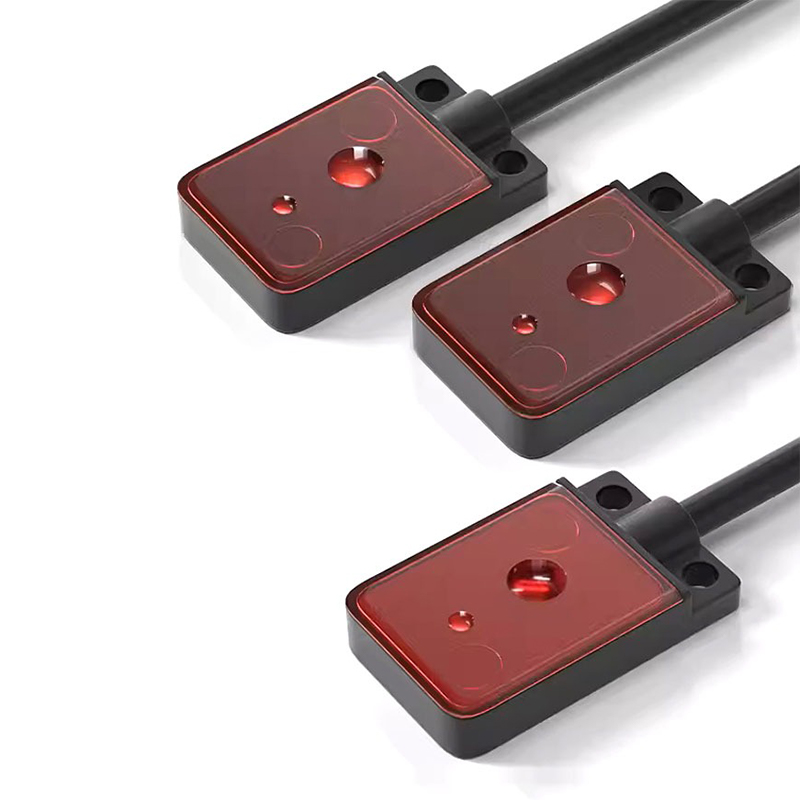

Micro Thin Optoelectronic Switch - Diffuse Reflective Photoelectric Sensor
$17.00
/ piece
Options:

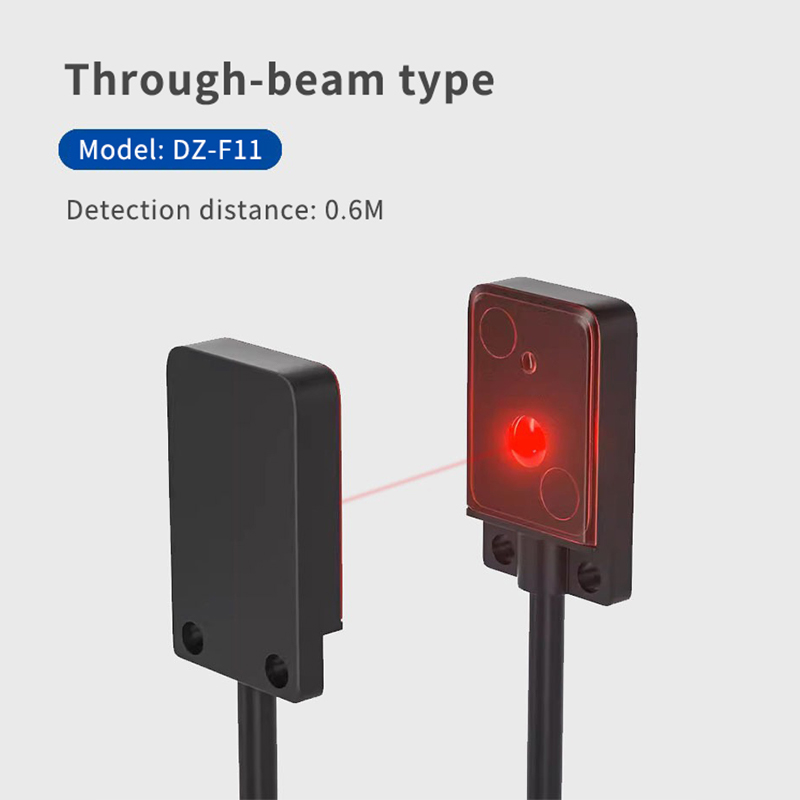

- DZ-F11 detection distance for opposing NPN: 0.6m
- DZ-F11P for PNP detection distance: 0.6m

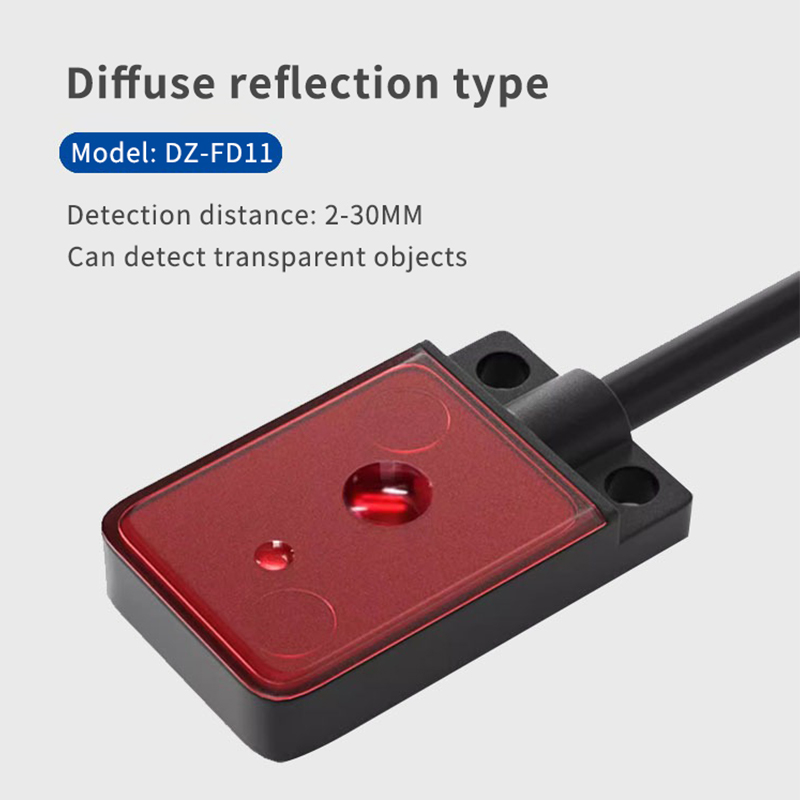

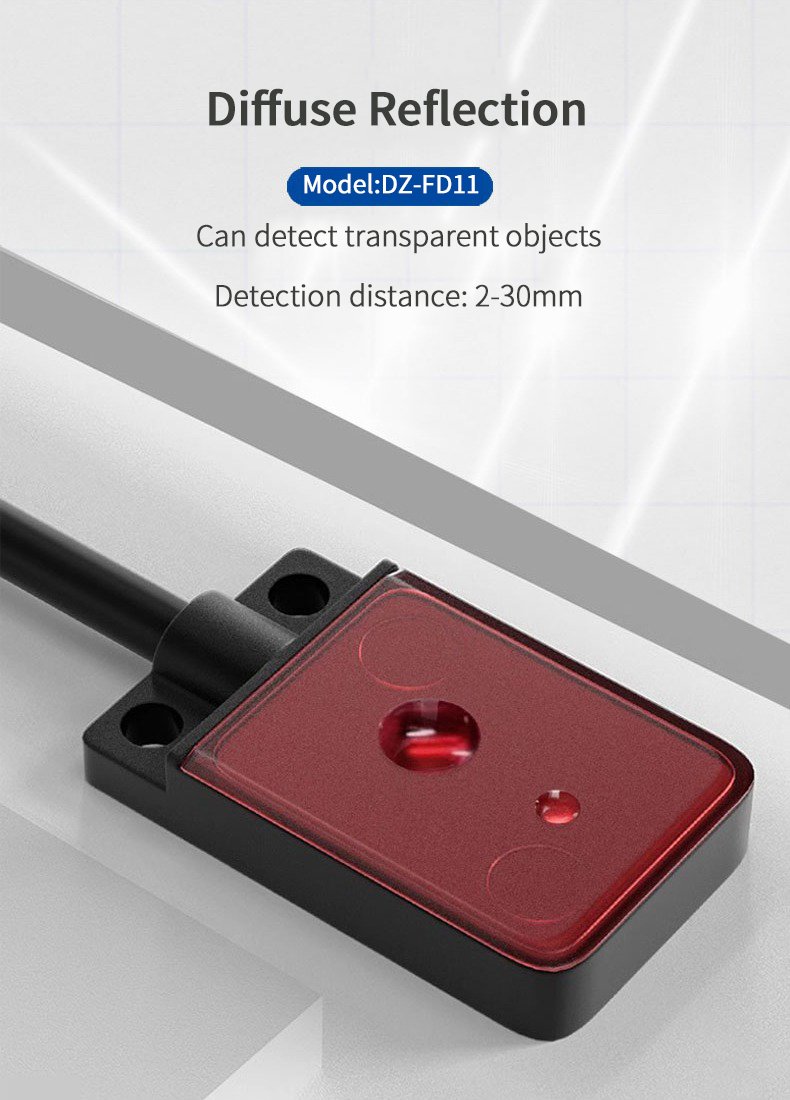

- DZ-FD11 diffuse reflection NPN detection distance: 2-30mm
- DZ-FD11P diffuse reflection PNP detection distance: 2-30mm
Get Latest Price
You might also like
$28.00
2 piece (MOQ)
$15.00
1 piece (MOQ)
Basic Info
| Series | Micro thin photoelectric switch |
|---|---|
| Mounting Type | Bracket fixed installation method |
| Description | Diffuse reflection photoelectric switch, Thin photoelectric switch sensors |
| Model Number | DZ-F11 |
| Type | Photoelectric Sensor |
Show More
Product description
Products Description
Product name | Thin photoelectric switch sensor | ||
Appearance | Square (flat) | Strip photoelectric switch | |
Type | Antipodal type | diffuse reflection | |
NPN | DZ-F11 | DZ-FD11 | |
PN | DZ-F11P | DZ-FD11P | |
Detection distance | 0.6m | 2~30mm | |
Spot diameter | 3-8mm (larger and farther away) | Approximately 5mm (at 3mm) | |
Consumption current | 15mA | 20mA | |
Action mode | ON when entering light | 60mm long and 4mm wide(Actual length and width vary depending on installation height) | |
Light source | Point light source red LED (650nm) | 10-30VDC | |
Reaction time | 1ms | 150mA | |
Supply voltage | 10-30vDC with Wenbo current (P-P) 10% | 100Hz | |

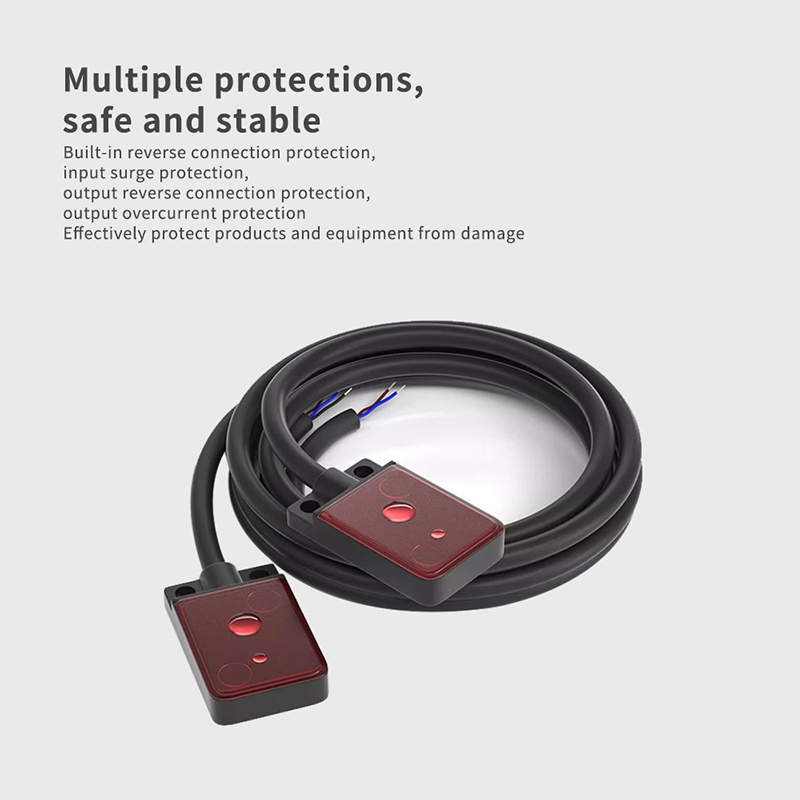

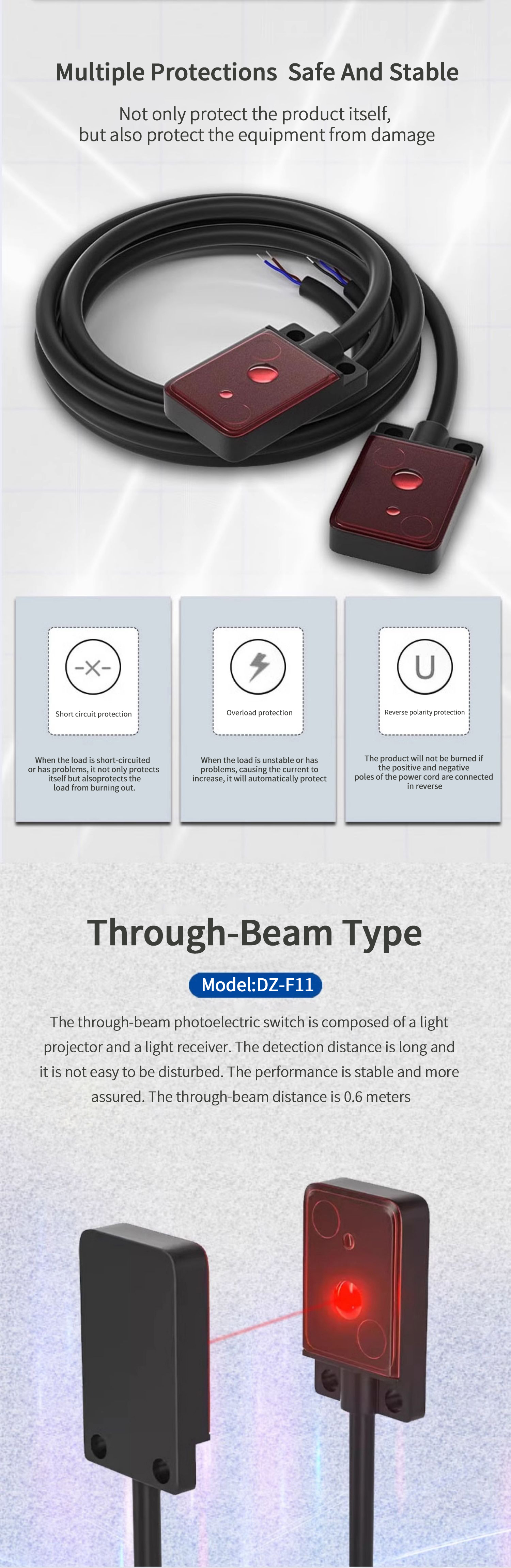

Protection circuit | Load short circuit protection, output reverse connection protection, power reverse connection protection | 5ms | |
Ambient temperature | -25~55C (no icing or condensation);? When stored: -40~70C (no ice or condensation) | IP65 | |
Ambient humidity | 35~85% (without condensation); When saving: 35-95% (no condensation) | 2M | |
Connection method | Lead out type (wire length approximately 2m) | Bright on, dark on | |
Product Catalog
Packing And Shipping
Q1 What is the MOQ?
A:1pcs for our own available designs.
Q2 Can I customize a special sensor?
A:Yes,sure.
Q3 Can I get a sample?
A:Of course, but you need to pay the minimum sample fee.
Q4 Can I get a lower price if 1 order large quantities?
A:Yes,but you need to tel1 us asap,if your order has been done inour production line,we cannot change it,it is about 1day afterconfinmoing the order.
Q5 When you ship my order?
A:One day shipping guarantee for stock item, Non-standard custom 4 weeks delivery.
Q6 How about the quality guarantee period?
A:Our warranty period is one year.
Q7 How can you guarantee the production quality?
A:The quality of our products has passed CE&ISO9001 certification.we have 10 years professionasensor manufacturing history and 8 years ODM 1abelling experience with global top sensotbrands.
