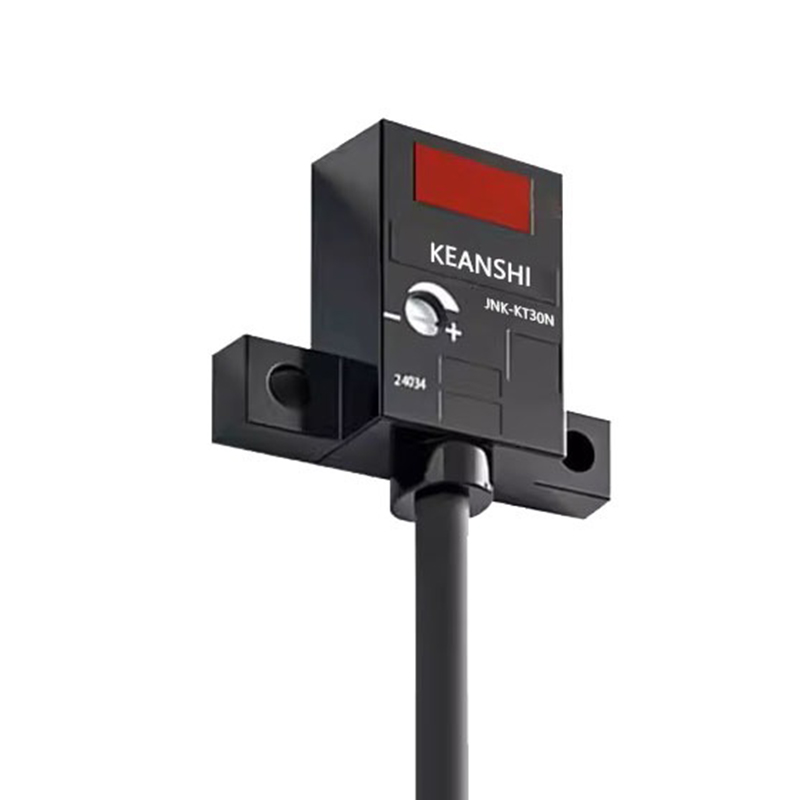

Thin Mini Diffuse Reflection Object Detection Sensor: Adjustable Distance Photoelectric Switch PNP NPN

1 / 6

Thin Mini Diffuse Reflection Object Detection Sensor: Adjustable Distance Photoelectric Switch PNP NPN

$15.00 ~ $16.50 / piece

Options:

JNK-KT30N
JNK-KT30P

Get Latest Price

You might also like

Ultra Thin Micro Reflective Photoelectric Switch Beam Sensor with Fast Response and Infrared Limit Detection

$18.00

1 piece (MOQ)

Proximity Fast Response CE Certified Beam Square Photoelectric Sensor Switch

$28.00

2 piece (MOQ)

Custom Micro Card Buckle Circular Black Induction Turnstile Safety Sensor

$15.00

1 piece (MOQ)

Thin Mini Diffuse Reflection Object Detection Sensor: Adjustable Distance Photoelectric Switch PNP NPN

$15.00

1 piece (MOQ)

Micro Thin Optoelectronic Switch - Diffuse Reflective Photoelectric Sensor

$17.00

1 piece (MOQ)

Strip Type Photoelectric Switch with Square Background Suppression 12-24V DC NPN Diffuse Reflection Sensor

$15.00

1 piece (MOQ)

Miniature Industrial Photoelectric Sensor for Counting with Background Suppression

$28.00

2 piece (MOQ)

Small Micro Slot Optical Sensor with Infrared LED - NPN/PNP Normally Open/Closed with Lead Wire

1 piece (MOQ)

Diffuse Reflection Photoelectric Switch vs Specular Reflection Photoelectric Proximity Sensor: Understanding Optical Sensors and Lasers" However, if you need a concise title focusing on the main components mentioned: "Optical Sensors: Diffuse and Specu

$15.00

1 piece (MOQ)

OEM ODM Factory Outlet: Adjustable IP65 Photoelectric Sensor Switch - Price List

$15.00

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Series	Diffuse reflection series

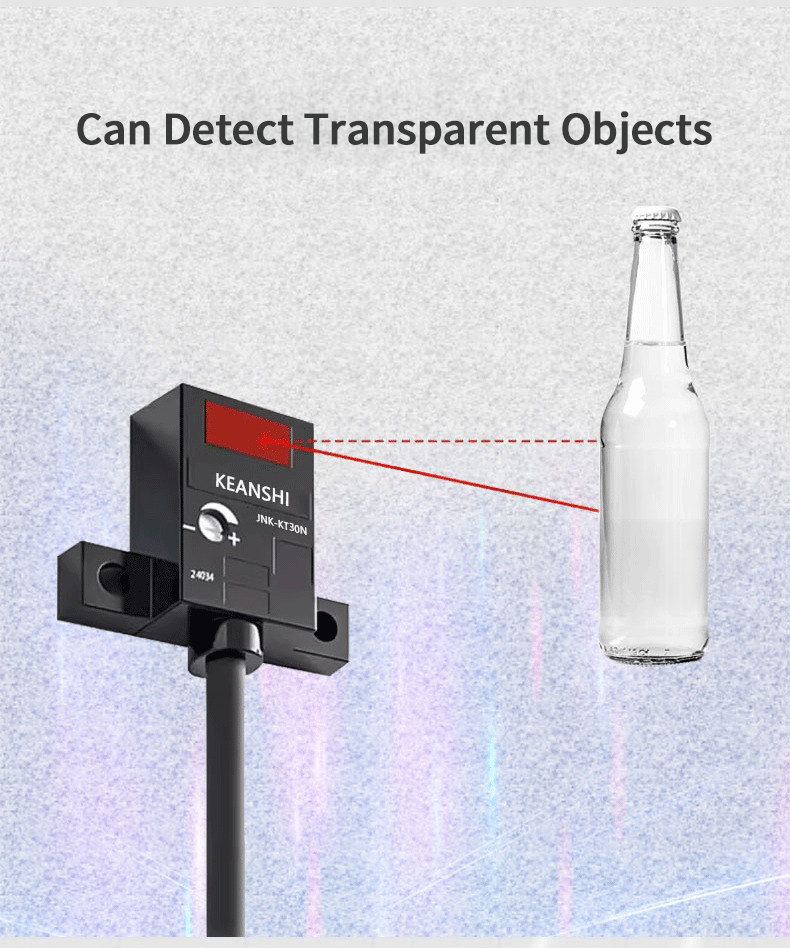

Features	High precision and strong anti-interference, Detectable transparent objects
Mounting Type	Bracket fixed installation method
Description	Diffuse reflection photoelectric sensor, Mini photoelectric switch sensors
Model Number	JNK-KT30
Type	Photoelectric Sensor
Place Of Origin	Guangdong, China
Brand Name	DAIDISIKE
Use	Photoelectric Sensor
Theory	infrared, Diffuse reflection area type photoelectric switch
Output	10-30VDC
Product Name	Mini photoelectric switch sensors
Brand	DAIDISIKE
Material	ABS
Sensing Distance	30mm
warranty	1 Year

Product description

Products Description

Name	Mini photoelectric switch sensors
Model	JNK-KT30N JNK-KT30P

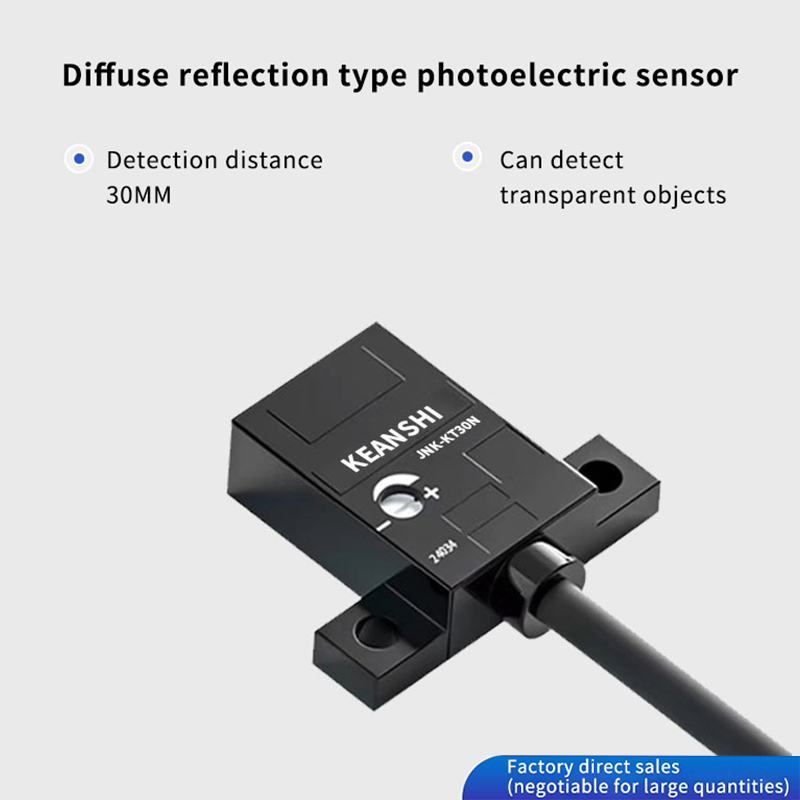

Sensor principle	Diffuse reflection area type photoelectric switch

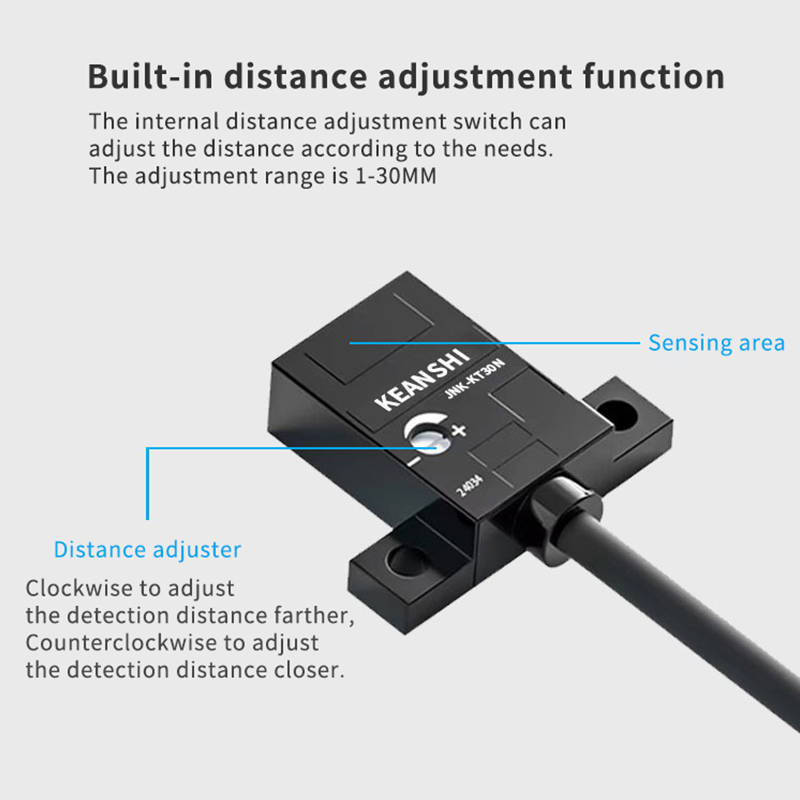

Detection distance	0-30mm (adjustable)
Detecting objects	15X15 white paper
Repetitive accuracy	Below 0.03mm
Response time	Under 1 ms (action · reset)
Response frequency	Below 200Hz
Projection element	Infrared light-emitting diode
Supply voltage	DC5-24V+10% (p-p) below 10%

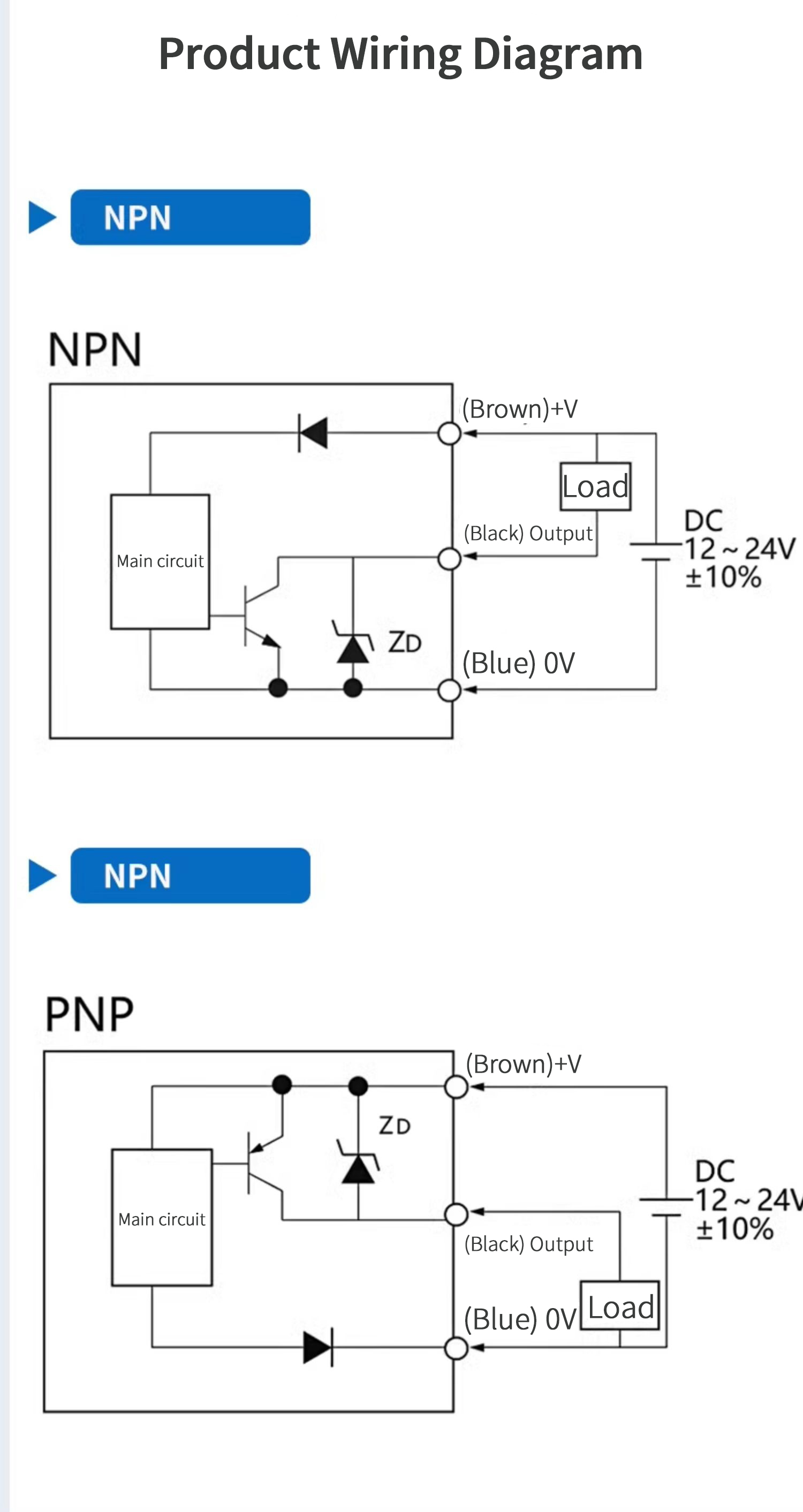

Output form	NPN collector open circuit output; PNP collector open circuit output Maximum inflow current: 100mA Applied voltage: below DC30V
Output action	NO/NC
Indicator light	Action indicator light: red

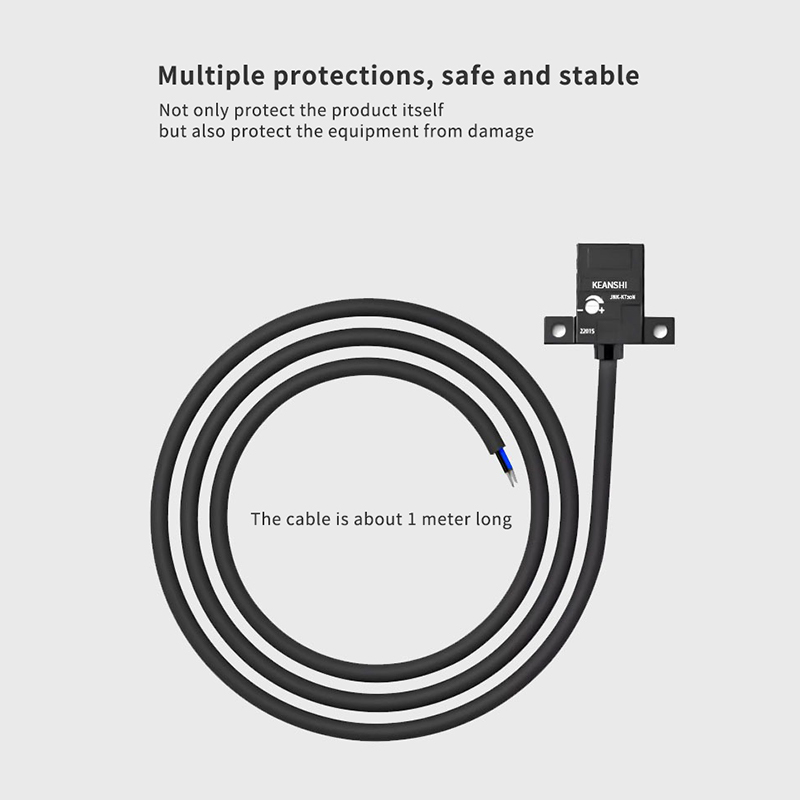

Protection circuit	Equipped with power reverse protection, output short circuit protection, and output overload protection
Protective structure	IP50

Product Catalog

Packing And Shipping

Q1 What is the MOQ? A:1pcs for our own available designs. Q2 Can I customize a special sensor? A:Yes,sure. Q3 Can I get a sample? A:Of course, but you need to pay the minimum sample fee. Q4 Can I get a lower price if 1 order large quantities? A:Yes,but you need to tel1 us asap,if your order has been done inour production line,we cannot change it,it is about 1day afterconfinmoing the order. Q5 When you ship my order? A:One day shipping guarantee for stock item, Non-standard custom 4 weeks delivery. Q6 How about the quality guarantee period? A:Our warranty period is one year. Q7 How can you guarantee the production quality? A:The quality of our products has passed CE&ISO9001 certification.we have 10 years professionasensor manufacturing history and 8 years ODM 1abelling experience with global top sensotbrands.
