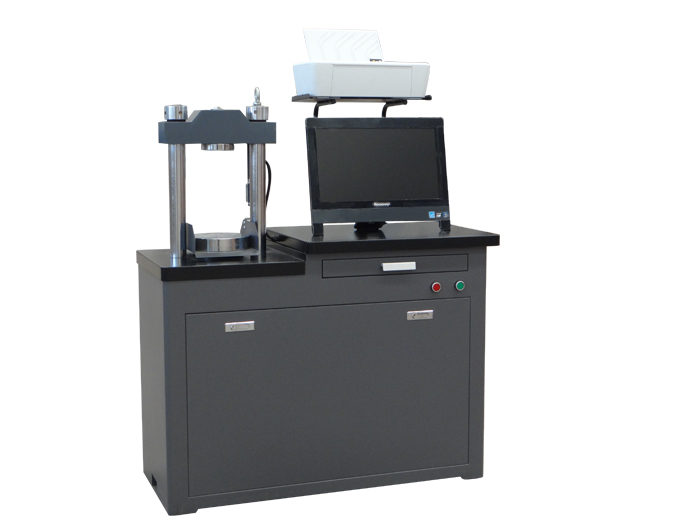

DYE-300SD-1 type of Microcomputer control cement pressure testing machine

main purpose : Exquisite appearance design, structure, compact design, Computer is designed on the chassis, convenient in operation and maintenance, saving area, Low noise .This instrument is mainly used for testing the compressive strength of cement standard specimen 40 x40x160 experiment, optional: concrete bending device, lime soil compressive experiments, 70.7 70.7 ×70.7 compression test.

Technical parameters:

type: DYE-300SD-1

The maximum experimental pressure:300KN

accuracy class: ± 1%

Test force measurement range:4%-100%

force error: ± 5%

speed of loading :2.4KN/S

The distance between the pressure plate:180mm

The size between upper and lower platen:upper 100mm,lower 185 mm

Power: 380V ,50HZ

Weight:550Kg

Overall dimensions:1050 × 450 × 1380mm

Packing size:1250 × 500 × 1500mm
