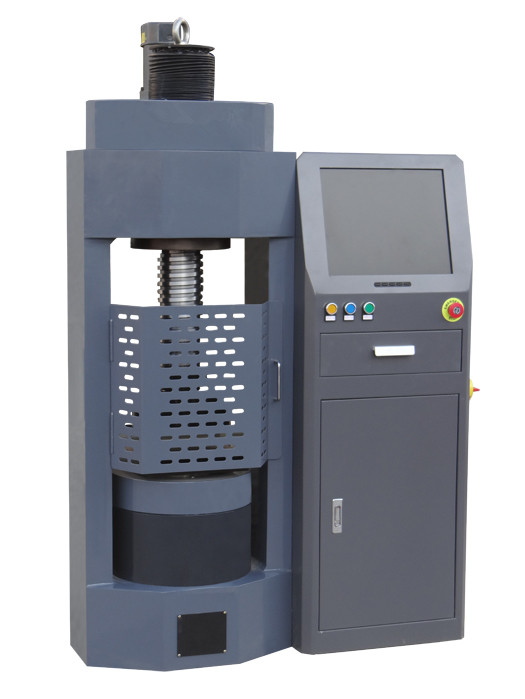

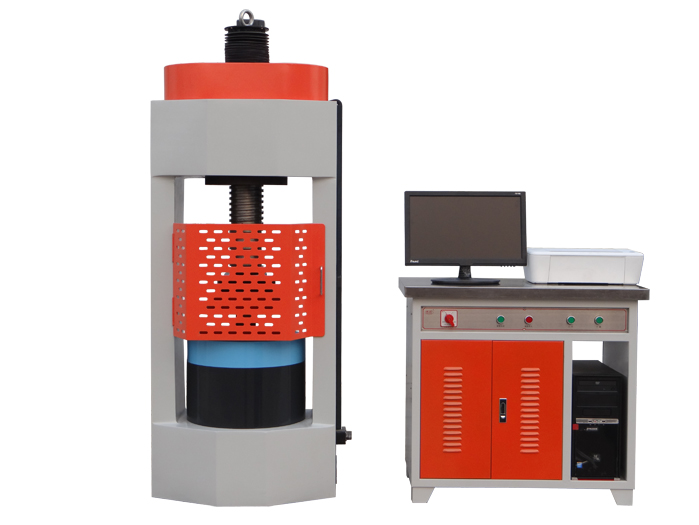

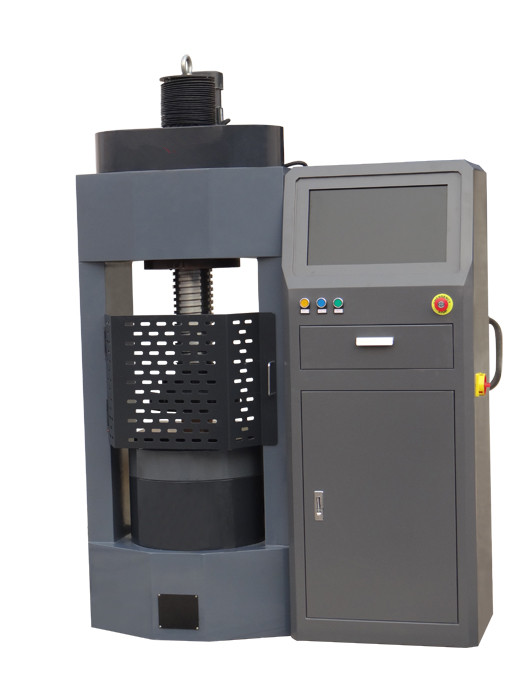

DYE-1000/2000/3000KDH Microcomputer-controlled electro-hydraulic servo compression-testing machine

purpose: This series machine is suitable for the cement, concrete and rock compressive strength experiment, with appropriate fixture and measuring device can meet the concrete splitting tensile test, bending test, the static elastic modulus test, Can also be applied to the compression of metal and the upsetting test. According to customer requirements expand multiple displacement measurement channels.

standard:GB/T7314-2005

Technical parameters:

DYE-1000/2000KDH Microcomputer-controlled electro-hydraulic servo testing machine pressure

The maximum experimental pressure: 1000/2000KN

accuracy class: 1

Test force error value: ± 1%

Test force measurement range:1%-100%

Resolution:1/350000

Main structure of machine: Cast iron

The distance between the pillars:400mm

The size between upper and lower platen:320mm

Platen size:upper dia.250mm,lower 260x280 mm;

Piston stroke:100mm

Loading rate:0.02%-2%FS/S

Overall dimensions:1050 ×500 × 1650mm

Packing size:1250 × 600 × 1700mm

Power:6KW

Weight:1800Kg

Technical parameters:

DYE-3000KDH Microcomputer-controlled electro-hydraulic servo testing machine pressure

The maximum experimental pressure:3000KN

accuracy class: 1

Test force error value: ± 1%

Test force measurement range:1%-100%

Resolution:1/350000

Main structure of machine: Cast iron

The distance between the pillars:480mm

The size between upper and lower platen:320mm

Platen size:upper dia.300mm,lower 320x330 mm;

Piston stroke:150mm

Loading rate:0.02%-2%FS/S

Overall dimensions:1250 ×650 × 1800mm

Packing size:1500 × 750 × 1900mm

Power:6.5KW

Weight:2000Kg
