Mini Lathe Machine CJM360: Find the Best Lathe Machine Price

Video

1 / 7

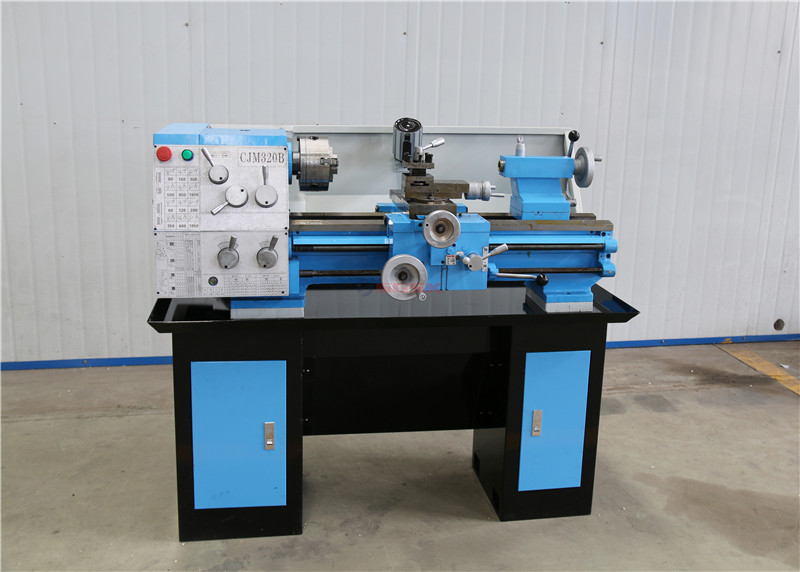

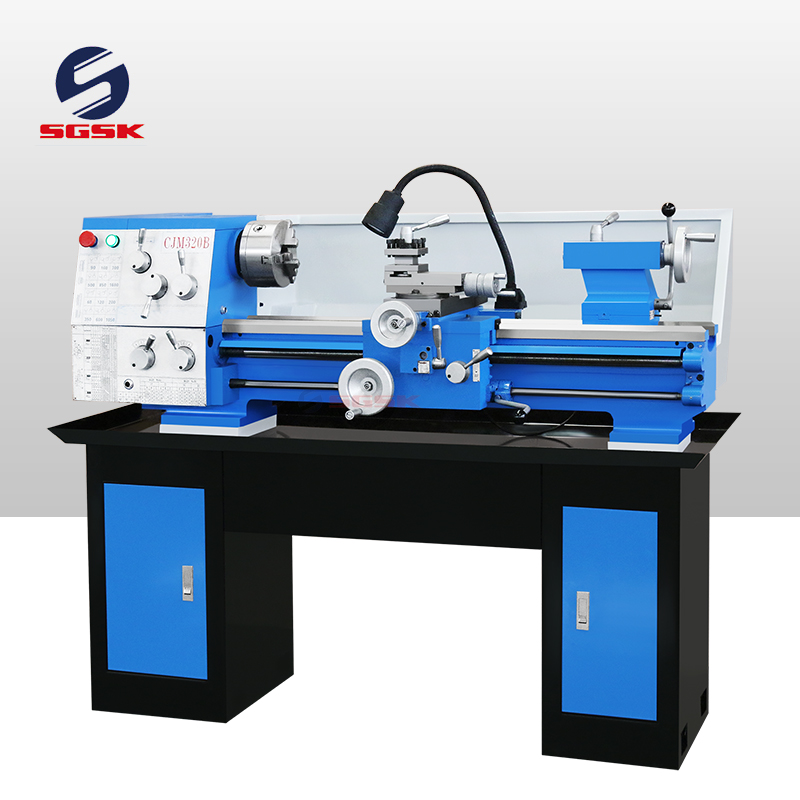

Mini Lathe Machine CJM360: Find the Best Lathe Machine Price

$2140.00

≥1 set
$2020.00

≥5 set
$1900.00

≥10 set

Options:

Get Latest Price

You might also like

Basic Info

Model No.
Brand Name
Max. Length Of Workpiece (mm)	500
Range Of Spindle Speed(r.p.m)	80 - 2000 R.P.M
Machining Capacity	Light Duty
Type	Horizontal
Place Of Origin	Shandong, China
Brand Name	SGSK
Model Number	Cjm360
Voltage	220V, 380V, 410V
Dimension(LWH)	13707051430
Weight (KG)	550 KG
Warranty	13 Months
Key Selling Points	Competitive Price
Marketing type	New Product 2020
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Max. Weight of Workpiece(kg)	230
Spindle taper	ISO40
Cutting torque	230 N.m
Tool Post Stations	8
Name	mini lathe machine CJM360 lathe machine price lathe machine
Product Type	Metal Cutting
Precision	High Precision Machine
Model	CJM360
Color	customize
Distance Between Centers	750
Swing Over Bed	360
Swing Over Cross Slide	240
Spindle Hole	38
Motor power	1.1

Product description

mini lathe machine CJM360 lathe machine price lathe machine

Products Description

Product Paramenters

Product main technical specifications:

SPECIFICATIONS	Units	CJM360
Max Swing diameter over bed	mm	360
Max Swing diameter over cross slide	mm	240
Distance between centers	mm	750
Spindle bore Diameter	mm	38
Spindle bore taper	-	MT5
Spindle speed range	rpm	80-2000
Spindle speed steps	-	12
Cross slide travel	mm	180
top tool post travel	mm	100
Longitudinal feeds range	mm/r	0.1-1.4
Cross feeds range	mm/r	0.045-0.60
Kinds of metric threads	kinds	22
Range of metric threads	mm	0.2-7
Kinds of inch threads	kinds	45
Range of inch threads	T.P.I.	2 %-48
Kinds of module threads	kinds	21
Range of module threads	M.P.	0.20-3.5
Kinds of pitch threads	kinds	31
Range of pitch threads	D.P.	8-120
Tailstock quill taper	-	MT3
Tailstock quill travel	mm	80
Main motor power	kw	1.1
Weight for 750	kg	550

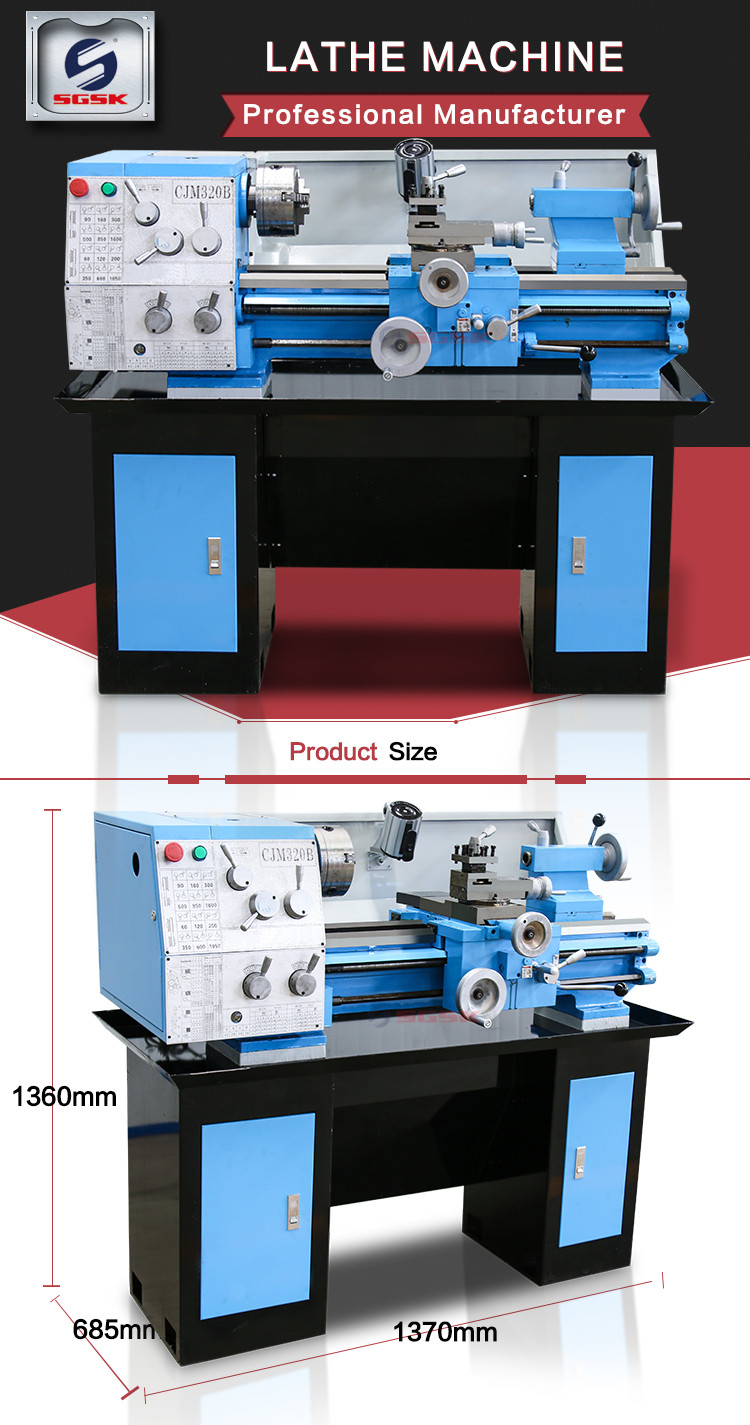

Dimension for 750	mm	13707051430

Recommend Products

Click here to send inquire

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

Why Choose Us

All our machine include cnc lathe machine, cnc milling machine , lathe machine , milling machine , drilling machine will running 24hours . And it have finished all test , then we will arrange package.
