Mini Package FC/SC/ST/LC Connectors 0.9mm Cable with 1x2 to 1x64 PLC Splitter
Options:
- customized
Basic Info
| Model Number | WS-PLC-M |
|---|---|
| Type | Coupler Splitter |
| Place of Origin | Shandong, China |
| Brand Name | Oem |
| Product name | 0.9mm cable mini optical fiber optic PLC splitter |
Product description

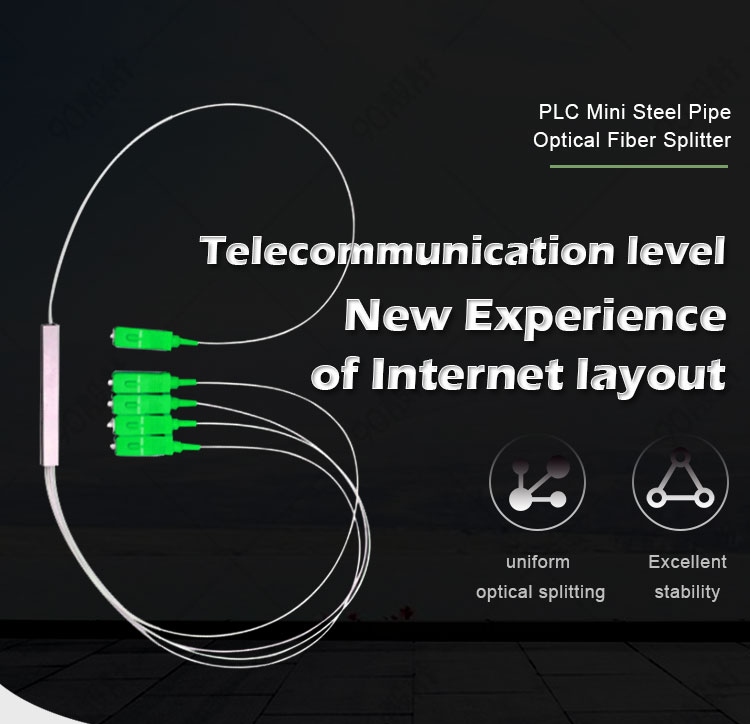

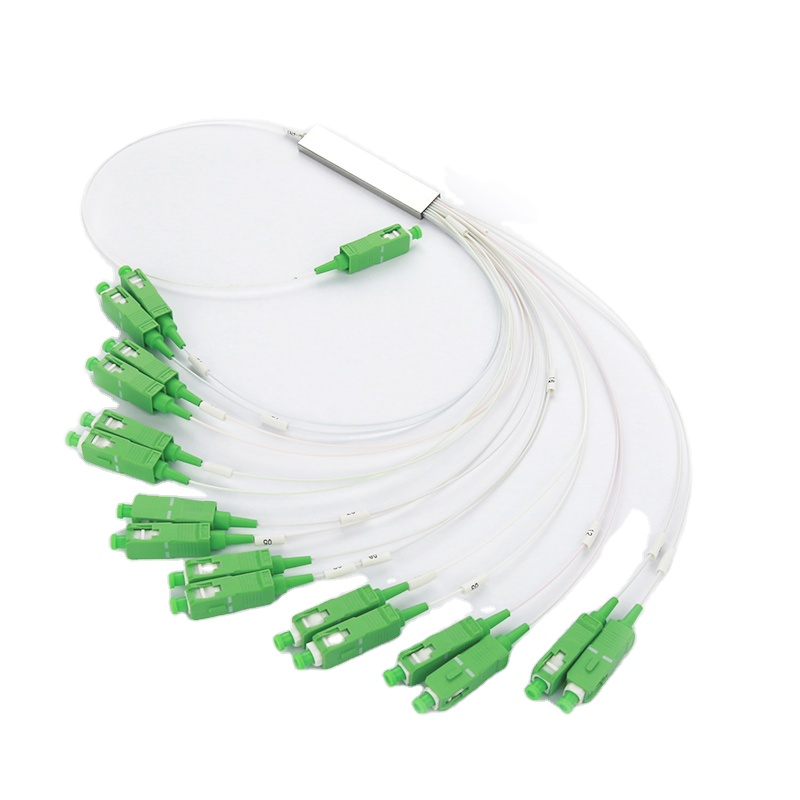

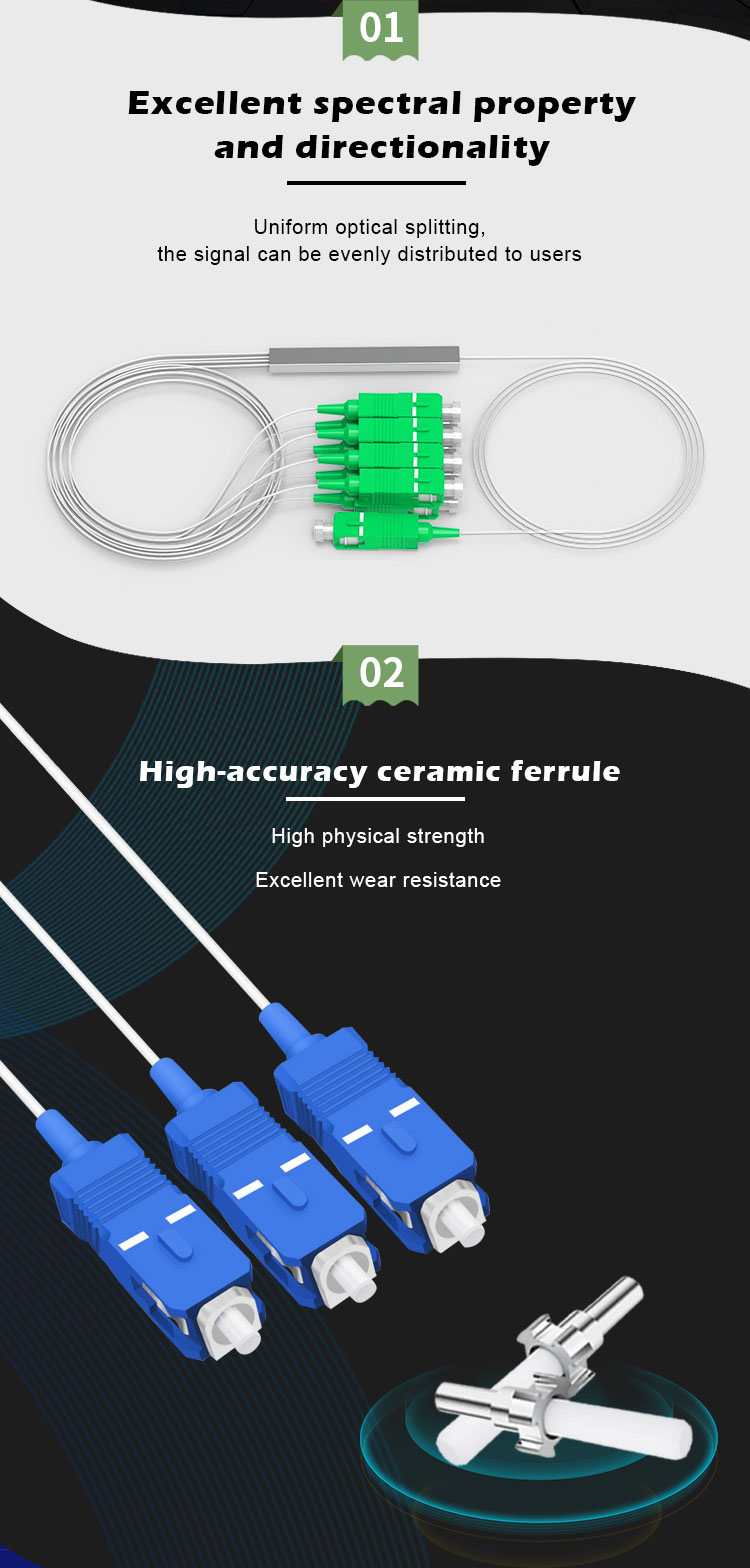

Mini package FC/SC/ST/LC connectors sm 0.9mm cable 1x2 1x4 1x8 1x16 1x32 1x64 mini optical fiber optic PLC splitter

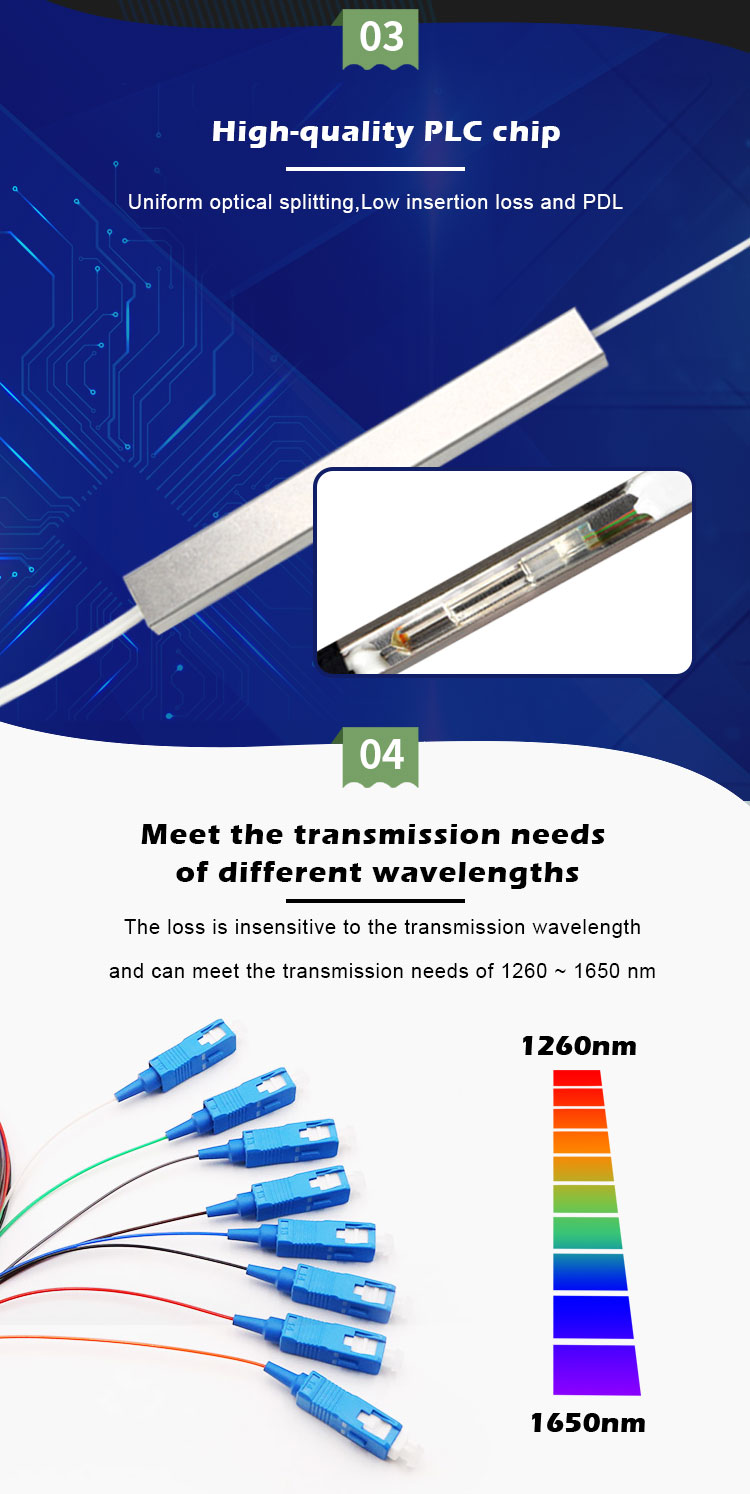

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, it can be used to realize the optical signal devide.
?
| 1*N PLC splitter | |||||||
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| fiber type | G.657A,G652D or customized | ||||||

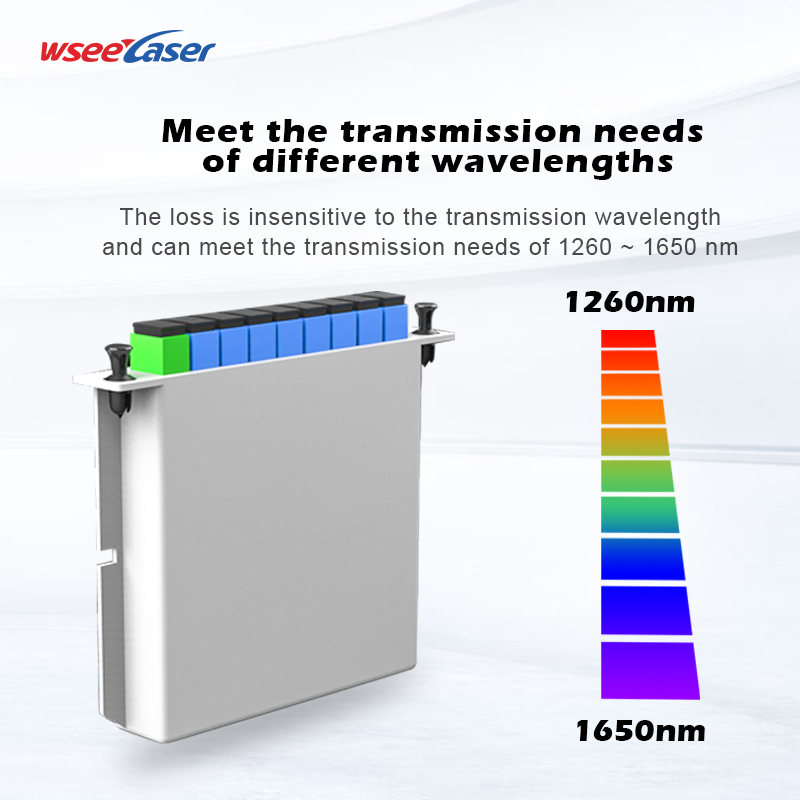

| Wavelength | 1260nm~1650nm | ||||||

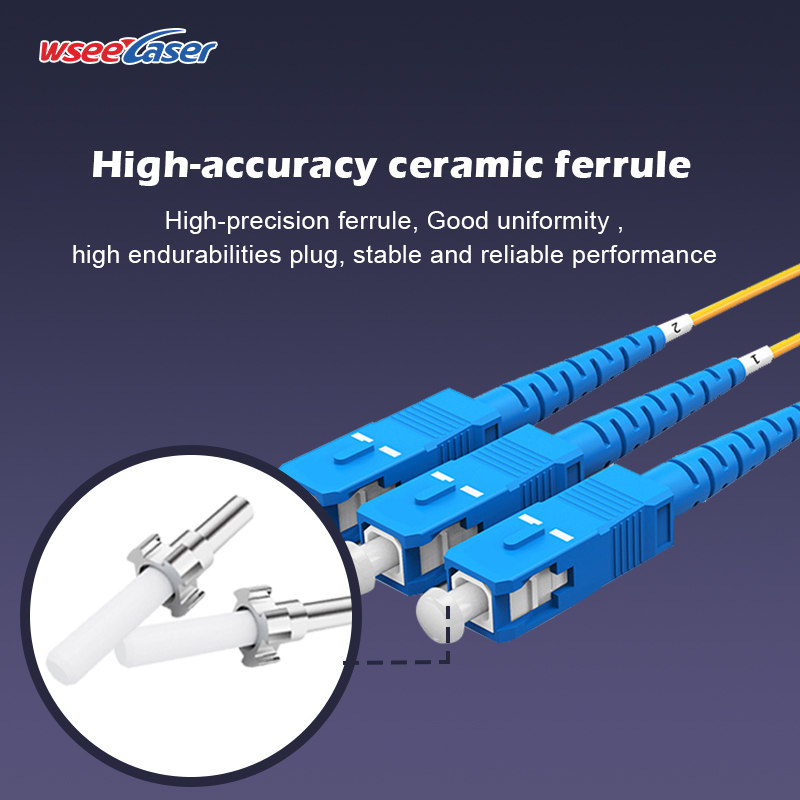

| Connector Type | SC,FC,LC,without connector or customized | ||||||
| Max insertion loss(dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | |
| PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
| Return Loss(dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
Video
Fiber Optic PLC Splitter 1x2 1x4 1x8 1x16 1x32 1x64 SC FC APC UPC ABS Box1
Fiber Optic PLC Splitter 1x2 1x4 1x8 1x16 1x32 1x64 SC FC APC UPC ABS Box1
Fiber Optic PLC Splitter 1x2 1x4 1x8 1x16 1x32 1x64 SC FC APC UPC ABS Box1
Mini Package FC/SC/ST/LC Connectors 0.9mm Cable with 1x2 to 1x64 PLC Splitter
Options:
- customized
