SC/APC Connector 1x16 Fiber Optic PLC Splitter/Coupler
$16.00
≥10 piece
$13.00
≥1000 piece
$8.00
≥10000 piece
Options:
- 60*12*4mm
Basic Info
| Model Number | Splitter |
|---|---|
| Type | PLC Splitter, Single Mode |
| Place of Origin | Shandong, China |
| Brand Name | Oem |
| Use | Fiber |
Product description

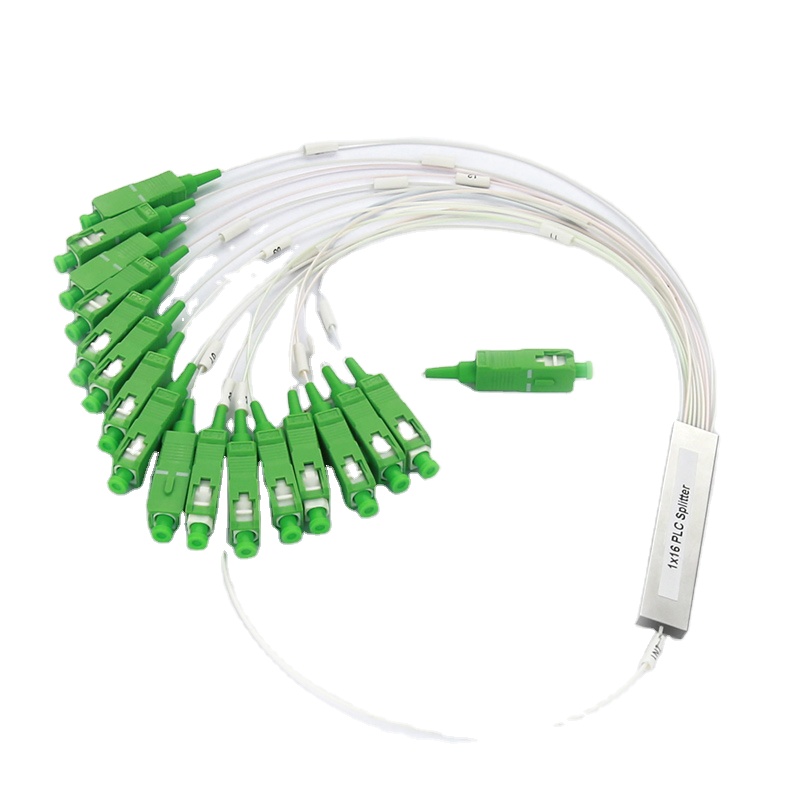

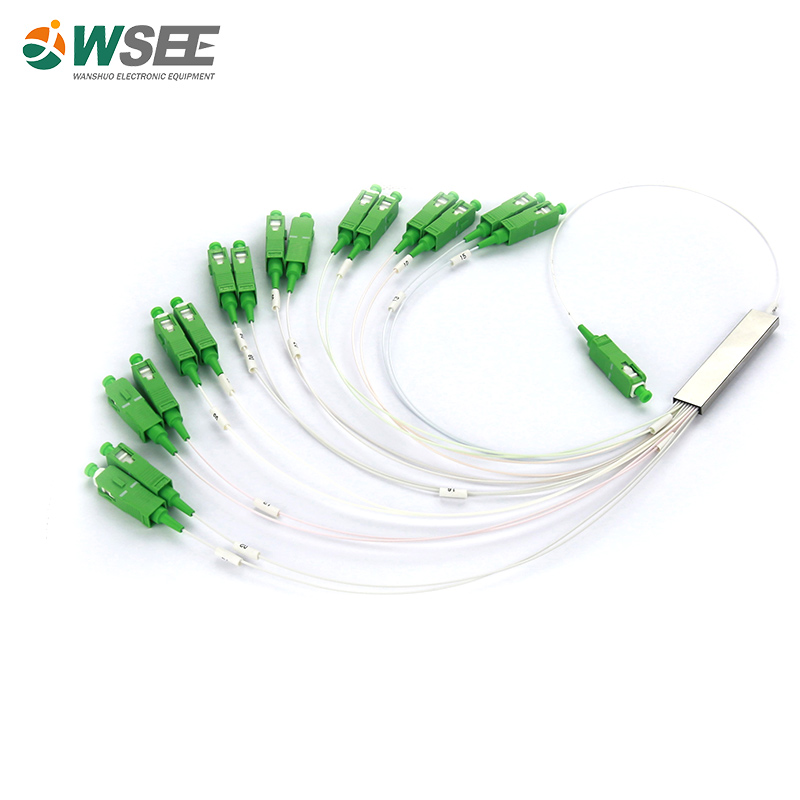

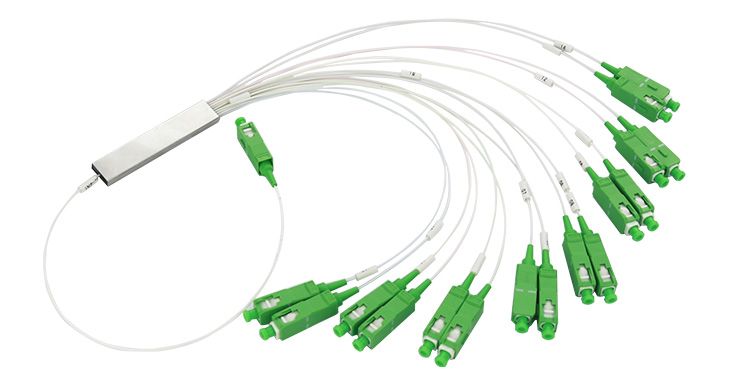

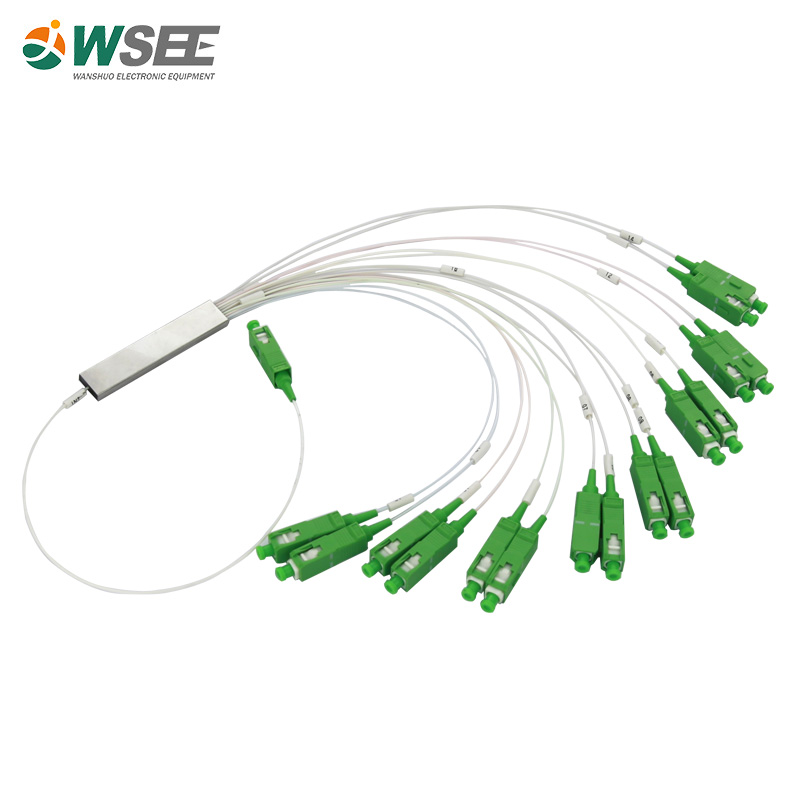

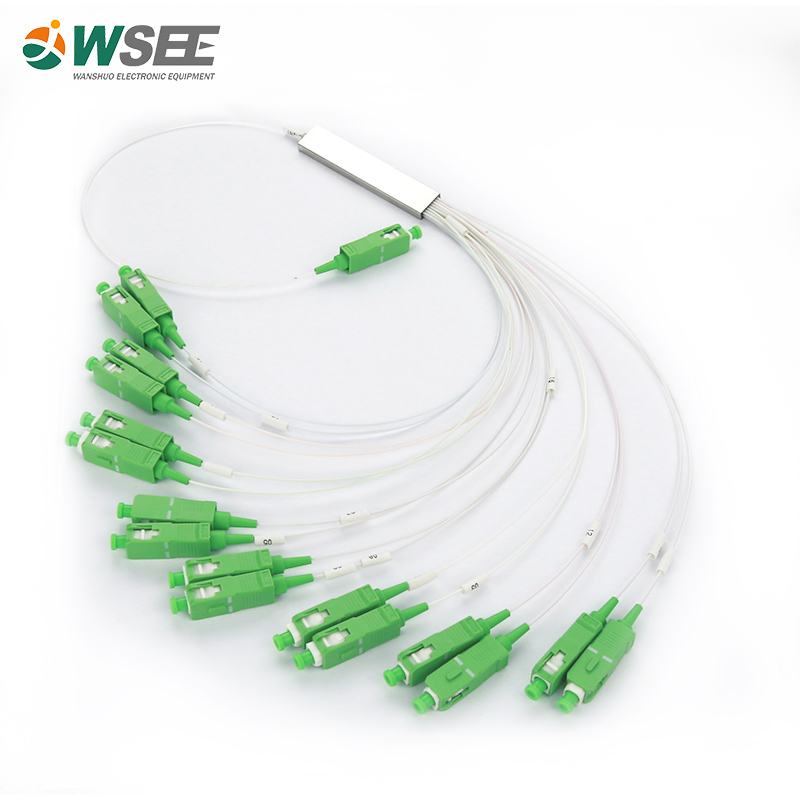

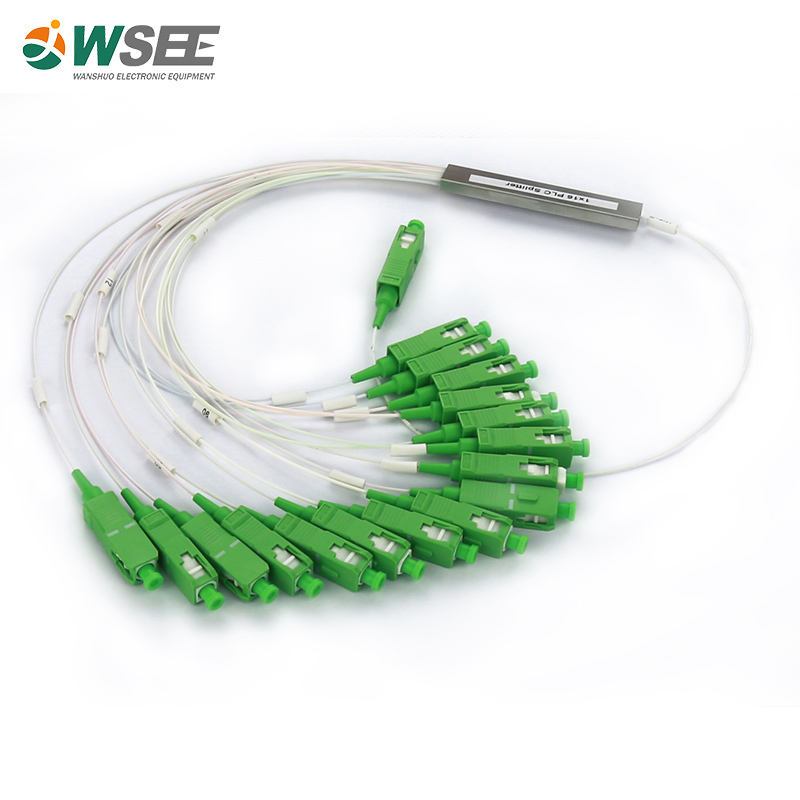

SC/APC Connector 1x16 Fiber Optic PLC Splitter / Coupler
?Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
?
- Adopt?high strength stainless steel, pass salt spray test
- Ferrule core is less than 0.5um
- Adopt?100% new raw material, ROHS compliance
- Low Insertion loss
- Low PDL Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃?to 85℃
?
|

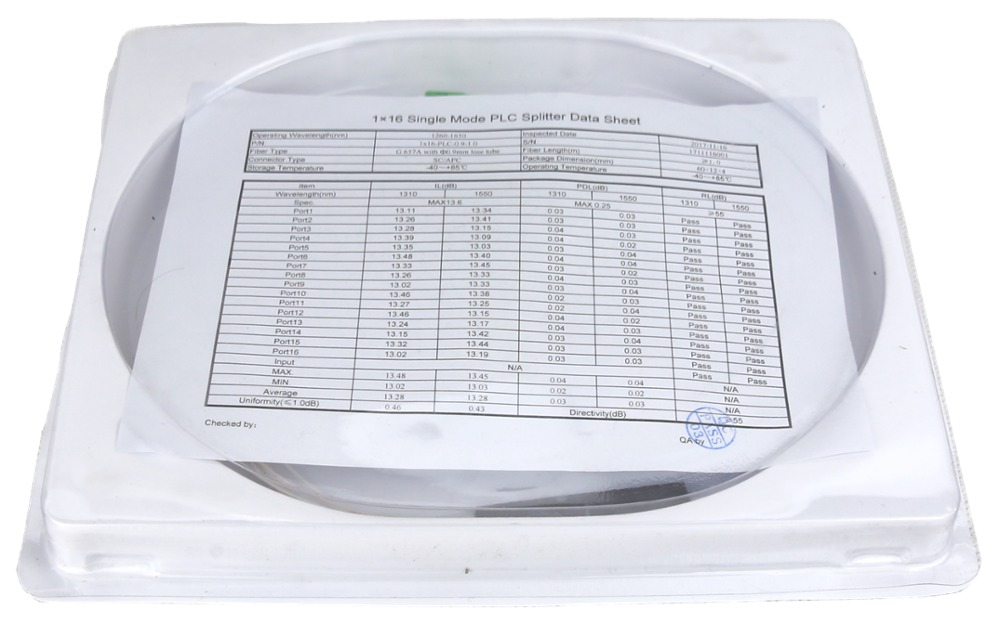

1×16 Single Mode PLC Splitter Data Sheet |
||||||
|
Operating Wavelength(nm) |
1260-1650 |
Inspected Date |
2017/11/21 |
|||
|
P/N: |
1x16-PLC-0.9-1.0 |
S/N: |
1711116001 |
|||
|
Fiber Type |
G.657A with 0.9mm lose tube |
Fiber Length(m) |
≥1.0 |
|||
|
Connector Type |
SC/APC |
Package Dimension(mm) |
60×12×4 |
|||
|
Storage Temperature |
-40~+85℃ |
Operating Temperature |
-40~+85℃ |
|||
|
Item |
IL(dB) |
PDL(dB) |
RL(dB) |
|||
|
Wavelength(nm) |
1310 |
1550 |
1310 |
1550 |
1310 |
1550 |
|
Spec. |
MAX13.6 |
MAX 0.25 |
≥55 |
|||
|
Port1 |
13.11? |
13.34 |
0.03? |
0.03? |
Pass |
Pass |
|
Port2 |
13.26? |
13.41? |
0.03 |
0.03 |
Pass |
Pass |
|
Port3 |
13.28? |
13.15? |
0.04 |
0.03 |
Pass |
Pass |
|
Port4 |
13.39 |
13.09 |
0.04 |
0.02 |
Pass |
Pass |
|
Port5 |
13.35? |
13.03? |
0.03 |
0.04 |
Pass |
Pass |
|
Port6 |
13.48? |
13.40? |
0.04? |
0.04? |
Pass |
Pass |
|
Port7 |
13.33? |
13.45? |
0.03? |
0.02? |
Pass |
Pass |
|
Port8 |
13.26? |
13.33? |
0.04? |
0.03? |
Pass |
Pass |
|
Port9 |
13.02? |
13.33? |
0.03? |
0.04? |
Pass |
Pass |
|
Port10 |
13.46? |
13.38? |
0.02? |
0.03 |
Pass |
Pass |
|
Port11 |
13.27? |
13.25? |
0.02 |
0.04? |
Pass |
Pass |
|
Port12 |
13.46? |
13.15? |
0.04 |
0.02? |
Pass |
Pass |
|
Port13 |
13.24? |
13.17? |
0.04 |
0.03 |
Pass |
Pass |
|
Port14 |
13.15? |
13.42? |
0.03 |
0.04? |
Pass |
Pass |
|
Port15 |
13.32? |
13.44? |
0.03 |
0.03? |
Pass |
Pass |
|
Port16 |
13.02? |
13.19? |
0.03? |
0.03 |
Pass |
Pass |
|
Input |
N/A |
Pass |
Pass |
|||
|
MAX. |
13.48 |
13.45 |
0.04 |
0.04 |
N/A |
|
|
MIN. |
13.02 |
13.03 |
0.02 |
0.02 |
N/A |
|
|
Average |
13.28 |
13.28 |
0.03 |
0.03 |
N/A |
|
|
Uniformity(≤1.0dB) |
0.46 |
0.473 |
Directivity(dB) |
≥55 |
||
?

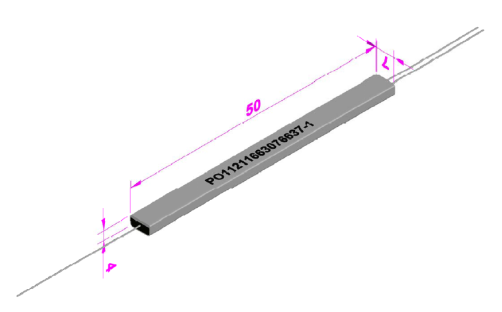

Product Structure (Unit:mm)
?
PLC splitter was widely used in all kinds of optical network solutions , such?as?Security Monitoring, Optical Communication, Network Construction, CATV and Pon network.
?
|
?
? |
Size(MM) |
60*12*4 |
|
N.W.(KG/2PCS) |
2.9kg |
|
|
QTY (PCS/Box) |
2 |
|
|
G.W.(KG/Box) |
3.2kg |

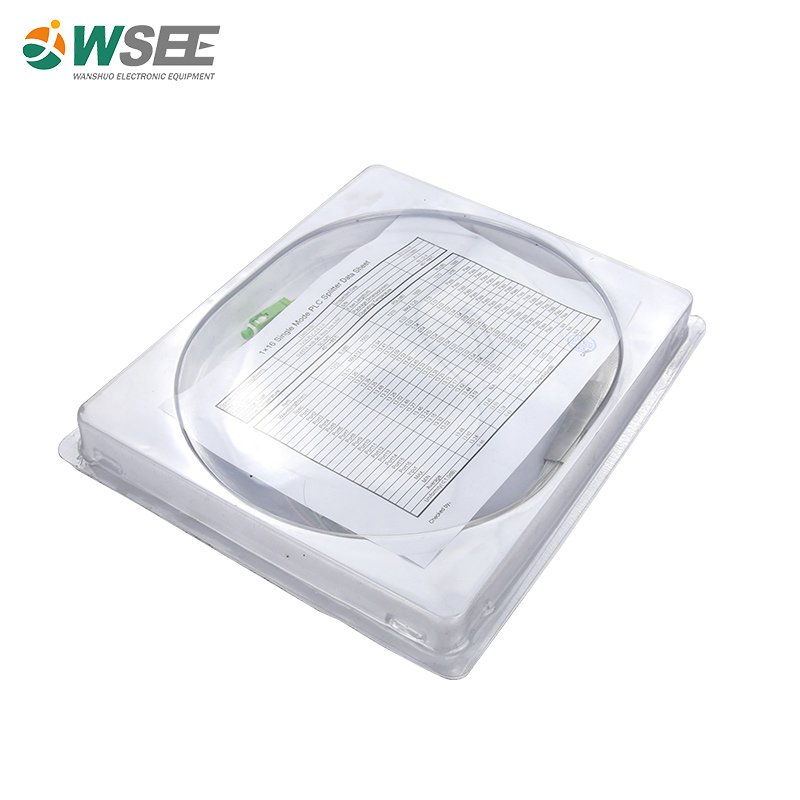

?OEM 1*16 PLC optical splitter?Package: 2pcs / Box.
?
?
?
Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. Our company has become one of the biggest enterprises in the field of CATV equipment in?China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC network equipment.
?
Our company has been researching and developing HFC network products, including?1550nm EDFA, Multi-ports High Power EDFA, 1550nm/1310nm Optical Transmitters, Outdoor Optical Receivers, FTTH Optical Nodes, Passive FTTH Optical Nodes, CATV Amplifiers, hybrid modules, power supplies and passive devices. ?
?
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc. We are looking forward to forming business relationship with new clients around the world.
?
If you are interested in our products, welcome to your inquiry and visit our factory.
?
?
?
Attn:?Sherry
Whatsapp: +86 18560939975
Skype: sherry_wsee
Tel: +86-533-3599957?
Fax: +86-533-3599955
Web: http://www.wanshuo.net
Add: NO.115, Wanjie Road, High-tech Development Area, Zibo, Shandong, China
