Detailed data :

Mitsubishi Electric's universal AC servo amplifier MELSERVO-J3 series.

Rated output: 5.0kw.

Interface type: SSCNET III fiber optic communication type.

Special specifications: fully closed-loop control type.

Power specification: three-phase AC400V

High precision and high response positioning control.

High response full closed-loop control can be achieved through dual feedback control.

Dual feedback control can execute MR-C10A when switching between the same server motor encoder and the load side encoder

MR-J3-B-RJ006 can be used in conjunction with many manufacturers' linear encoders

Users can build systems based on their own accuracy requirements, using ABS type linear encoders with serial interfaces

It is no longer necessary to install batteries on the same server amplifier to easily build an absolute position detection system.

Flexible system configuration.

Can achieve higher load side positioning accuracy | Mitsubishi universal AC co server amplifier MR-J2 series

Rated output: 0.75kw.

Interface: SSCNET type

Voltage: single-phase AC200V

The MR-J2 series private server system has the ability to achieve higher precision control,

Adopting high-performance CPUs greatly improves the responsiveness of the product,

The frequency response of the speed loop is increased to 550Hz,

Multiple series of same server motors are suitable for different control needs,

The encoders on the same server motor all support ABS mode,

As long as an additional battery is added to the servo amplifier,

It can form an absolute bit abuse system. Mitsubishi universal AC servo amplifier MR-J2 series.

Rated output: 0.75kw.

Interface: Universal interface.

Voltage: single-phase AC200V

The Mitsubishi servo amplifier in the Mitsubishi servo system is widely used,

Not only can it be used in applications that require high-precision position control and stable speed control, such as working machinery and general industrial machinery,

It can also be used in the fields of speed control and tension control

By installing servo setting software on a personal computer, parameter setting, trial operation, status display, and gain adjustment can be carried out

The Mitsubishi servo system MR-J2S series is a Mitsubishi servo system developed on the basis of the servo MR-J2 series with higher performance and functionality

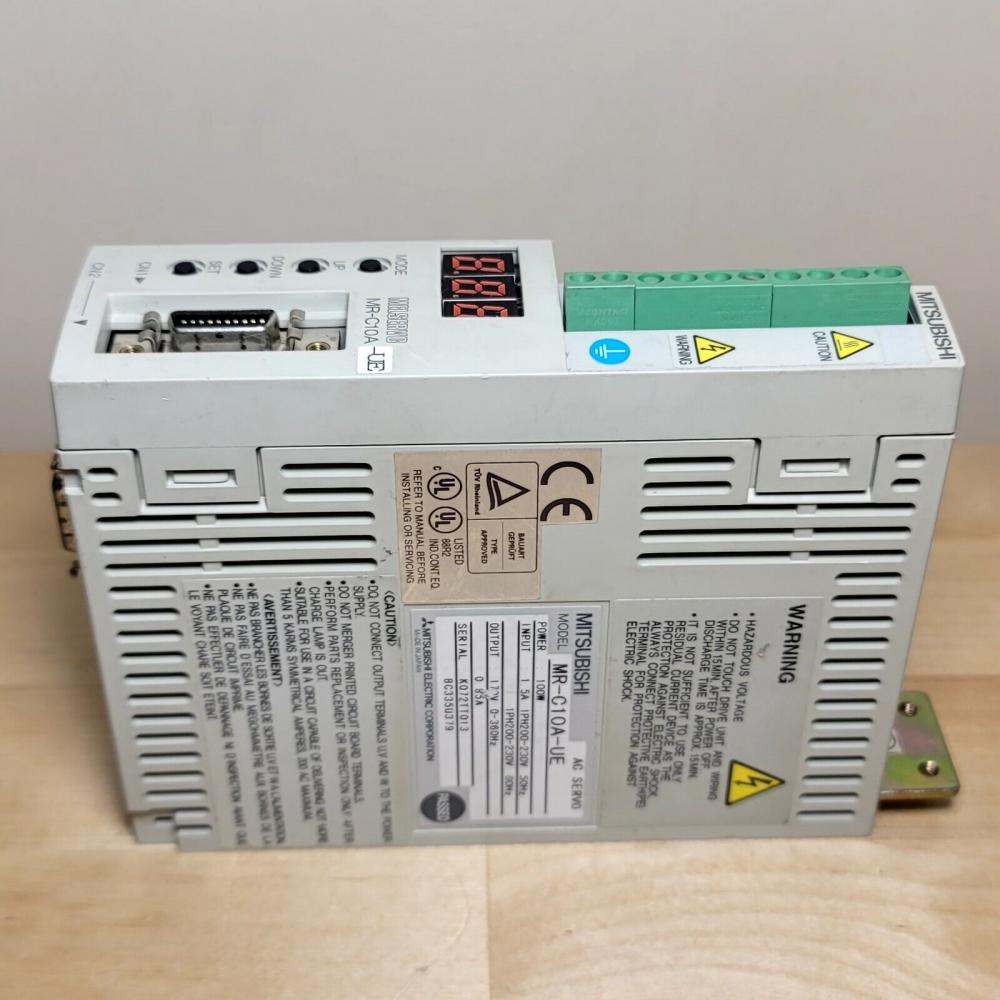

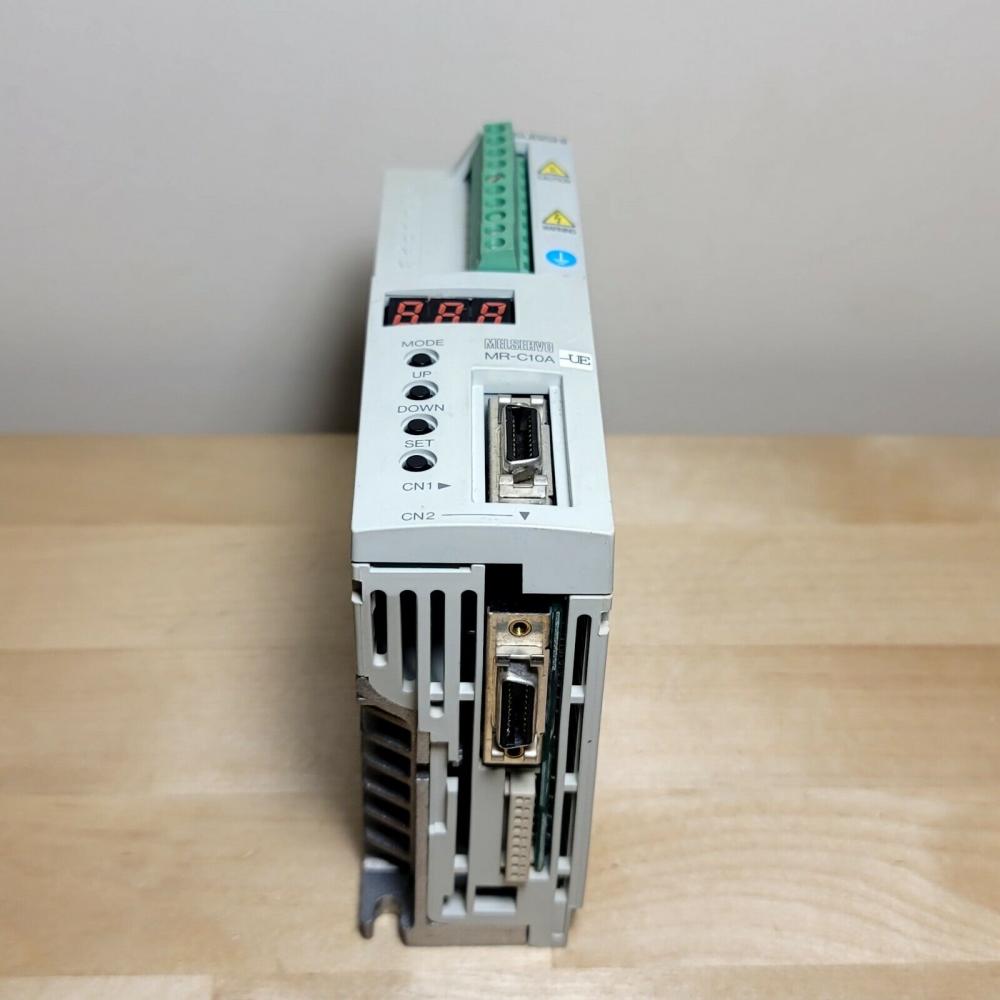

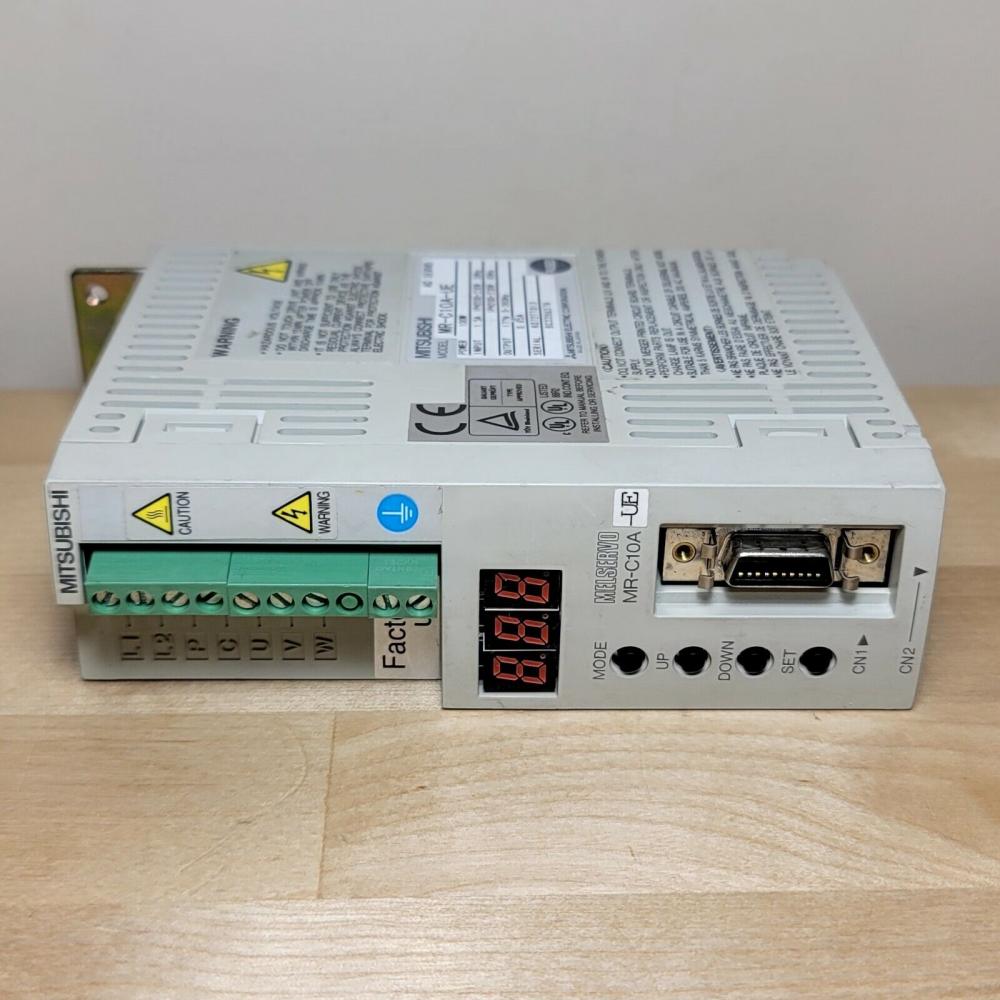

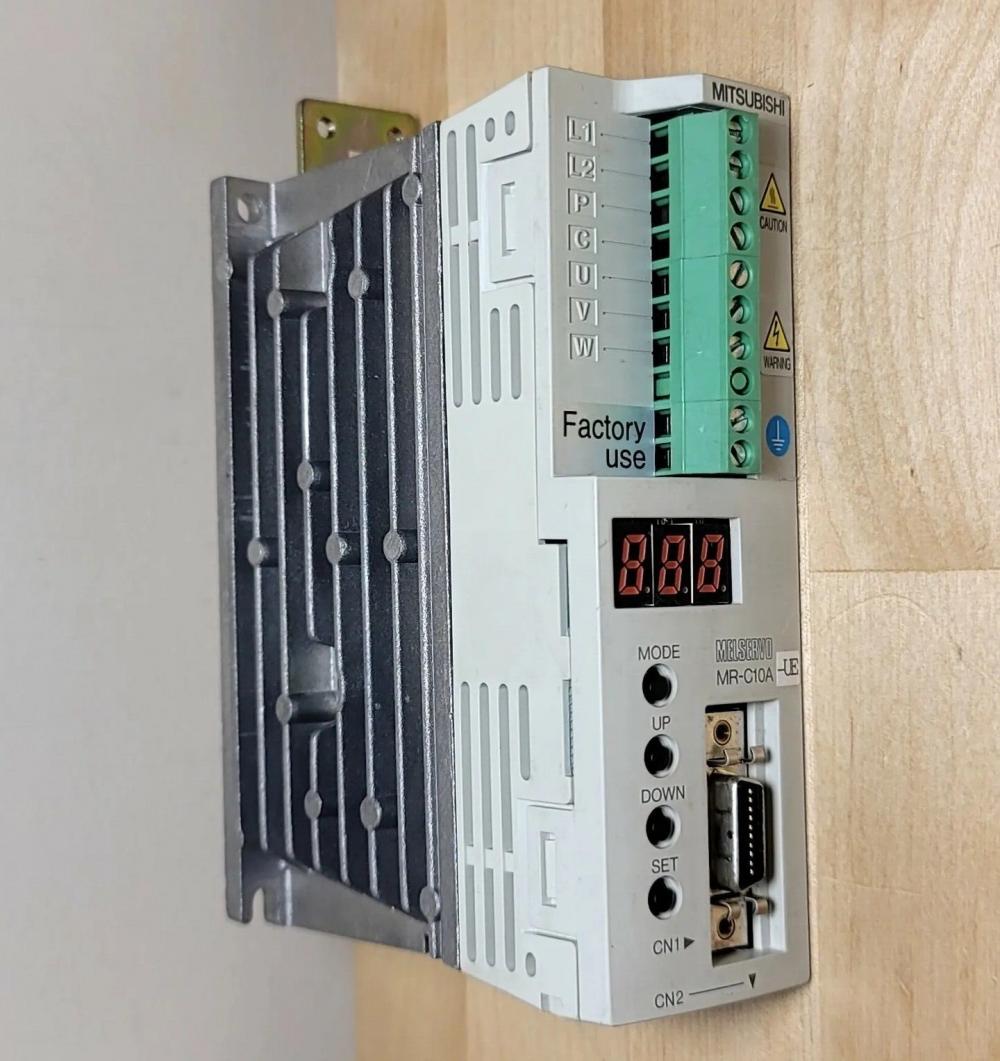

Its control modes include position control, speed control, torque control, and the switching control methods between them are available for selection. Type: MR-C type

Symbol 10A applies to motor model: HC-PQ033/053/13.

Power supply voltage: single-phase AC100V,

In terms of drivers: With the development of variable frequency technology, servo drivers have,

Current loop inside the driver

Both the speed loop and the bit snow loop (the frequency converter does not have this person) have undergone more precise control techniques and algorithm calculations than a single frequency converter.

In terms of functionality, it is also much more powerful than traditional servo systems,

The main point is that precise position control can be achieved

Control speed and position through the pulse sequence sent by the upper controller

The algorithm inside the driver, faster and more accurate calculations, and better performance electronic devices make it superior to dry frequency converters. Universal use for three speed motors

AC co server amplifier MELSERVO-J3 series.

Rated output: 0.75kw.

Interface type: SSCNET III fiber optic communication type.

Special function: integrated driver safety function.

Power specification: single-phase AC200V,

The STO function has been added as a safety feature to the SSCNET fiber optic communication type servo amplifier.

By using the STO function, the electromagnetic contactors previously used to prevent accidental starting of the motor are no longer needed.

The SS1 function can be achieved by using the MR-J3-D05 security logic unit.

MR-J3-BS adopts a fully closed-loop control system..

Compatibility with MR-J3-B

The installation, wiring, and connectors of MR-J3-BS are the same as those of MR-J3-B, so it is easy to connect MR-J3-B without changing the existing connections

Replace with MR-J3-BS

The safety function is to increase the driving safety of MR-J3-BS by connecting it to the CN8 interface through an external safety circuit

Compatible with full closed-loop control system

MR-J3-BS has a fully closed-loop control system version
