Omnidirectional Bar Code Platform Barcode Scanner

Options:

Get Latest Price

Basic Info

Model No.	WAI-7000-Z
Brand Name	winson
Certification	Ce
product status	Stock
Types of	Barcode Scanner
Scanning element type	Ccd, Cmos
Color point	32 Bit
Interface Type	Usb
place of origin	China
Warranty period (years)	1-Year
After-sales service	Onsite Training And Inspection
Products Status	Stock
Type	2D Table Top Bar Code Scanner
Scan Element Type	Cmos
Colour Depth	32 Bit
Interface Type	usb, Other
Max Paper Size	N/A
Optical Resolution	1280X800 pixels
Scan Speed	Contact us
Brand Name	Winson
Place Of Origin	Guangdong, China
Warranty(Year)	1-Year
After-sales Service	Call Center And On-Line Technical Support
Product Name	2D Table Top Bar Code Scanner
Interface	RS-232/USB HID KEYBOARD/USB VCP
Photo sensor	CMOS array sensor
Voltage requirement	5VDC±10%
Temp (operation)	0 - 50%
Temp(storage)	-5 - 55%
Humidity	5%~95%(No condensation)
Language	Multiple keyboard language
Configurations	Decoding
Certification	Ce, Rohs

Product description

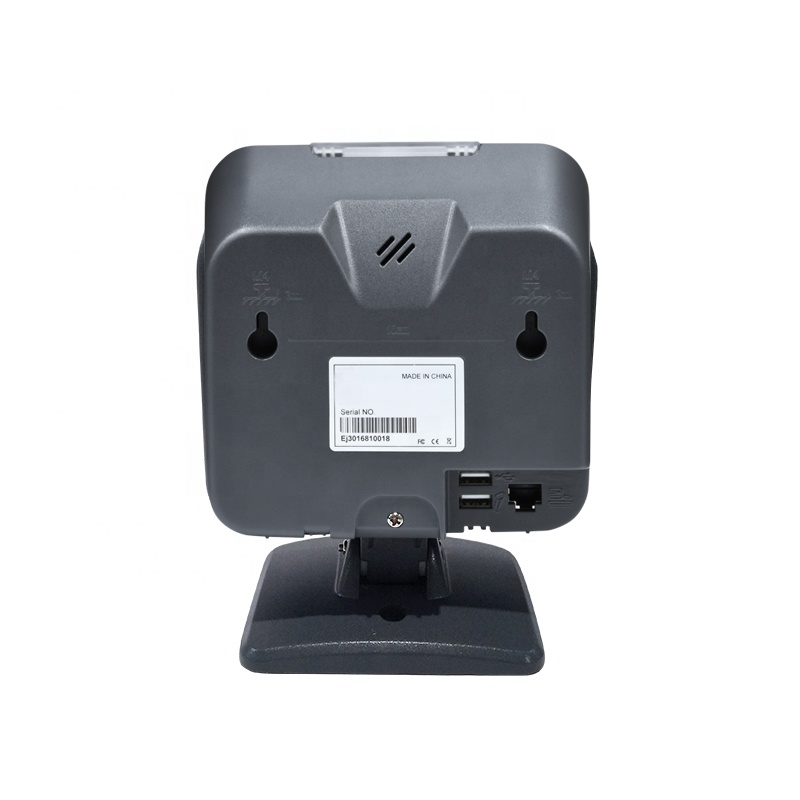

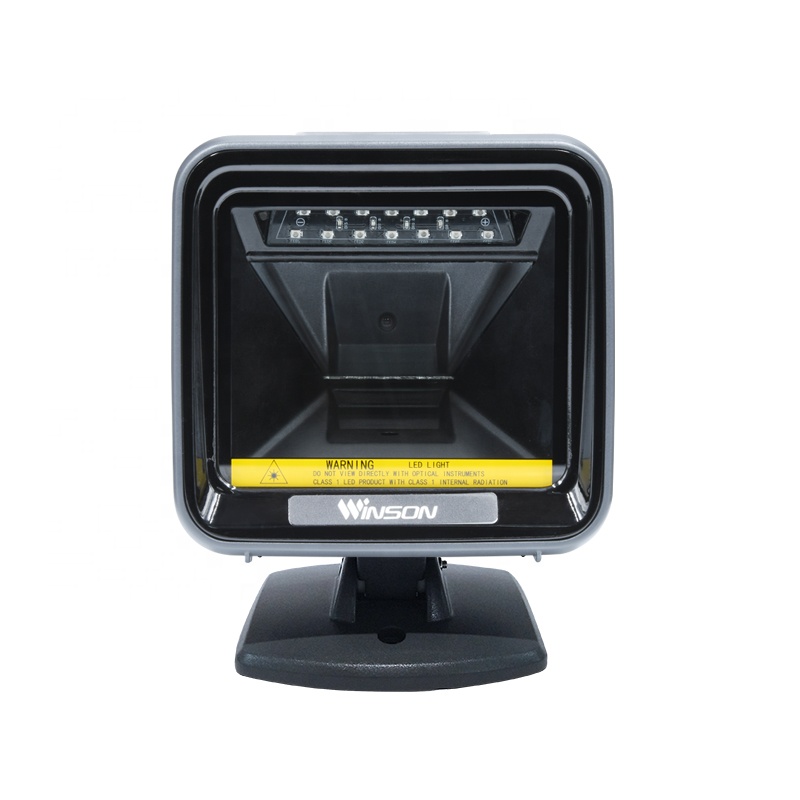

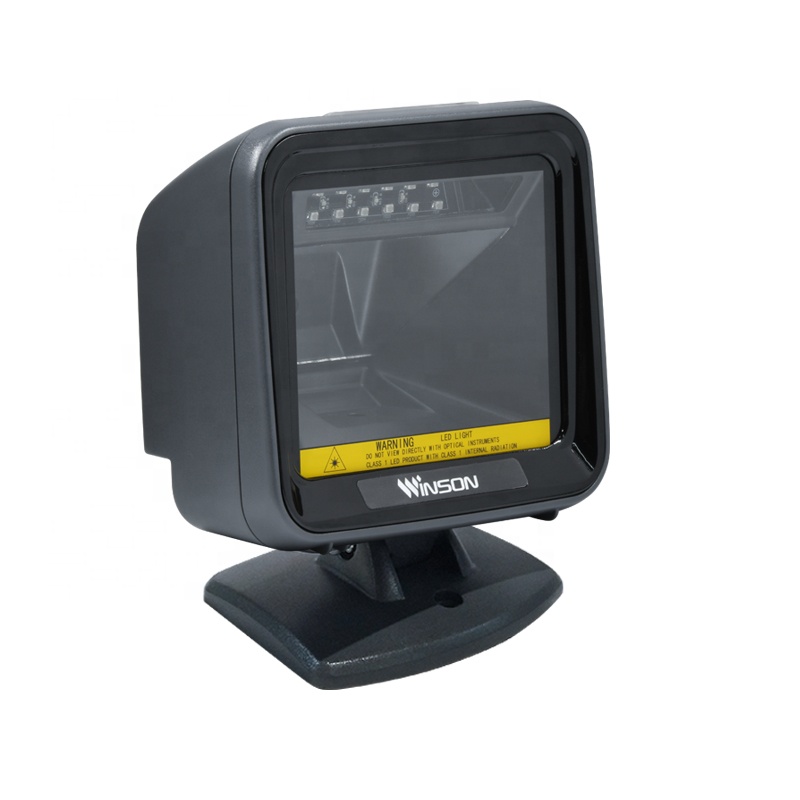

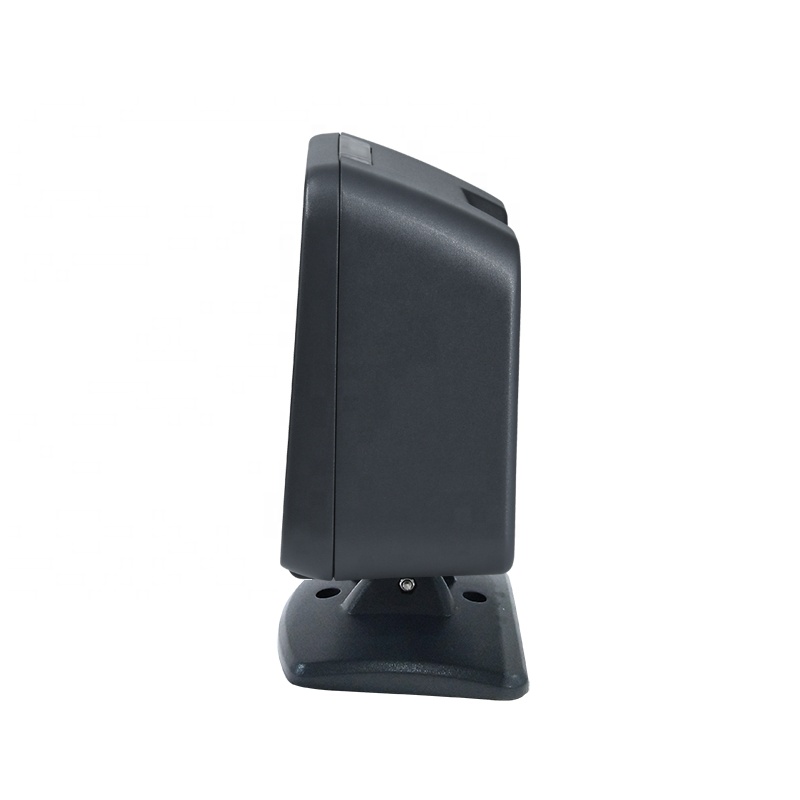

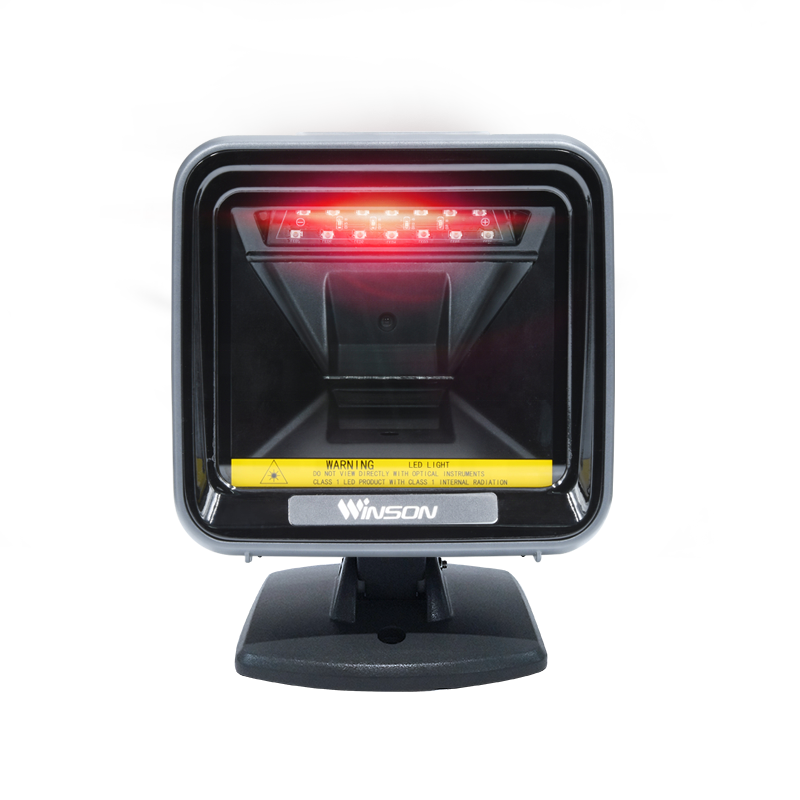

Winson WAI-7000-Z Desktop Barcode Reader Platform with Bracket 2D Scanner for Supermarket

Features

1.Barcode Scanner Cable Winson 2D Desktop Barcode Reader Platform with Bracket

2Barcode Scanner Usb Cable Laser-free Aiming,support read paper and screen barcodes.

3.Barcode Scanner Cord Choose USB HID KEYBOARD, USB VCP or RS-232 connectivity

4.2d Handheld Barcode Scanner Support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on

Product Description

barcode scanner Winson Omnidirectional Bar Code Scanning Platform CMOS POS Machine Thermal Barcode Scanner

Reference depth of field	Test barcode	Barcode media	Resolution	Barcode width	Min depth of field	Max depth of field
	Code 39	Paper	3.34mil	23mm*15mm	-	4.5cm
	Code 39	Paper	20mil	43mm*15mm	-	29cm
	Code128	Paper	3.34mil	18mm*15mm	-	3.5cm
	Code128	Paper	5mil	43mm*15mm	-	10cm
	Code128	Paper	15mil	43mm*15mm	-	33cm
	Code 39	Paper	6.67mil	44mm*15mm	-	19cm
	Code128	Paper	20mil	62mm*15mm	-	40cm
	EAN/UPC	Paper	13.34mil	42mm*15mm	-	29cm
	QR	Paper	20mil	20mm*20mm	-	20cm
	PDF417	Paper	6.67mil	55mm*19mm	-	4cm
	PDF417	Paper	13.34mil	35mm*15mm	-	23cm
