Basic Info
| Model No. | GMS-JT50 |
|---|---|
| Brand Name | GEMS |
| status | New |
| Applicable industry | Hotels, Manufacturing Plant, Retail, Food &Amp; Beverage Shops, Garment Shops, Building Material Shops, Food &Amp; Beverage Factory, Printing Shops, Other, Advertising Company, Construction Works, Food Shop, Farms, Machinery Repair Shops, Restaurant, Energy &Amp; Mining, Home Use |
| Out-of-warranty service | Video Technical Support, Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description

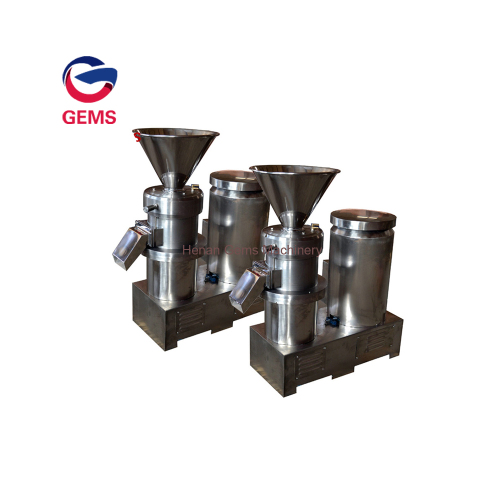

Fresh Onion Paste Milling Grinder Machine Introduction:
1. This onion paste making machine is multi-functional, it is avalibale for peanut butter, cocoa butter, sesame butter, almond butter, soybean, chili, dates paste, corn butter, turmeric, mayonnaise, apple, garlic, almond milk, soybean milk, corrot, chicken paste, bone paste, hazenut, rice milk etc.
2. We have full stainless steel and carbon steel type(only contact with food are stainless steel), you can choose freely.
3. We can also equip with circulation pipes, it is more convenient for processing almond/soybean/corn/almond milk etc.
If you want to use this colloid mill into production line, we can provide the horizontal type colloid mill.
Technical Parameters of Onion Paste Making Machine:
| Model |
Power |
Capacity |
Rotation |
Rotor Dia. |
Dimenison |
Weight |
|
GMS-JT50 |
1.1kw |
10-30kg/h |
2820rpm |
50mm |
520*250*555mm |
67kg |
|
GMS-JT80 |
4kw |
70-100kg/h |
2890rpm |
80mm |
685*335*928mm |
173kg |
|
GMS-JT110 |
7.5kw |
200-300kg/h |
2930rpm |
110mm |
700*430*1000mm |
235kg |
|
GMS-JT130 |
15kw |
400-600kg/h |
2930rpm |
130mm |
975*456*1054mm |
330kg |
|
GMS-JT180 |
22kw |
800-1000kg/h |
2930rpm |
180mm |
981*476*1124mm |
420kg |
|
GMS-JT240 |
45kw |
1500-2000kg/h |
2970rpm |
240mm |
1319*500*1276mm |
1000kg |
|
GMS-JT300 |
75kw |
3000-4000kg/h |
2970rpm |
300mm |
1400*620*1400mm |
1600kg |
1. The main spar parts are stator rotor, which are made of 3Cr13 food grade stainless steel. The sevice life is much longer. We also provide customization for it.
2. For outlets, we have round and square two types.
3. This onion paste making machine is with cooling device, which can keep the machine in low temperature.
4. For hoppers, we can customize it as your needs for free.
5. If you process the special raw materials, we can provide explosion-proof motor.
Wooden Package & Exporting Cases:
We exported to USA, Portugal, Australia, Ecuador, Chile, South Africa, Panama, Netherlands, Greece, Zambia etc more than 30 countires. We promise export standard free fumigation wooden box.
We also have the onion dehydrator machine: We also have the fruit vegetable crusher, fruit vegetable dehydrator machine and flour (powder) grinding machine to get coconut powder. The final powder is very smooth.
