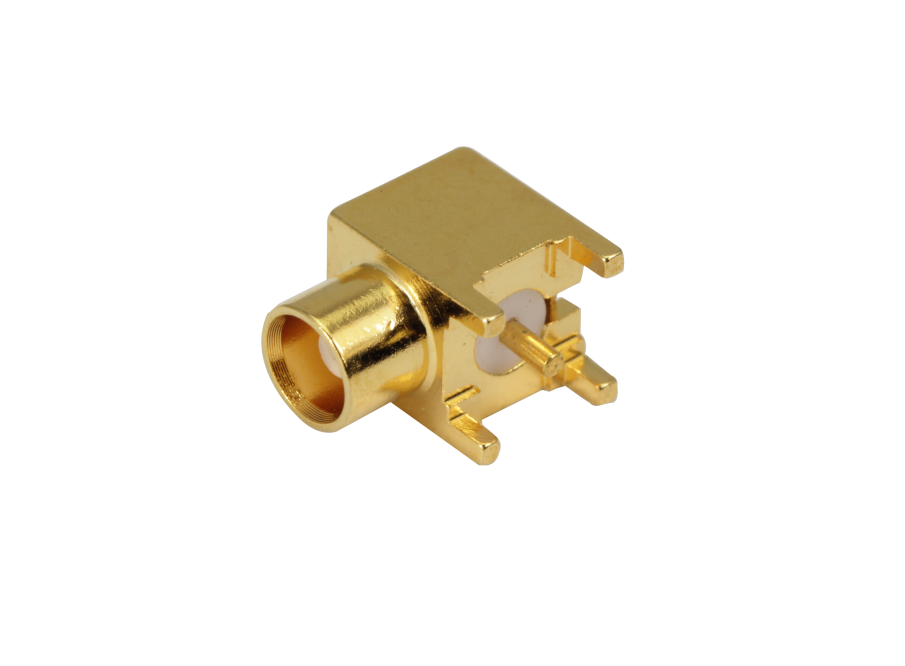

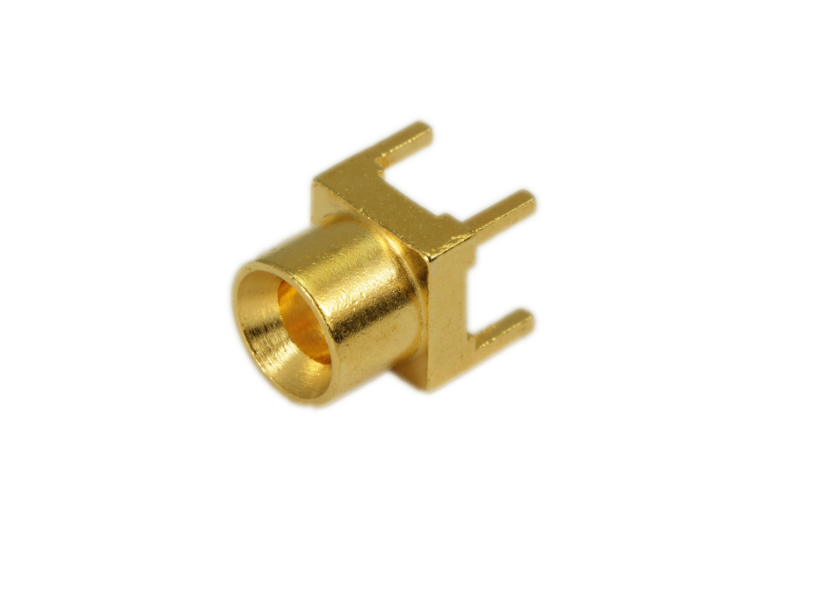

PCB Mount MCX Cable Connector
Basic Info
| Brand Name | Honor |
|---|---|
| species | Rf Connector |
| place of origin | China |
| impedance | 50ohm |
| Brand Name | Honor |
| Insulators | Ptfe |
Product description

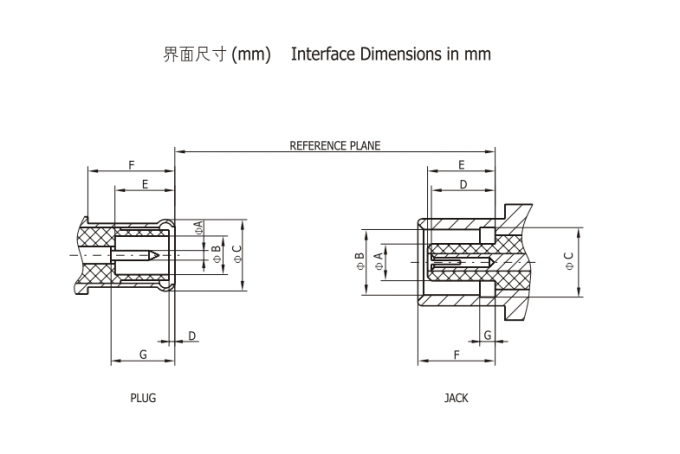

Series MCX are snap-on coupling micro-miniature coaxial connectors with 30% smaller size than SMB connectors, which are sure to fit most applications where space, weight, performance is easy to assembly in RF circuits of mobile and fixed communication system. The interface dimensions and technical characteristics conform to the European CECC 22220 specifications. Characteristic impedance 50 Ohm, 75 Ohm.
1.MCX connectors for flexible RG-type(RG58,RG188, RG316, RG178 and etc),SFF-type(SFF-75-1 and etc)
2.MCX connectors for semi-rigid and conformable cables (.047, RG-405/.086 and etc)
3.MCX connectors for solder/crimp/clamp plug(male) or Jack(female)
We also can make below RF connectors:
MCX straight or right angle solder/crimp/clamp plug(male) or Jack(female) for SFF-75-1,RG58,RG188,RG196,RG174, RG178, RG316 50 Ohm
MCX Cable Mount Connectors
|
Picture |
Part Number |
Description |
Gender |
Maximum Frequency |
Termination Style |
Polarity |
Orientation |
Data Sheet |
|
MCX-J2A |
MCX Straight Crimp Plug RG178 50 Ohm |
Plug(male) |
6GHz |
Cable - Crimp |
Standard |
Straight |
||
|
MCX-J3A |
MCX Straight Crimp Plug RG174,RG188,RG316 50 Ohm |
Plug(male) |
6GHz |
Cable - Crimp |
Standard |
Straight |
||
|
MCX-JW2 |
MCX Right Angle Crimp Plug RG178,RG196 50 Ohm |
Plug(male) |
6GHz |
Cable - Crimp |
Standard |
Right Angle |
||
