Right Angle MCX Cable Connector Jack PCB Connectors
Basic Info
| Brand Name | Honor |
|---|---|
| species | Rf Connector |
| package | Other |
| Supply Type | Original Manufacturer |
| place of origin | China |
| impedance | 50ohm |
Product description

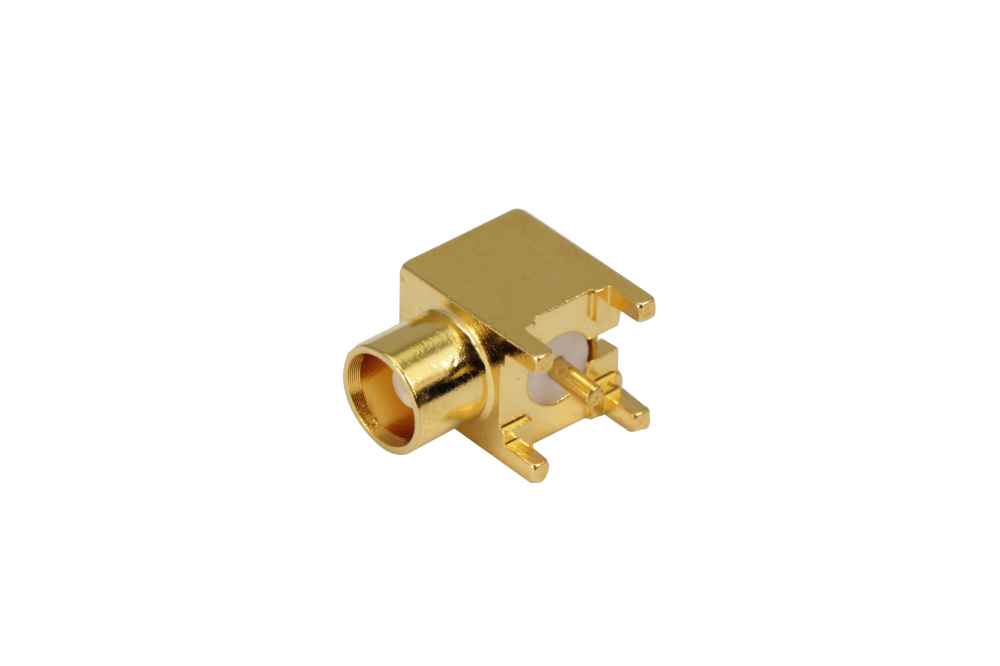

MCX right angle Jack(female) PCB RF connectors for edge launch/through hole/surface mount
1.MCX straight PCB connectors
2.MCX right angle PCB connectors
MCX connectors
Series MCX are snap-on coupling micro-miniature coaxial connectors with 30% smaller size than SMB connectors, which are sure to fit most applications where space, weight, performance is easy to assembly in RF circuits of mobile and fixed communication system. The interface dimensions and technical characteristics conform to the European CECC 22220 specifications. Characteristic impedance 50 Ohm, 75 Ohm.
|
主要技術參數 Key Performance |
||||||
|
溫度范圍 Temperature range |
-65~+155°C |
絕緣電阻 Insulation resistance |
≥1000MΩ |
|||
|
特性阻抗 Characteristic impedance |
50Ω/75Ω |
介質耐壓 Dielectric withstanding voltage |
750V(rms) |
|||
|
頻率范圍 Frequency range |
0~6GHz(50Ω) 0~1.5GHz(75Ω) |
電壓駐波比 VSWR |
直式 Straight |
≤1.3 |
||
|
彎式 Angle |
≤1.5 |
|||||
|
工作電壓 Working voltage |
335V (rms) |
內導體間拔出力 Center conductor withdrawal force |
≥0.25N |
|||
|
接觸電阻 Contact resistance |
中心導體 Center conductor |
≤5mΩ |
壽命 Durability |
500 times |
||
|
外導體 Outer conductor |
≤2.5mΩ |
|||||
|
接口適用標準 Applicable standard |
CECC22220 |
|||||
|
材料與涂覆 Material and Plating |
|
|
殼體 Body |
黃銅鍍硬金 Brass,gold plated |
|
插針 Male center contacts |
黃銅鍍硬金 Brass,gold plated |
|
插孔 Female center contacts |
鈹青銅鍍硬金 Beryllium copper, gold plated |
|
絕緣體 Insulators |
聚四氟乙烯 PTFE |
|
壓接套 Crimp ferrules |
銅合金鍍鎳或鍍金 Copper alloy, nickel or gold plated |
|
彈性接觸件 Spring contacts |
鈹青銅鍍硬金 Beryllium copper,gold plated |
MCX straight/right angle plug(male) or Jack(female) PCB RF connectors for edge launch/through hole/surface mount
XAHonor PCB mount MCX connectors are Micro Coaxial connectors which designed to terminate to a variety of printed circuit boards, including MCX surface mount connector, MCX PCB-through hole connectors, 50 ohm and 75 ohm MCX PCB mount connectors. They are widely used in the Wireless Antenna,Networks Antenna, WLAN, Automotive, Head End Equipment.
MCX PCB Mount Connectors
|
Picture |
Part Number |
Description |
Gender |
Maximum Frequency |
Termination Style |
Polarity |
Orientation |
Data Sheet |
|
MCX-KHD13 |
MCX Straight PCB Jack 50 Ohm |
Jack(female) |
6GHz |
PCB-Through Hole |
Standard |
Straight |
||
|
MCX-KHD15 |
MCX Straight PCB Jack 50 Ohm |
Jack(female) |
6GHz |
PCB-Through Hole |
Standard |
Straight |
||
|
MCX-KHD6048 |
MCX Straight PCB Jack50 Ohm |
Jack(female) |
6GHz |
PCB-Through Hole |
Standard |
Straight |
||
|
MCX-KWHD8 |
MCX Right Angle PCB Jack 50 Ohm |
Jack(female) |
6GHz |
PCB-Through Hole |
Standard |
Right Angle |
||
|
MCX-KWHT1 |
MCX Right Angle PCB Jack 50 Ohm |
Jack(female) |
6GHz |
PCB-Surface mount |
Standard |
Right Angle |
||
|
MCX-75JHD |
MCX Straight PCB Plug 75 Ohm |
Plug(male) |
1.5GHz |
PCB-Through Hole |
Smz Coaxial Connector SMZ Connector
L9 Bulkhead Mount Connectors L9 Connector
Tnc Cable Mount Connectors TNC Type Connector
Saa Pcb Mount Connectors SAA Connector
Smc Cable Mount Connectors SMC RF Connector
Welcome contact with us feel free for your special requirement. Call us or write to us now !
