PMMA Light Diffuser Panel for Led Panel Light

$8.50 / Piece/Pieces

Get Latest Price

Model No.	Jk-SS70
Brand Name
place of origin	China
Material	Pc
Processing Service	Cutting, Moulding
Place of Origin	Guangdong, China
Brand Name	J.K Optics
Width(W)	1200mm
Length(L)	1200mm
Usage	lighting fixture cover
Color	Milky, opal, etc
Finish	Glossy, Matte
Size	1200*1200mm
Light Transmittance	90%
Thickness(T)	1.5mm-3.0mm
Code	Jk-SS90-PMMA-1.5

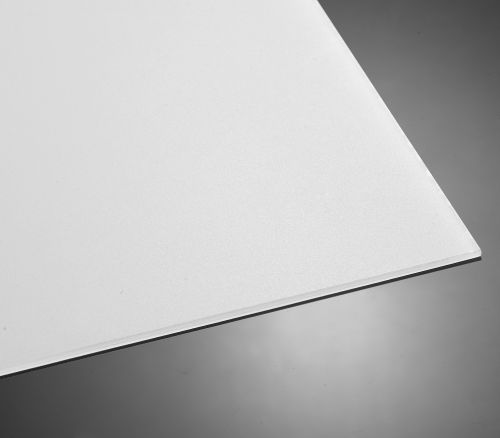

PMMA Light Diffuser Panel for Led Panel Light

PMMA Light Diffuser Panel for LED Panel Light is an optical diffuser specially designed for LED panel lights. Made of polymethylmethacrylate (PMMA) material, the panel can effectively diffuse and evenly distribute the light emitted by the LED lamp, thereby achieving a soft and uniform lighting effect.

This diffuser panel has high light transmittance and excellent optical properties, which can minimize the glare and light spots of LED lights, provide a comfortable lighting environment, and avoid eye fatigue and discomfort. Its uniform light scattering characteristics also make the entire lighting area have consistent brightness and color temperature, eliminating obvious light and shadow edges, and improving the uniformity and comfort of the lighting effect.

In addition, PMMA material has excellent weather resistance and durability, and can maintain its optical performance for a long time without being affected by oxidation or discoloration, thereby extending the service life of the LED panel light and reducing maintenance and replacement costs.

Acrylic Diffuser

Acrylic diffusion sheet application

A, For Back-lit Led Luminaire:

Code	Thickness (mm)	Appearance	Distance between lamps: working distance to diffuser	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)		Efficiency in typical LED luminaire	Commends
JK-90	1.2-5.0	One side matt, Another side Orange Peel Texture	1:2	80%		>90%	Highest efficiency, Good lamp hiding
JK-85	1.2-5.0	One side matt, Another side smooth	1:2.5	75%		>85%	Excellent efficiency, Increased lamp hiding
JK-76	1.2-5.0	One side matt, Another side smooth	1:2	70%		>80%	High efficiency, Excellent lamp hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	1:1.5	60%	>75%		General efficiency, Strongest lamp hiding available

PMMA diffusion sheet light Transmission

B, For side lighting Led Luminaire:

Code	Thickness(mm)	Appearance	Recommend Light Guide Plate	Transmission (Test by Transmission and haze Analyzer, ASTM D1003-61(1997)	Efficiency in typical LED luminaire	Commends
JK-76	1.2-5.0	One side matt, Another side smooth	Screen printed LGP	70%	>85%	Highest efficiency, General defect hiding
JK-70	1.5-5.0	One side matt, Another side Orange Peel Texture	Screen printed or Laser cutting LGP	65%	>80%	Excellent efficiency, Increased defect hiding
JK-60	1.5-5.0	One side matt, Another side smooth or two side matte	Screen printed or Laser cutting LGP	60%	>75%	Excellent efficiency, Strongest defect hiding
